Rotary Table - Boring

No.   Make / Type New in table length table width table load
UNION TI 1800 1988 2000 mm 1800 mm 12,5 t
FRORIEP 4000 x 2500 1995 rebuilt 4000 mm 2500 mm ca. 40/60 t
INNSE 5000 x 5000 ca. 2005 5000 mm 5000 mm 250 t

Filter Device

No.   Make / Type New in liter capacity feed pressure coolant capacity
REISHAUER AF 1982 120 l 218 bar - l

Milling Device

No.   Make / Type New in power capacity tool adaptor spindle turning speed - stepless
WEISS 176099 A 2008 56,5 kW HSK 100 10.000 U/min

Chuck

No.   Make / Type New in diameter weight of the machine ca. dimensions of the machine ca.
GARANT 684.E 0 1000 mm ca 350 kg - m

Internal Grinding Unit

No.   Make / Type New in internal grinding diameter grinding depth min. dia.
MIKROMAT GSU 315 / 320 1985 - mm -- mm - mm

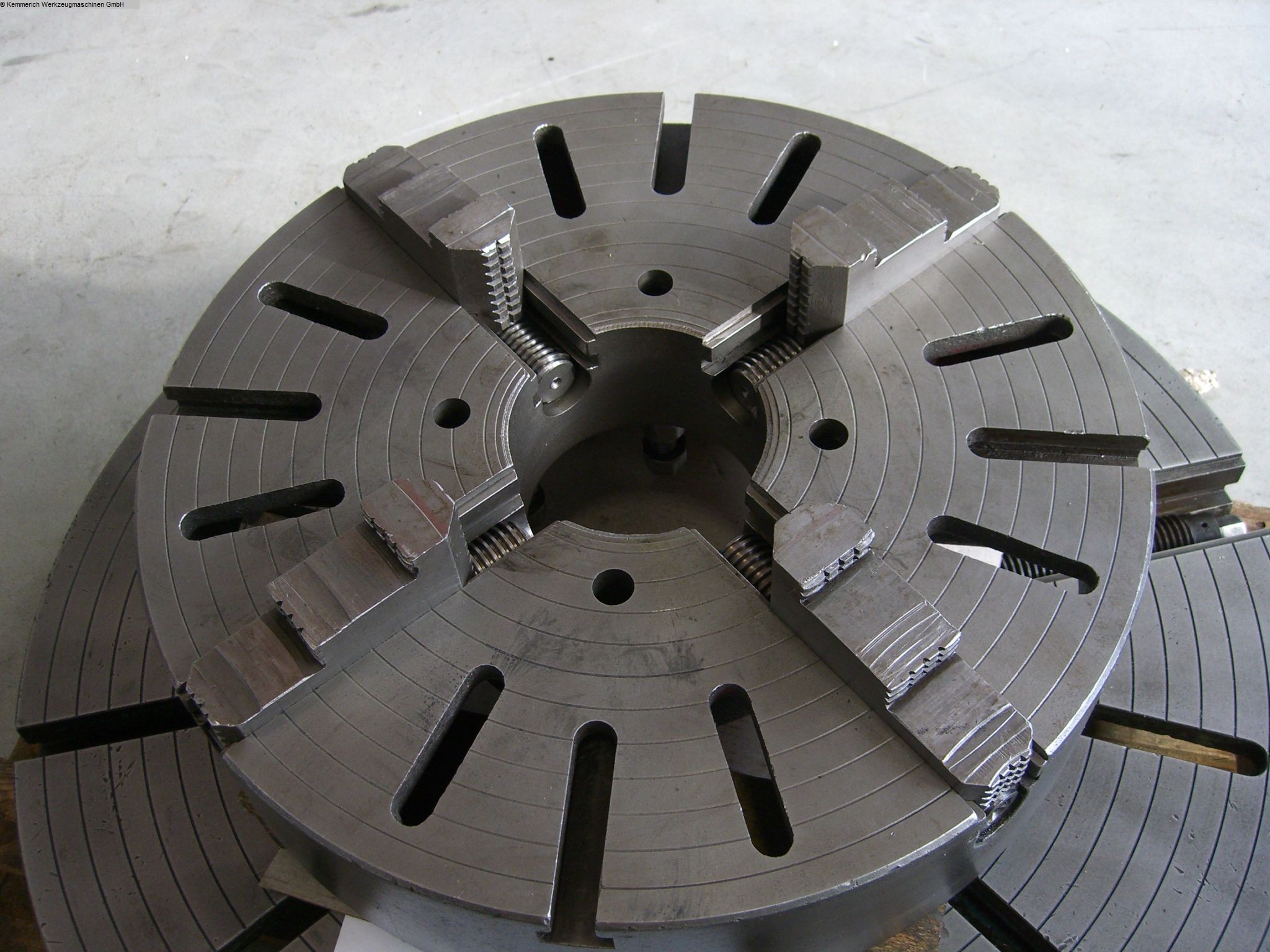

Faceplate

No.   Make / Type New in faceplate diameter weight of the machine ca.
GARANT 0 0 630 mm 150 kg

Grinding Wheel Profiling Device

No.   Make / Type New in max. width of grinding wheel max. dia. of grinding wheel max. module
REISHAUER AM 10 1985 62/84/104 mm 270-400 mm 9

Rotary Table - Tilting

No.   Make / Type New in table diameter table load table height
EIMELDINGEN SM 800 Super H 1985 800 mm 0,6 t - mm

Swarf Conveyor

No.   Make / Type New in length in total band width conveying height
KABELSCHLEPP 63 12-1985 5400 mm 200 mm variabel mm
KABELSCHLEPP 63 12-1985 8800 mm 200 mm variabel mm
