| Stock-No. |
1020-21194 |
| Category |
Planer-Type Milling M/C - Double Column |
| Make |
KAFO |
| Type |
RV 5135 CNC |
| New in |
2016 |
| Control |
Fanuc 0i-MF |
| Location |
ab Werksstandort Non-EU |
| Origin |
Taiwan |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
5100 mm |
| y-travel |
3500 mm |
| z-travel |
1100 mm |
| distance between columns |
2700 mm |
| distance table - lower edge spindle |
200 - 1300 mm |
| table-size |
5000 x 2600 mm |
| table load |
17 t |
| spindle motor |
37 /45 kW |
| spindle turning speed range |
6000 U/min |
| tool taper |
BT 50 |
| feed in x - axis |
12 mm/min |
| feed in y - axis |
20 mm/min |
| feed range Z-direction |
15 mm/min |
| w-axis |
mm |
| control |
Fanuc 0i-MF |
| total power requirement |
- kVA |
| weight of the machine ca. |
- t |
| dimensions of the machine ca. |
13 x 8 x 5,5 m |
| Description |

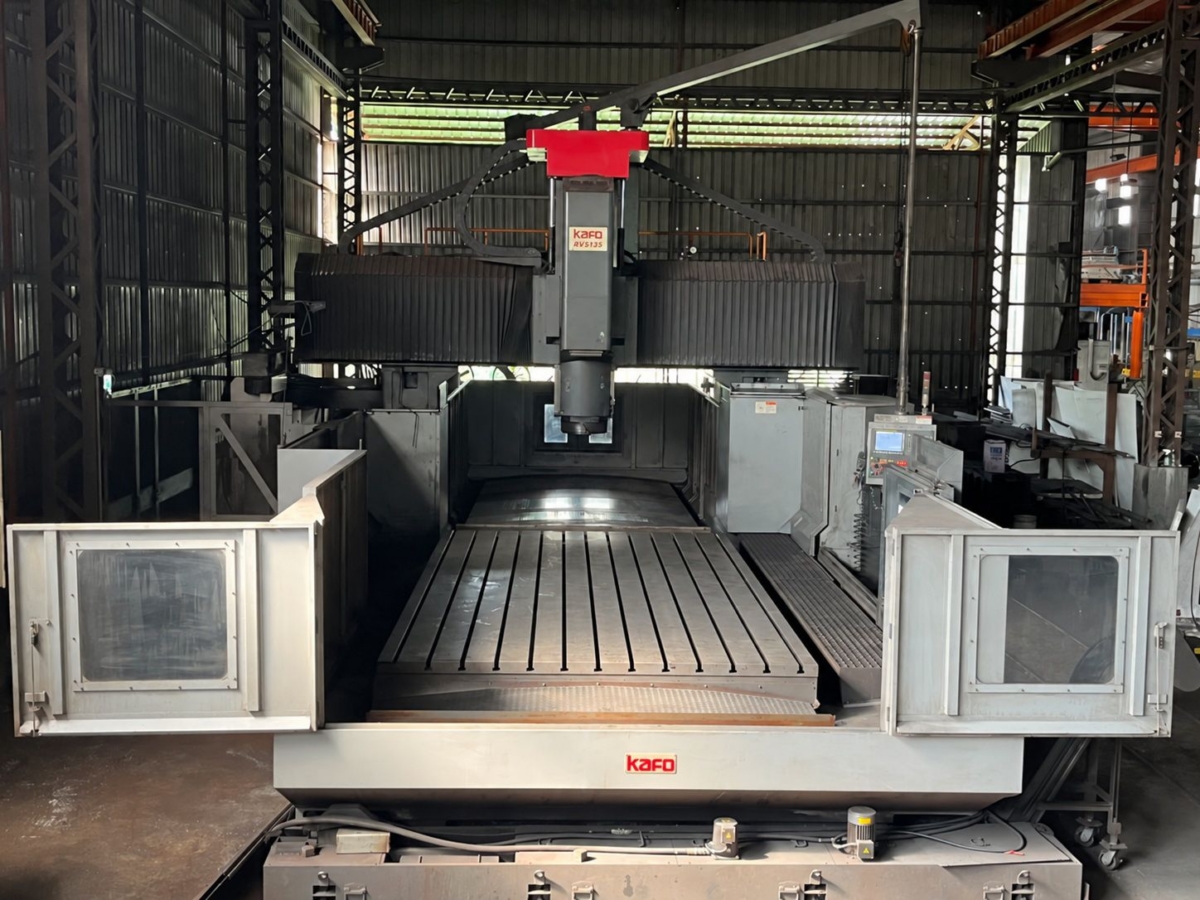

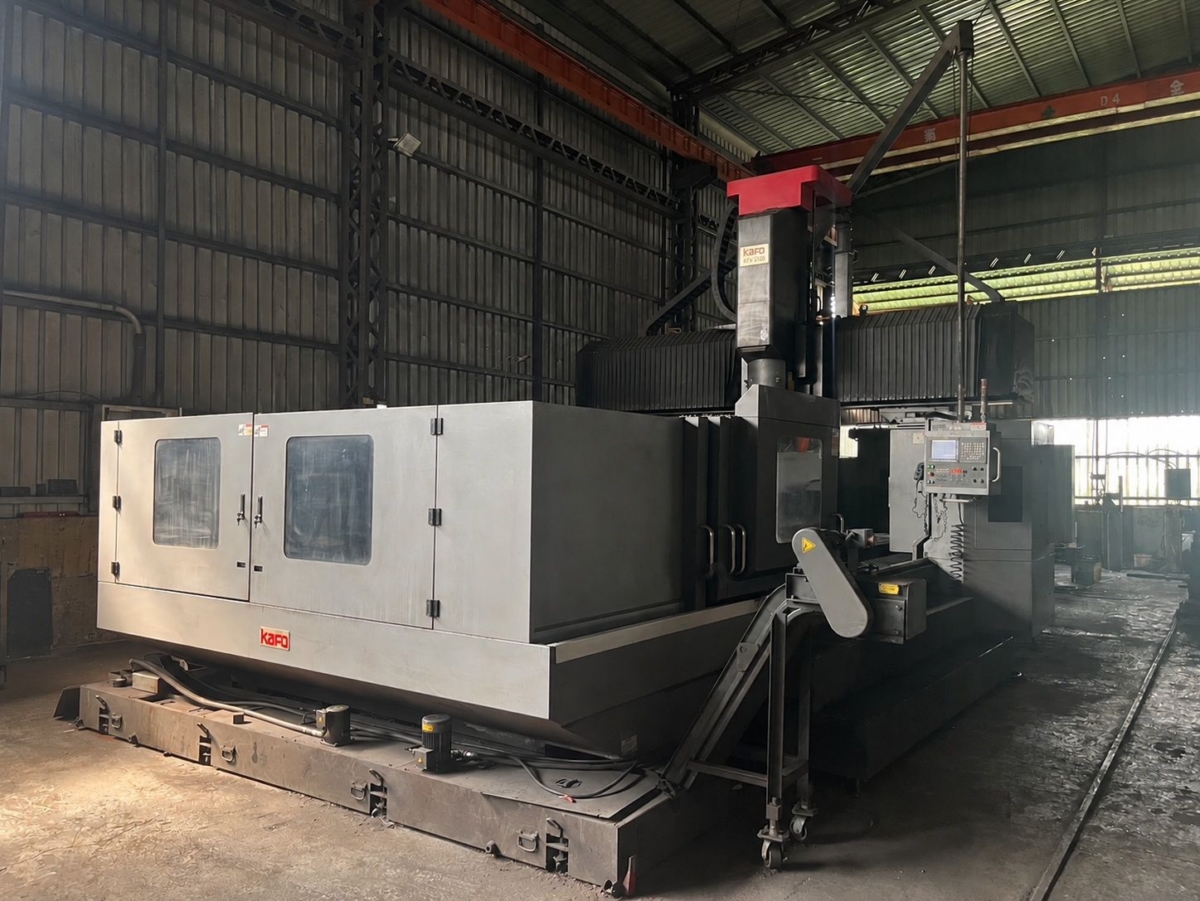

Portal milling machine equipped with:

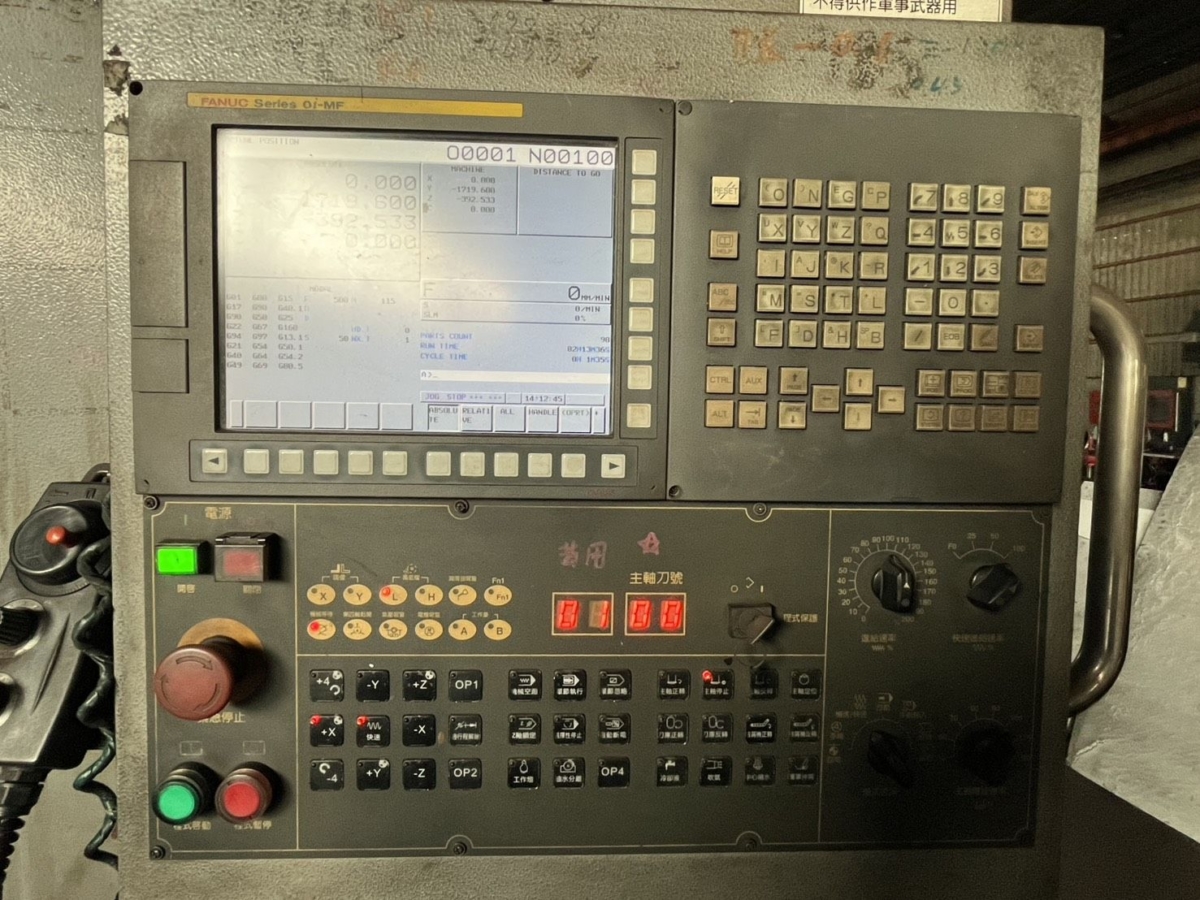

- CNC Control FANUC 0i-MF (10.4" LCD)

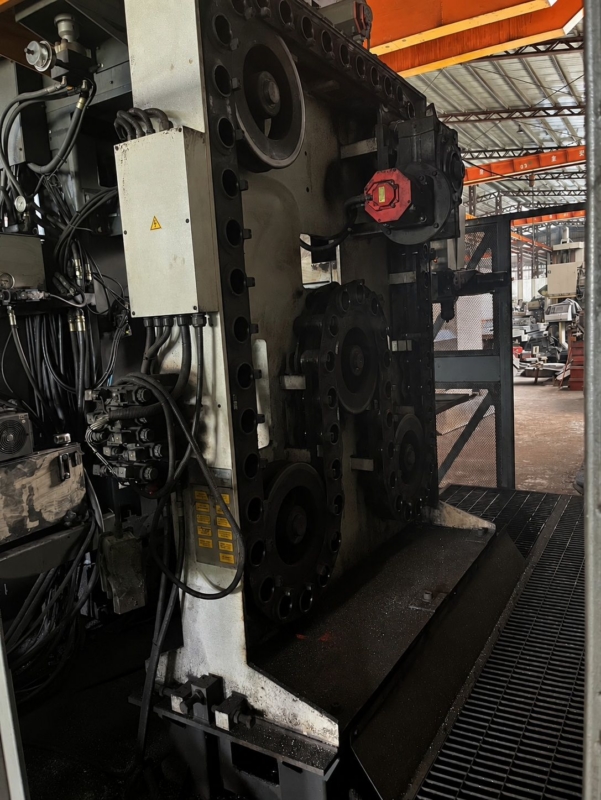

- ATC 60-fold (BT 50)
- X/Y axis roller linear guide way, Z axis box way
- Auto head storage:

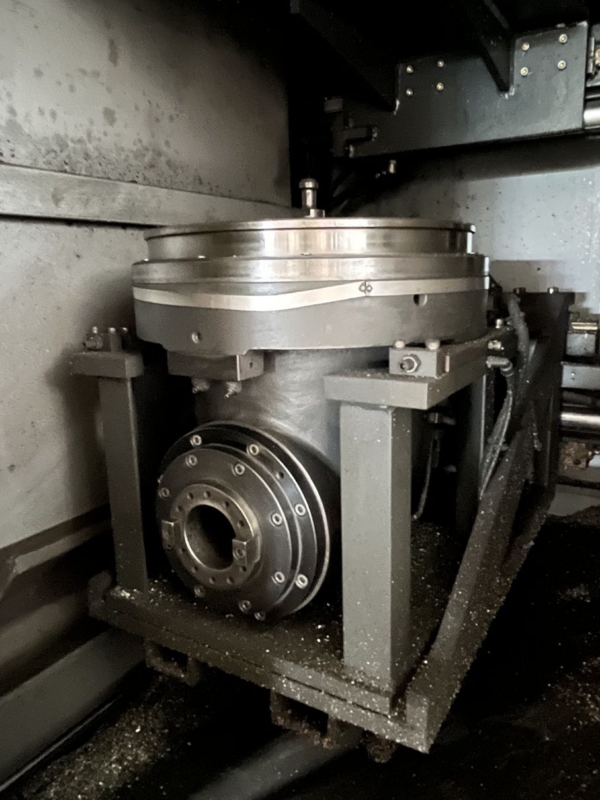

-- 90 degree angle milling head
- Coolant thru spindle 50bar
- X/Y/Z axis linear scales

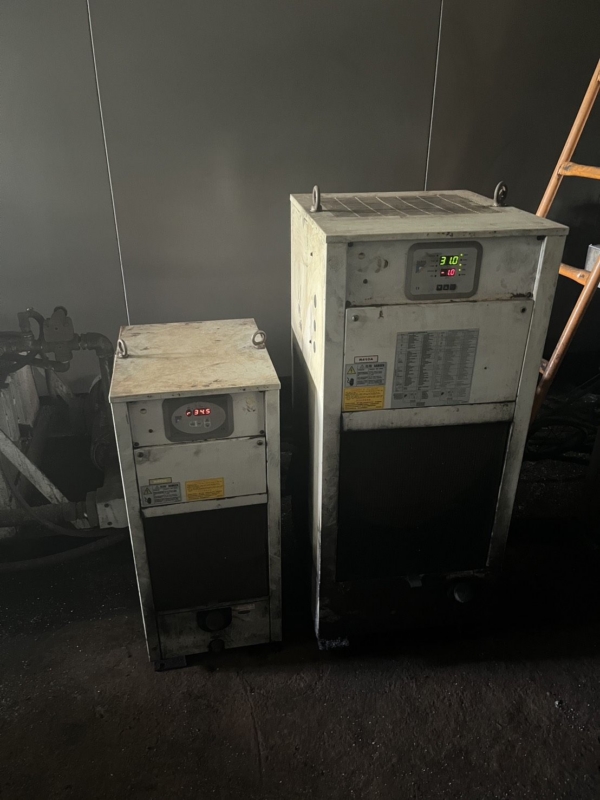

- Spindle oil cooler

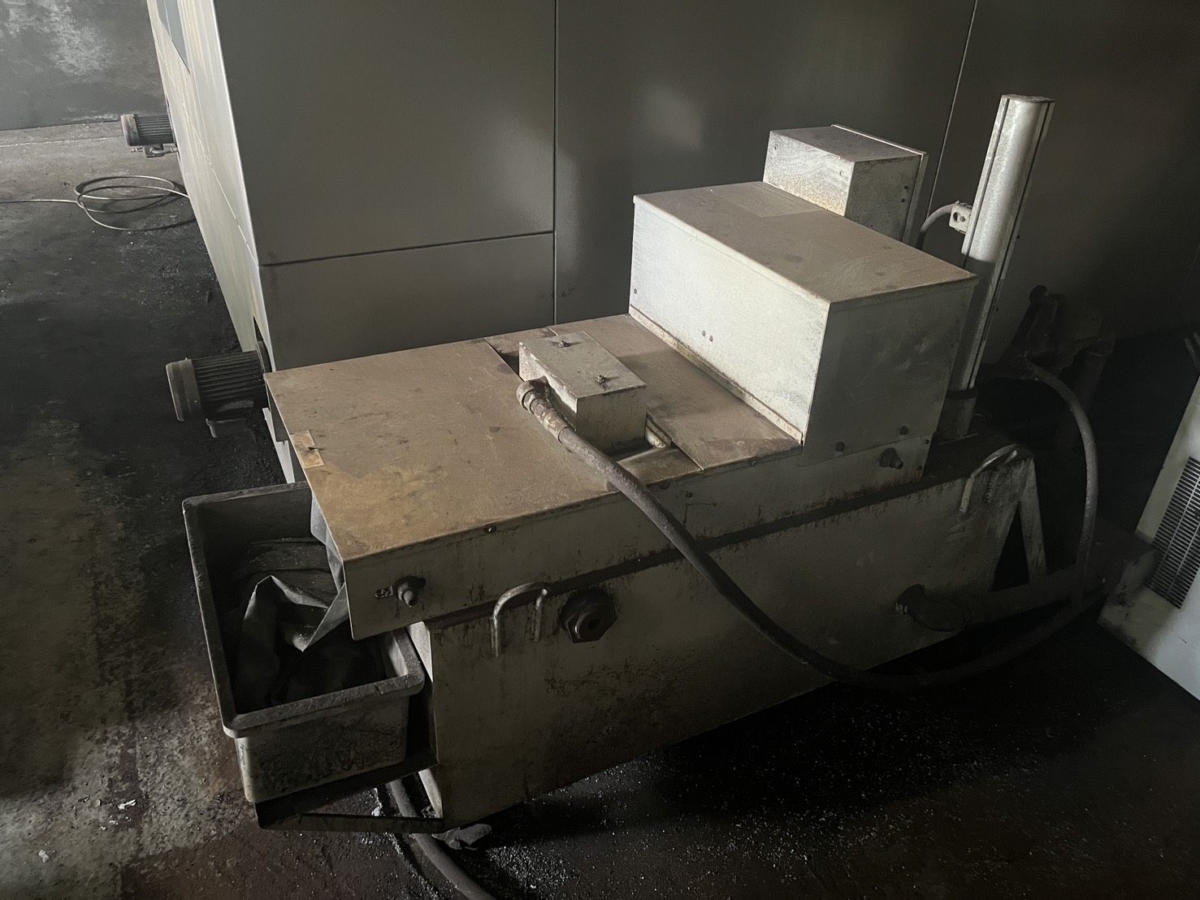

- Oil skimmer
- Air conditioner
- Chip conveyor
- Ball Screw Cooling X/Y/Z
- Air Blast through Spindle
|
