| Stock-No. |
1020-21183 |
| Category |
Machining Center - Universal |
| Make |
DMG-MORI SEIKI |
| Type |
DMU 80 P duoBlock |
| New in |
2016 |
| Control |
Siemens 840D Celos |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
to be agreed |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
800 mm |
| y-travel |
1050 mm |
| z-travel |
850 mm |
| control |
Siemens 840D Celos |
| Main spindle: |
|
| power capacity - main spindel |
35/25 kW |
| Speed Mainspindle |
18000 min/-1 |
| max. Torque |
288 Nm |
| tool taper |
HSK 63 |
| Swivel range |
-30/+180 ° |
| work table: |
|
| table surface area |
dia. 800 mm |
| max. table load |
1800 kg |
| 0 |
dia 950 x 1450 mm |
| c-axis |
360 x 0,001 ° |
| Tool-Presetter: |
|
| number of toolpositions |
30 pos. |
| max. tool diameter |
120 mm |
| max. size of tooling |
550 mm |
| max. tool weight |
15 kg |
| feeds: |
|
| rapid traverse ( X / Y / Z ) |
60 m/min |
| capacity |
- kVA |
| weight of the machine ca. |
15 t |
| dimensions of the machine ca. |
4,47 x 2,35 x 3,2 m |
| Description |

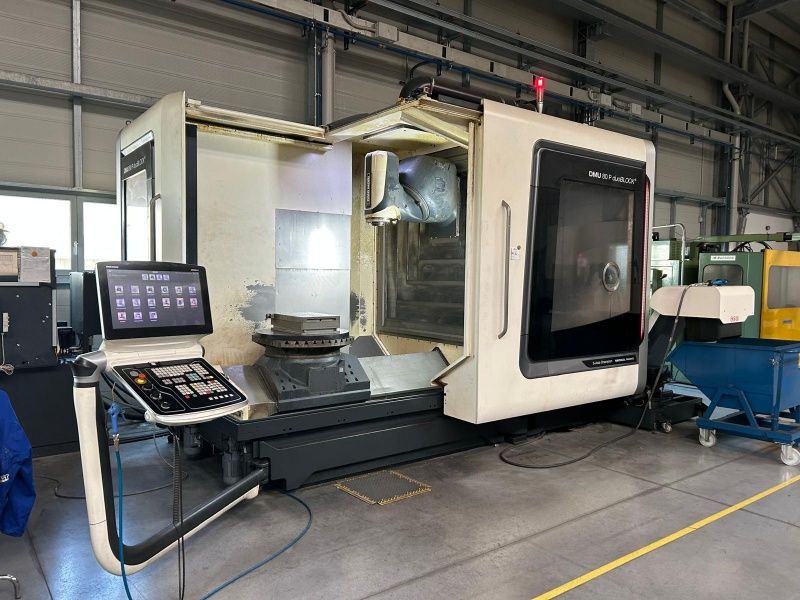

5 Axis Machining Center - Universal
- CNC Control Siemens 840D Celos
- Automatic Swivel Milling Head wit B-Axis
- ATC 30-fold (HSK 63)
- Coolant with Paperbandfilter & IKZ 20 bar
- Chip Conveyor
- Probe
|
|
|
|
