| Stock-No. |
1020-21182 |
| Category |

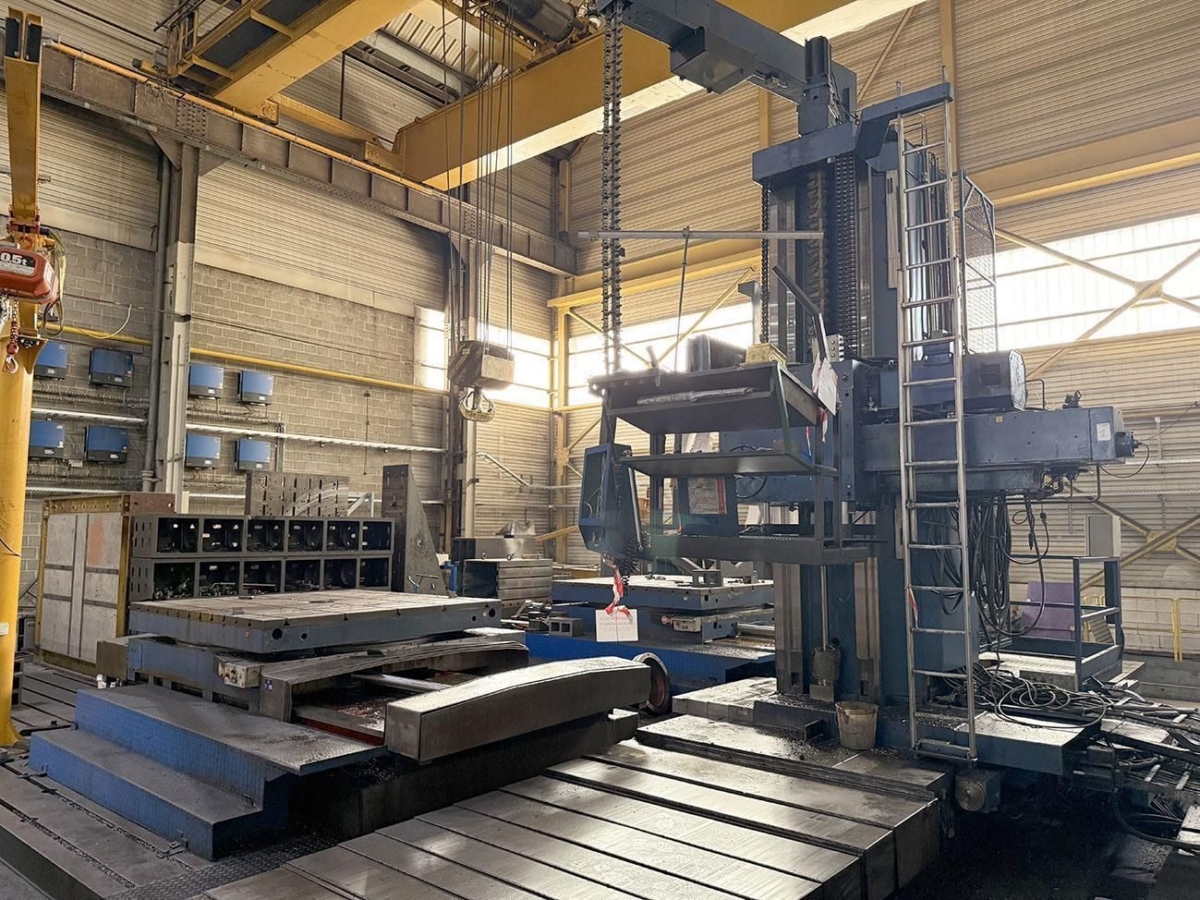

Floor Type Boring and Milling M/C - Hor. |
| Make |
PEGARD |
| Type |
PRECIVIT AF 16SMM |
| New in |
19 |
| Control |
Heidenhain TNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Belgien |
| Delivery time |
sofort |
| Freight basis |
Ex Site - factory |
| Price |

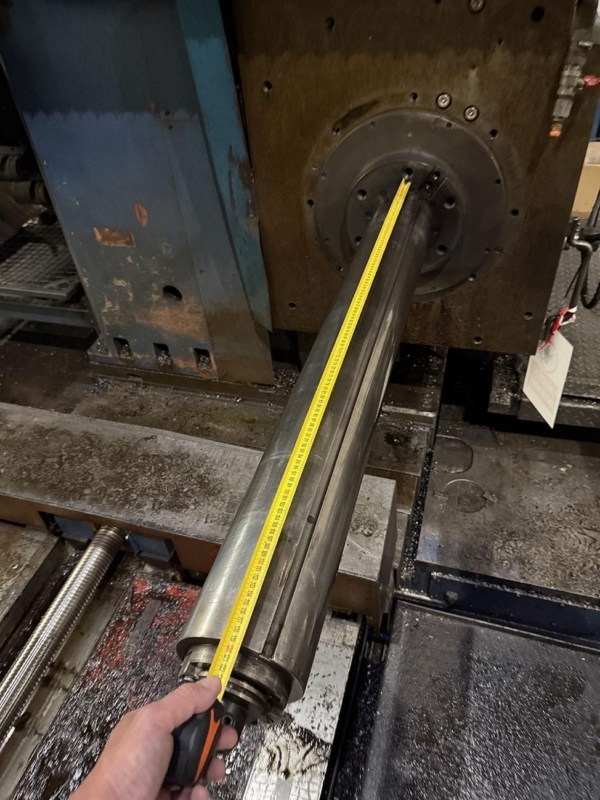

| spindle diameter |
160 mm |
| x-travel |
9000 mm |
| y-travel |
3000 mm |
| z-travel |
1200 mm |
| w-axis |
650 mm |
| Control |
Heidenhain TNC 530 |
| spindle turning speed - stepless |
20 - 1000 U/min |
| spindle motor |
- kW |
| tool taper |
ISO 50 |
| total power requirement |
- kW |
| weight of the machine ca. |
- t |
| dimensions of the machine ca. |
- m |
| Description |

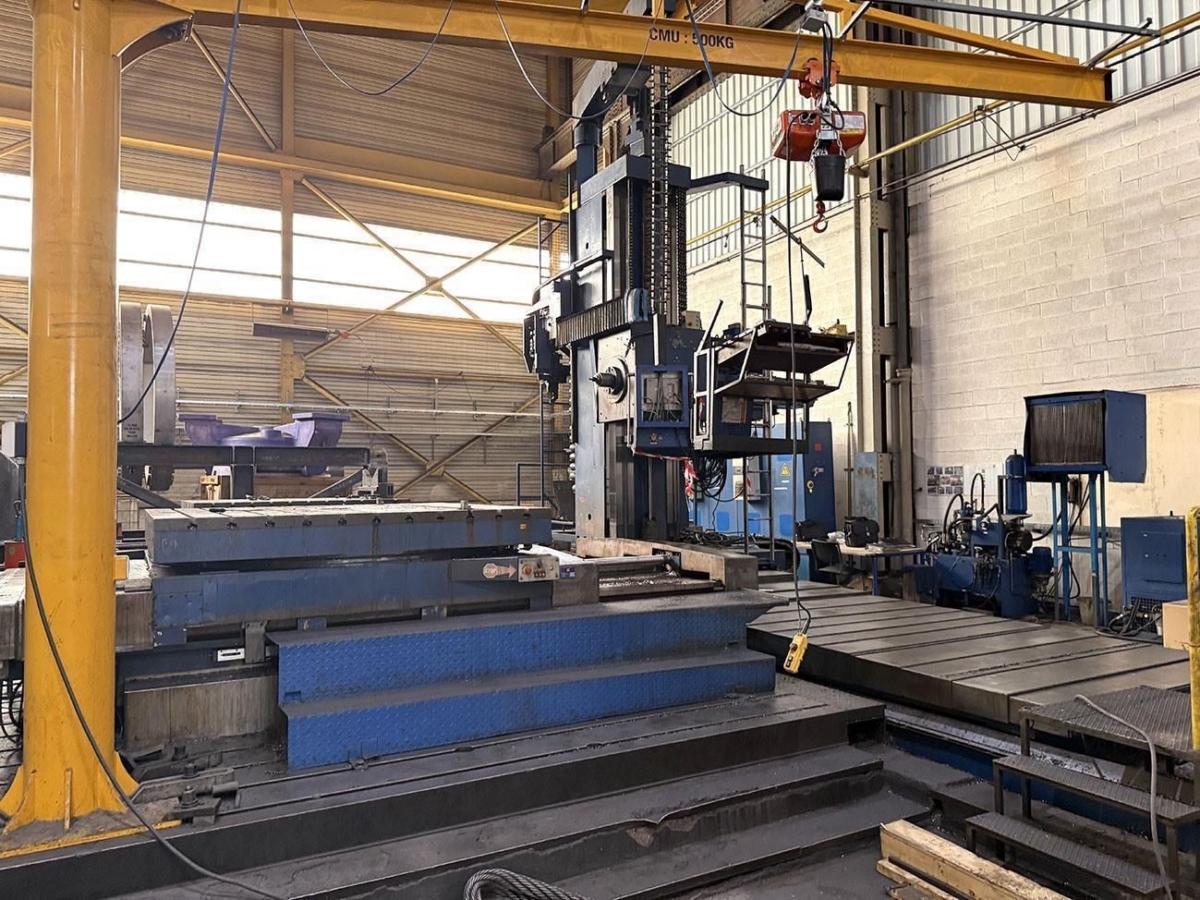

Milling, boring and turning Machine (6 axes simultaneously)
equipped with:

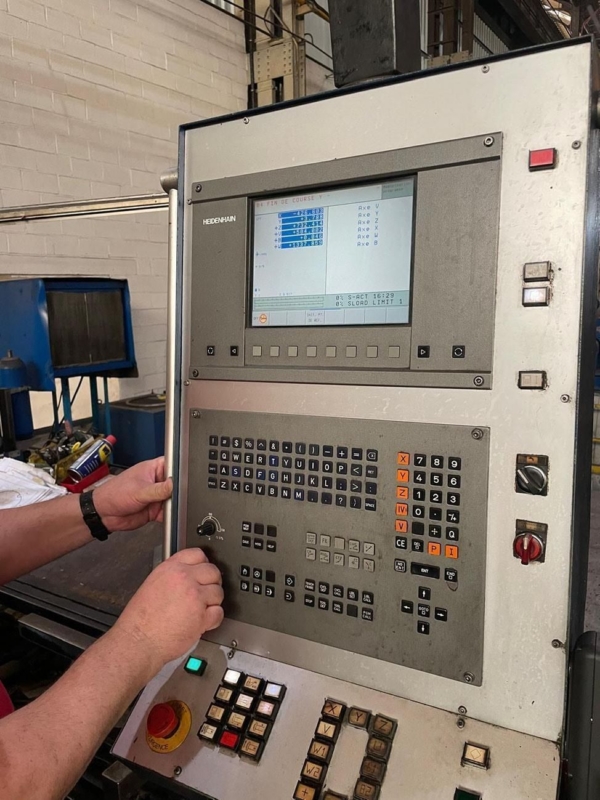

- CNC Control Heidenhain TNC 530

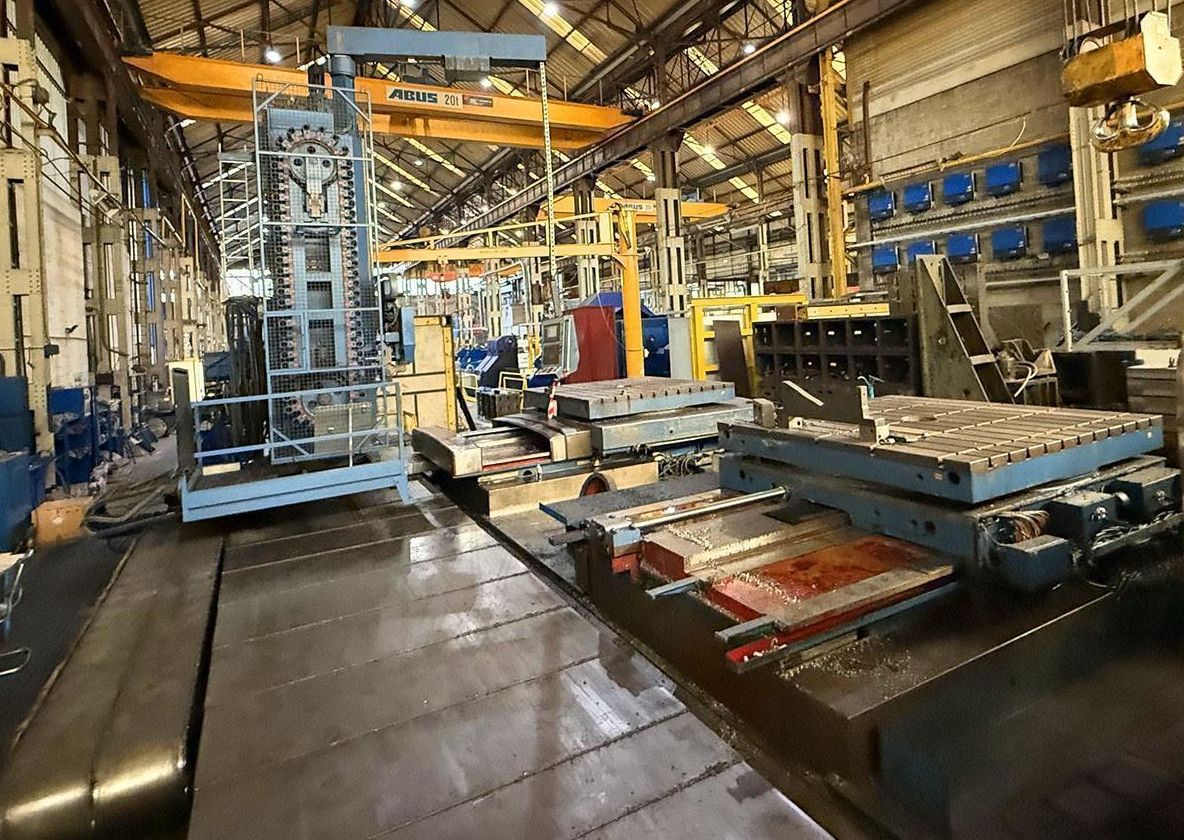

- 2 hydrostatic tables (each 2380 x 2380mm)
-- Weight on the table: 30t
-- Continuous 360°
-- Cross travel of table: 2500mm
- Toolchanger with 60 positions (ISO 50)

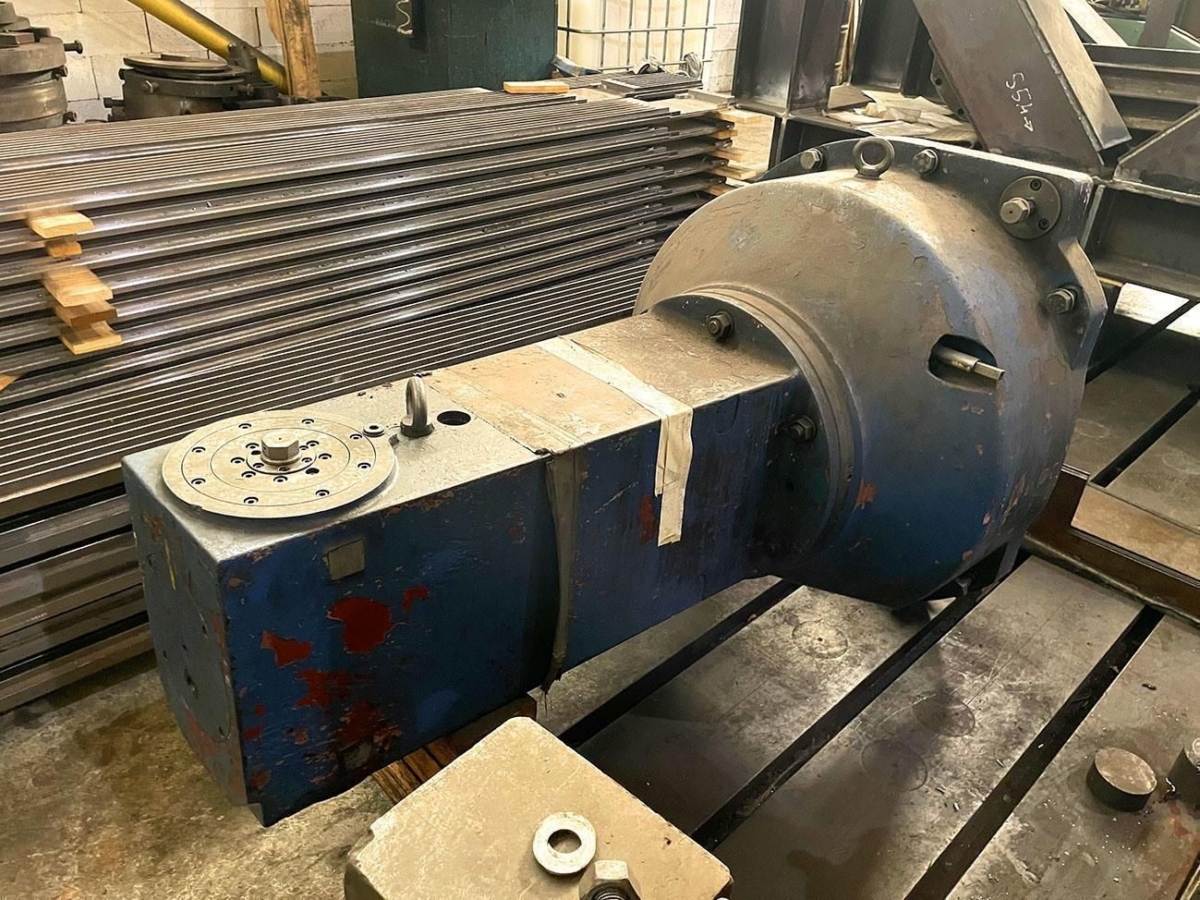

- Milling head support / support the reinforcement of the brooch
- Drill spindle support / support portfolio raises

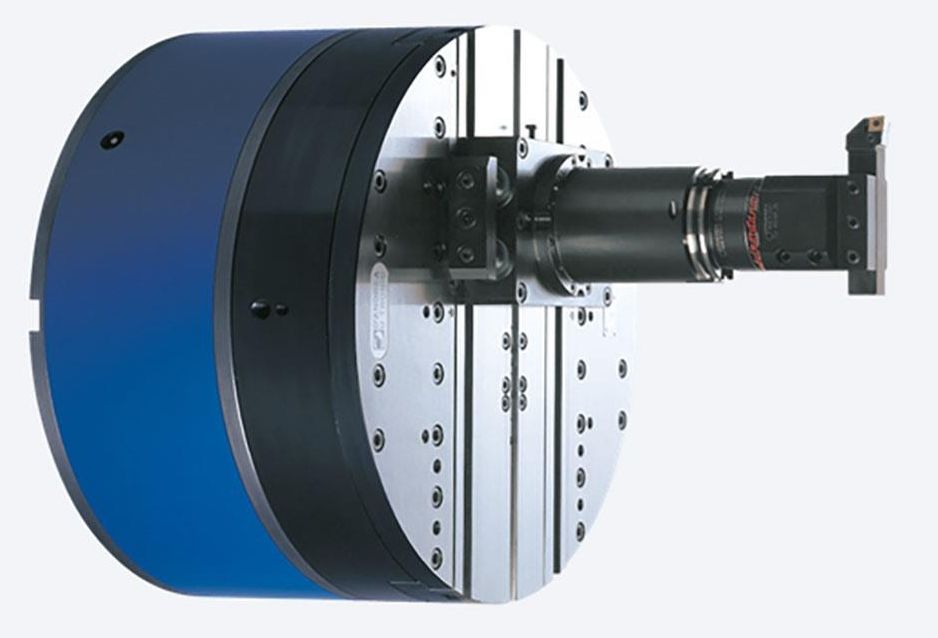

- D'Andrea U-axis head for drilling and facing operations
|
