| Stock-No. |
1020-21180 |
| Category |

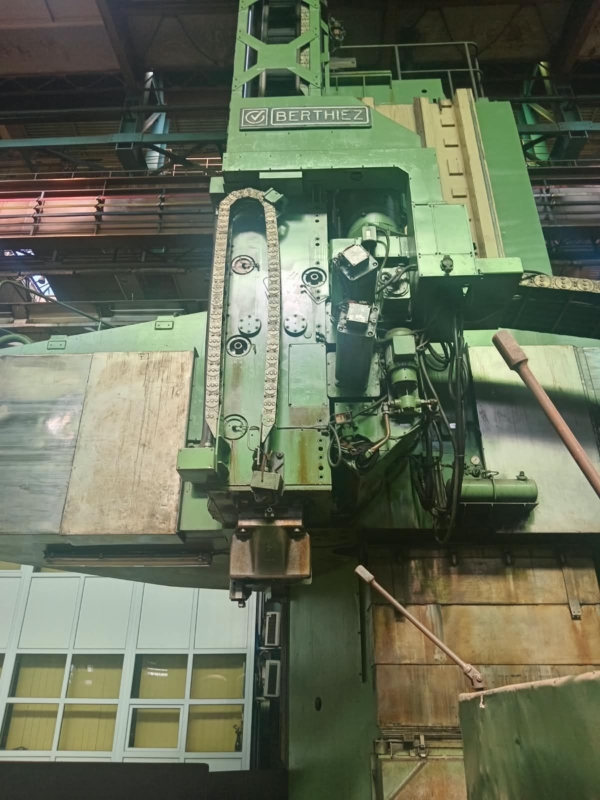

Vertical Turret Lathe - Single Column |
| Make |
BERTHIEZ |
| Type |
TM 315 |
| New in |
1982/2026 |
| Control |
FANUC |
| Location |
ab Werk demontiert |
| Origin |
France |
| Delivery time |
6-8 months after Order |
| Freight basis |
ex location |
| Price |

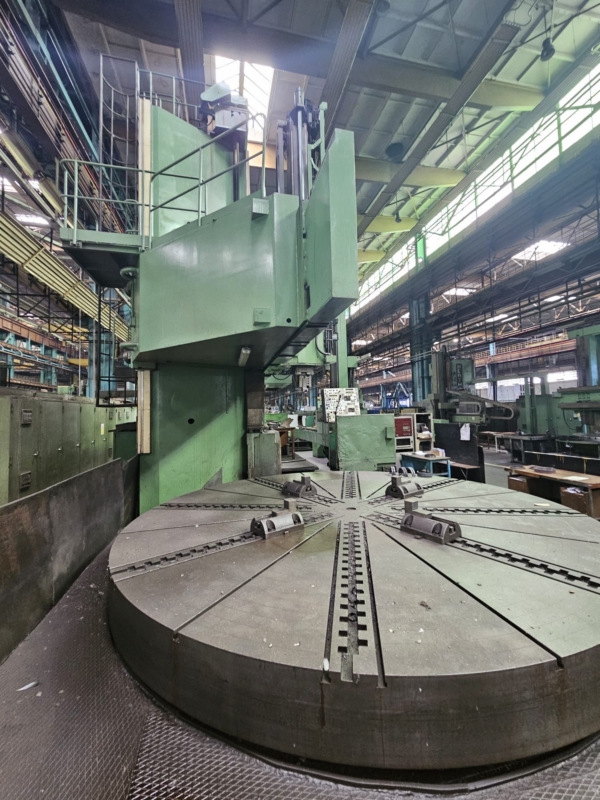

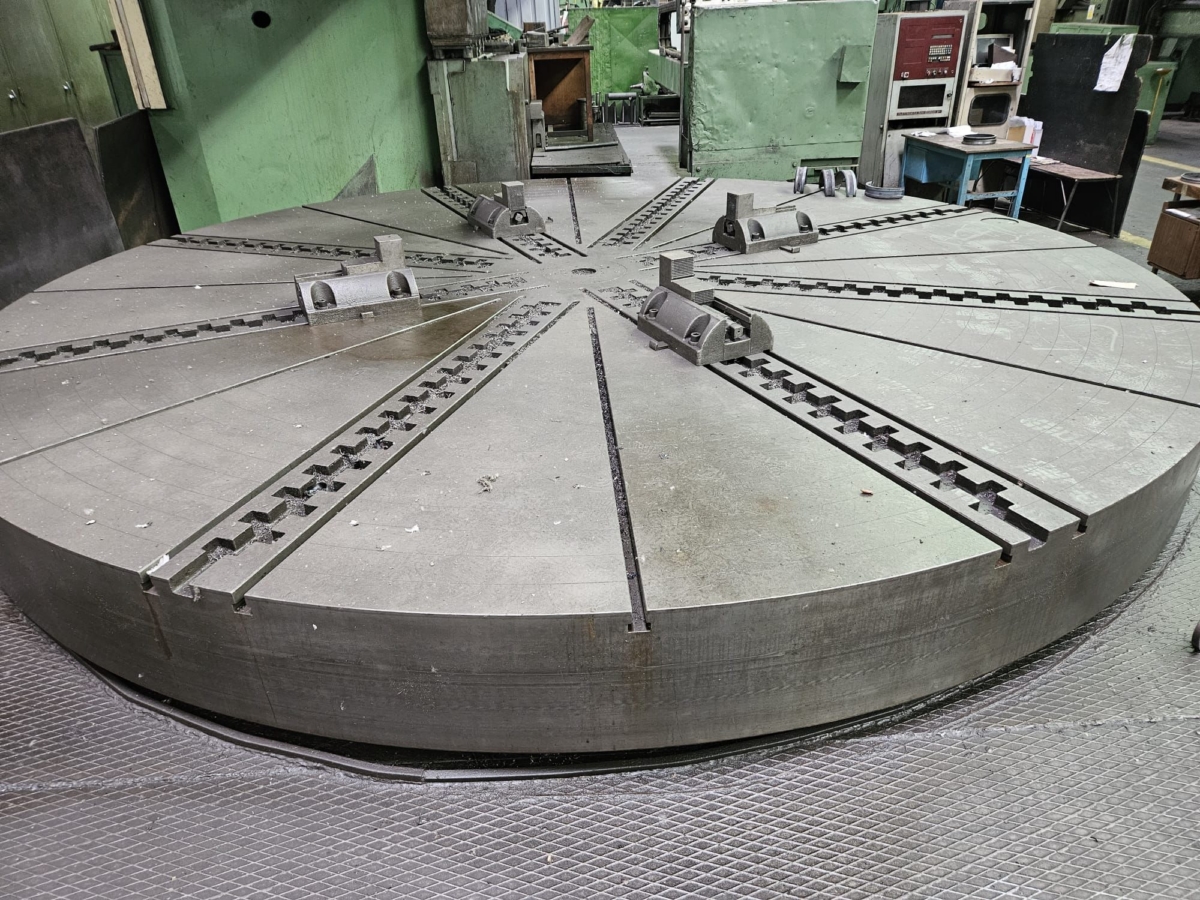

| faceplate diameter |
5000 mm |
| swing diameter |
8000 mm |
| turning height |
4000 mm |
| ram head dimension |
360 x 360 mm |
| faceplate turning speed range |
0,6 - 60 U/min |
| workpiece weight |
160 t |
| main drive motor |
2x 70 kW |
| control |
FANUC |
| total power requirement |
- kW |
| weight of the machine ca. |
85 t |
| dimensions of the machine ca. |
-- m |
| Description |
The machine will be overhauled and modernised (upon order) and fitted with:
- Fanuc CNC control system (latest model)
- New electrical system
- New hydraulic components: pumps, lubrication systems, hoses, valves, etc.
- All assemblies and sub-assemblies will be cleaned, inspected and replaced where necessary.
- 2 rams supports on the crossbeam

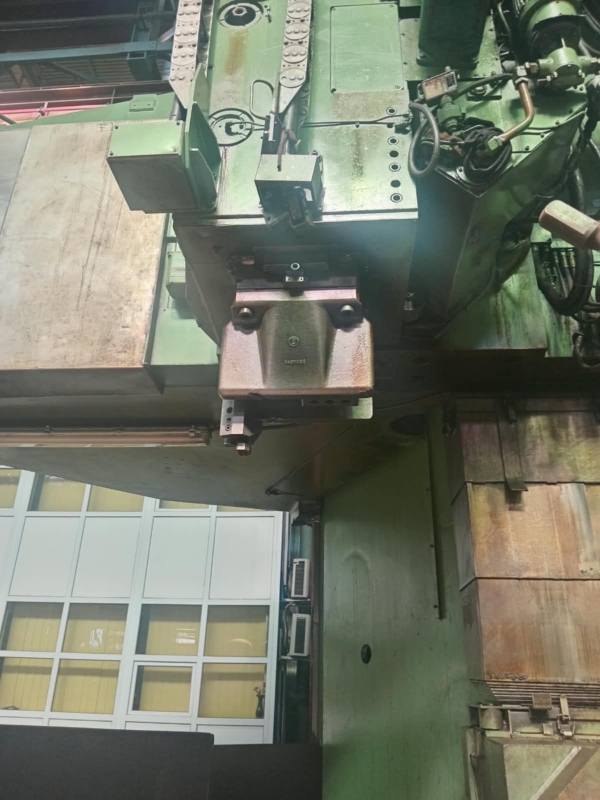

CROSS-RAIL TOOL HEAD (ARM TOOL CARRIAGE)
- Axial ram travel (Ram stroke) 2500 mm
- Horizontal carriage travel 3400 mm
- Swivel angle / Tiltability 15 - 45°
- Cross-rail travel (Arm travel) 3600 mm
- Saddle travel 6500 mm

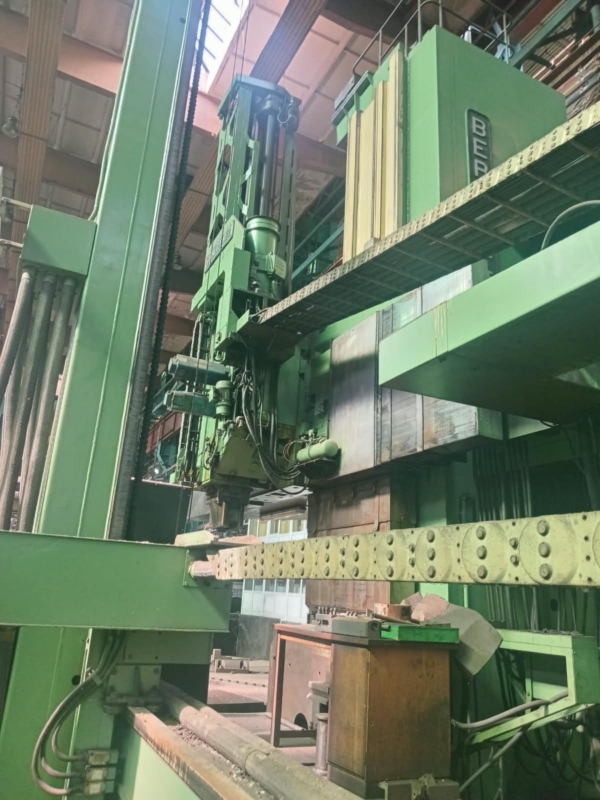

SIDE TOOL HEAD
- Axial ram travel 1600 mm
- Vertical carriage travel 3450 mm
Slow rotation speed:
- Milling: 0.01 to 0.50 rpm
- For positioning: 0.001 to 0.50 rpm
|
|
|
|
