| Stock-No. |
1020-21176 |
| Category |
Machining Center - Universal |
| Make |
DECKEL-MAHO |
| Type |

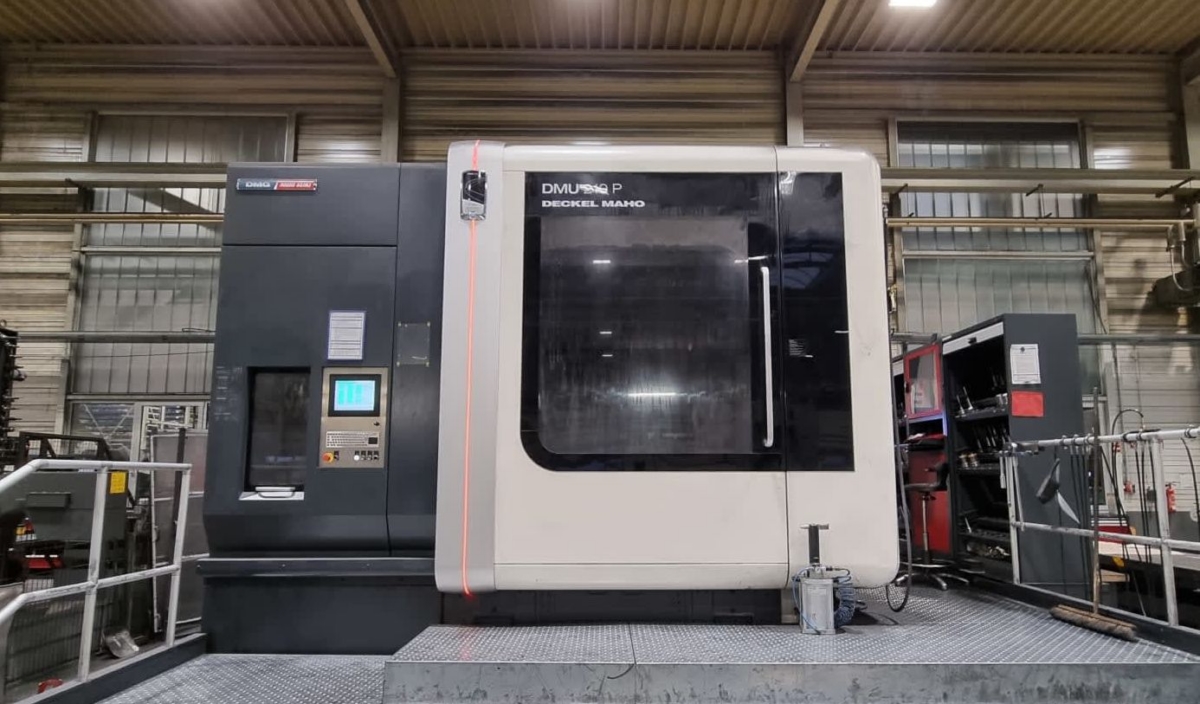

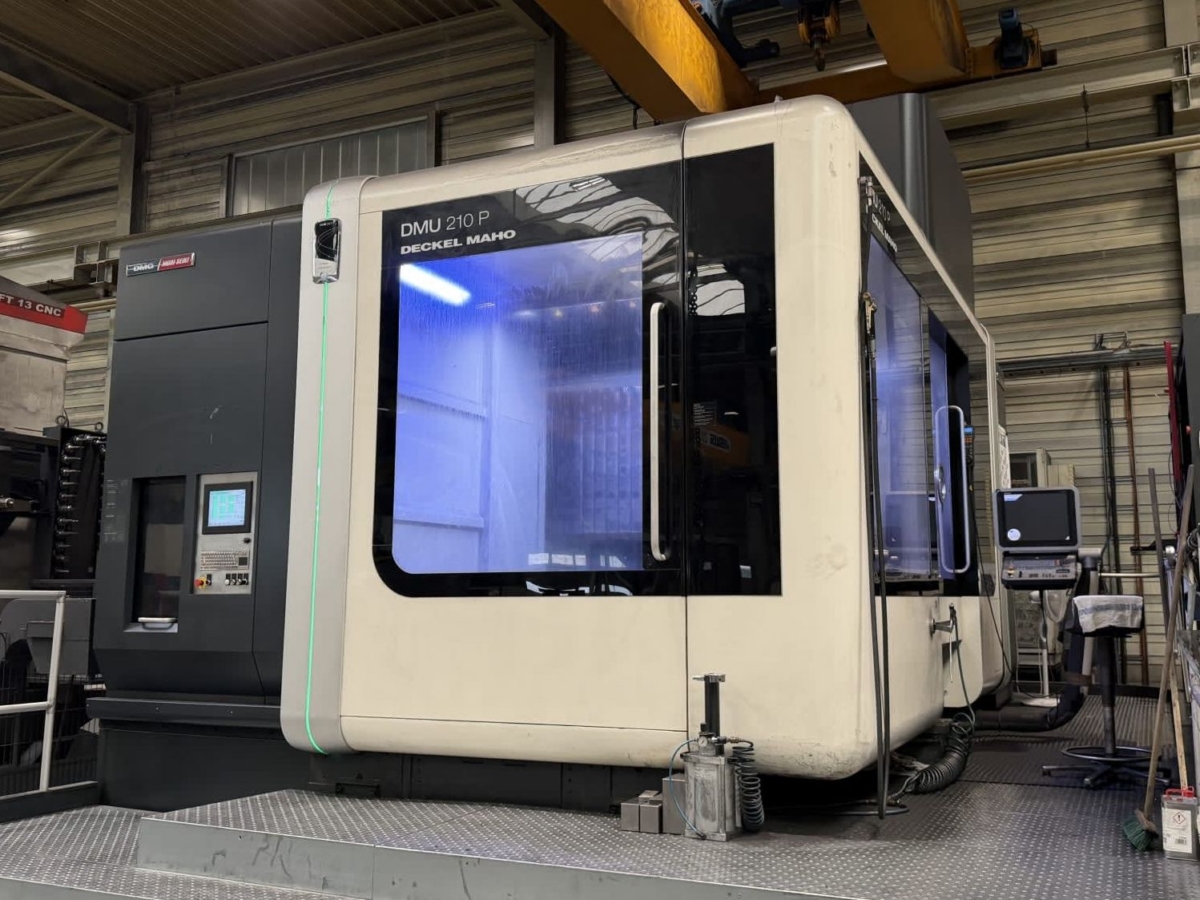

DMU 210 P |
| New in |
2012 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
1850 mm |
| y-travel |
2100 mm |
| z-travel |
1250 mm |
| turning speed range - milling |
10 - 12000 U/min |
| spindle motor |
44 / 32 kW |
| tool taper |
SK 50 |
| Torque |
288 / 187 Nm |
| b-axis |
-30 / + 180 ° |
| round table |
1700 mm |
| table load |
8 t |
| Rapid Travel X / Y / Z-Achse |
60 / 40 / 40 m/min |
| total power requirement |
kW |
| weight of the machine ca. |
50 t |
| dimensions of the machine ca. |
m |
| Description |

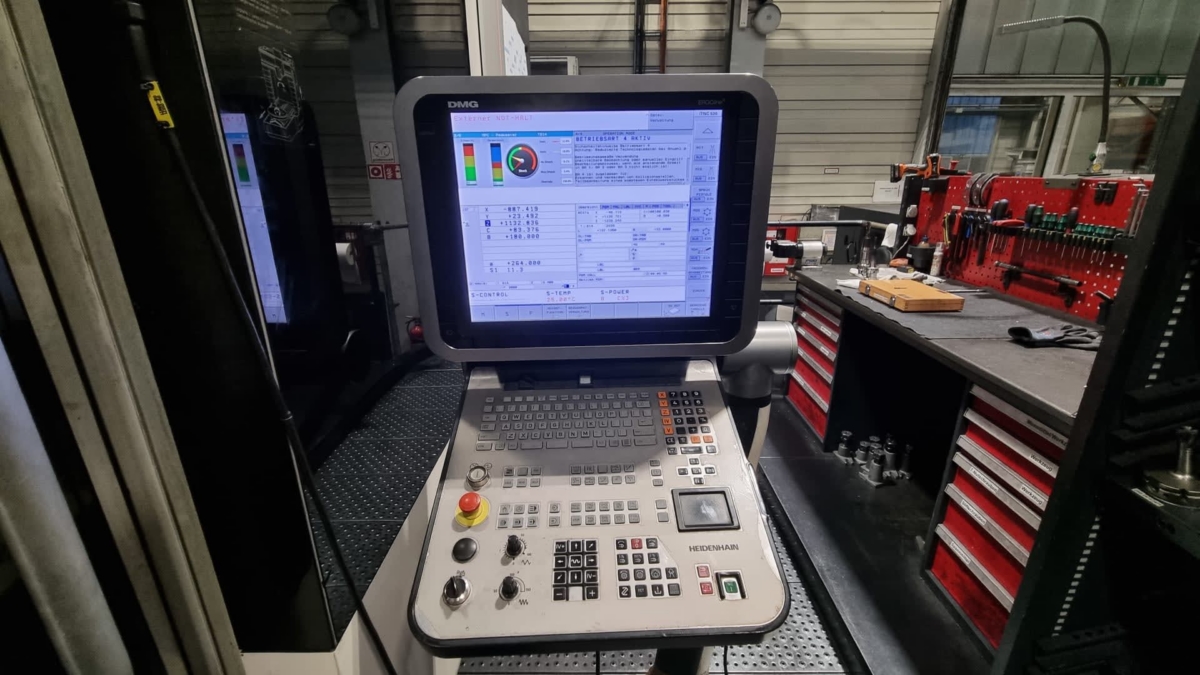

- Heidenhain iTNC 530 HSCI CNC control
- 5-axis simultaneous machining
- NC rotary table, Ø 1700 mm
- IKZ 40 bar
- Chip conveyor
- Blum Laser NT Hybrid tool measurement system
- Heidenhain TS 640 infrared probe
- Electronic handwheel
- Minimum quantity lubrication (MQL)
- Oil/emulsion mist separator
- Coolant injection via the spindle
- Coolant tank 980 l
- Rotating viewing window
- 3D quickSET
- Machine Protection Control (MPC)
- Adaptive Feed Control (AFC)
- ATC (Application Tuning Cycle)
- DMG MORI NetService
- DMG MORI SMARTkey
|
