| Stock-No. |
1020-21175 |
| Category |

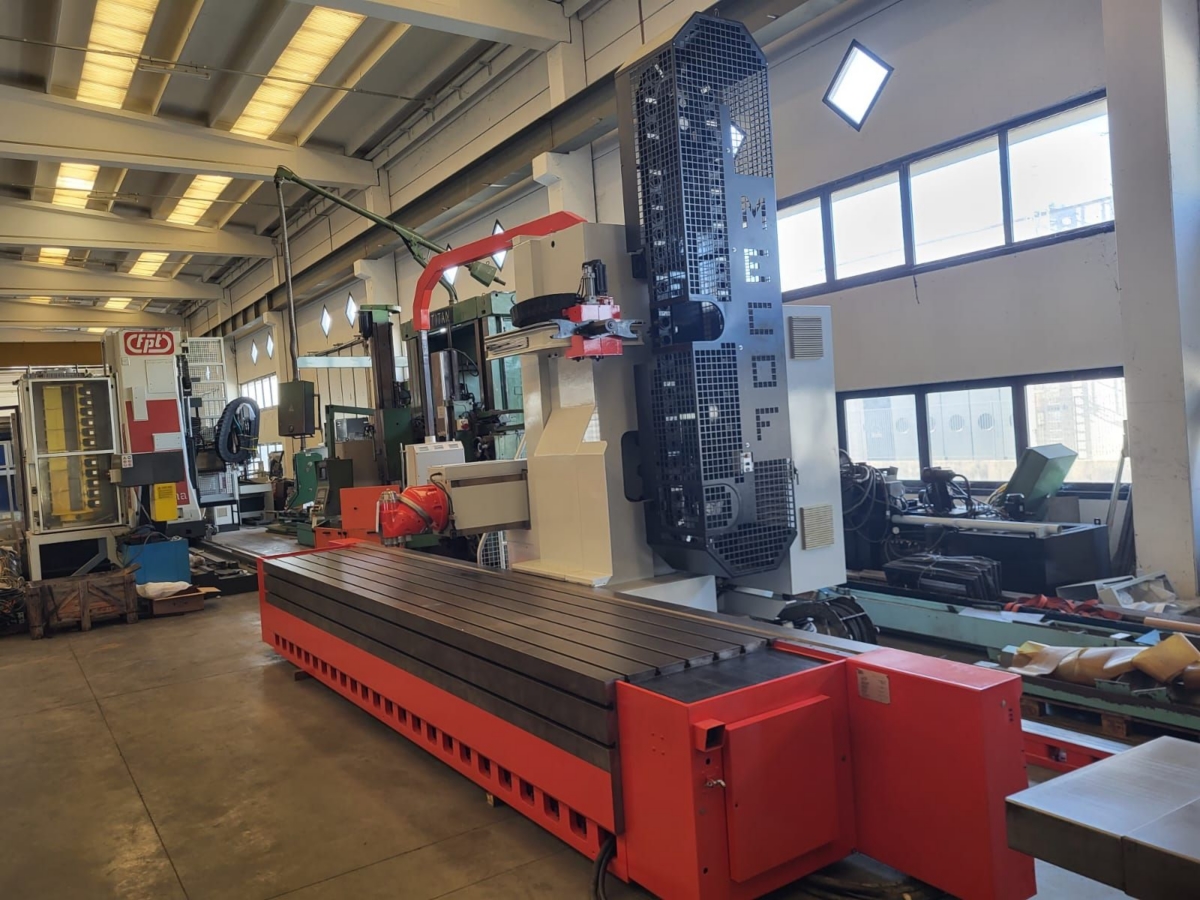

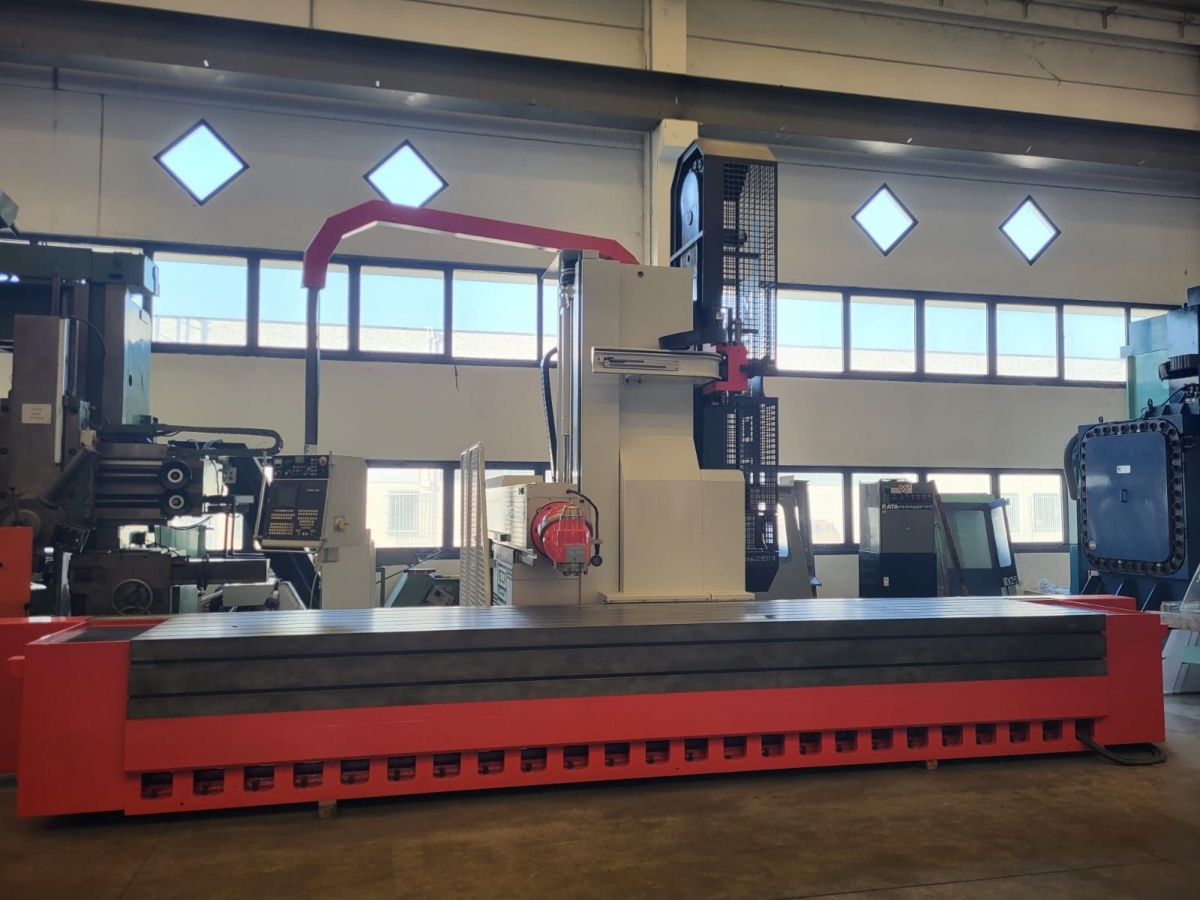

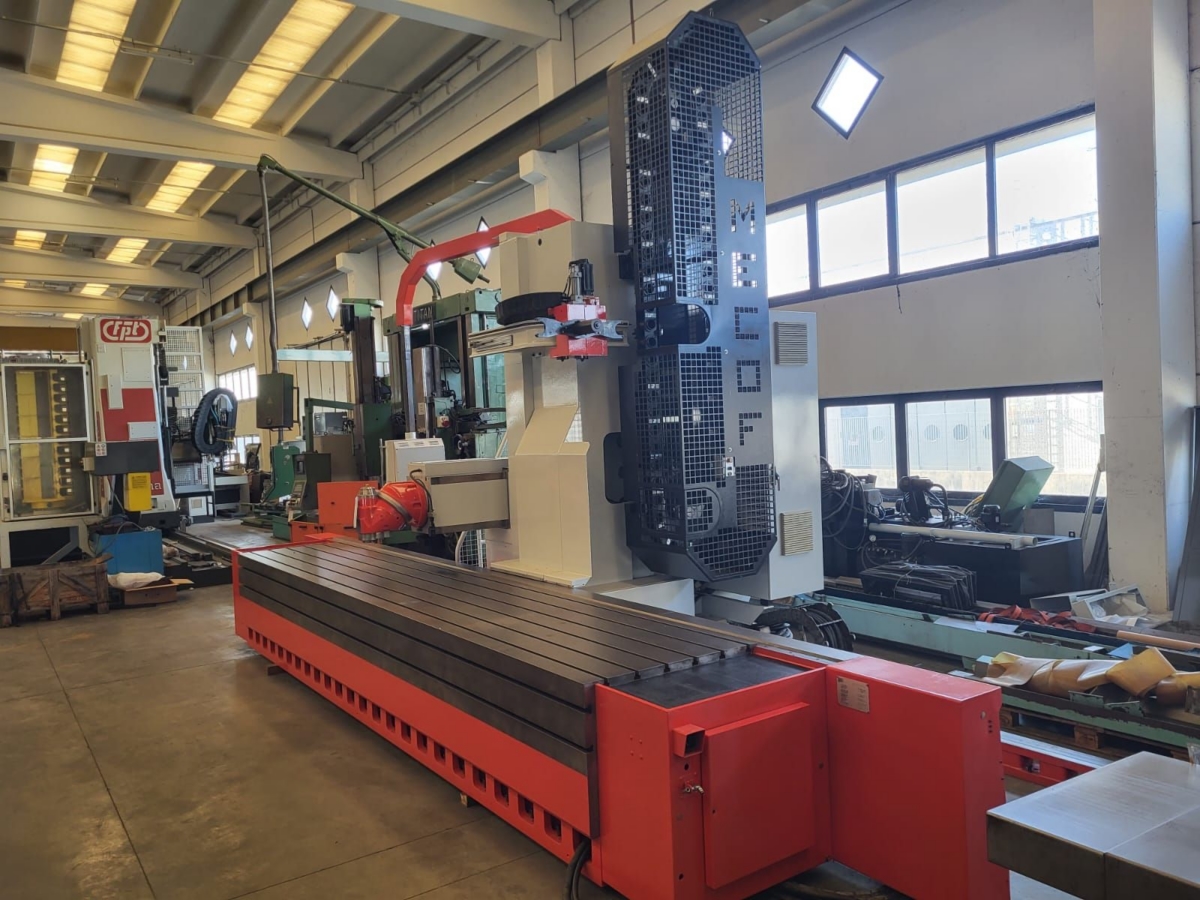

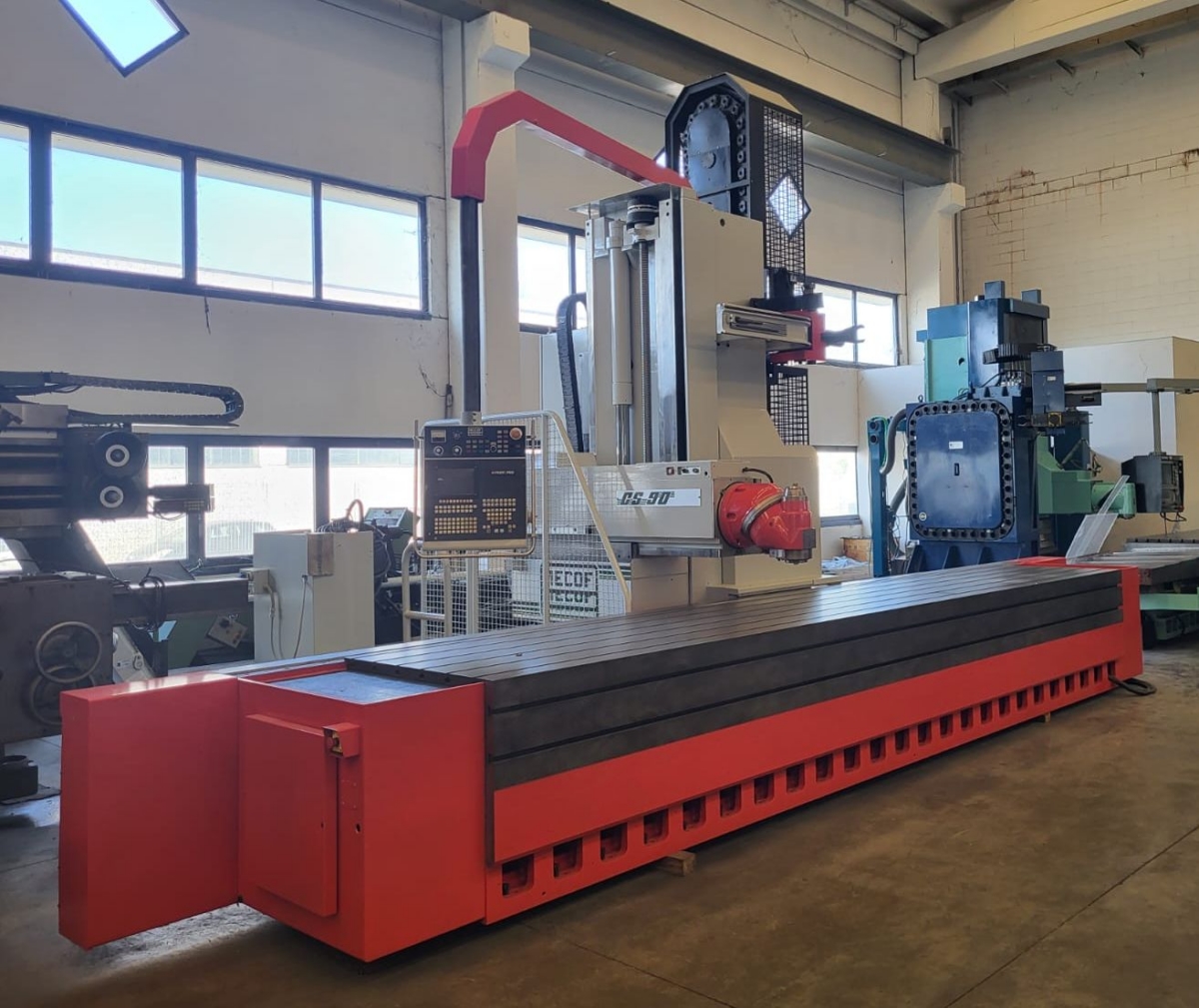

Travelling column milling machine |
| Make |
MECOF |
| Type |
AGILE CS-90 PG |
| New in |
2003 |
| Control |
NUM 750 |
| Location |
ab Standort,ohne Demontage |
| Origin |
Italy |
| Delivery time |
immediately |
| Freight basis |
EXW |
| Price |
| x-travel |
4500 mm |
| y-travel |
1700 mm |
| z-travel |
1000 mm |
| TABLE |
|
| - table surface (left-right) |
6100 mm |
| - table surface (front-back) |
1000 mm |
| - workpiece load (max) |
8000 kg |
| WORKING SPINDLE / HEAD |
|
| - spindle type |
Schwenkkopf |
| - tilting range |
1 / 3 ° |
| - spindle revolutions (min) |
15 U/min |
| - spindle revolutions (max) |
3000 U/min |
| - tool fixture |
ISO SK 50 |
| - drive power (max) |
30 kW |
| AXIS DRIVES |
|
| - feed velocity (min) |
- mm/min |
| - feed velocity (max) |
20000 mm/min |
| Control |
NUM 750 |
| total power requirement |
- kW |
| weight of the machine ca. |
28 t |
| Description |
equipped with:

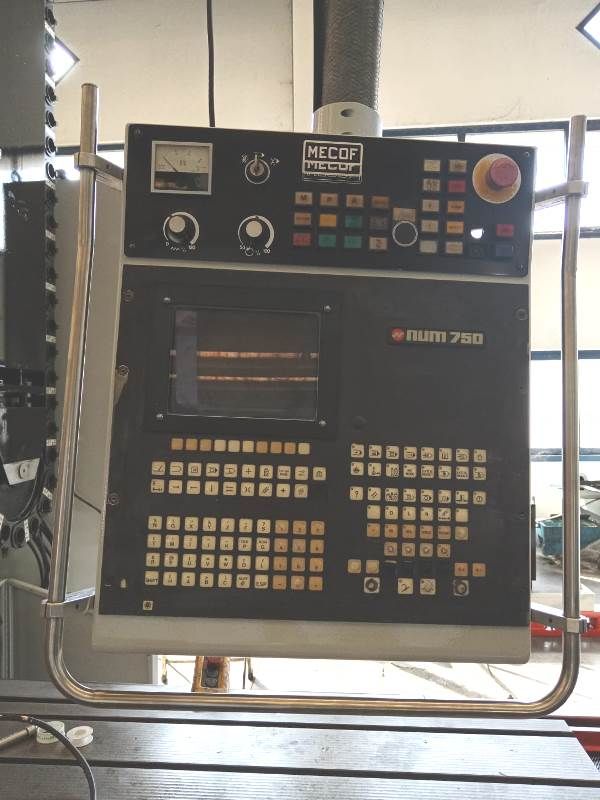

- CNC Control NUM 750
- Universal indexing head 1°x 3°
- ATC 61-fold
- CE Sign
|
