| Stock-No. |
1020-21173 |
| Category |
milling machining centers - vertical |
| Make |

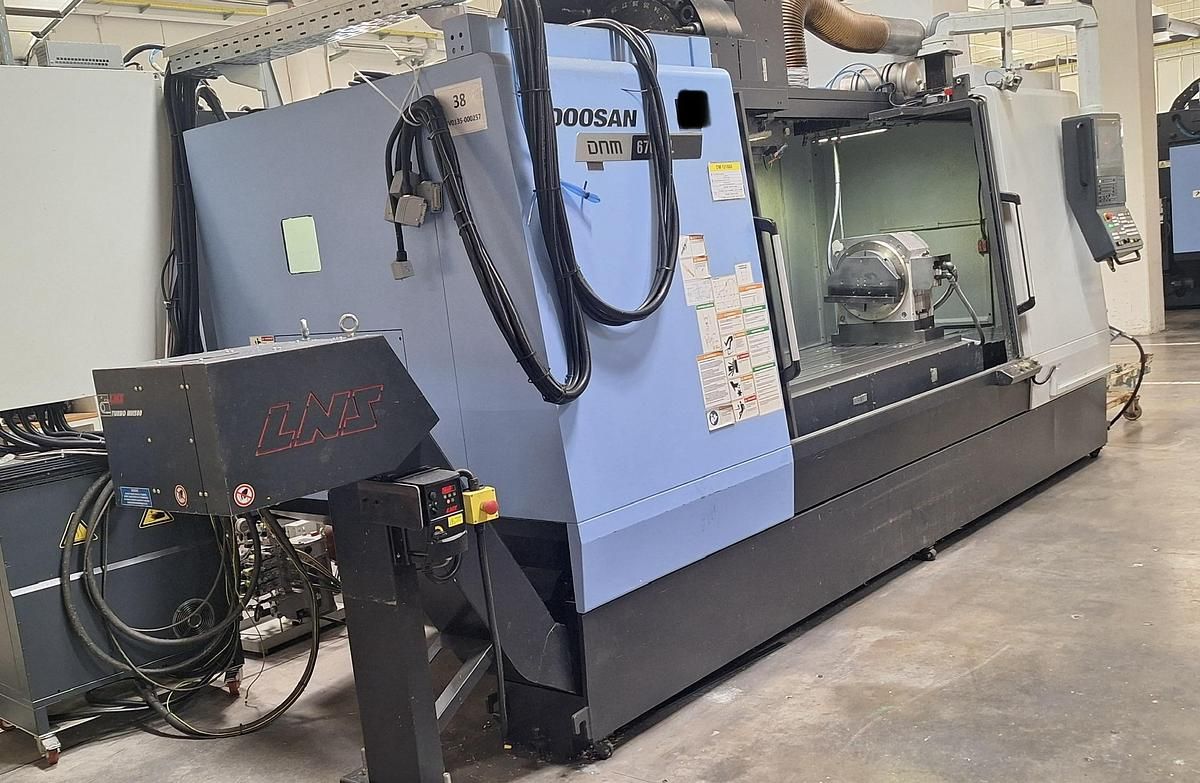

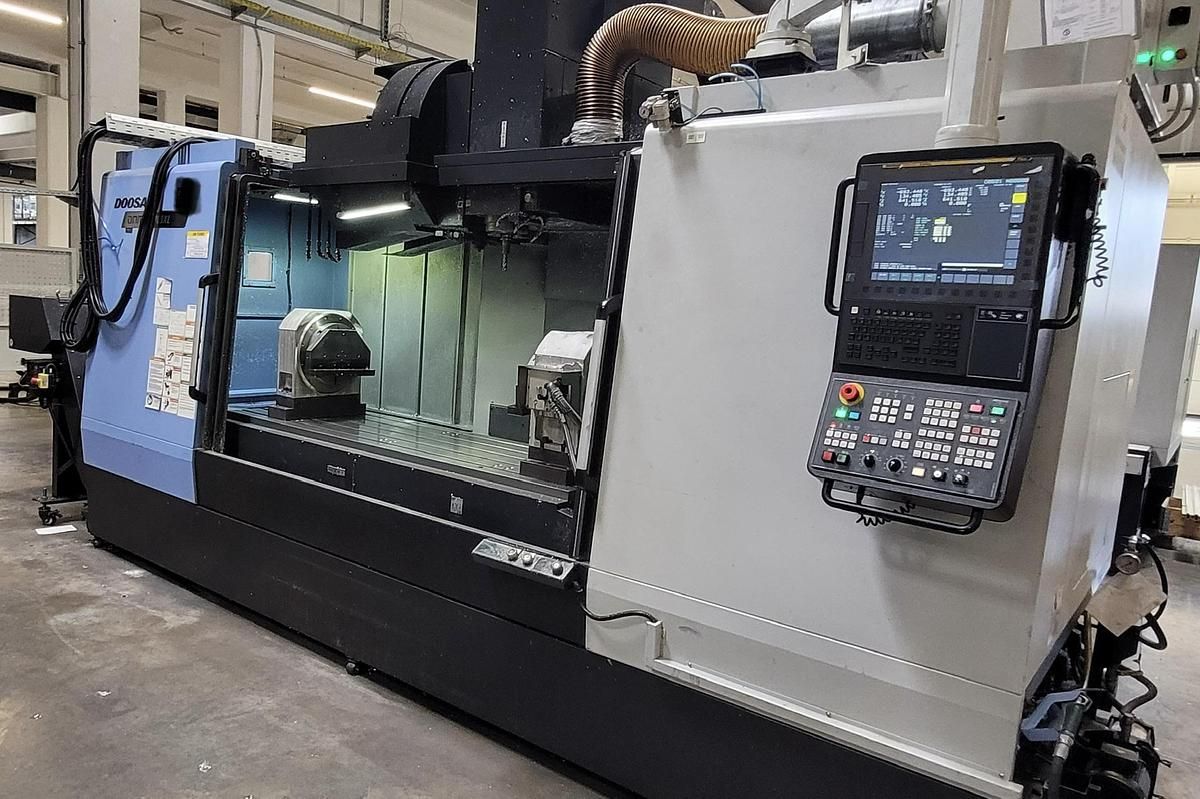

DOOSAN |
| Type |
DNM 6700 XL |
| New in |
2021 |
| Control |
Fanuc i-Series |
| Location |
ab Lager - demontiert |
| Origin |
Korean |
| Delivery time |
short-dated |
| Freight basis |
ex location |
| Price |
| x-travel |
2100 mm |
| y-travel |
670 mm |
| z-travel |
625 mm |
| control |
Fanuc i-Series |
| Tool bore |
BT 40 |
| spindle turning speed range |
12000 U/min |
| total power requirement |
- kW |
| weight of the machine ca. |
8500 kg |
| dimensions of the machine ca. |
- m |
| Description |

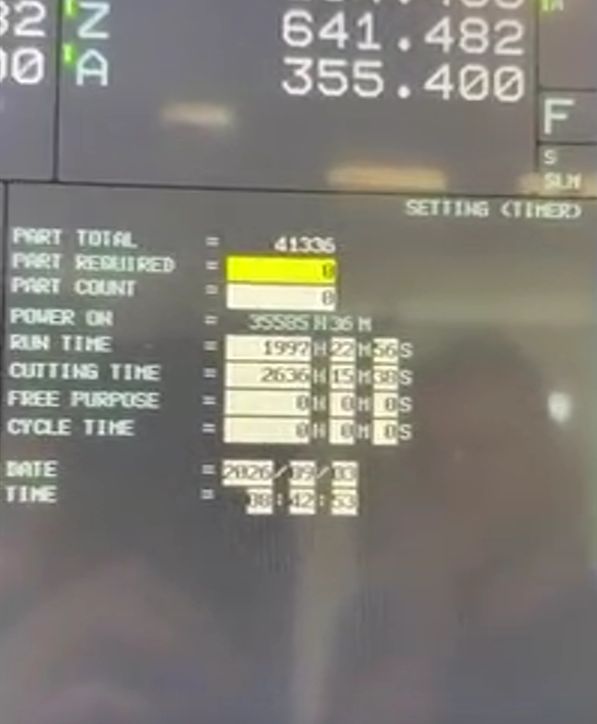

Control: Fanuc i Series
Tool magazine: 30 positions

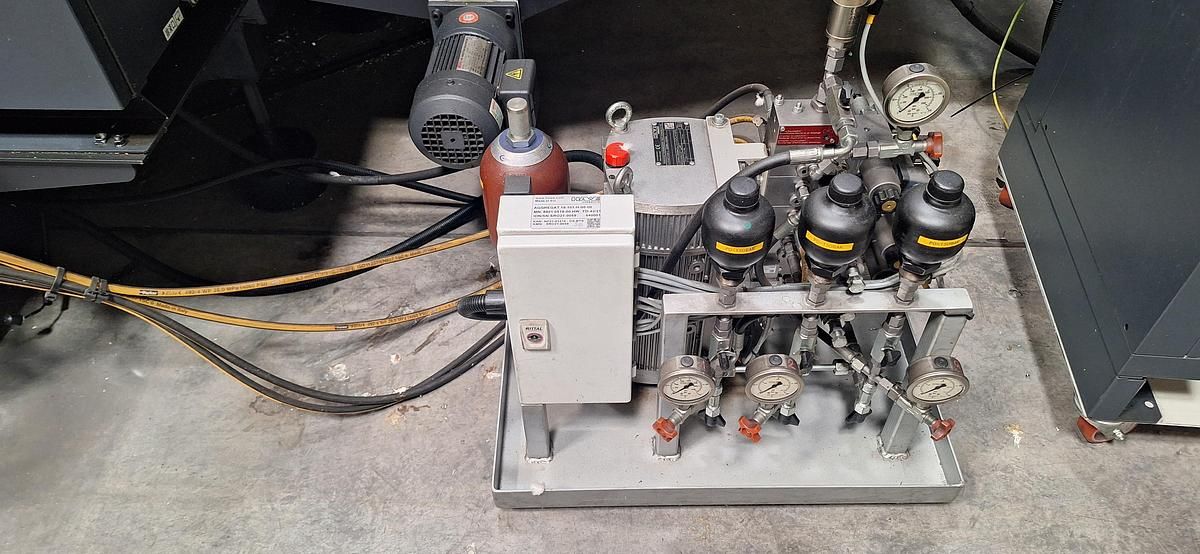

TSC 12 bar

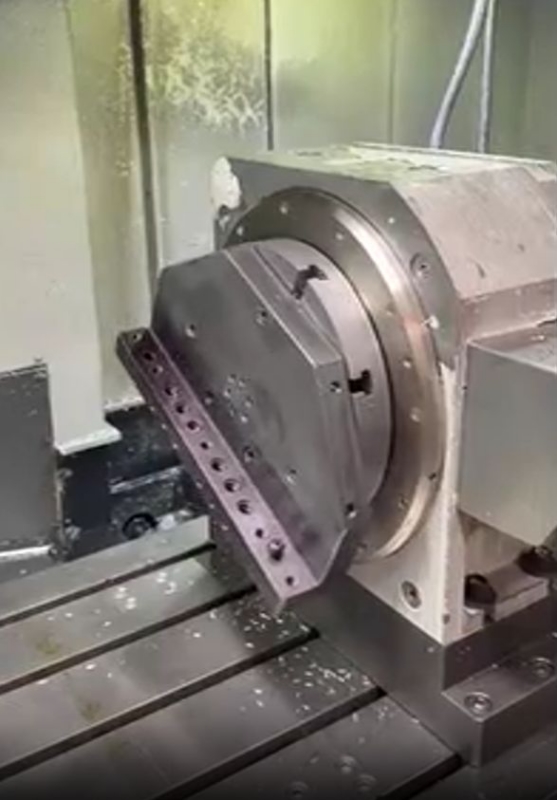

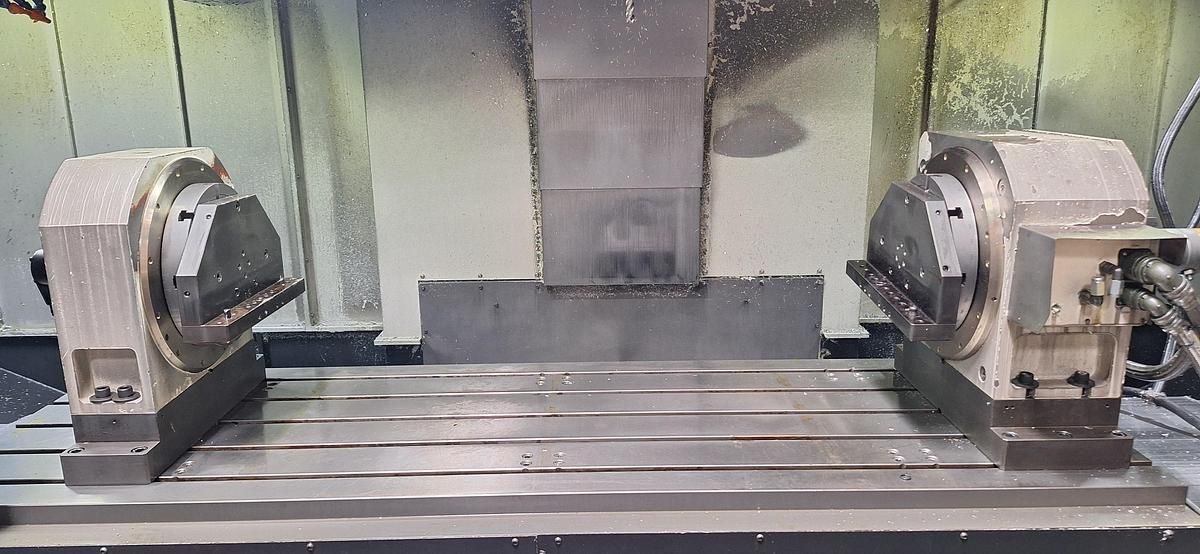

Hiwin RCV 320 rotary table
Hiwin RTS 320 suport
4th axis preparation
Automatic doors
Robot interface
|
