| Stock-No. |
1020-21171 |
| Category |

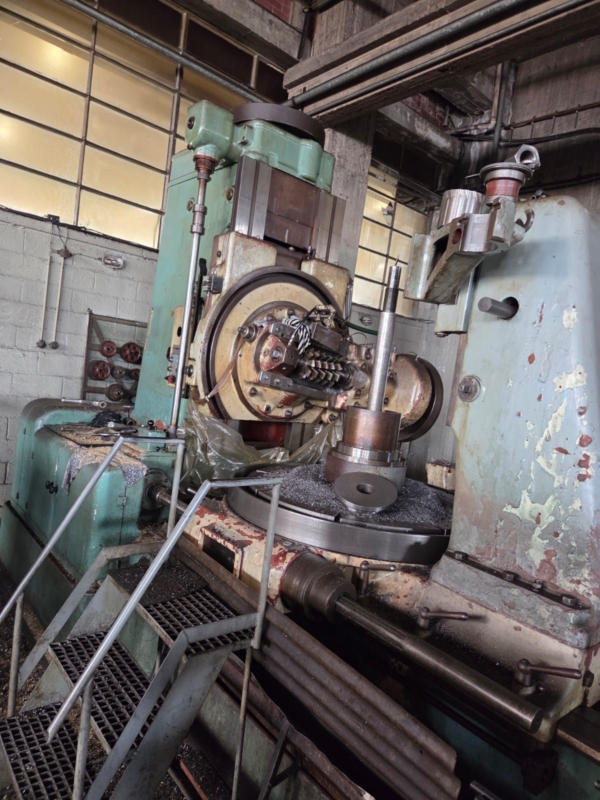

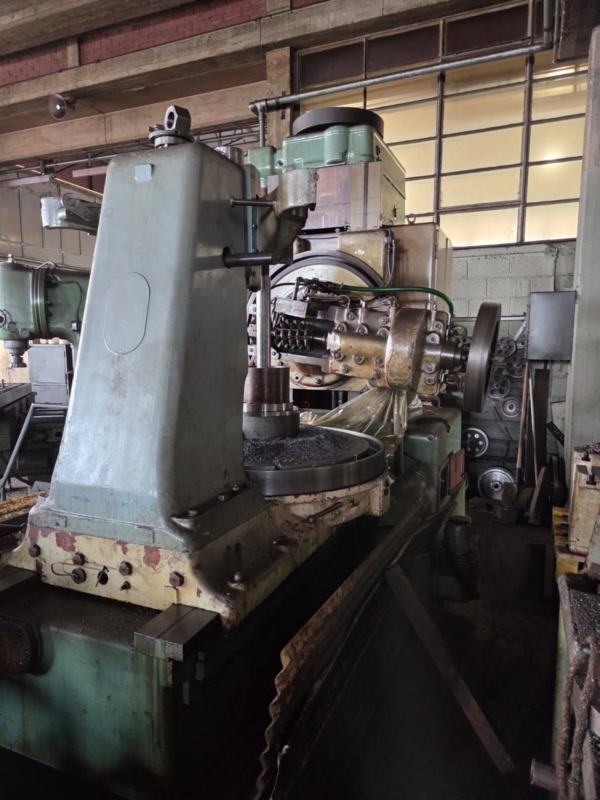

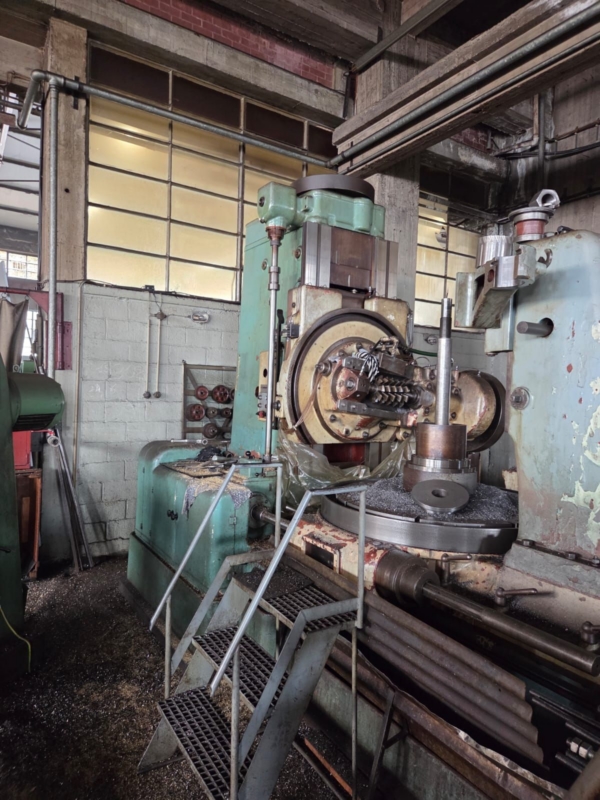

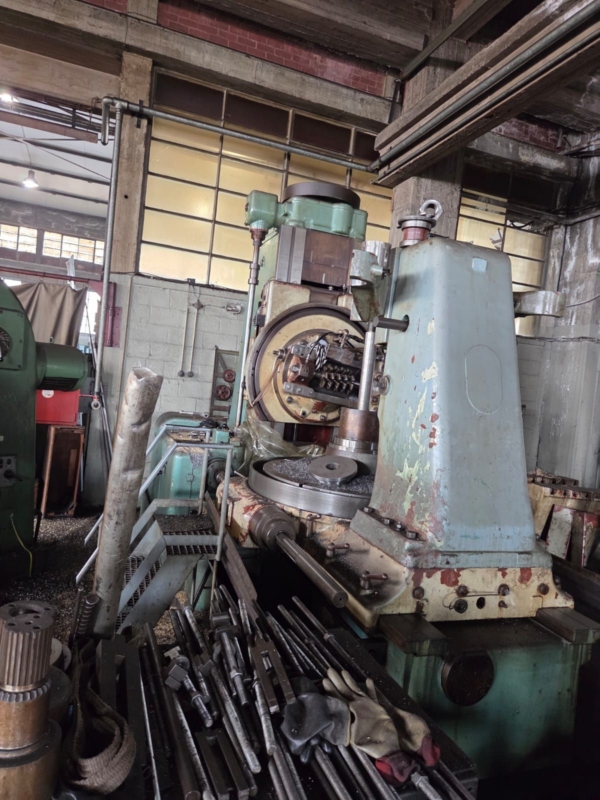

Gear Hobbing Machine - Vertical |
| Make |
TOS |
| Type |
FO 16 |
| New in |
1979 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Czech Republic |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| max. wheel diameter |
1600 mm |
| gear width |
560 mm |
| max. module |
16 |
| workpiece weight max. |
7000 kg |
| table surface area |
1350 mm |
| turning speed range |
16 - 80 U/min |
| feeds - axial |
0,05 - 1,5 mm/min |
| feeds - radial |
0,25 - 6 mm/min |
| feeds - tangential |
0,13 - 4 mm/min |
| electrics - voltage/frequency |
380/50 V/Hz |
| total power requirement |
12 kW |
| weight of the machine ca. |
18,5 t |
| dimensions of the machine ca. |
4260 x 2555 x 3170 mm |
| Description |

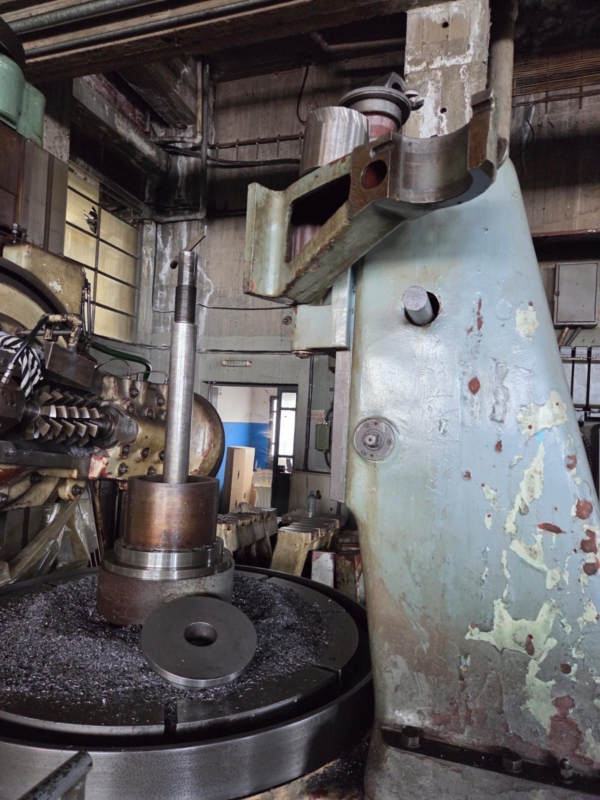

- universal Hob head

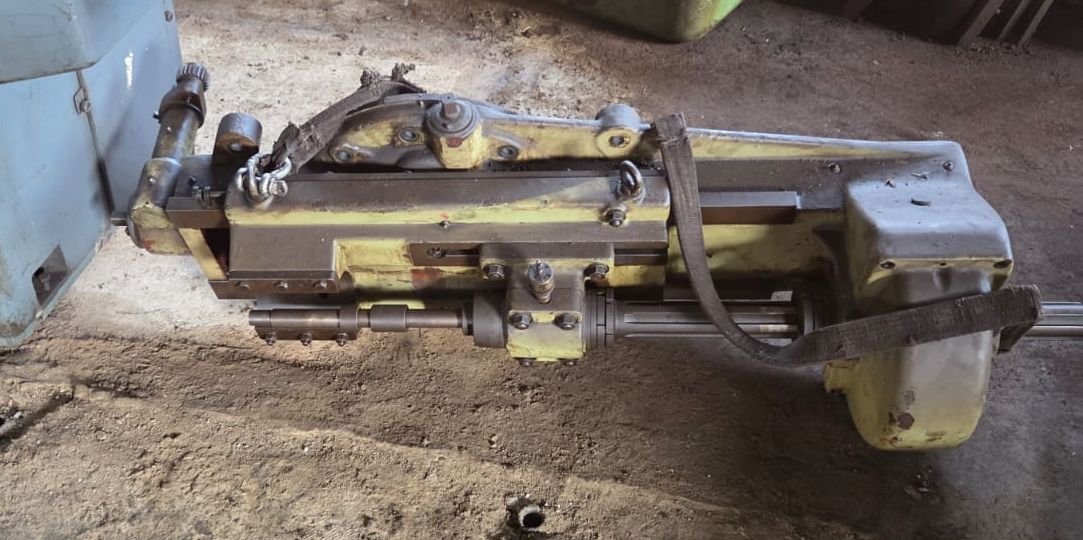

- tangencial head (extra)
- outer steady

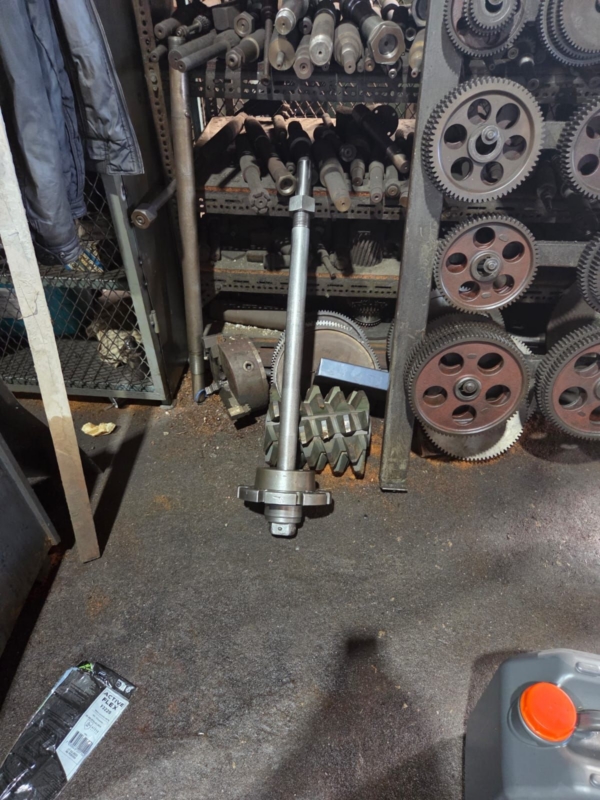

- change gears

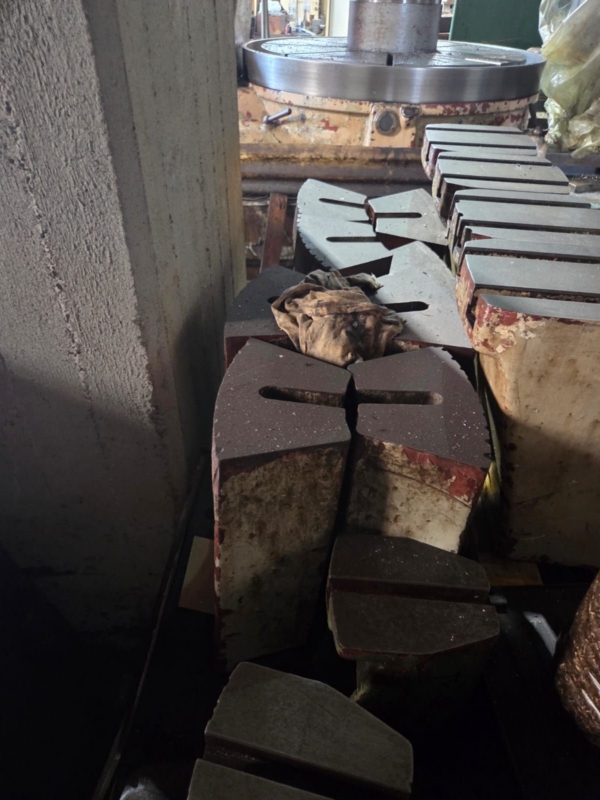

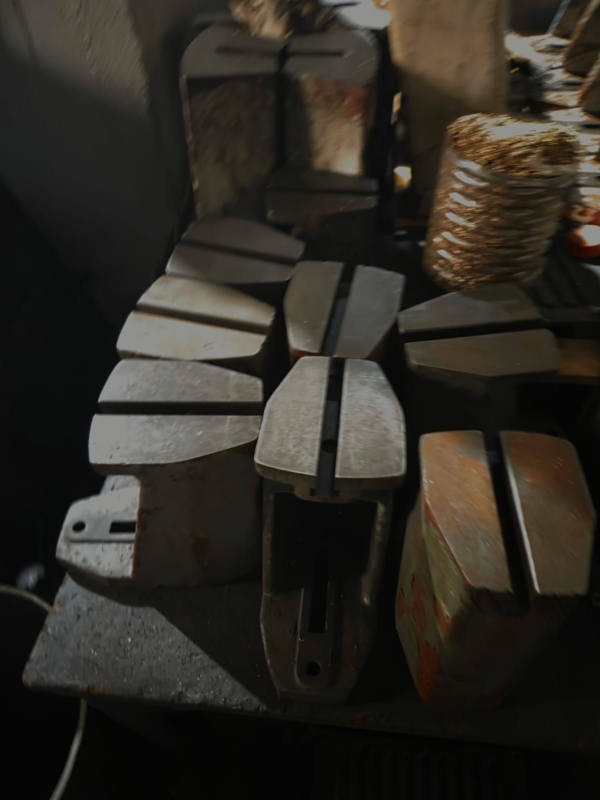

- 1 set big and 4x small clamping pods
- arbors and approx 20 cutters (diffent Moduls)
|
|
|
|
