| Stock-No. |
1020-21168 |
| Category |
Vertical Turret Lathe - Double Column |
| Make |
SCHMID |
| Type |
SE 349 |
| New in |
2009 |
| Control |
SIEMENS 840D Power Line |
| Location |
|
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
ex Site |
| Price |

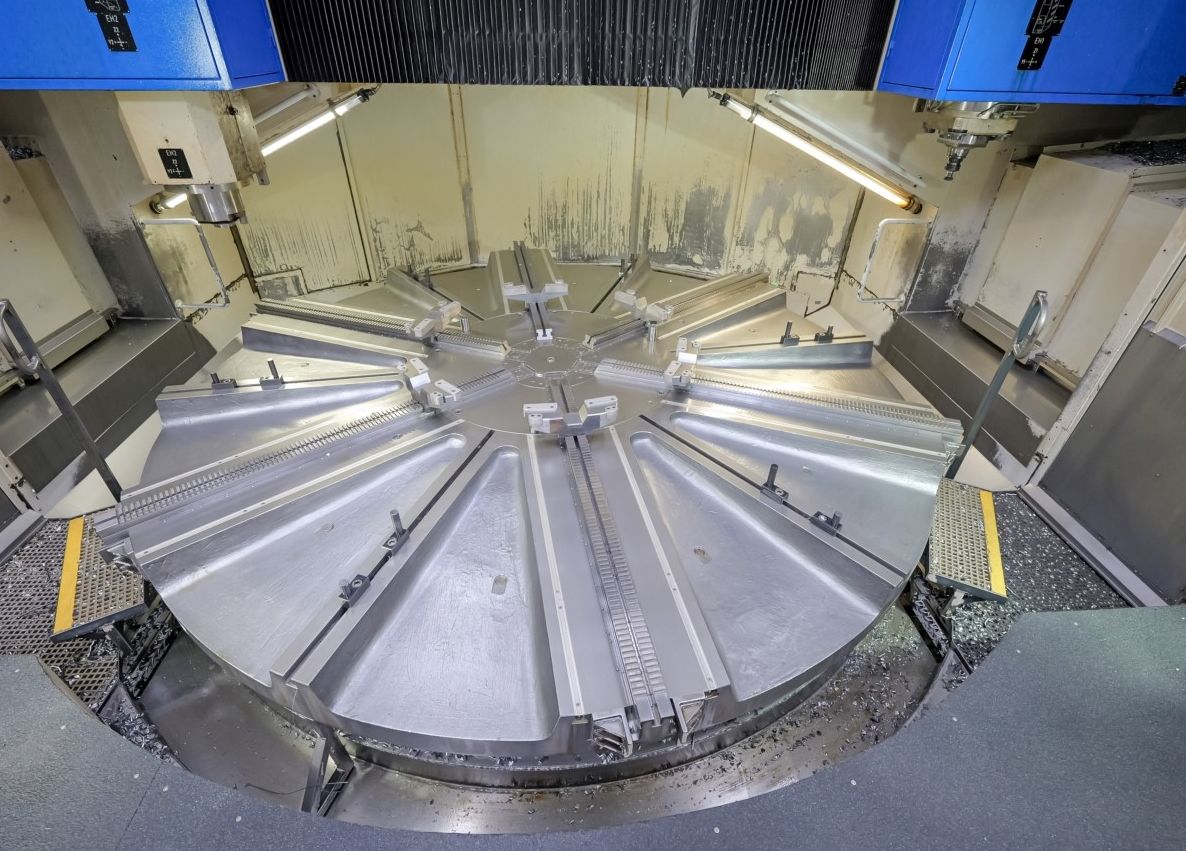

| faceplate diameter |
4000 mm |
| swing diameter |
4300 mm |
| turning height |
mm |
| control |
SIEMENS 840D Power Line |
| max. workpiece diameter |
4.300 mm |
| Tool bore |
HSK 100 |
| weight of tools max. |
30 kg |

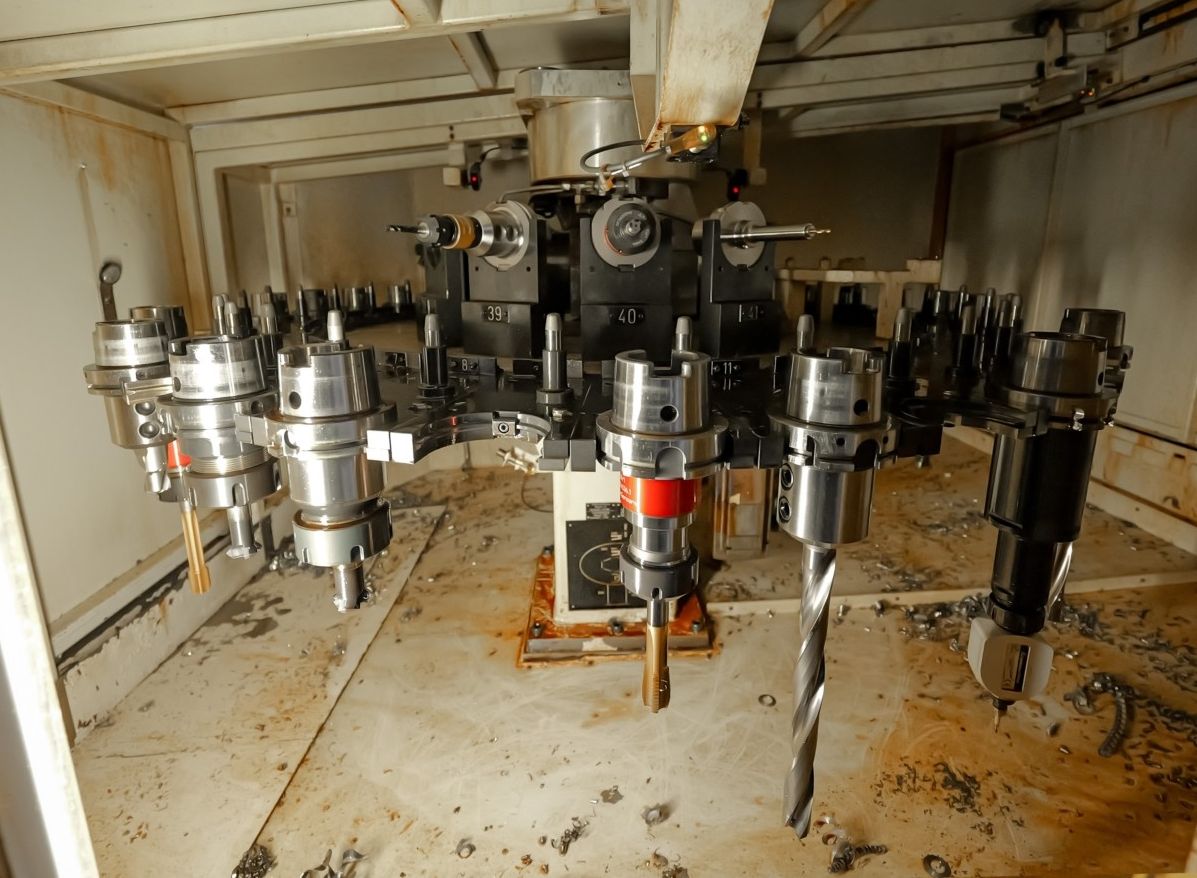

| Number of tools |
36 |
| capacity at 100% load |
42 / 63 kW |
| turning speed range |
50 - 4.000 min/1 |
| turning speed range |
100 - 3.500 min/1 |
| powered chuck diameter |
4.300 mm |
| positioning accuracy |
+/- 0,01 mm |
| connected load |
64/96 kW |
| Grinding Spindle Length |
|
| total power requirement |
kW |
| weight of the machine ca. |
t |
| dimensions of the machine ca. |
m |
| Description |
|
|
|
|
