| Stock-No. |
1020-21167 |
| Category |

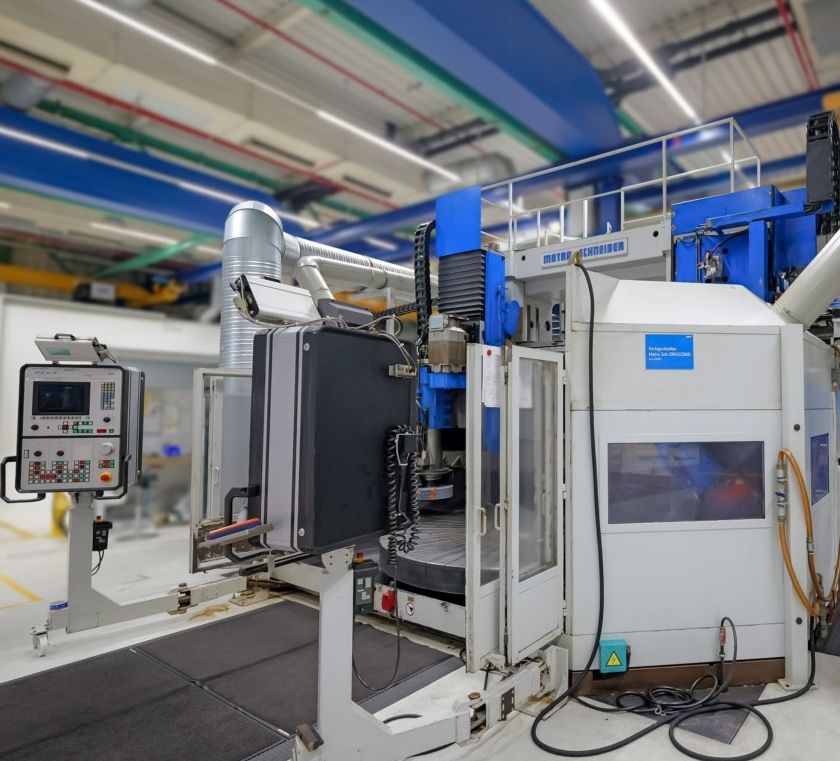

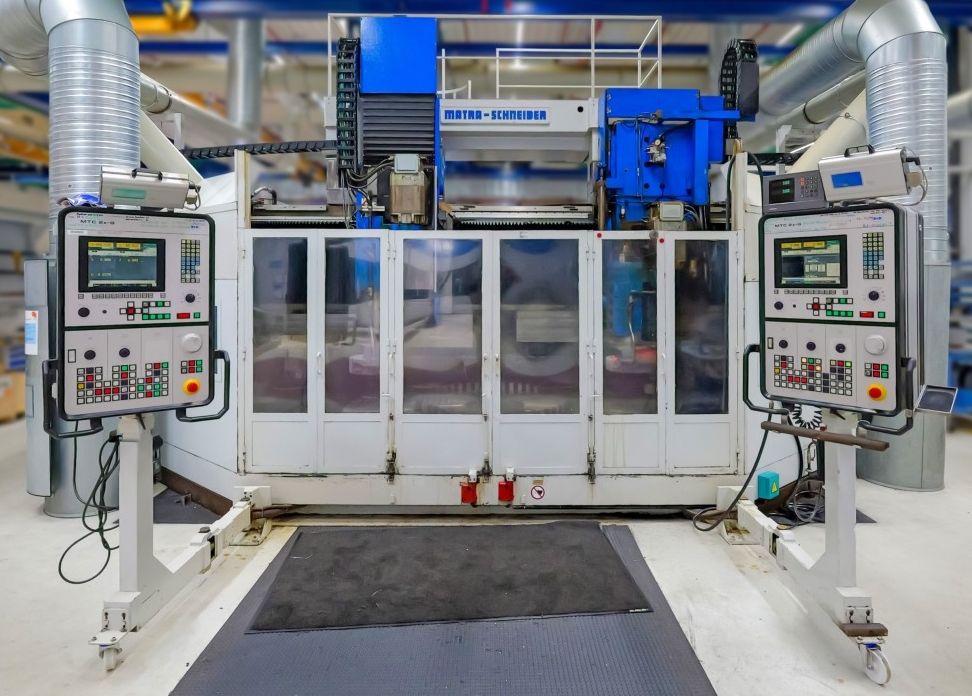

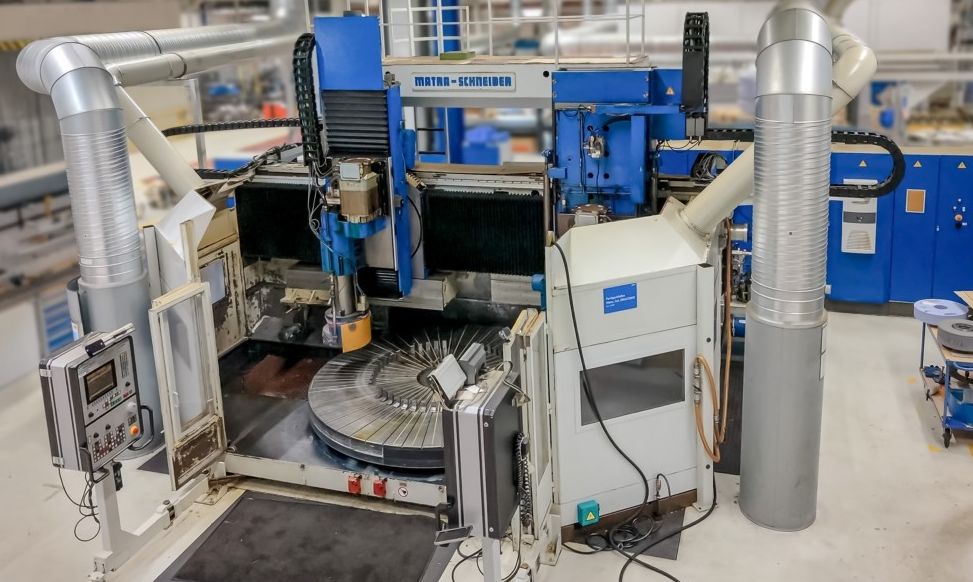

Vertical Grinding Mill - Double Col. |
| Make |
MATRA-SCHNEIDER |
| Type |
DRH3 2000 |
| New in |
1999 / 2004 |
| Control |
R&D MTC 2x-G |
| Location |
|
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
ex Site |
| Price |
| working diameter |
3000 mm |
| Working height |
500 mm |
| control |
R&D MTC 2x-G |
| Z1 left carriage - Axis travel |
511 mm |
| travel -z axis, right support |
350 mm |
| spindle stroke |
1.100 mm |
| travel -x axis, left support |
2.160 mm |
| travel -x axis, right support |
1.600 mm |
| turning speeds, left support |
2.000 1/min |
| turning speeds, right support |
2.000 1/min |
| max. table load |
6.000 kg |
| grinding wheel diameter, left support |
500 mm |
| grinding wheel diameter, right support |
500 mm |

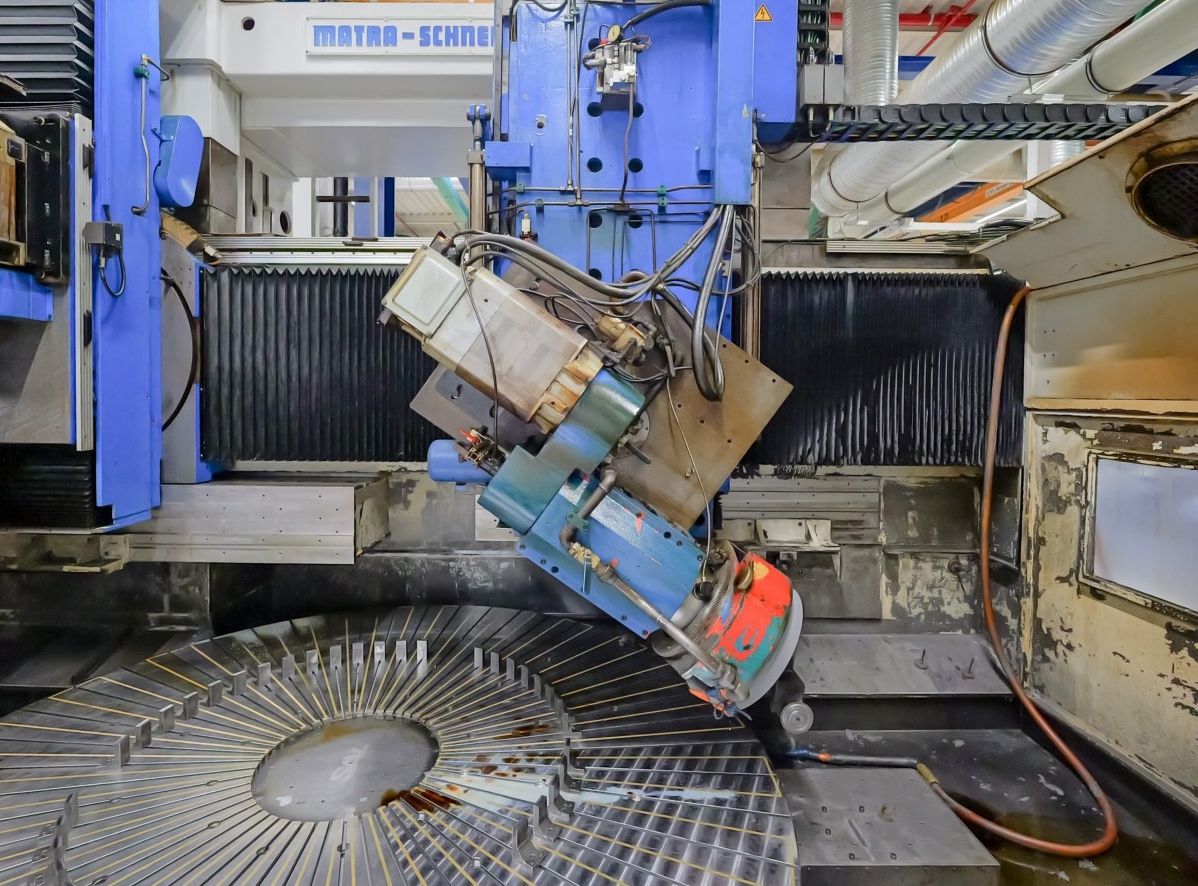

| swival range +/-, right support |
-32 / + 54 ° |
| swival range +/-, left support |
-15/ +15 ° |

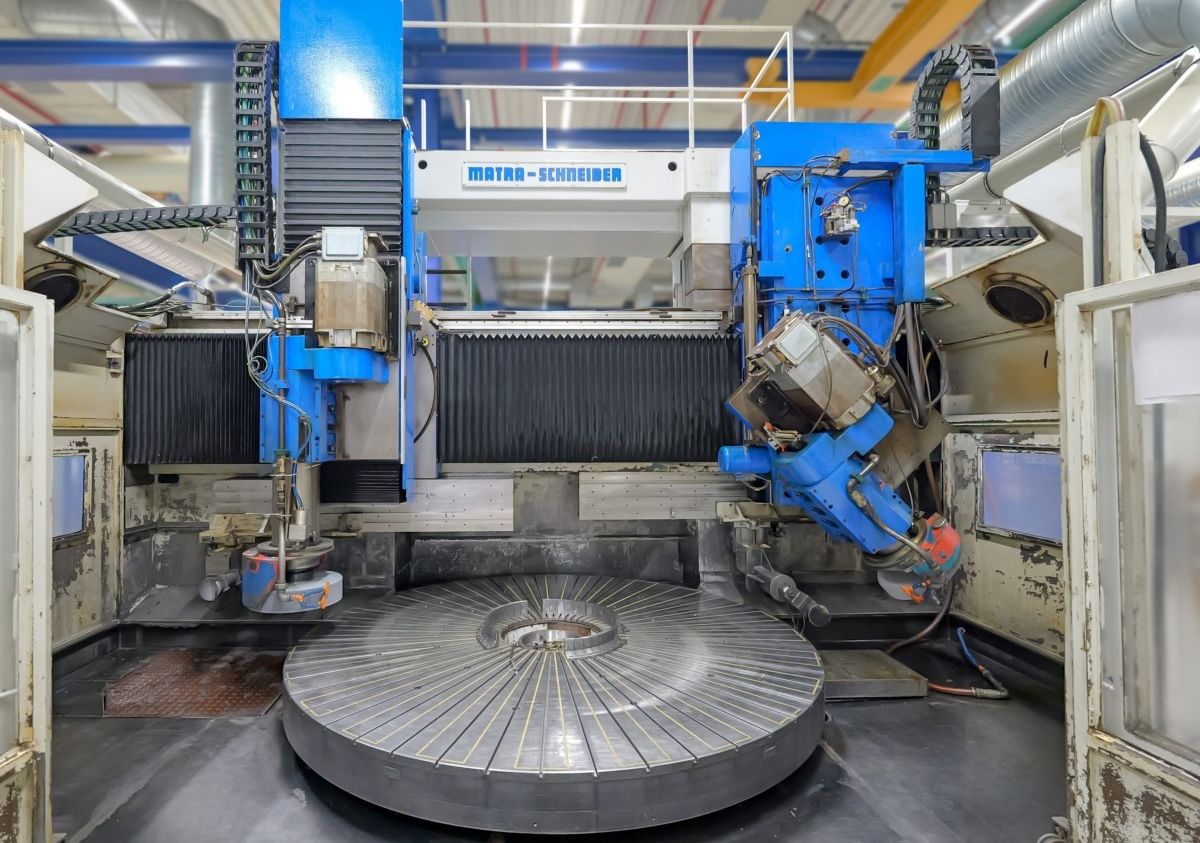

| Automatic dressing unit for both grinding supports |
|
| Magnetic face plate SAV |
2.800 mm |
| Description |

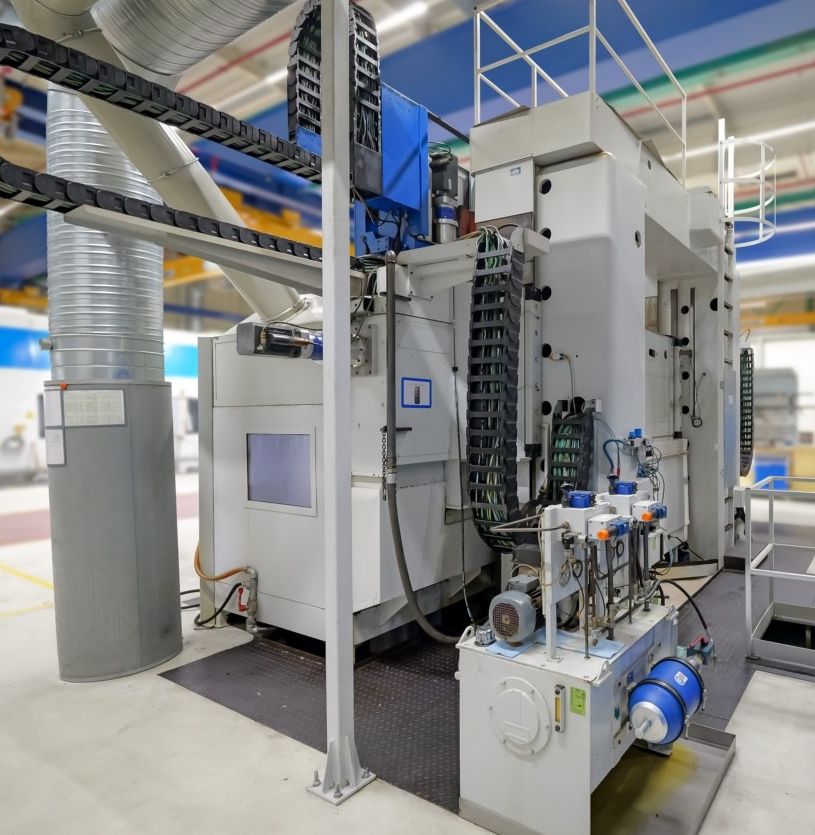

The machine is in very good technical condition and has been well maintained,
and was used for the high-precision finishing of the raceways of main shaft bearings
for wind turbines.

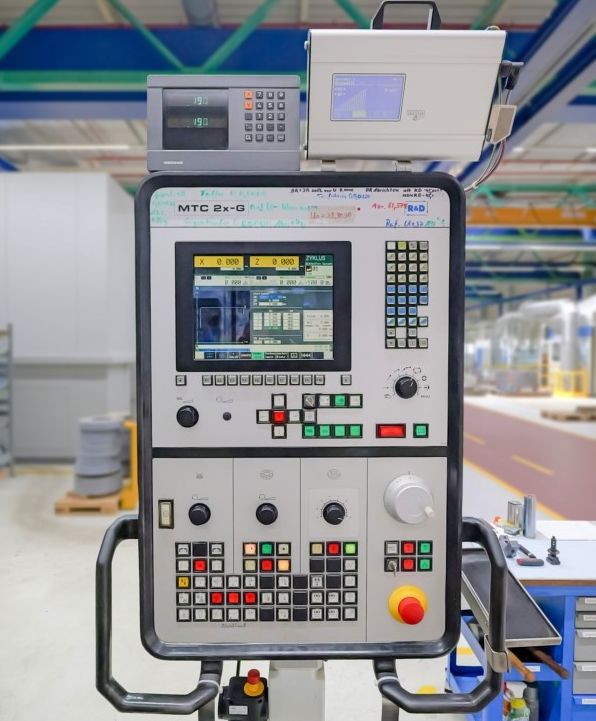

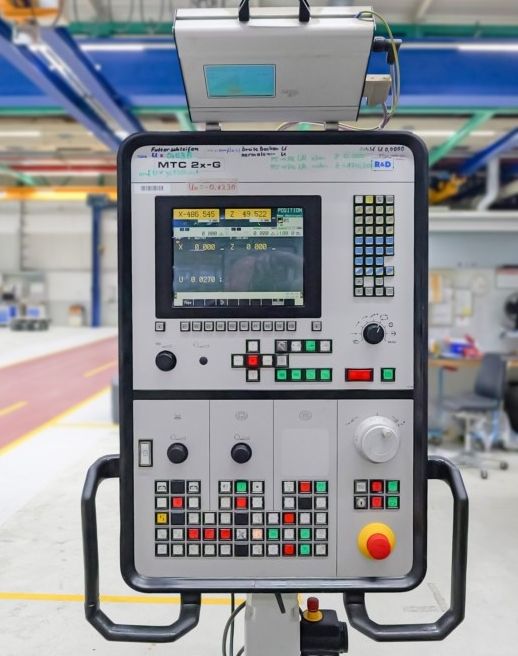

In 2004, the machine control system was upgraded to an R&D MTC 2x-G.

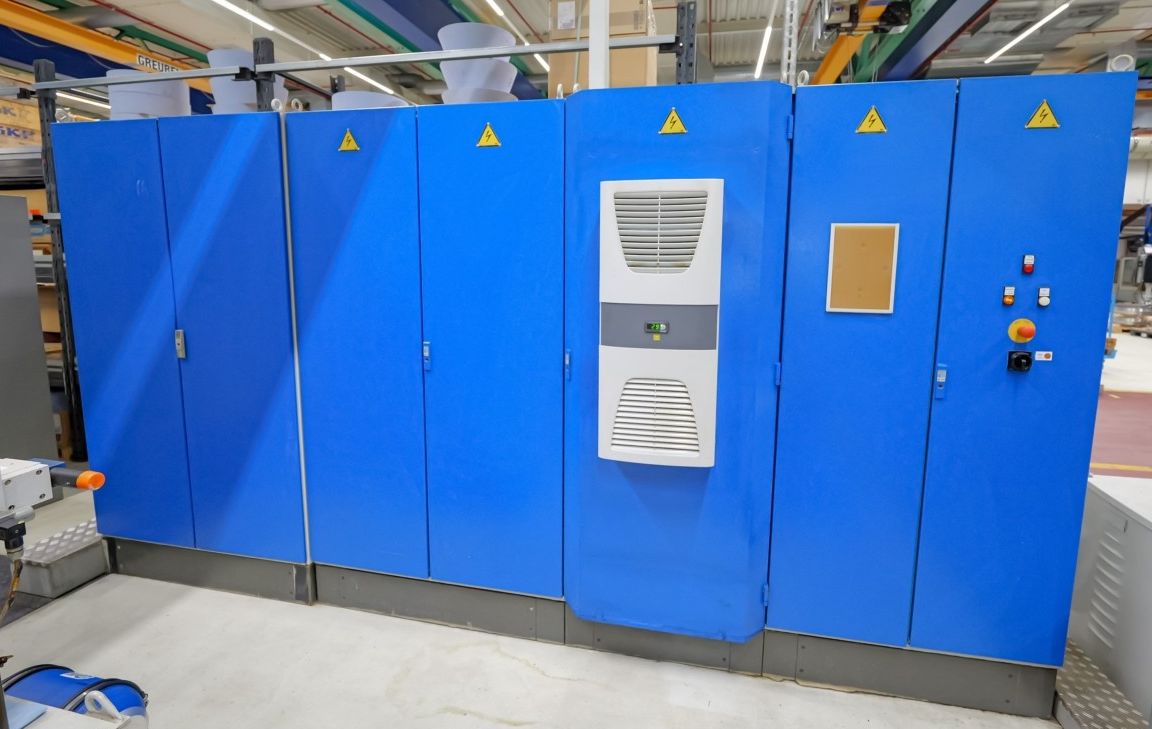

The complete electrical documentation for the control system upgrade is available.
Furthermore, the machine has been continuously maintained over recent years
and has undergone targeted partial overhauls, with a particular focus on ensuring the highest possible machining accuracy
down to the µm range.
|
