| Stock-No. |
1020-21153 |
| Category |
Machining Center - Universal |
| Make |
ANAYAK |
| Type |
PERFORMER 2000 MG |
| New in |
2011 |
| Control |
Heidenhain ITNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Spain |
| Delivery time |
short-dated |
| Freight basis |
EXW |
| Price |
| x-travel |
2000 mm |
| y-travel |
1250 mm |
| z-travel |
1108 mm |
| turning speeds |
60 - 4000 U/min |
| spindle motor |
38 / 24 kW |
| tool taper |
SK 50 |
| tool change unit |
40 Pos. |
| table surface area |
1600 x 1250 mm |
| table load |
7 t |
| c-axis |
+/- 120 ° |
| B-axis (table) |
360.000 pos |
| control |
Heidenhain ITNC 530 |
| total power requirement |
- kVA |
| weight of the machine ca. |
16,5 t |
| dimensions of the machine ca. |
5,5 x 4 x 2,9 m |
| Description |

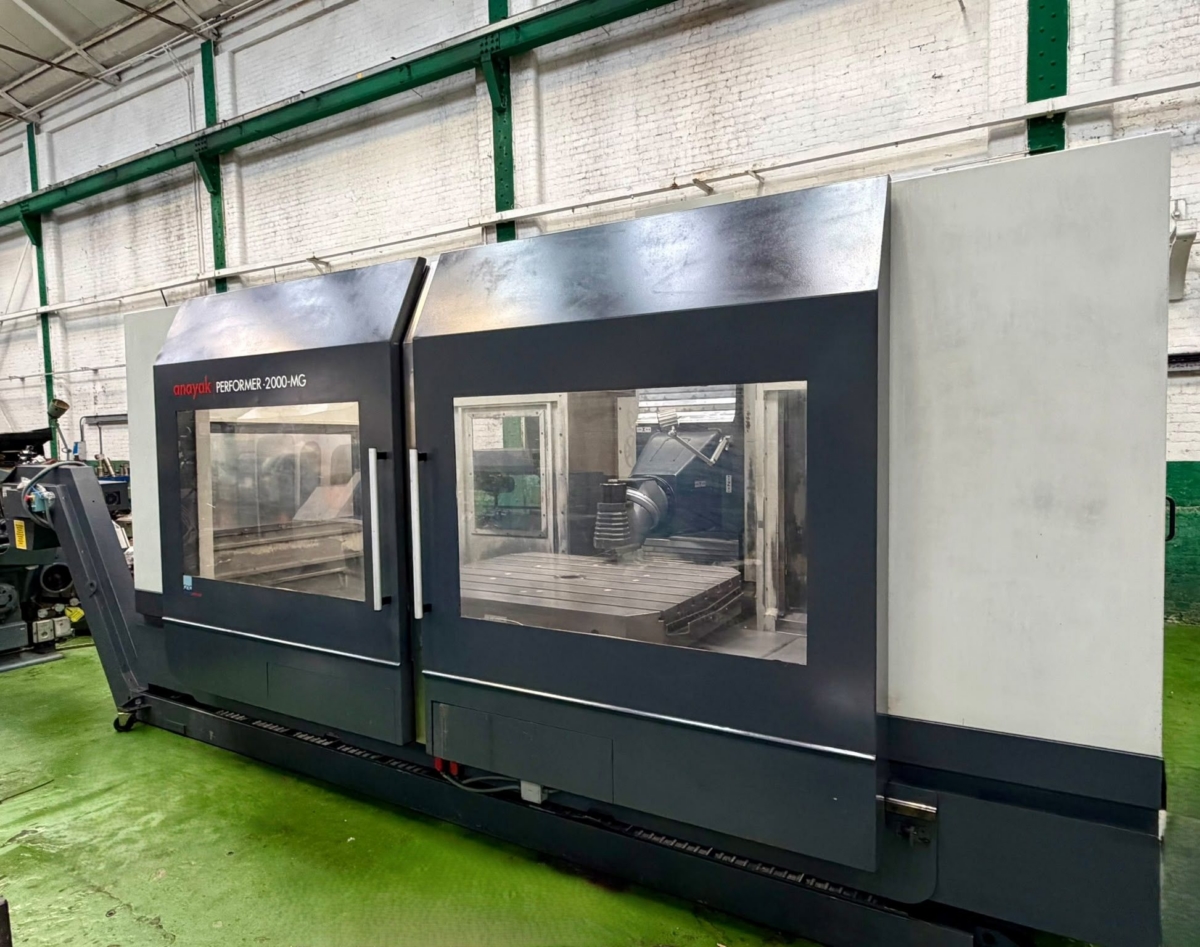

5-axis machining center with

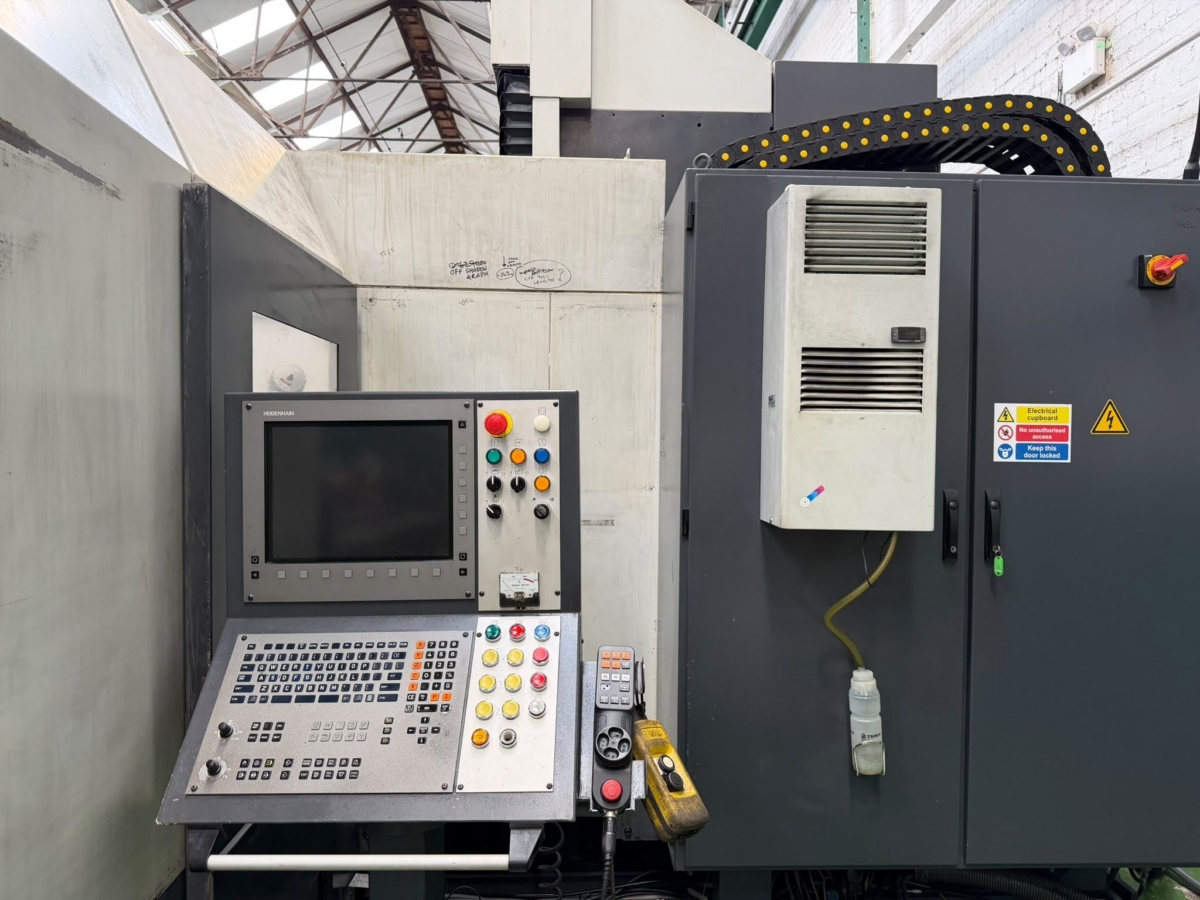

- CNC control Heidenhain iTNC 530

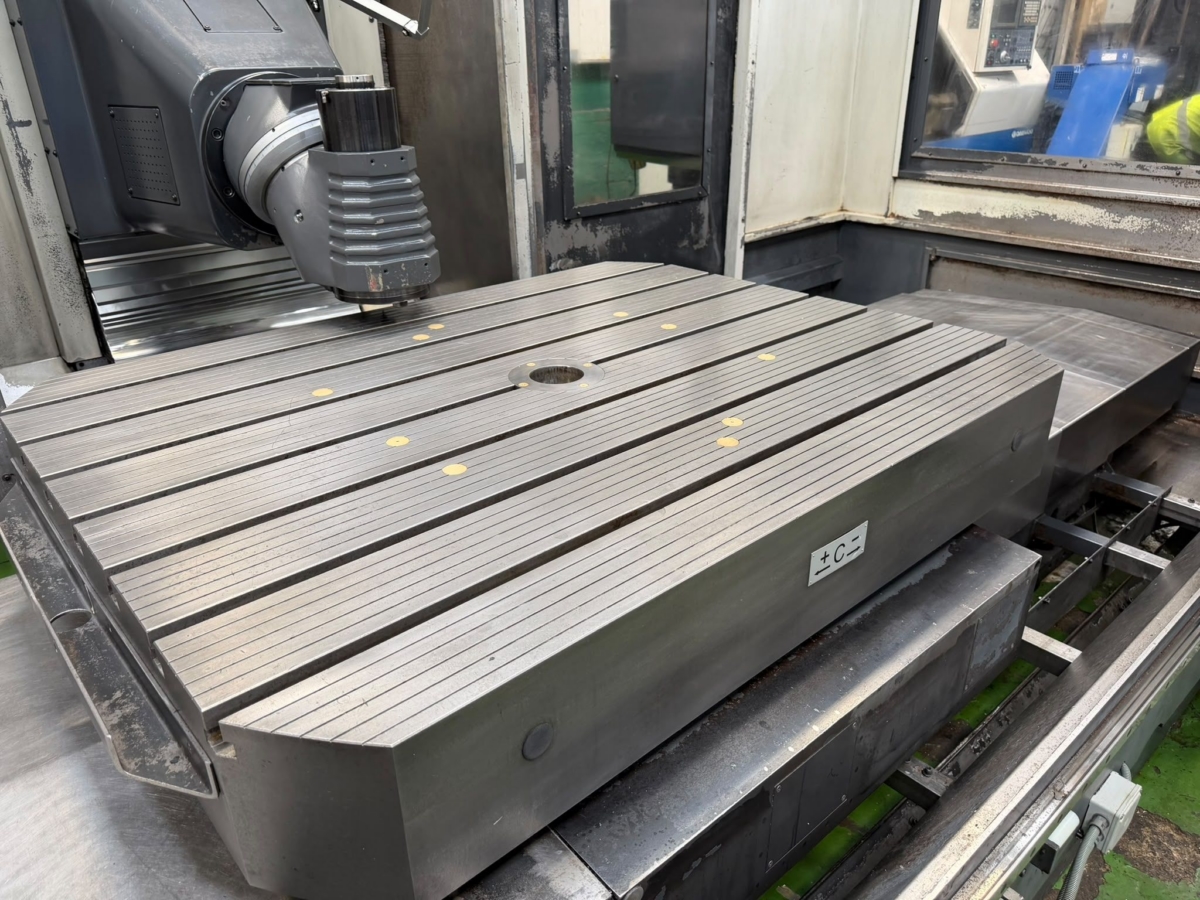

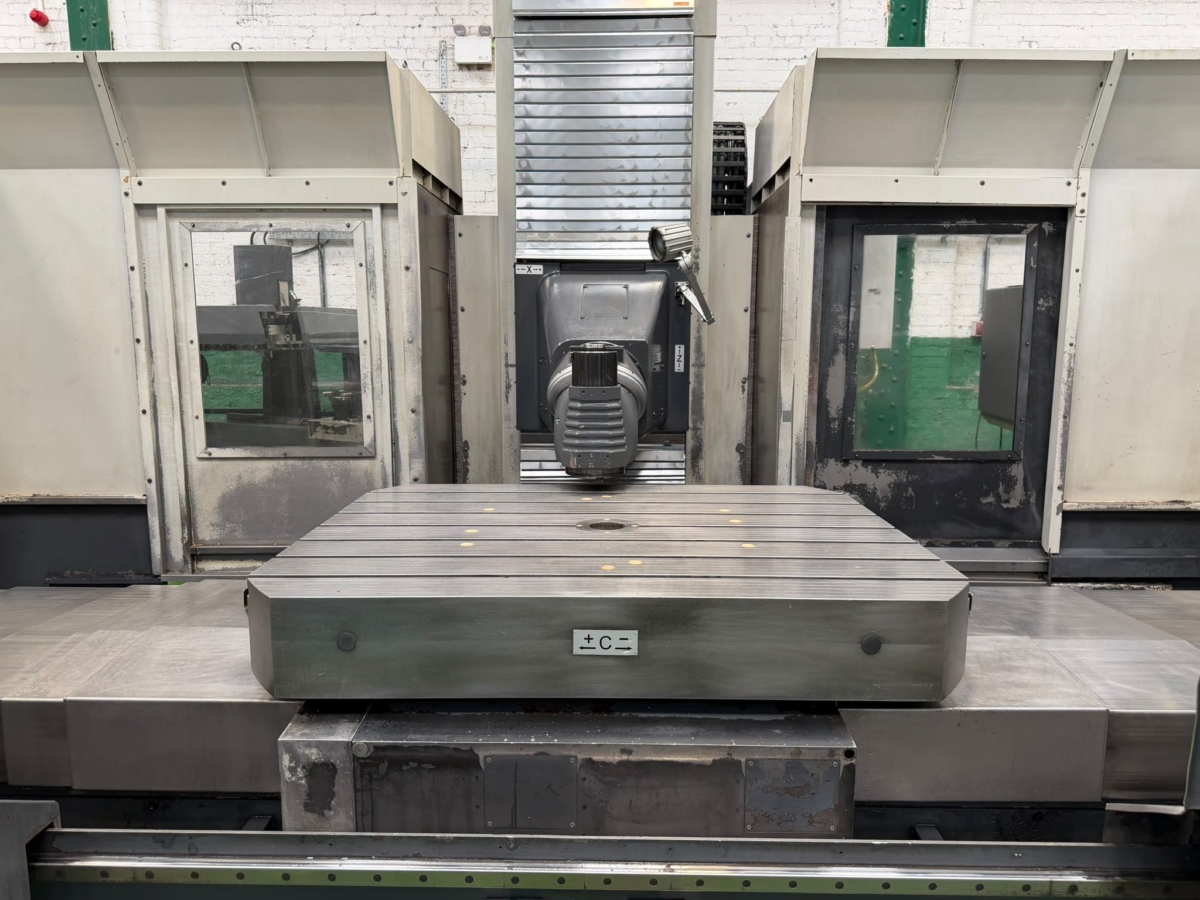

- NC rotary table with B-axis

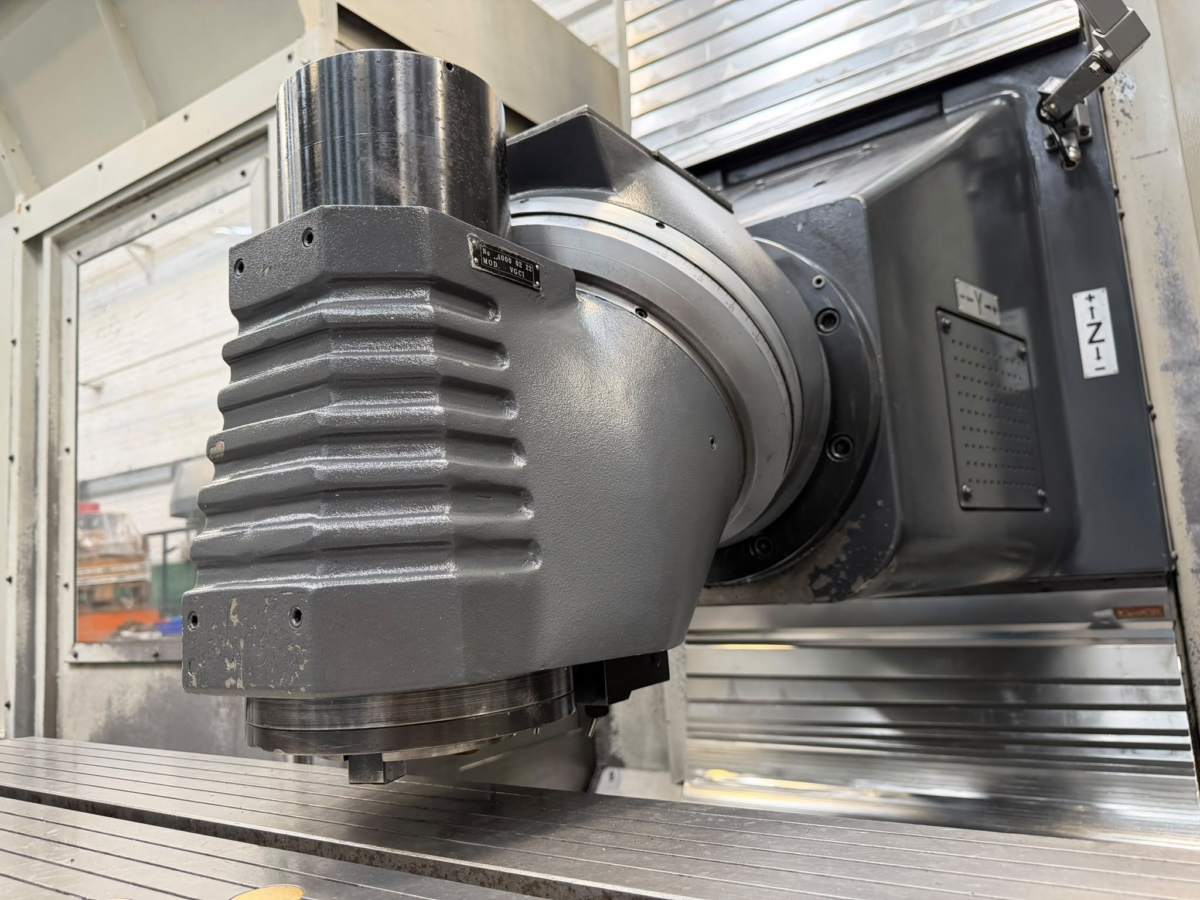

- Automatic swivel milling head (C-Axis)

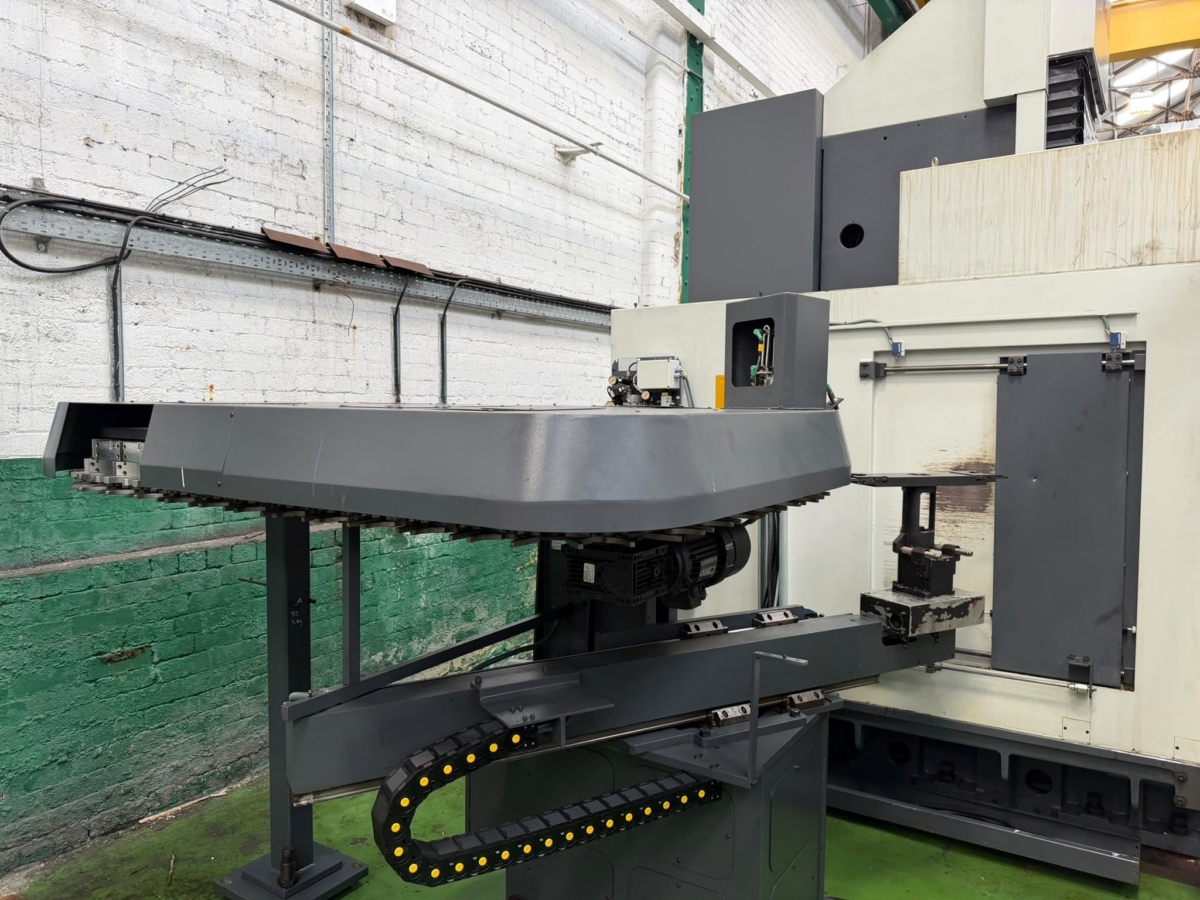

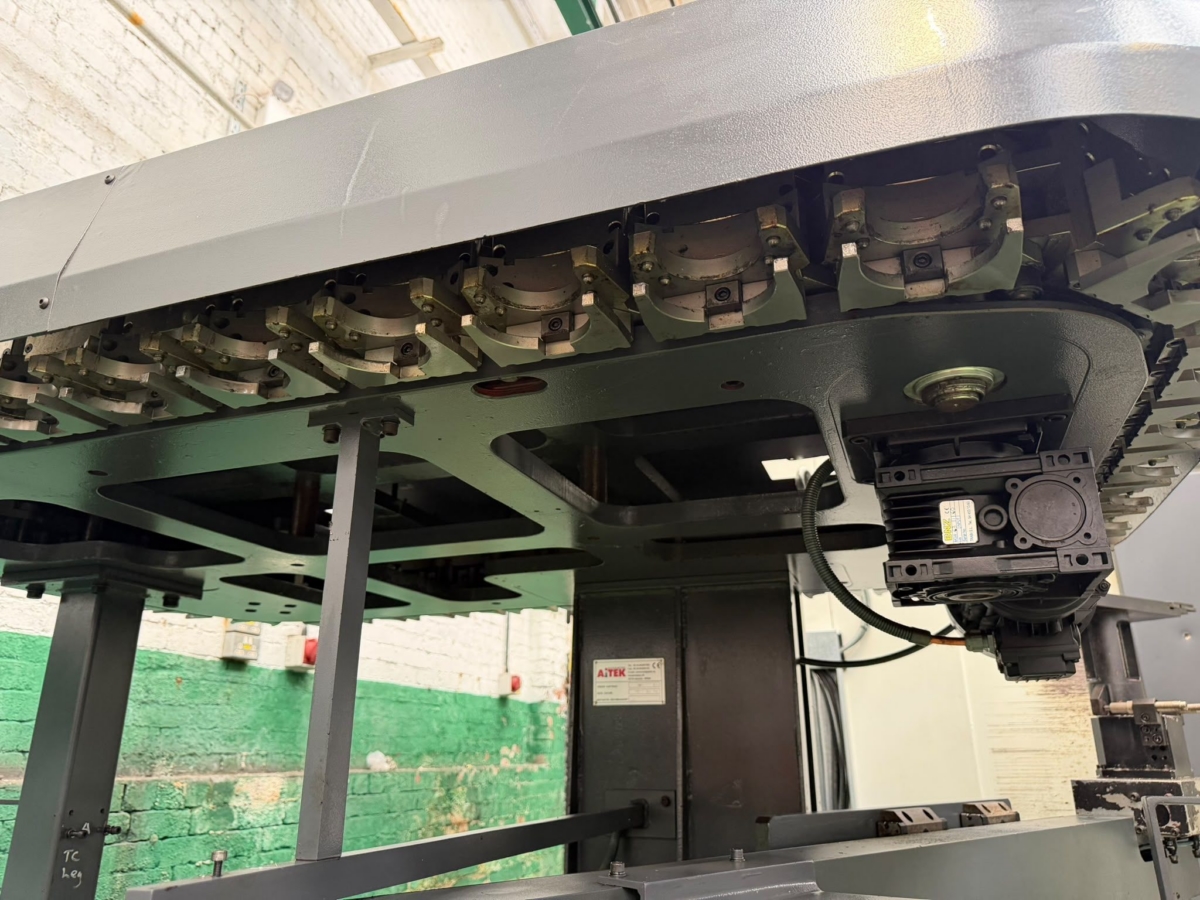

- 40-fold tool changer (SK 50)
- Electronic handwheel

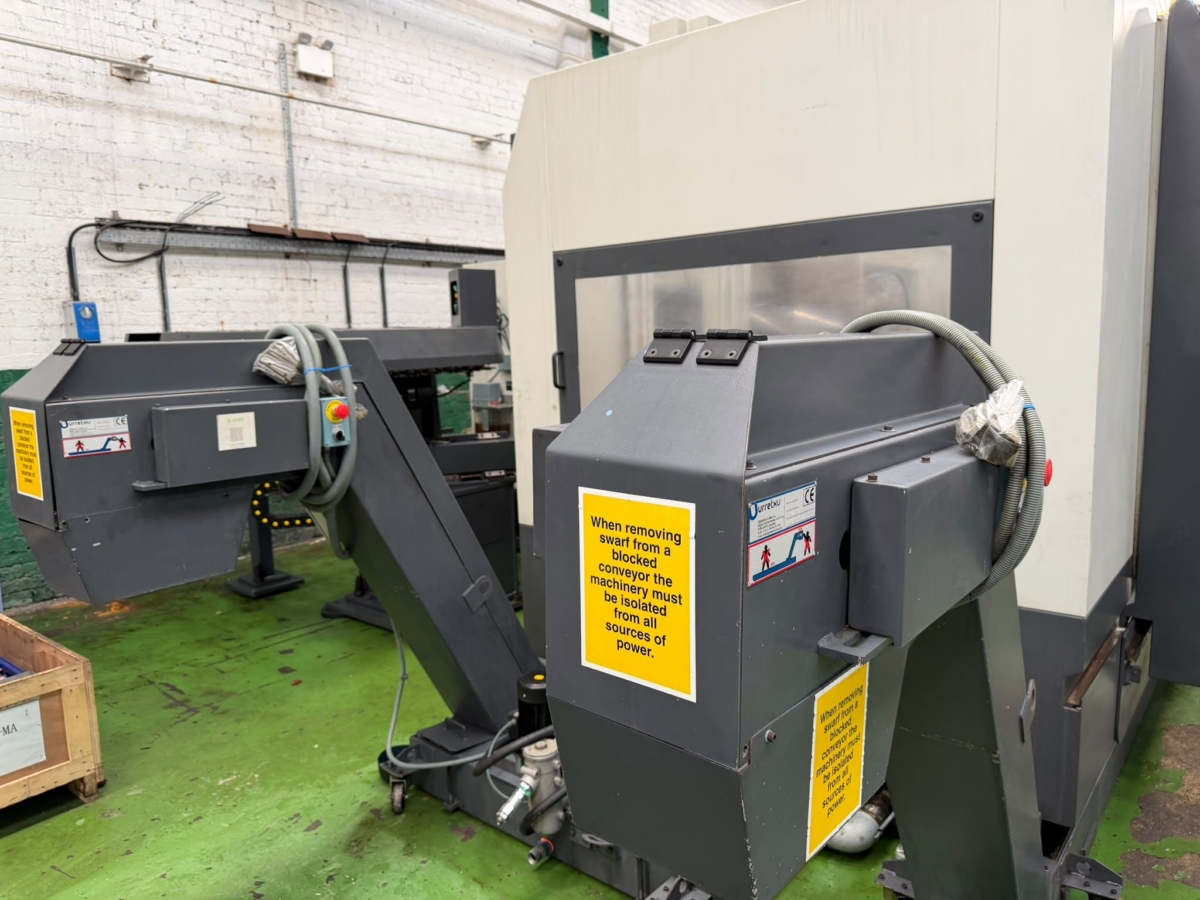

- 2 Chip conveyor
- Coolant device 30 l/min
- Coolant through Center
|
|
|
|
