| Stock-No. |
1020-21152 |
| Category |
CNC Turning- and Milling Center |
| Make |
MAZAK |
| Type |

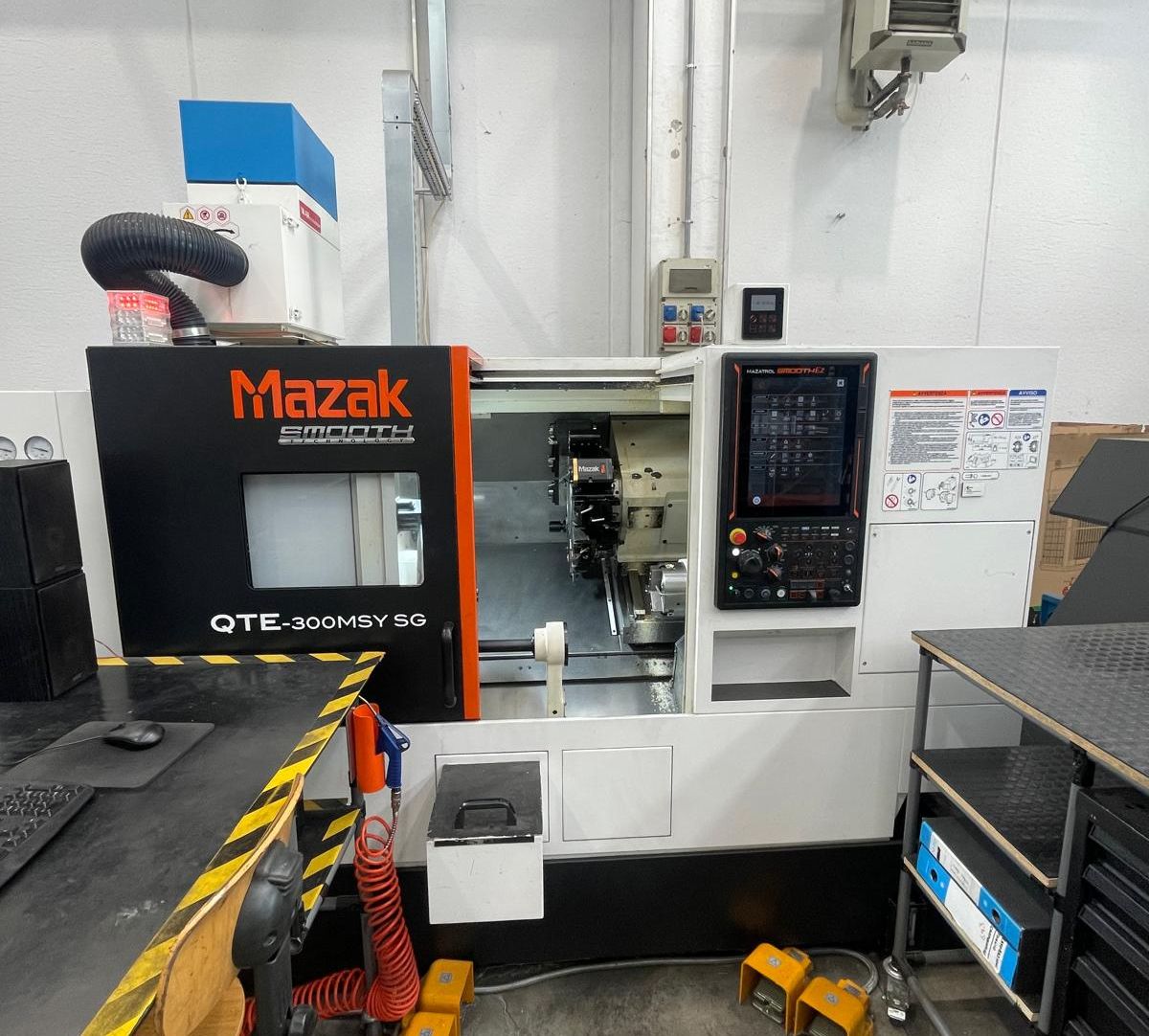

QTE-300MSY SG |
| New in |
2022 |
| Control |
Mazatrol Smooth G |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Japan |
| Delivery time |
short-dated |
| Freight basis |
ex works "is as is" |
| Price |
| turning diameter |
340 mm |
| turning length |
500 mm |
| swing dia. |
695 mm |
| X-Axis movement |
215 mm |
| Y-Axis movement |
100 mm |
| Z-Axis movement |
605 mm |
| Minimum indexing C-Axis main Spindle |
0,0001 ° |
| Number of tools on turret |
12 |
| Number of driven tools |
12 x |
| Spindle speed driven tools |
4500 1/min |
| Spindle motor driven tools |
5,5 / 3,7 kW |
| Tool type |
Mazak VDI |
| control |
Mazatrol Smooth G |
| Main Spindle: |
|
| Spindle Speed |
4000 1/min |
| spindle motor |
18,5 / 15 kW |
| spindle bore diameter |
80 mm |
| 2nd Spindle: |
|
| spindle turning speed range |
6000 U/min |
| spindle motor |
7,5 / 5,5 kW |
| spindle bore |
80 mm |
| spindle distance |
605 mm |
| total power requirement |
36,7 kVA |
| Weight |
- t |
| dimensions of the machine ca. |
- m |
| Description |

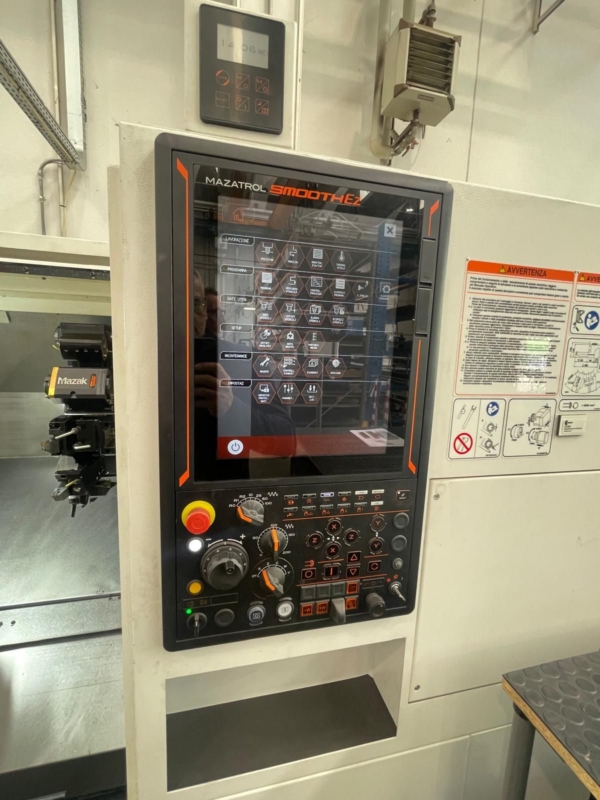

- Mazatrol Smooth EZ

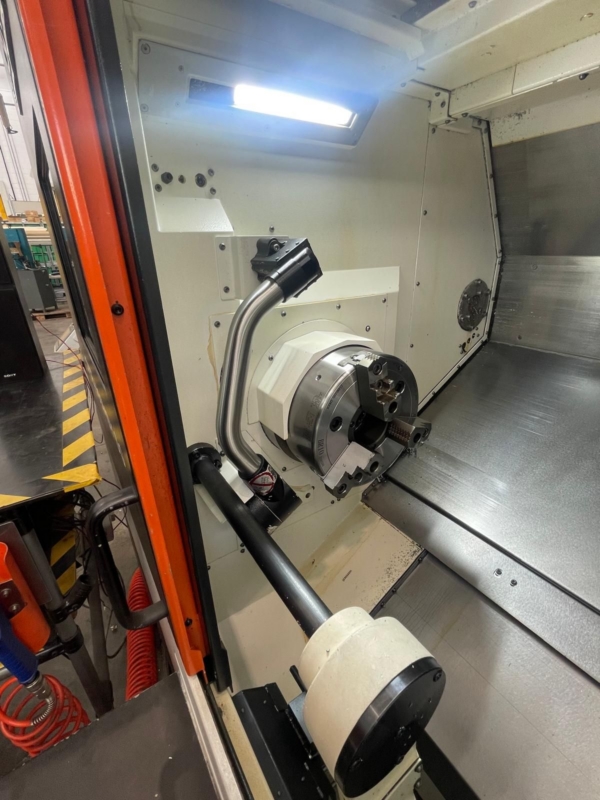

- Main and counter spindle

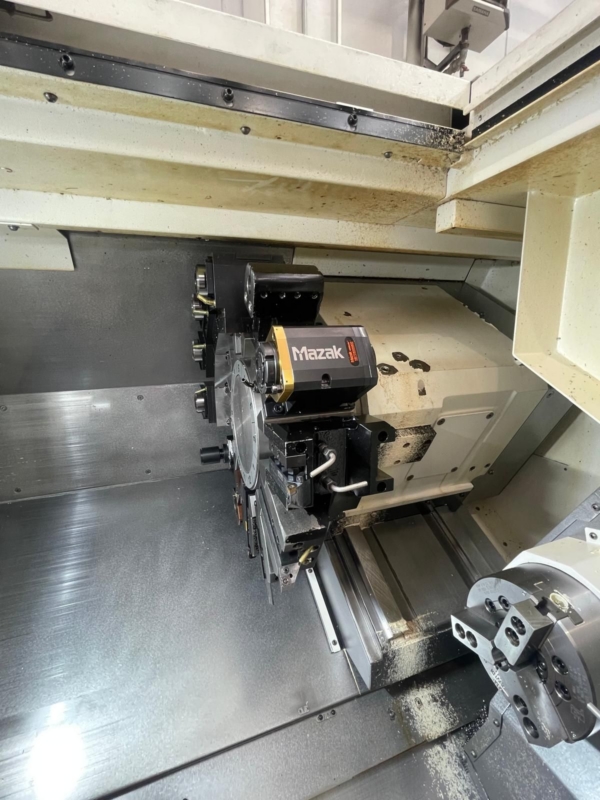

- 12-station tool turret with driven tools and Y-axis
- 3-jaw chuck
-- Main: 10"
-- Counter: 6"
- Chip conveyor
- Coolant system

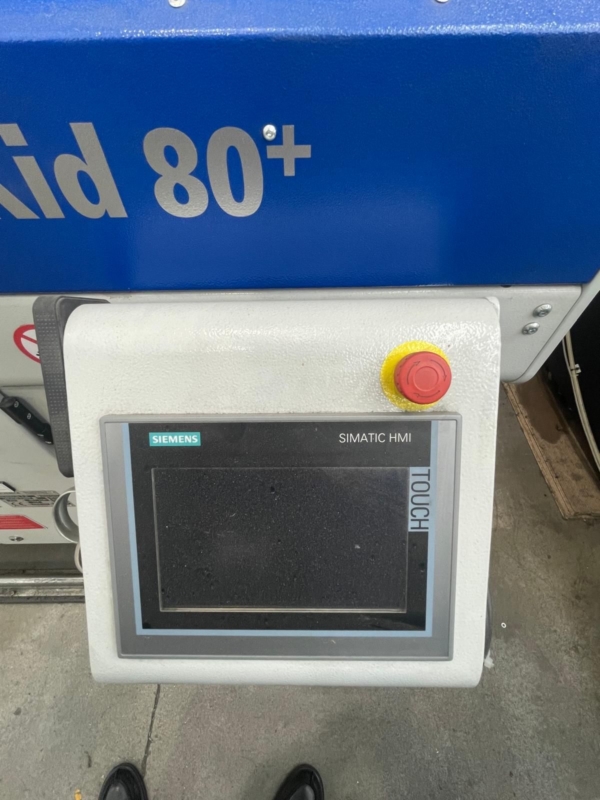

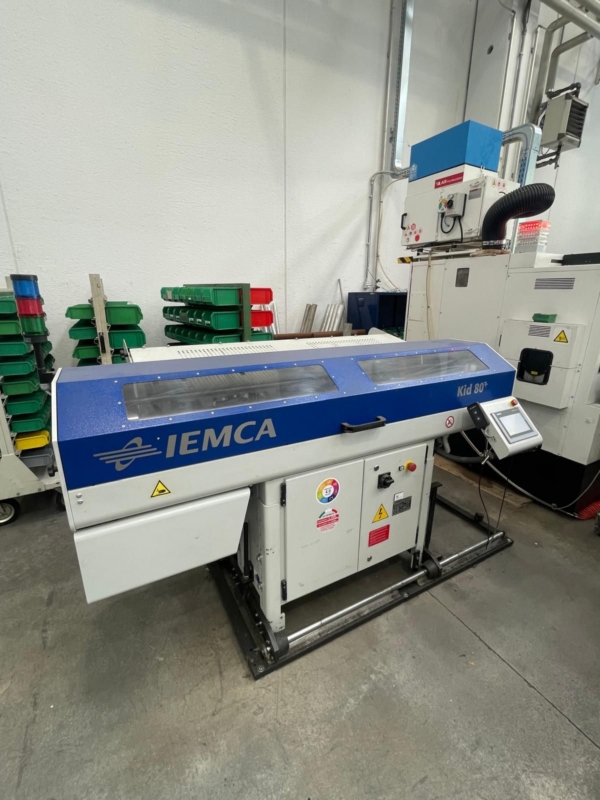

- Iemca Kid bar feeder (80 mm bar diameter)
- 3 colour LED lamp
- tool setter
only 4000 working hours
|
|
|
|
