| Stock-No. |
1020-21150 |
| Category |
Machining Center - Universal |
| Make |
DMG-MORI |
| Type |
DMU 95 monoBLOCK |
| New in |
2016 |
| Control |
Heidenhain TNC 640 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| x-travel |
935 mm |
| y-travel |
850 mm |
| z-travel |
650 mm |
| control |
Heidenhain TNC 640 |
| Main spindle: |
|
| turning speed range - main spindle |
20000 min/-1 |
| power capacity - main spindel |
35 kW |
| tool taper |
SK 40 |
| work table: |
|
| table surface area |
1000 x 750 (dia 850) mm |
| max. table load |
1500 kg |
| tool magazin: |
|
| number of toolpositions |
60 pos. |
| tool taper |
SK40 |
| feeds: |
|
| feed speeds |
40.000 mm/min |
| rapid traverse |
40 m/min |
| Accelaration |
5 m/s² |
| c-axis |
360 ° |
| A-Axis |
+/- 120 ° |
| total power requirement |
46 kVA |
| weight of the machine ca. |
14 t |
| dimensions of the machine ca. |
3,1 x 4,4 x 3,2 m |
| Description |

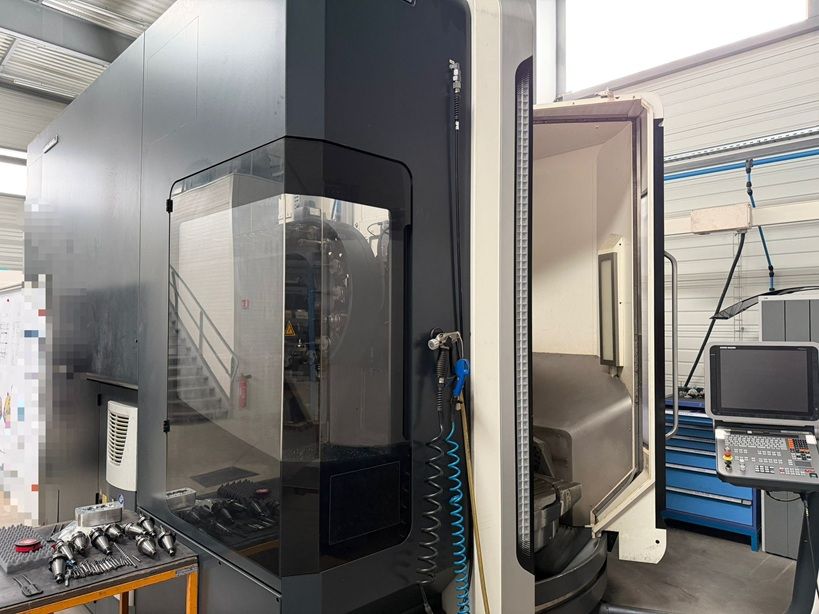

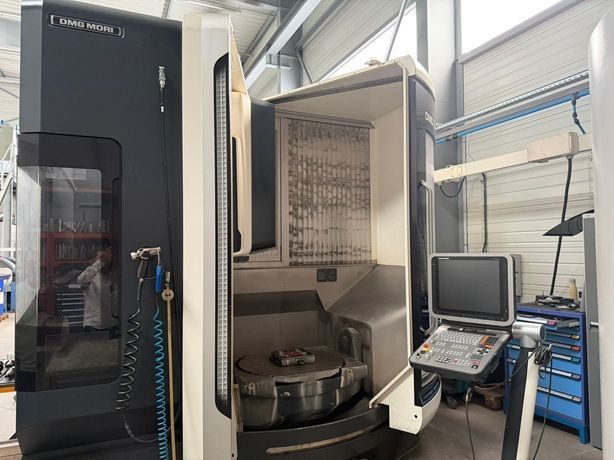

5-axis universal machining centre equipped with:

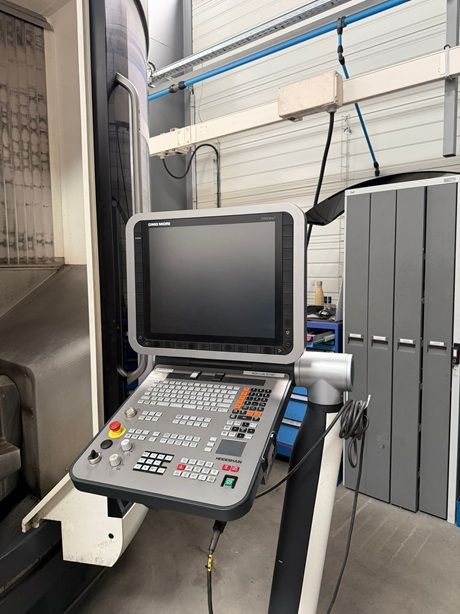

- Heidenhain TNC 640 CNC control
- 60-position ATC (SK 40)
- Heidenhain TS 460 touch probe
- Chip conveyor with coolant
- Paper belt filter
- IKZ 40 bar
- Blum laser tool measurement system

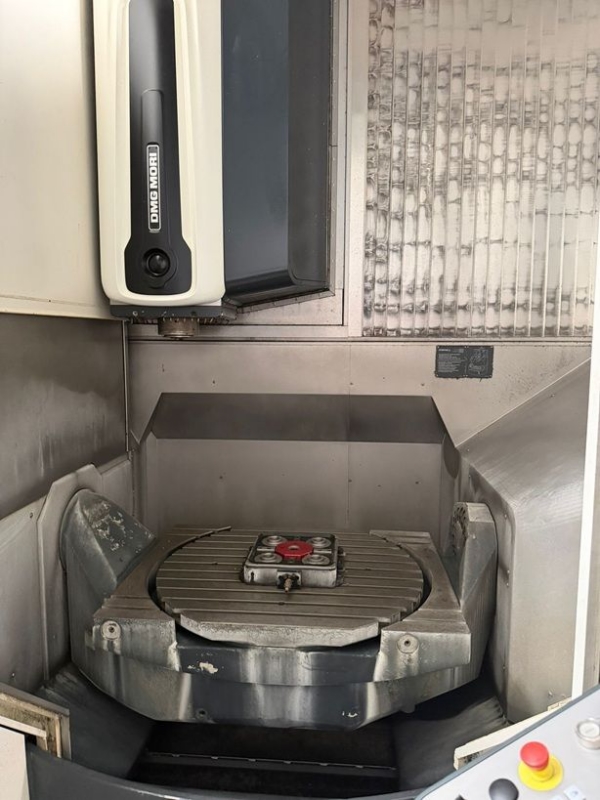

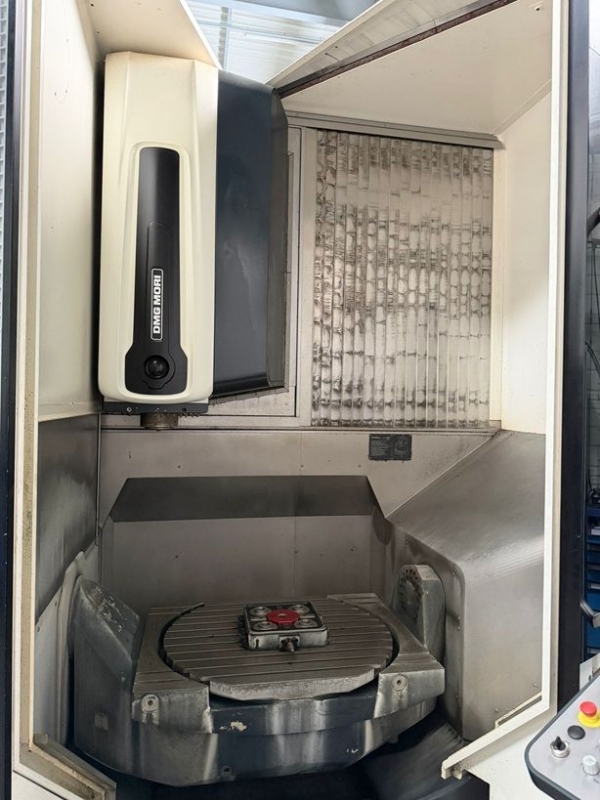

- NC swivelling rotary table, diameter 850 x 750 mm

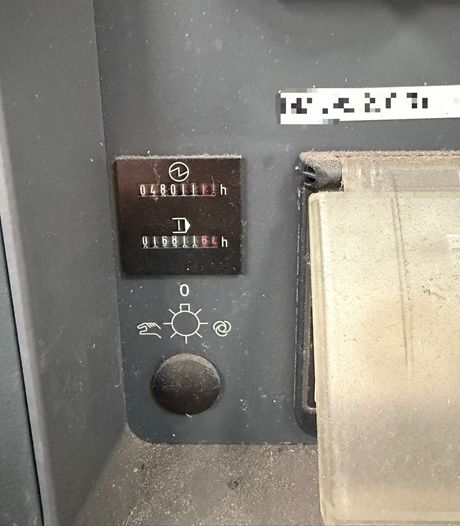

16,800 spindle hours and 48,000 hours of operation.
|
