| Stock-No. |
1020-21149 |
| Category |
Heavy Duty Lathe |
| Make |
RAVENSBURG |
| Type |
KL 2500 x 6000 CNC |
| New in |
1988 |
| Control |
Siemens Sinumerik 8 T |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
EXW |
| Price |
| turning diameter |
2500 mm |
| swing diameter over bed slide |
1400 mm |
| turning length |
6000 mm |
| Distance between centres |
5740 mm |
| centre height |
1250 mm |
| faceplate turning speed range |
4 - 400 U/min |
| rapid traverse: |
200 mm/min |
| faceplate |
2000 mm |
| spindle bore |
200 mm |
| face feeds |
700 mm |
| upper slide-adjustment |
350 mm |
| tailstock quill diameter |
320 mm |
| max. workpiece weight between centres |
40 t |
| Control |
Siemens Sinumerik 8 T |
| drive motor |
95,5 kW |
| total power requirement |
125 kW |
| weight of the machine ca. |
43 t |
| dimensions of the machine ca. |
11,5 x 3,5 x 3,5 m |
| Description |

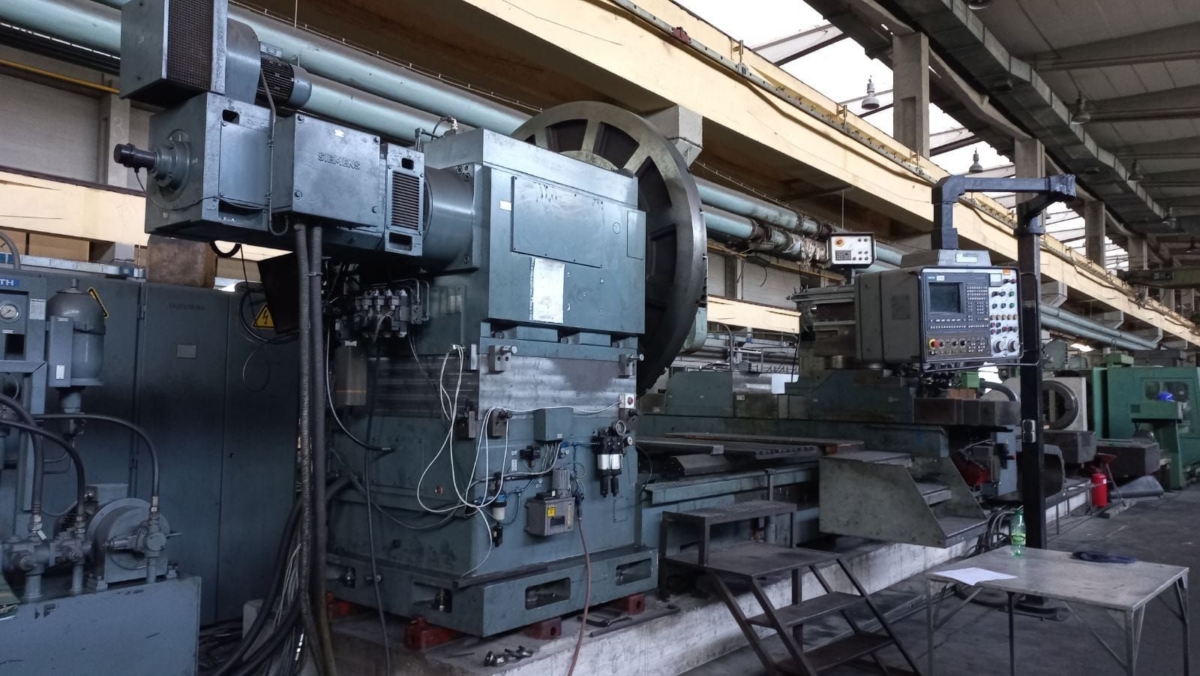

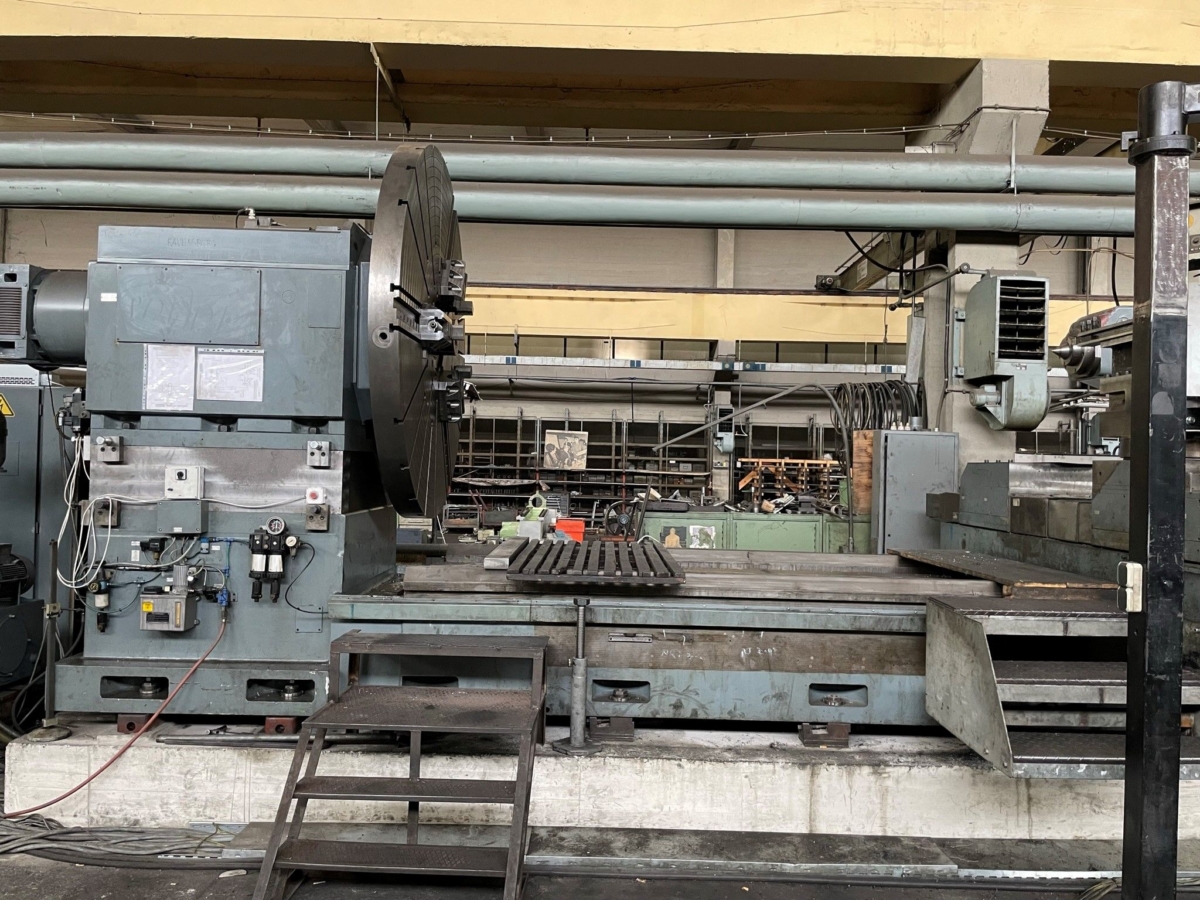

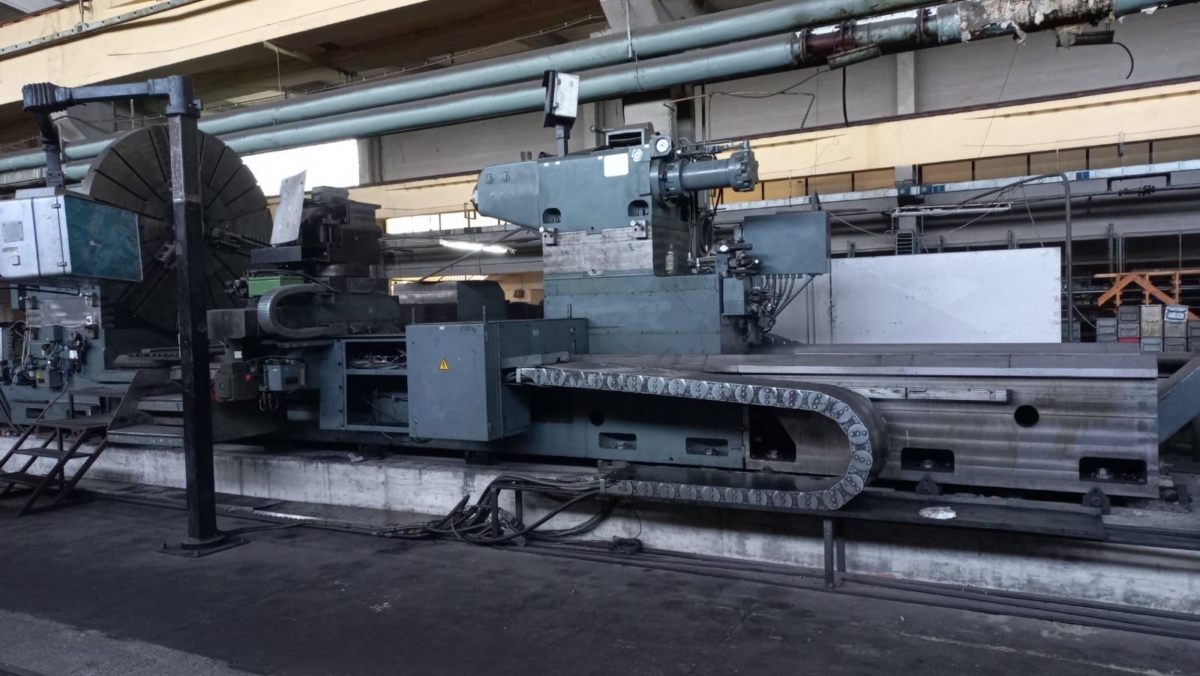

Heavy duty high precision horizontal lathe with:

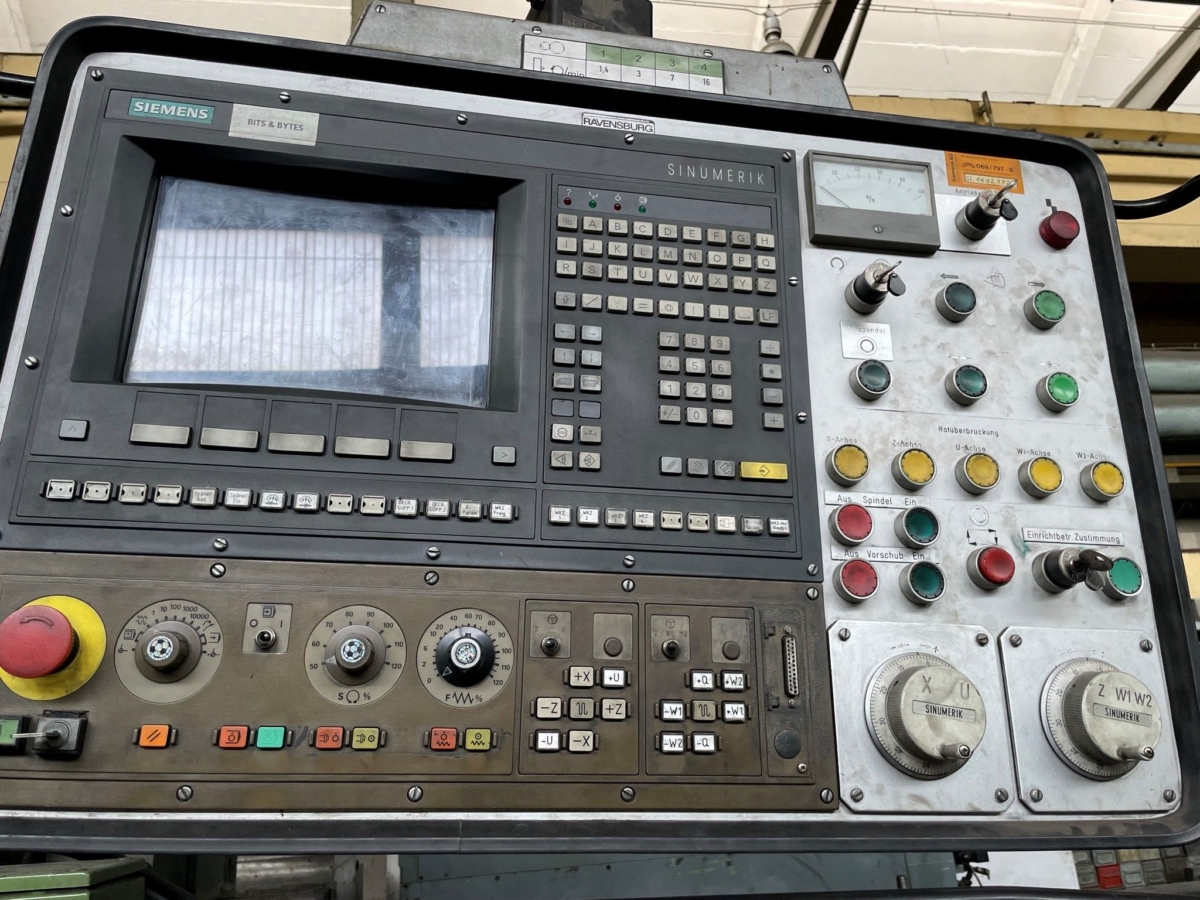

- CNC Control Siemens Sinumerik 8T (CNC 6 axes)
- 3-way Bed

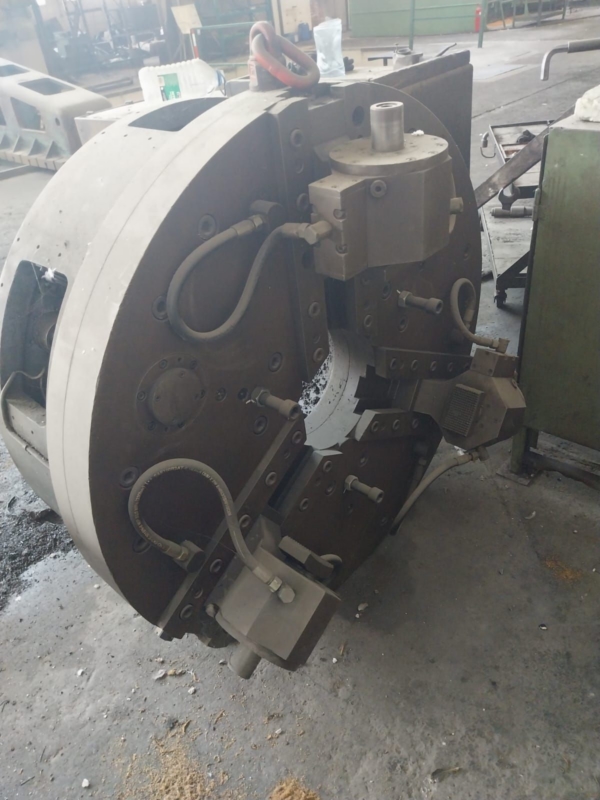

- hydraulic clamping system Rohm

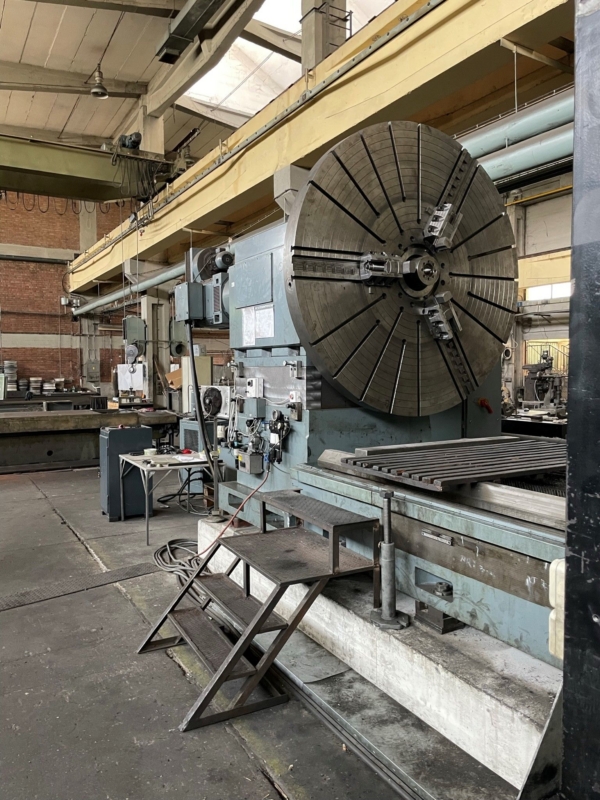

- Machine modified with 2000 mm face clamping plate

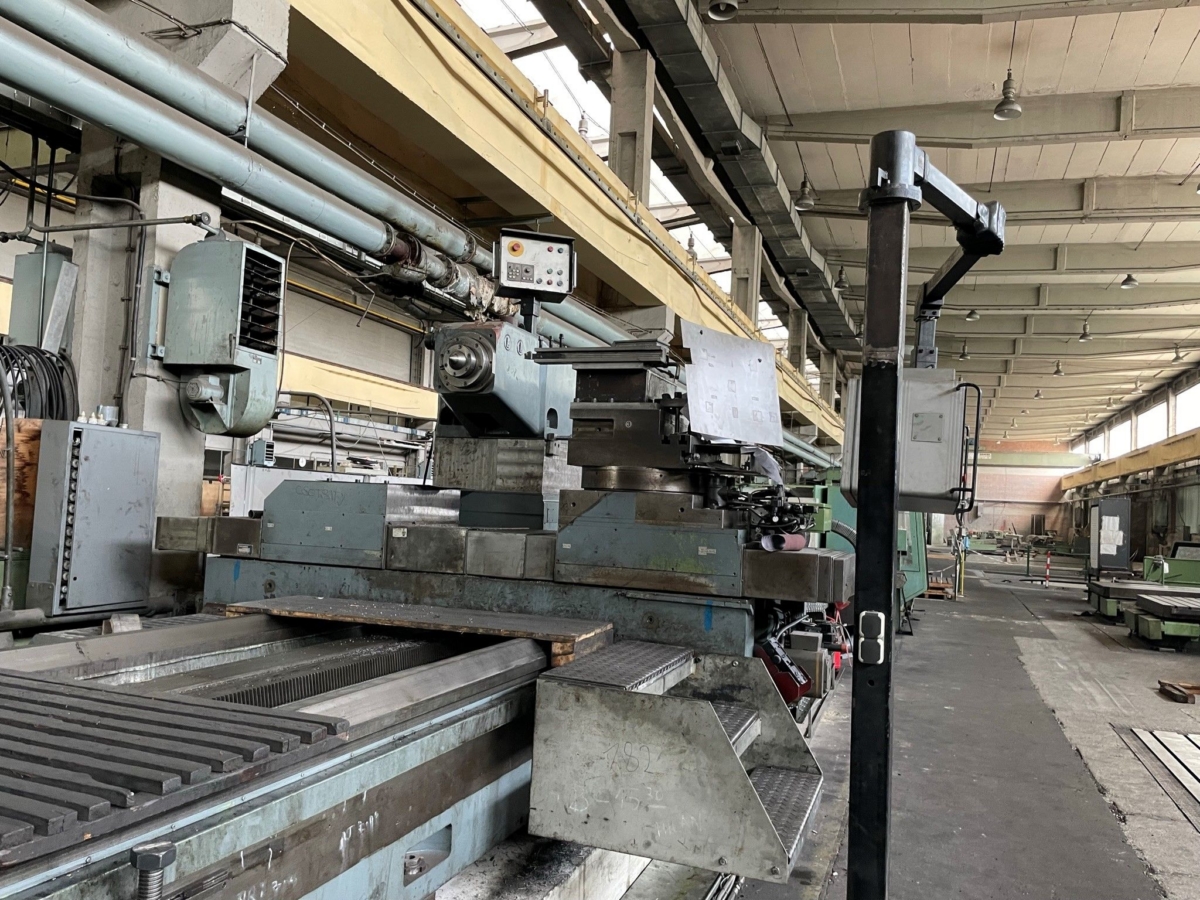

- slide with two working positions
- Sauter 4 side tool holder

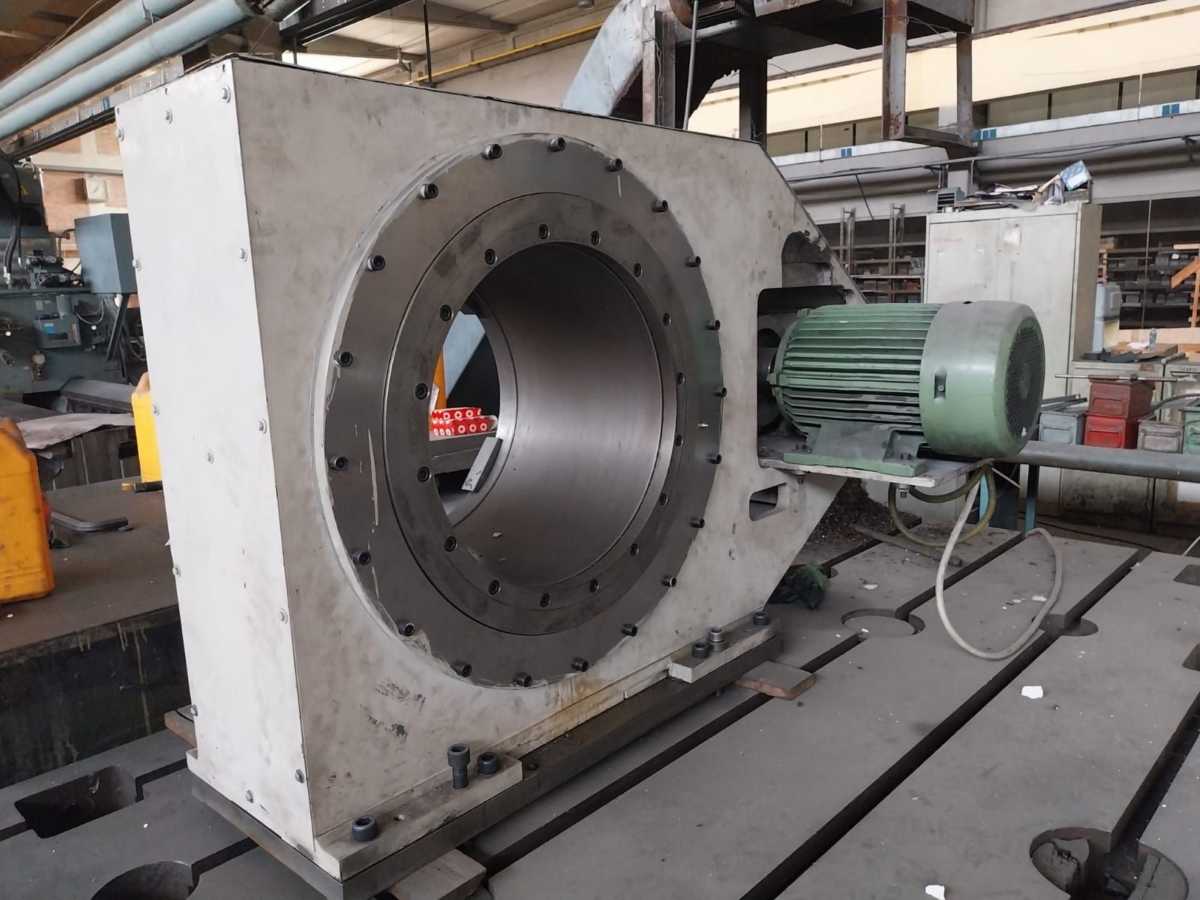

- circular turning unit

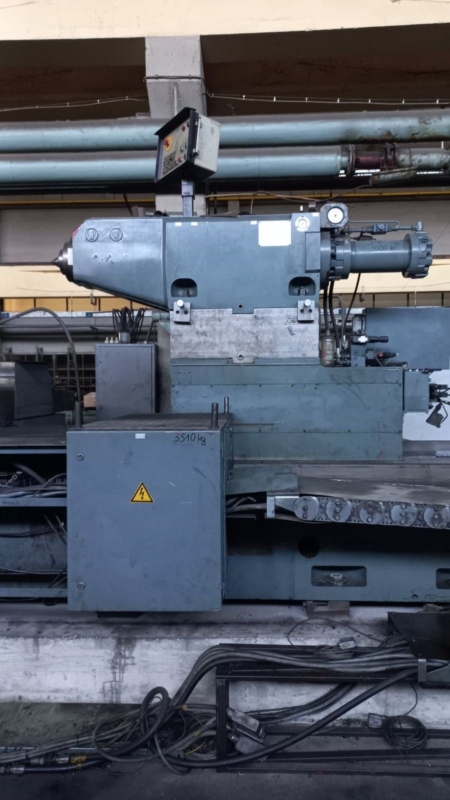

- tailstock
- chip conveyor

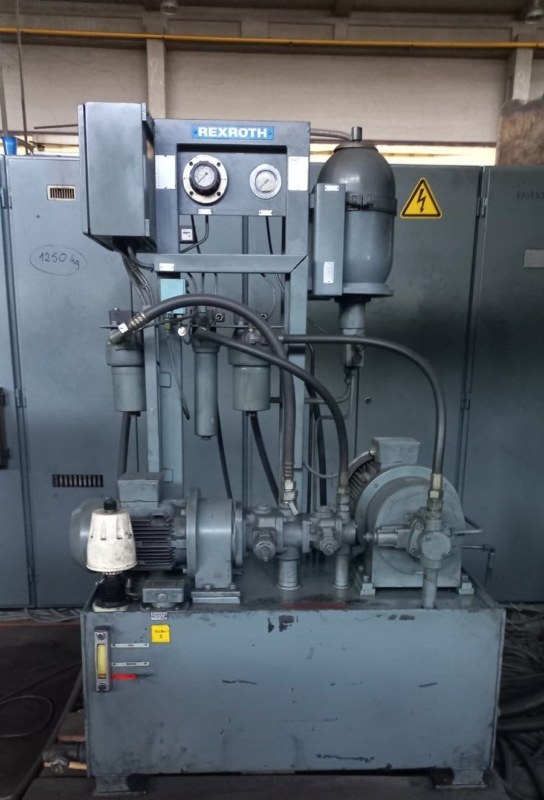

- Rexroth Hydraulic
suitable for both, high volume material removal and high precission turning
used only for high precision manufacturing of printing cylinders
total time: 88.000h
|
|
|
|
