| Stock-No. |
1020-21148 |
| Category |

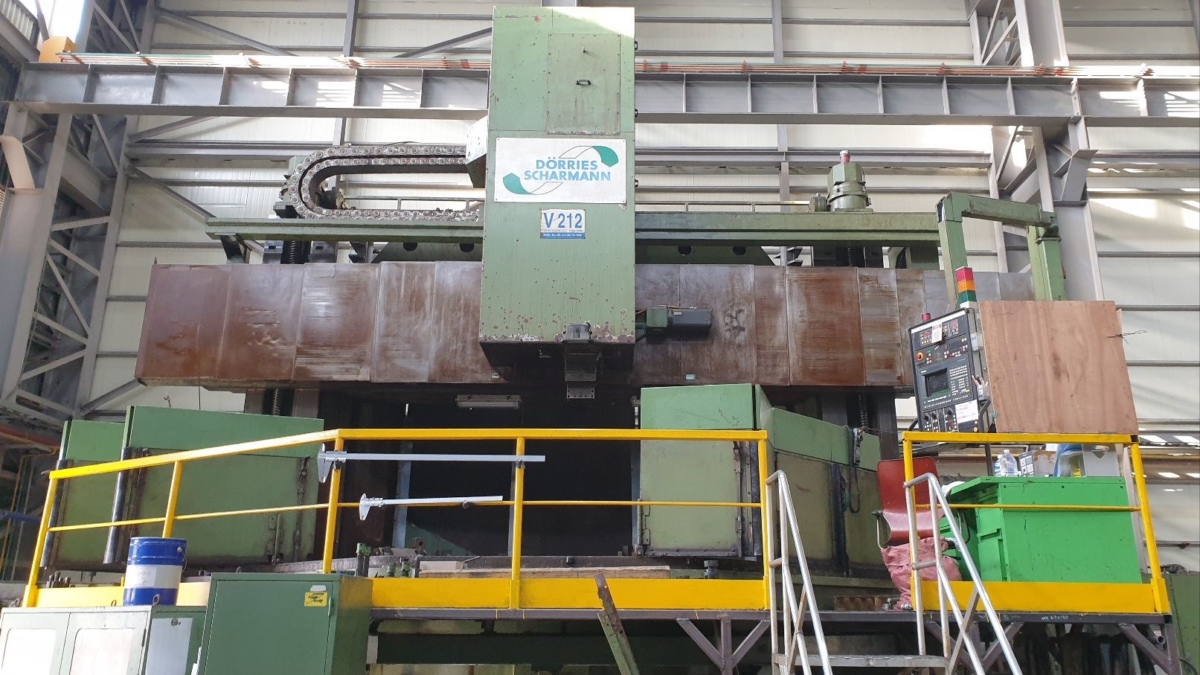

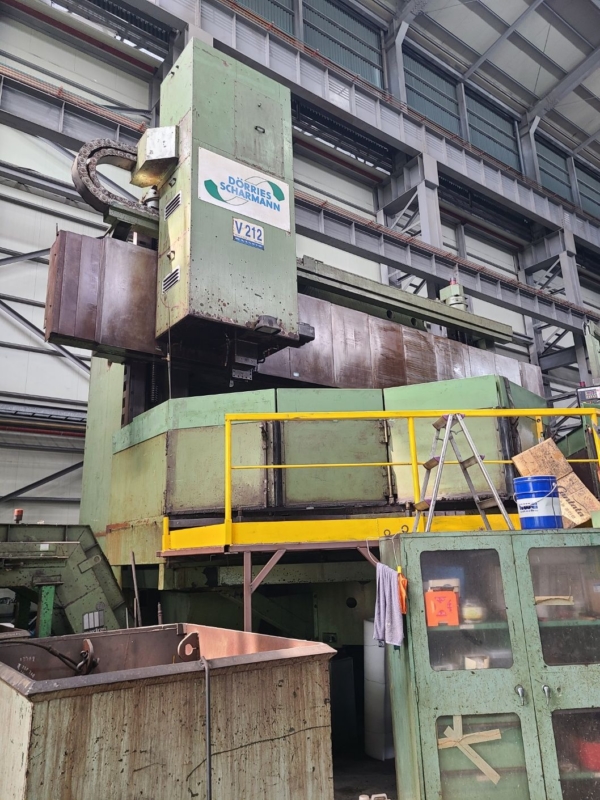

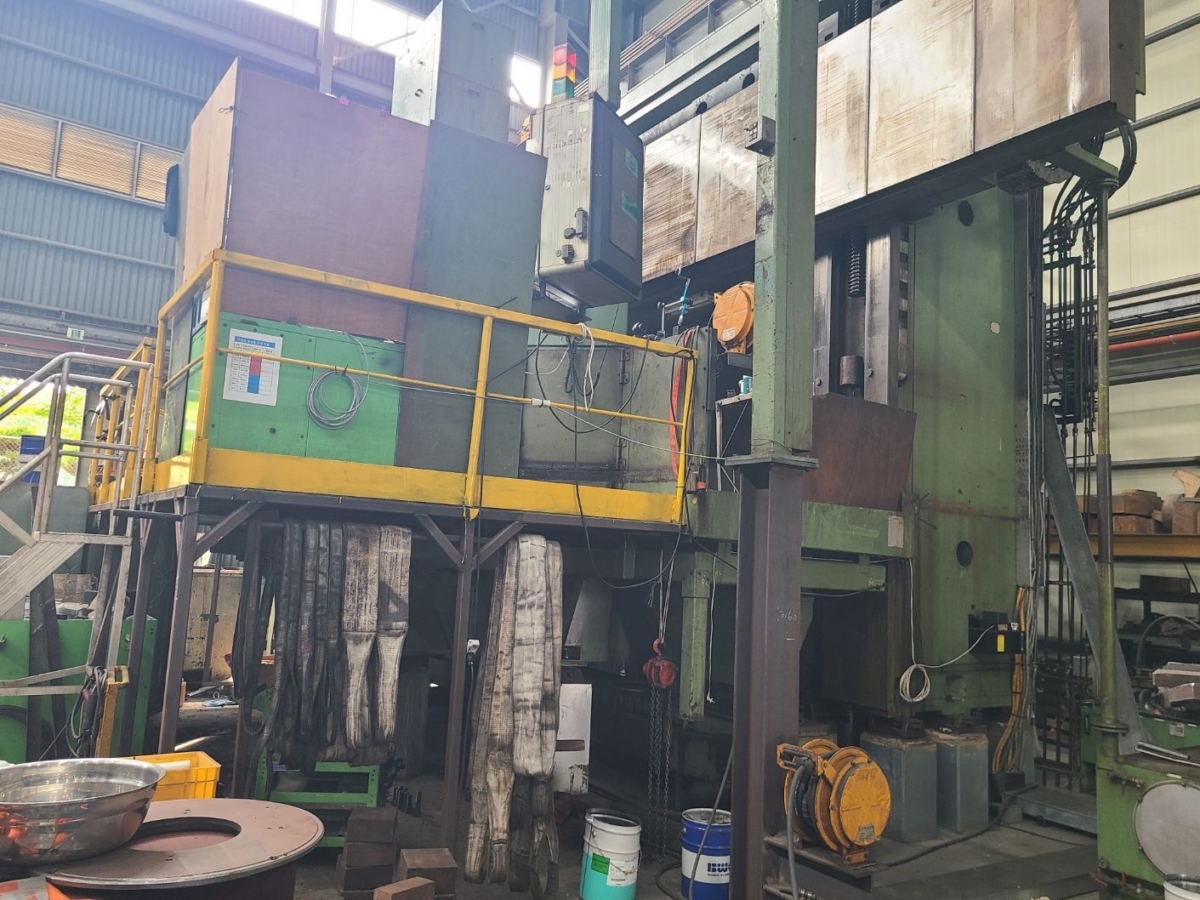

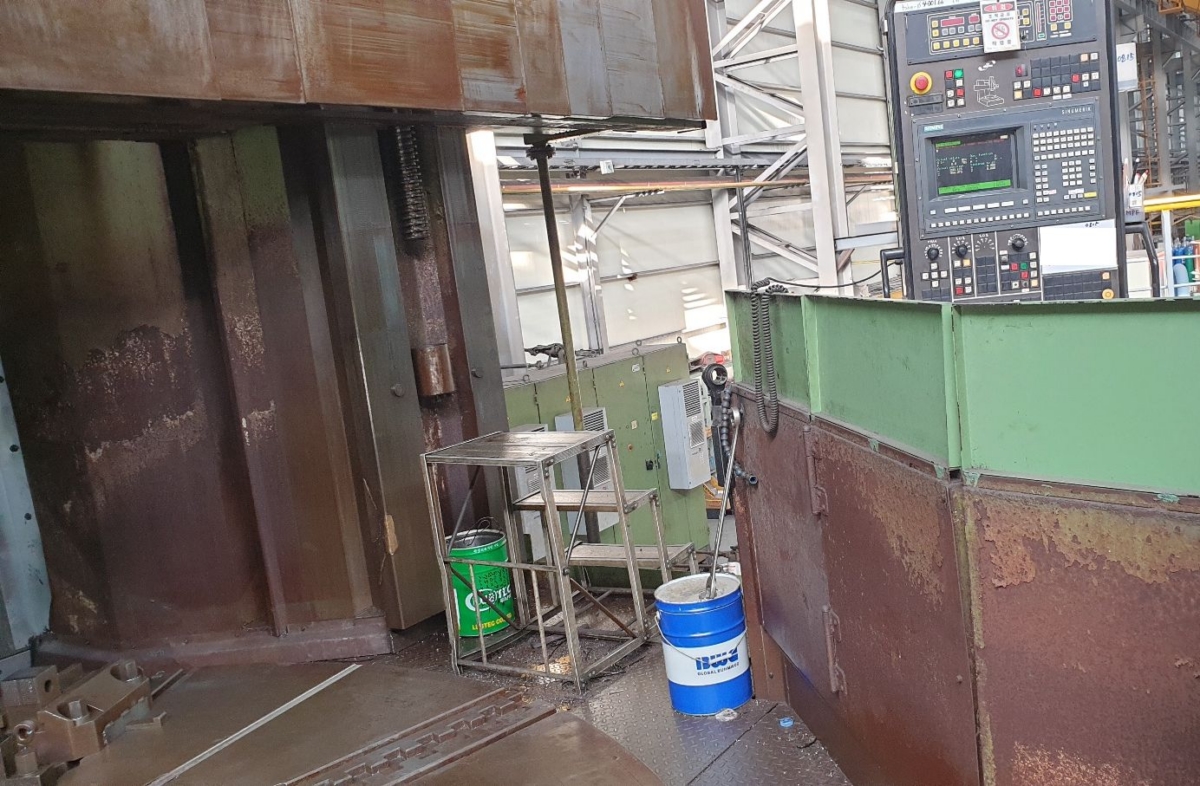

Vertical Turret Lathe - Double Column |
| Make |
DÖRRIES-SCHARMANN |
| Type |
VC 4600 / 400 (Contumat 3) |
| New in |
1994 |
| Control |
Siemens 880T |
| Location |
ab Werksstandort unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |

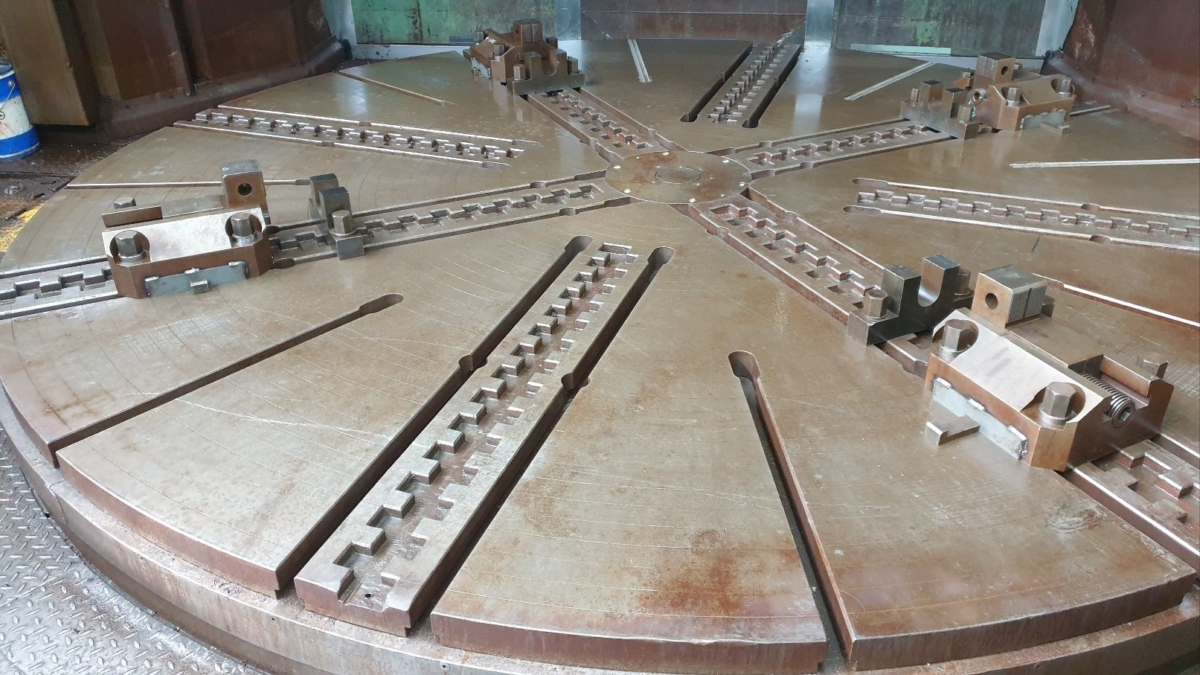

| faceplate diameter |
4000 mm |
| swing diameter |
4600 mm |
| turning height |
1950 mm |
| workpiece weight |
100 t |
| max. torque on the faceplate |
178,4 kNm |
| faceplate speeds from - to |
1,8- 80 U/min |
| feed stepless |
0,1 - 6000 mm/min |
| z-axis |
1500 mm |
| Control |
Siemens 880T |
| drive motor |
100 kW |
| ram head dimension |
300 x 300 mm |
| x-axis |
R: 2500 / L: 2500 mm |
| y-axis |
2900 mm |
| z-axis |
R: 200 / L: 1500 mm |
| ram head dimension |
300 x 300 mm |
| total power requirement |
69 kW |
| weight of the machine ca. |
- t |
| dimensions of the machine ca. |
17,5 x 10.5 m |
| Description |

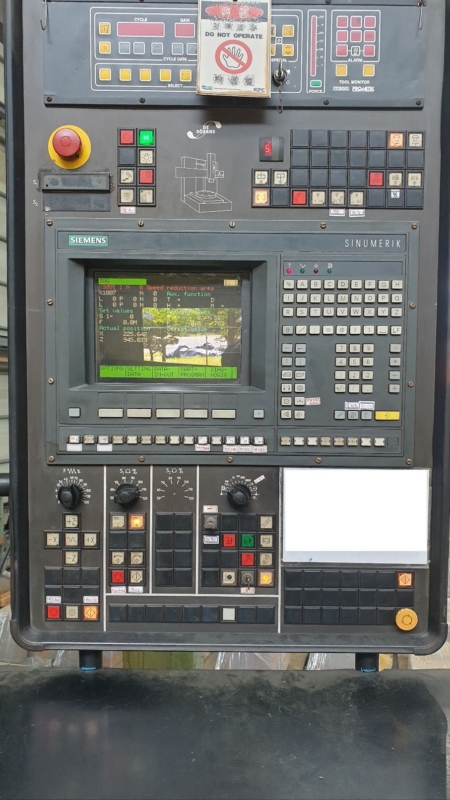

- CNC control Siemens 880T
- Coolant system

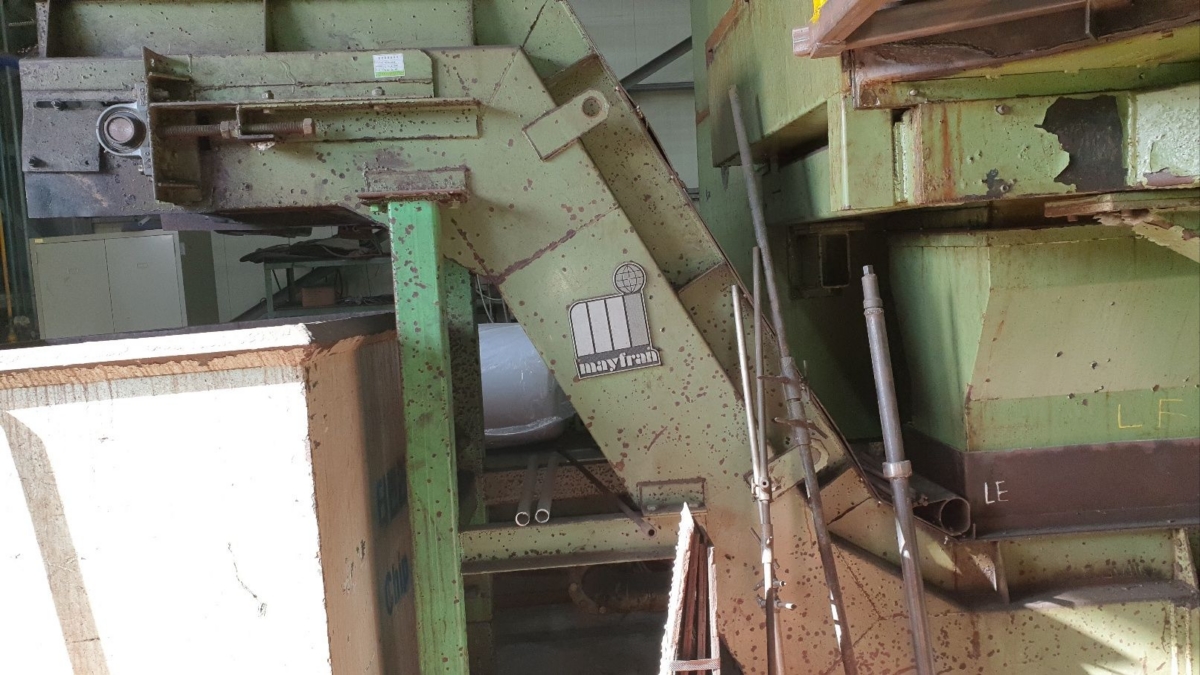

- Chip Conveyor
|
