| Stock-No. |
1020-21141 |
| Category |

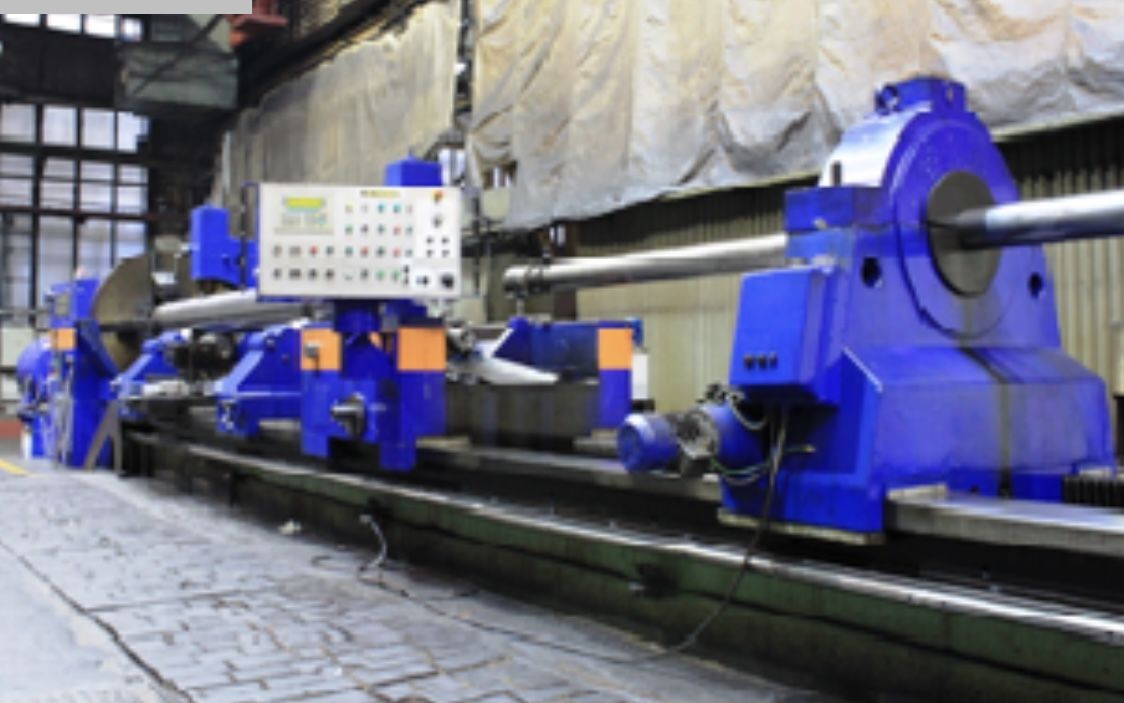

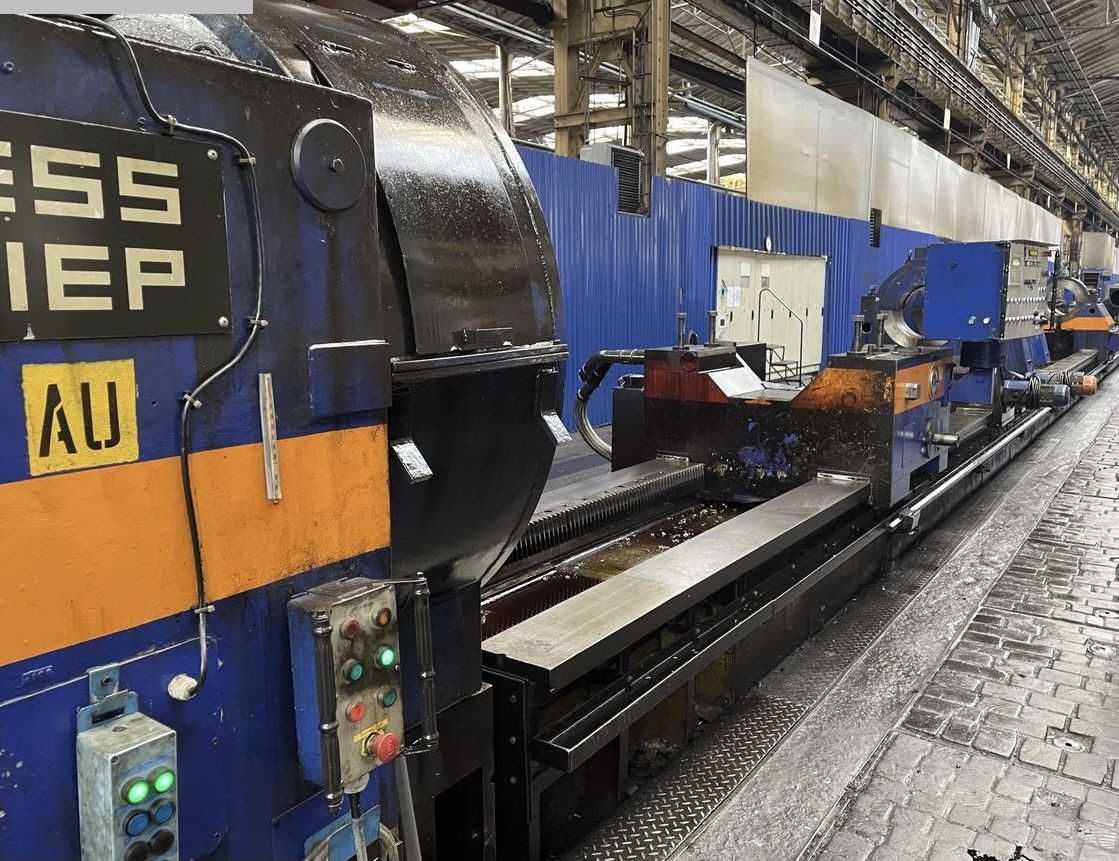

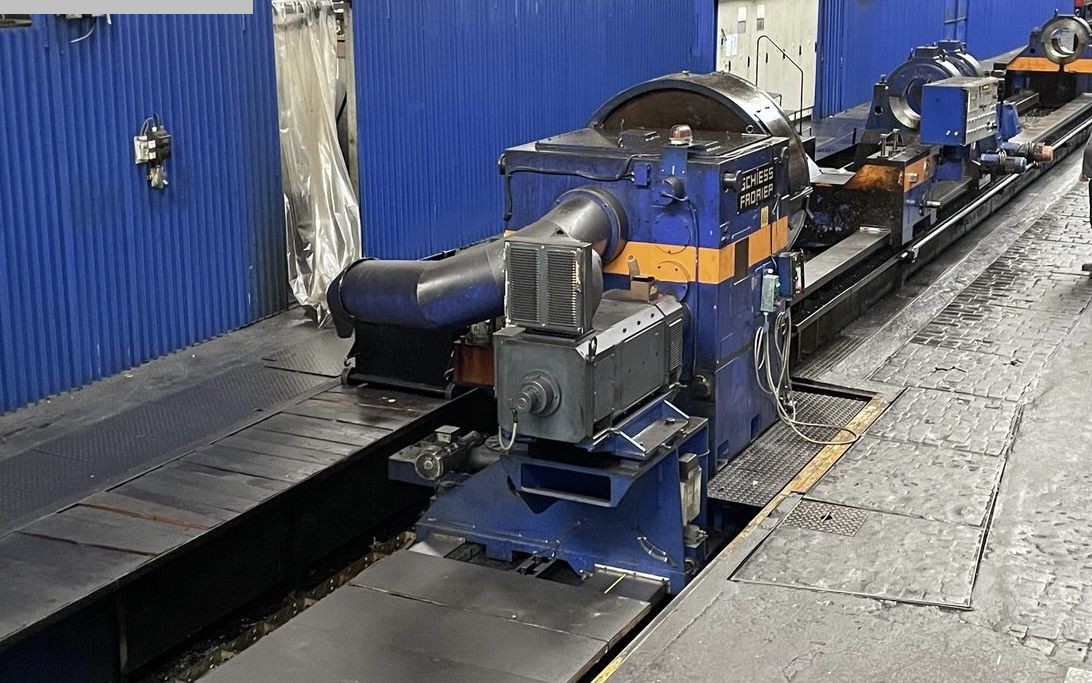

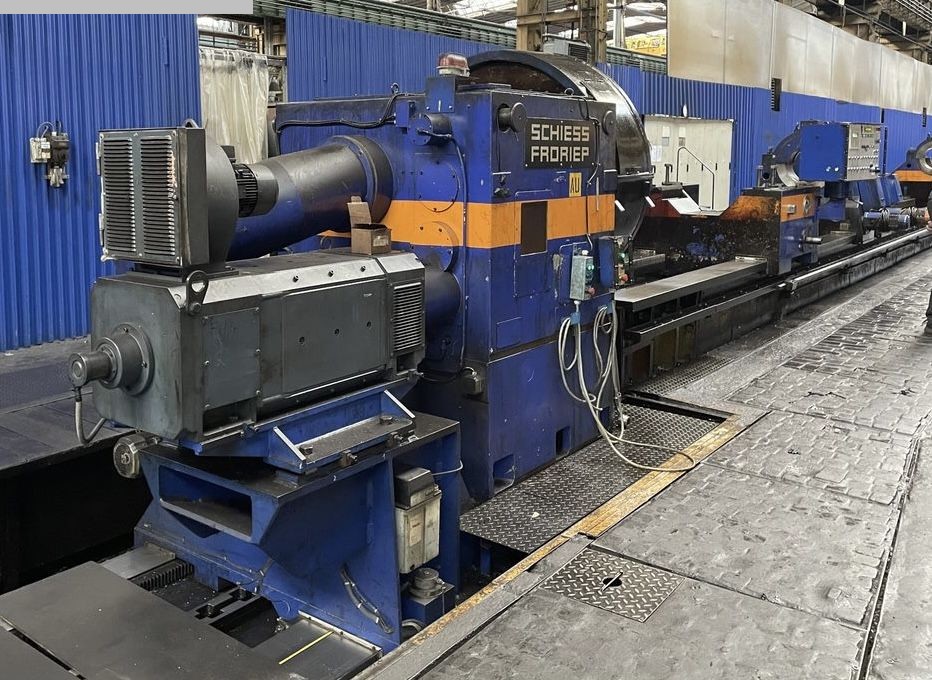

Deephole Boring Machine |
| Make |

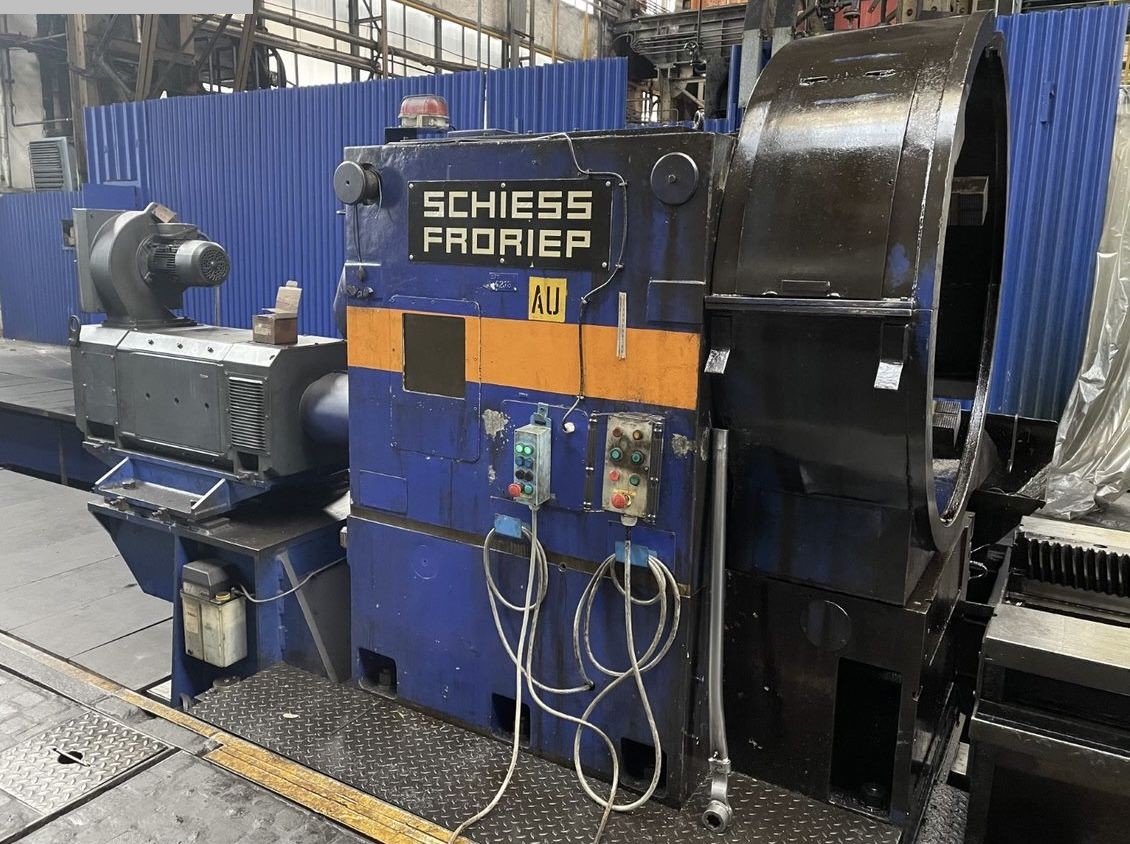

SCHIESS- FRORIEP |
| Type |
BT 80-50-1500 |
| New in |
1976/2011 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| core drilling diameter max. |
50 - 365 mm |
| bore depth |
24500 mm |
| swing diameter |
1600 mm |
| full boring |
50 - 310 mm |
| bed width |
1200 mm |
| faceplate diameter |
1300 mm |
| workpiece weight max. |
25 - 80 t |
| diameter of main spindle in front bearing |
400 mm |
| Height of centres |
800 mm |
| turning speed range |
0 - 315 U/min |
| main drive DC |
44 kW |
| drill diameter |
500 mm |
| feeds |
0,5 - 500 mm/min |
| workpiece length - max. |
10.000 mm |
| work piece power |
74 kW |
| turning speed range - drilling |
120-600-2400 U/min |
| hollow spindle diameter |
460 mm |
| turning speed range |
30-600 U/min |
| Control |
|
| total power requirement |
ca. 200 kVA |
| weight of the machine ca. |
- t |
| dimensions of the machine ca. |
- m |
| Description |
modernised in 2002 and 2011
operates using the BTA process
-
- 2 roller mandrels 100650 mm

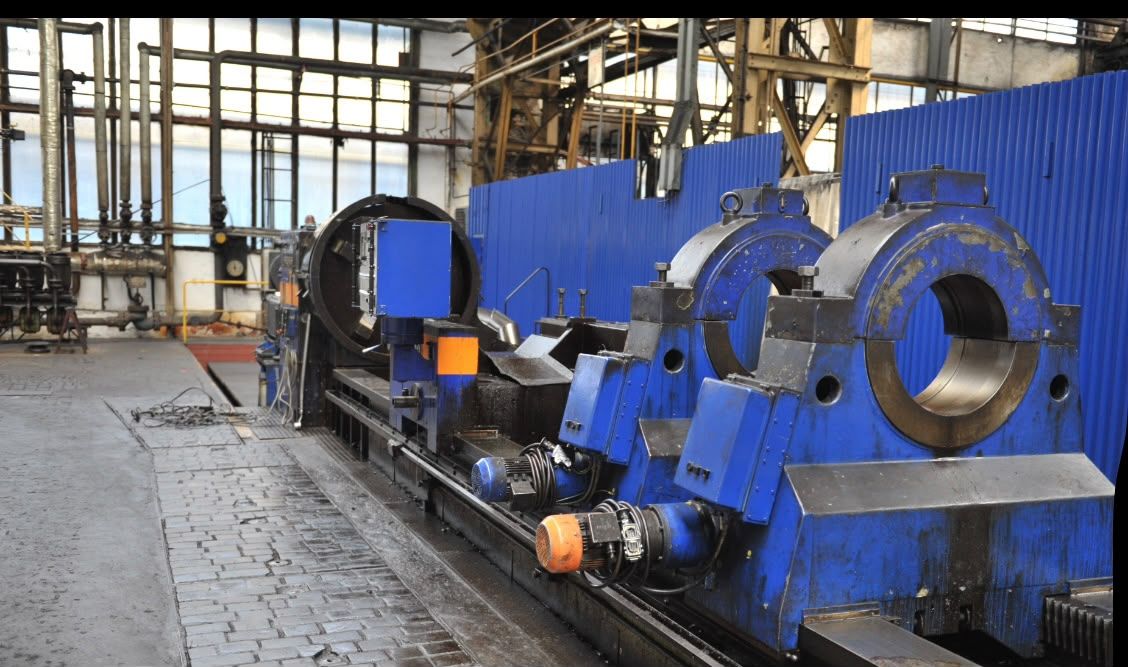

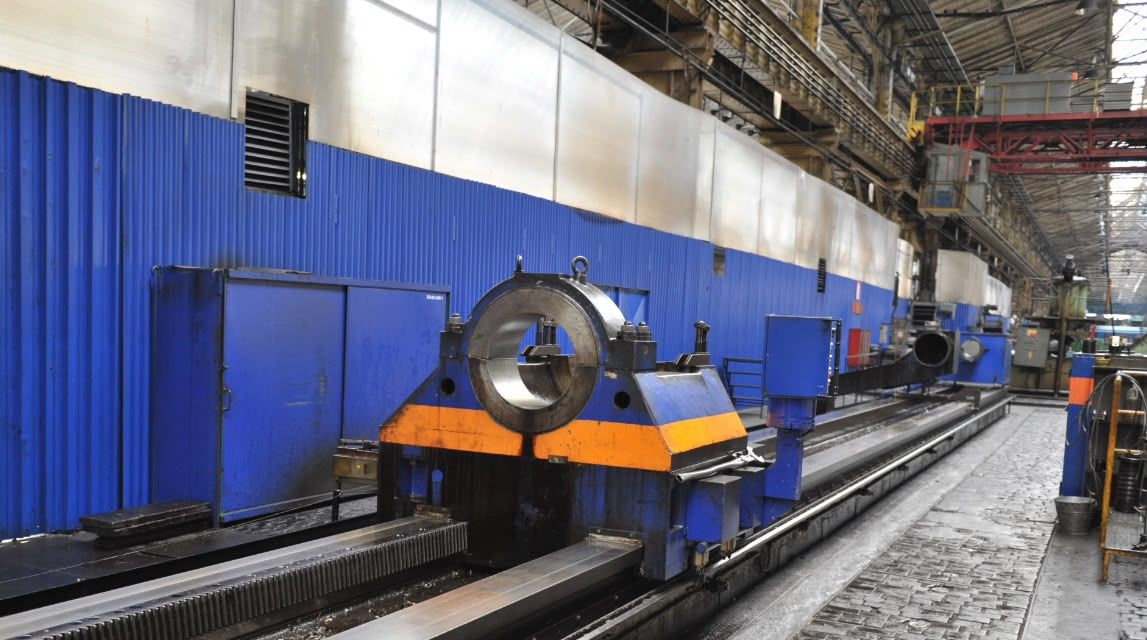

- 2 roller stands 6501200 mm
- Coolant system
Range of diameters and length of drilling on one side:.
D 35 45 mm L = 4000 mm
D 46 65 mm L = 6000 mm
D 66 85 mm L = 8000 mm
D 86 105 mm L = 12000 mm
D 106 125 mm L = 16000 mm
D 126 200 mm L = 24500 mm
D 201 250 mm L = 24500 mm
D 251 555 mm L = 18000 mm
|
