| Stock-No. |
1020-21137 |
| Category |
milling machining centers - vertical |
| Make |
KAFO |
| Type |
VMC 1370 |
| New in |
2021 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Taiwan |
| Delivery time |
short-dated |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| x-travel |
1400 mm |
| y-travel |
700 mm |
| z-travel |
700 mm |
| Control |
|
| table-size |
1500 x 700 mm |
| spindle taper: |
BT 50 |
| spindle turning speed range |
6000 U/min |
| spindle motor |
18,5 / 15 kW |
| rapid traverse |
24 m/min |
| distance table - lower edge spindle |
mm |
| workpiece weight |
1500 kg |
| total power requirement |
kVA |
| Total weight, approx. |
t |
| dimensions of the machine ca. |
6,3 x 3,3 x 4,3 m |
| Description |

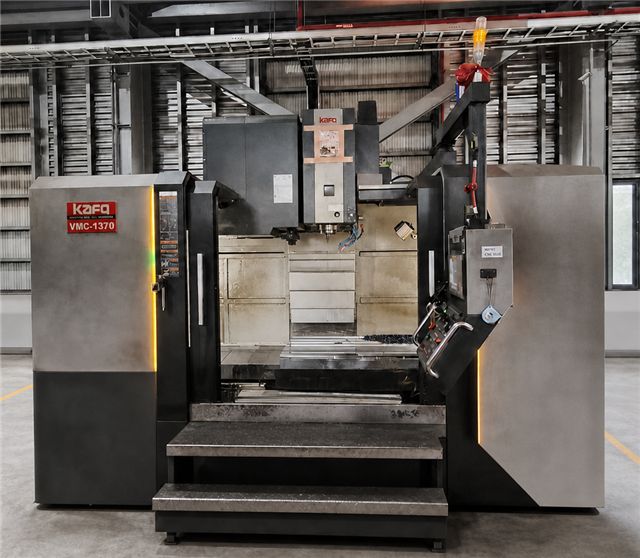

Vertical BAZ , equipped with:
- CNC control FANUC 0i-MF PLUS
- ATC 24-fold (BT 50)
- Air thru spindle
- Spindle oil cooler
- Oil skimmer
- AICC 2
- DATA SERVER
- Large tool management
- Heat exchanger
- Coolant thru spindle 20bar
- Chip conveyor + bucket
|
|
|
|
