| Stock-No. |
1020-21136 |
| Category |

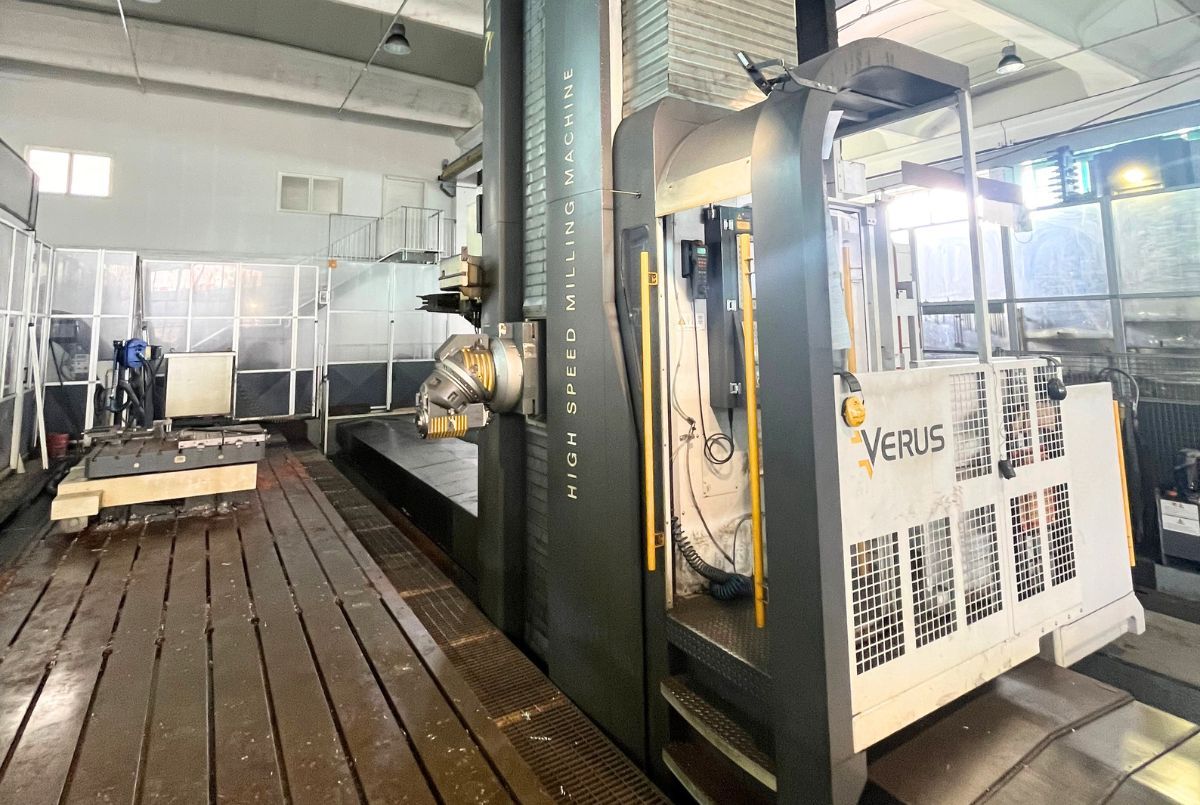

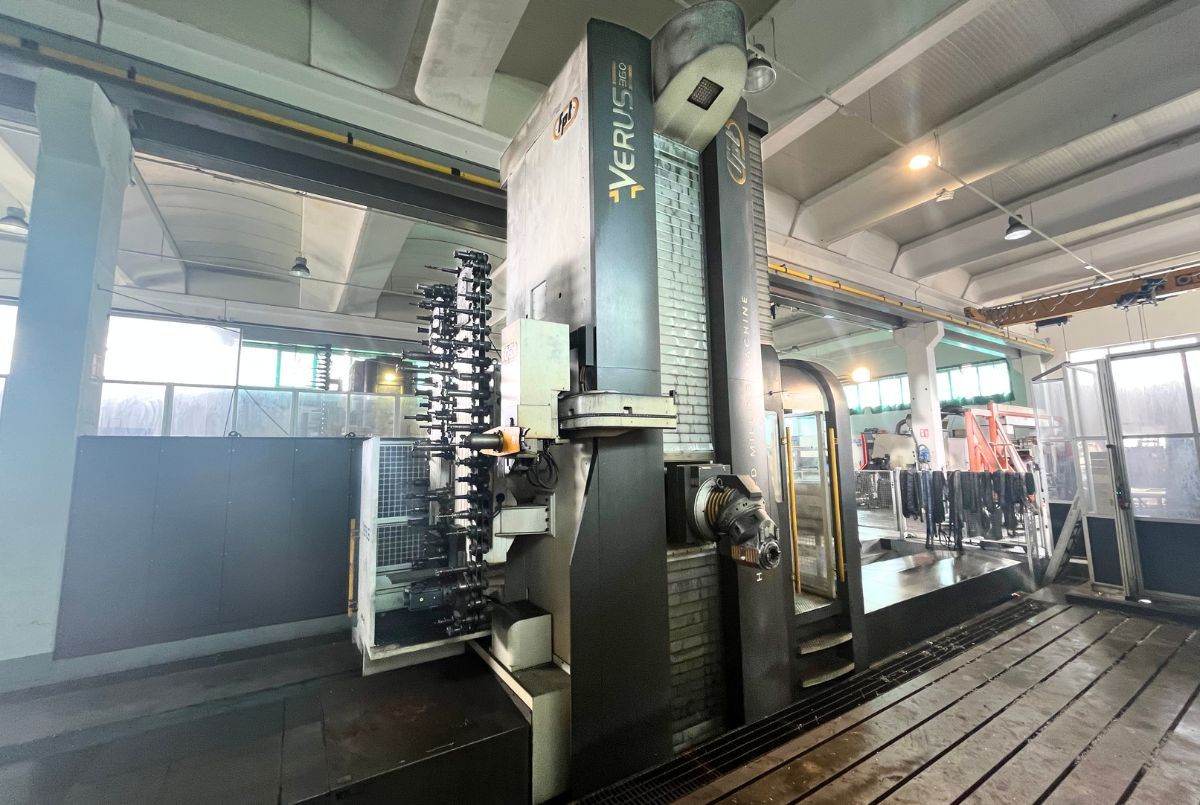

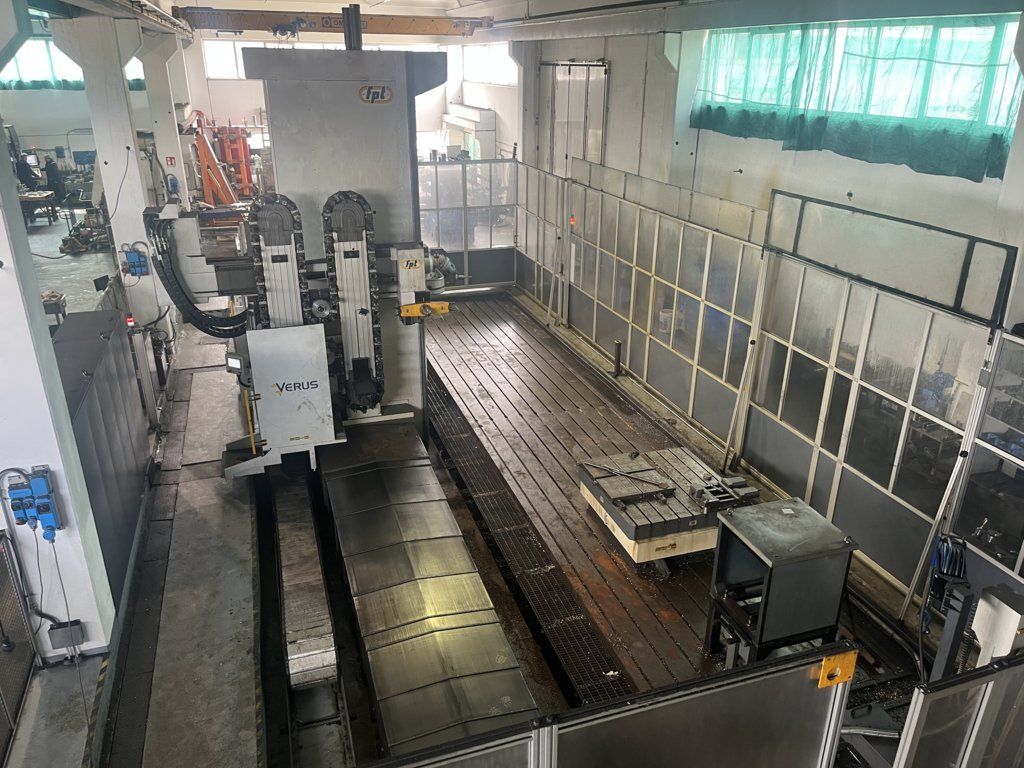

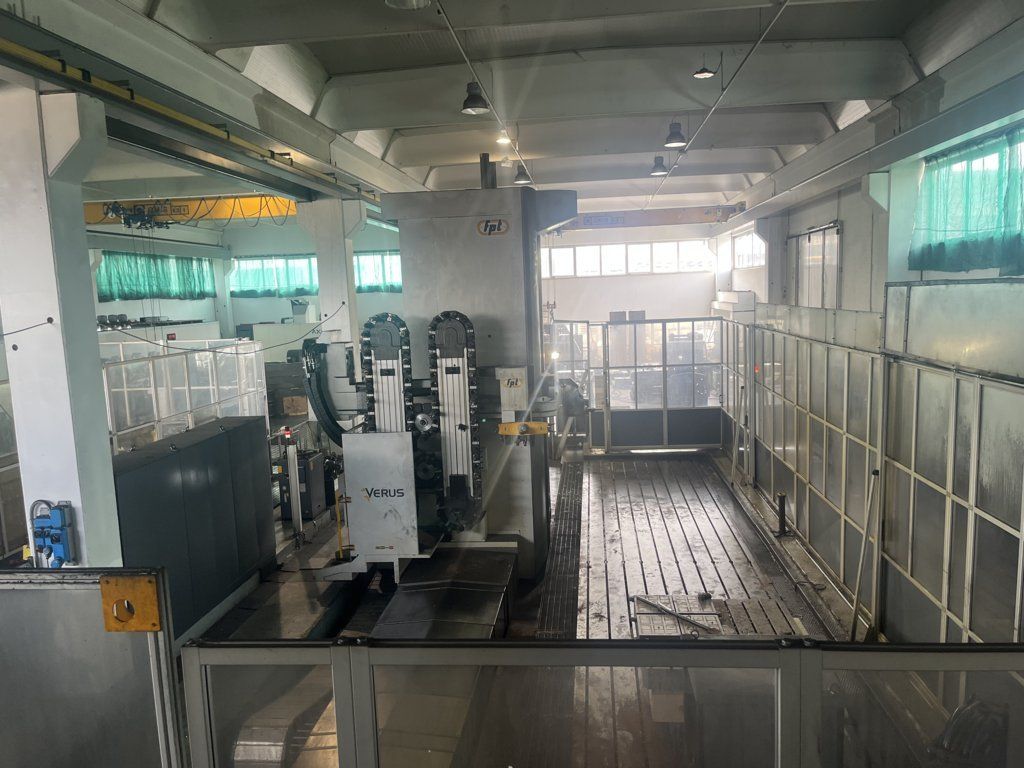

Travelling column milling machine |
| Make |
FPT |
| Type |
Verus 360 |
| New in |
2020 |
| Control |
HEIDENHAIN TNC 640 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Italy |
| Delivery time |
short-dated |
| Freight basis |
ex works "is as is" |
| Price |
| x-travel |
12000 mm |
| y-travel |
3600 mm |
| z-travel |
1600 mm |
| spindle turning speed - stepless |
5000 U/min |
| spindle motor |
34 kW |
| table-size |
13000 x 2500 mm |
| feeds longditudinal/cross/vertical |
15000 mm/min |
| rapid motion -longitudinal/cross/vertical |
30 m/min |
| no. of tools in the magazine |
100 Stück |
| control |
HEIDENHAIN TNC 640 |
| total power requirement |
60 kW |
| weight of the machine ca. |
88 t |
| Description |

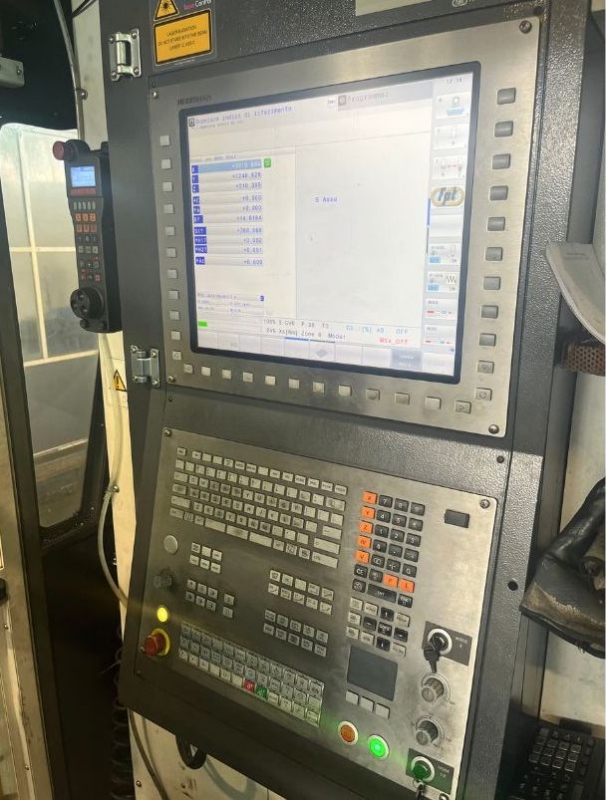

- CNC Control Heidenhain TNC 640

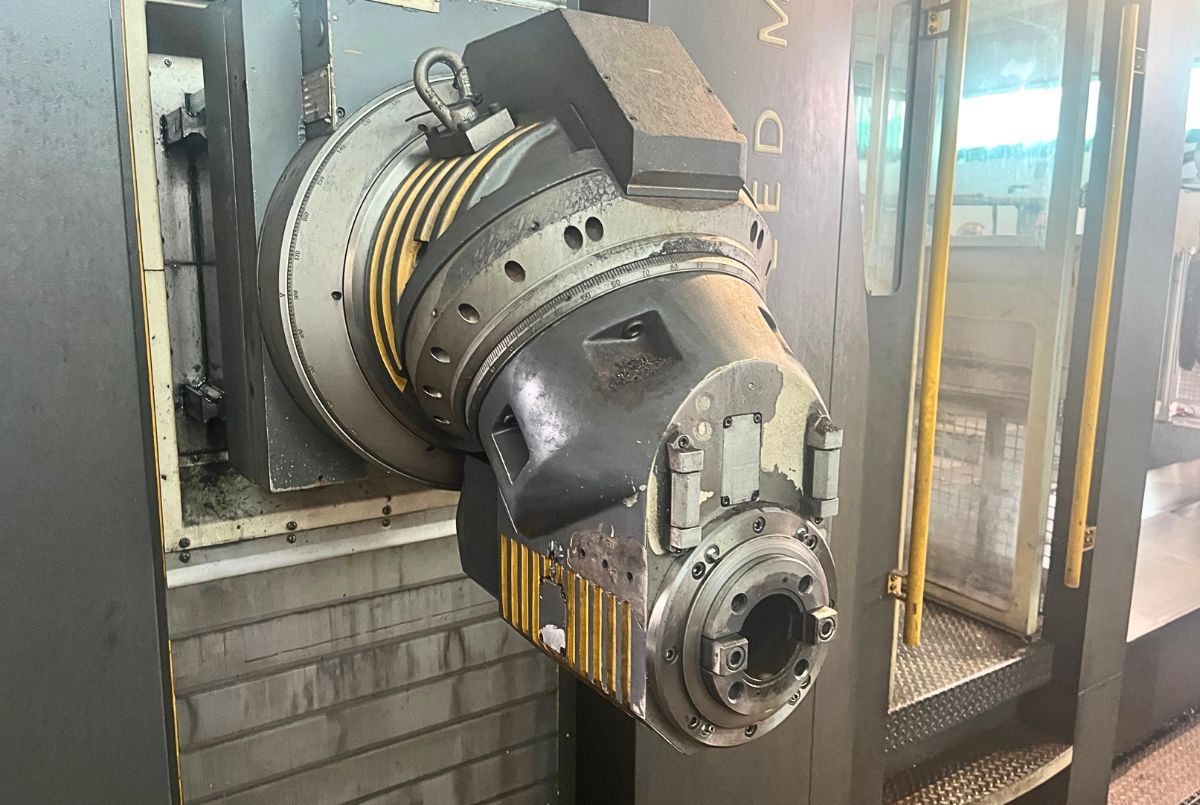

- Universal Milling Head, Automatic A/B Axis, MILLESIMAL POSITIONING

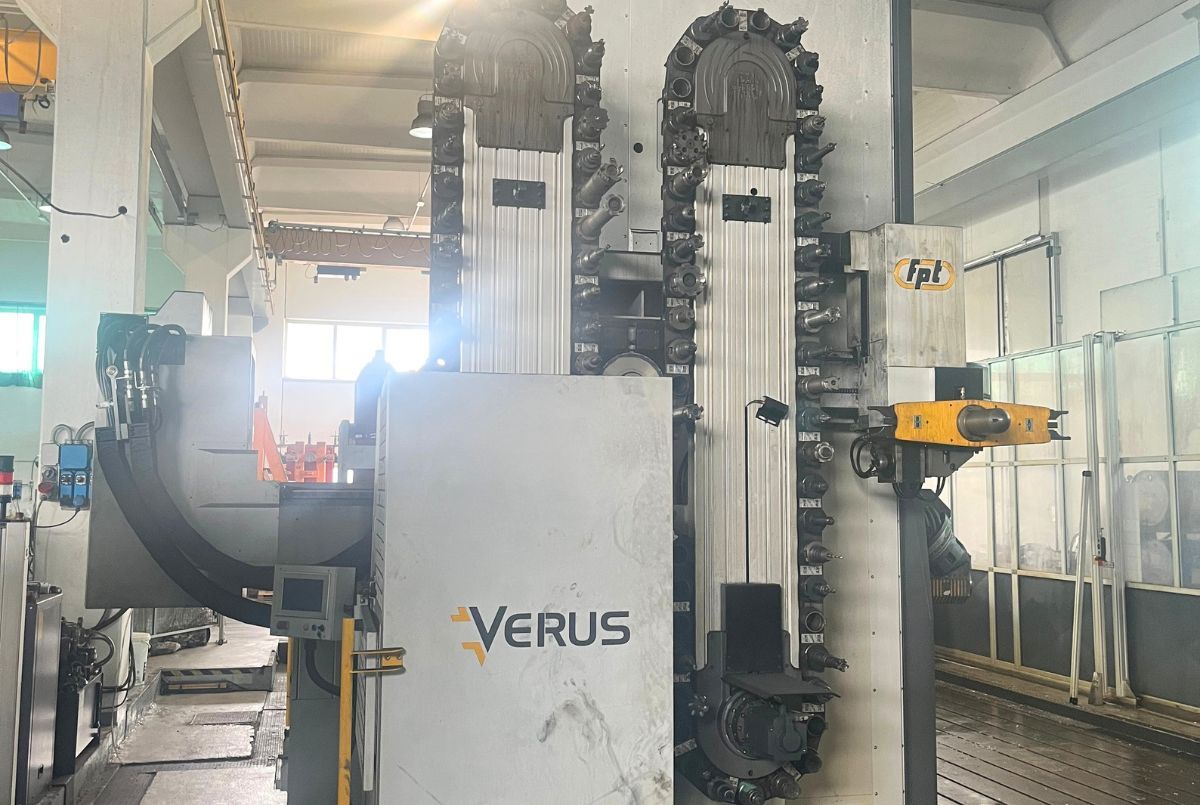

- ATC for 100 tools (ISO 50)
- Rotary Table 1500X1500mm, 15t
- MOBILE WORKING PLATFORM
- PERIMETER FENCES
- STATIC RTCP OF ROTATING TABLES
- STATIC RTCP IN THE SPACE
- AUTOCAL
- Vibration Detection Probe
- Green Mode Function
- Chip Conveyor
- Laser Tool Setter
- Coolant with Paper Band Filter (High-Pressure 40bar)
- Touich Probe
- Portable Handwheel

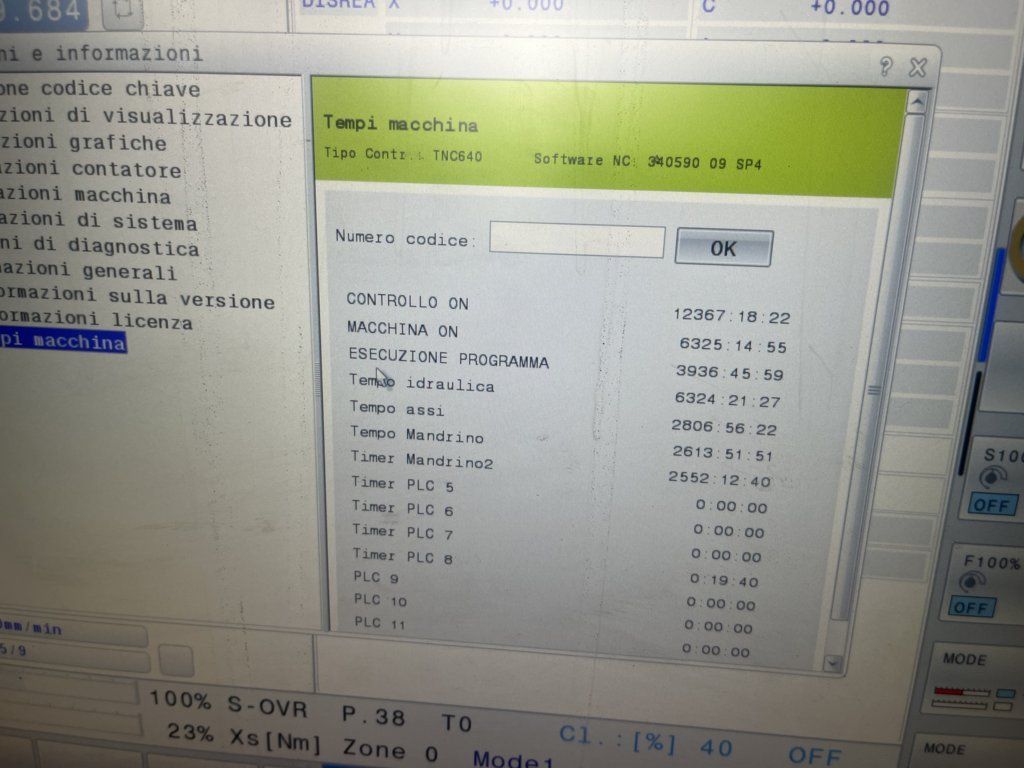

Power On: 12400h, Machine ON: 6300h, Program Run: 3950h, Spindle: 2600h
|
