| Stock-No. |
1020-21133 |
| Category |

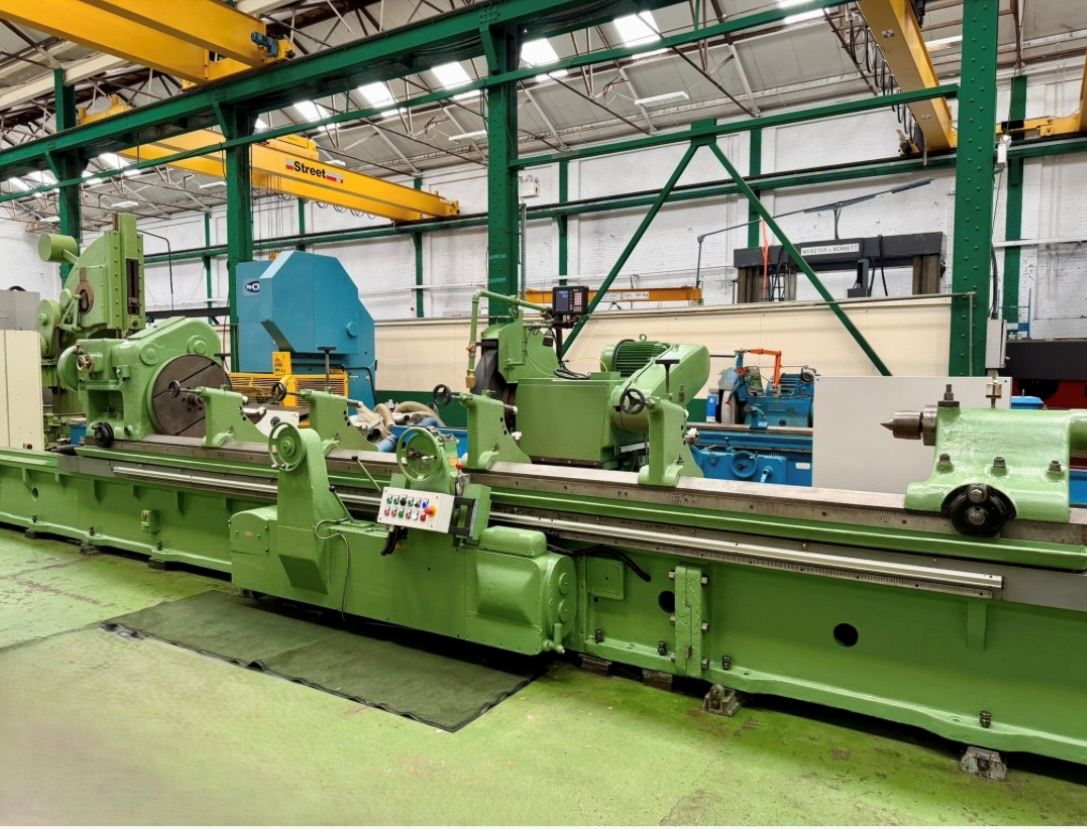

Cylindrical Grinding Machine |
| Make |
CHURCHILL |
| Type |
FA 750 x 5400 |
| New in |
1969/2023 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
U.K. |
| Delivery time |
immediately |
| Freight basis |
ex works "is as is" |
| Price |
| grinding diameter |
750 mm |
| grinding length |
5400 mm |
| centre height |
375 mm |
| max. workpiece diameter |
750 mm |
| workpiece weight |
10000 kg |
| table - swivable +/- |
- ° |

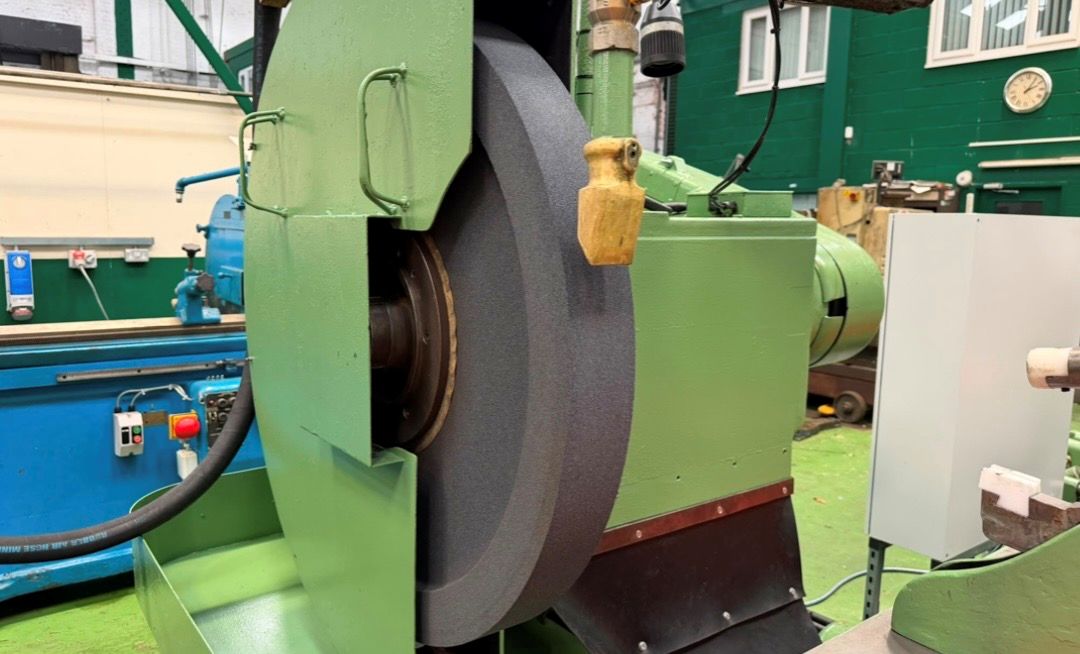

| grinding wheel size |
750/650 x 75 x 305 mm |
| grinding wheel turining speeds |
750 U/min |
| turning speed range - workpiece |
14,5 - 86 U/min |
| main drive motor |
15 kW |
| workpiece drive |
7,5 kW |
| feeds - fine adjustment |
0,00635 - 0,0508 mm/min |
| total power requirement |
- kW |
| weight of the machine ca. |
27 t |
| dimensions of the machine ca. |
13,5 x 3,4 m |
| Description |
Refurbished 2023 and equipped with:

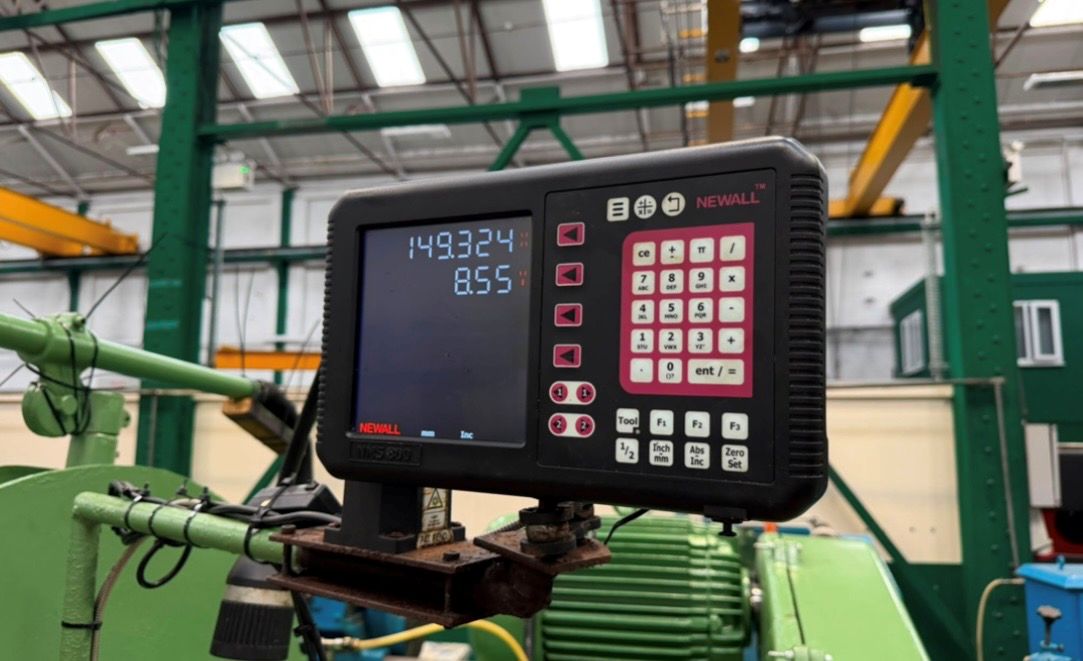

- DRO
- Table swivable

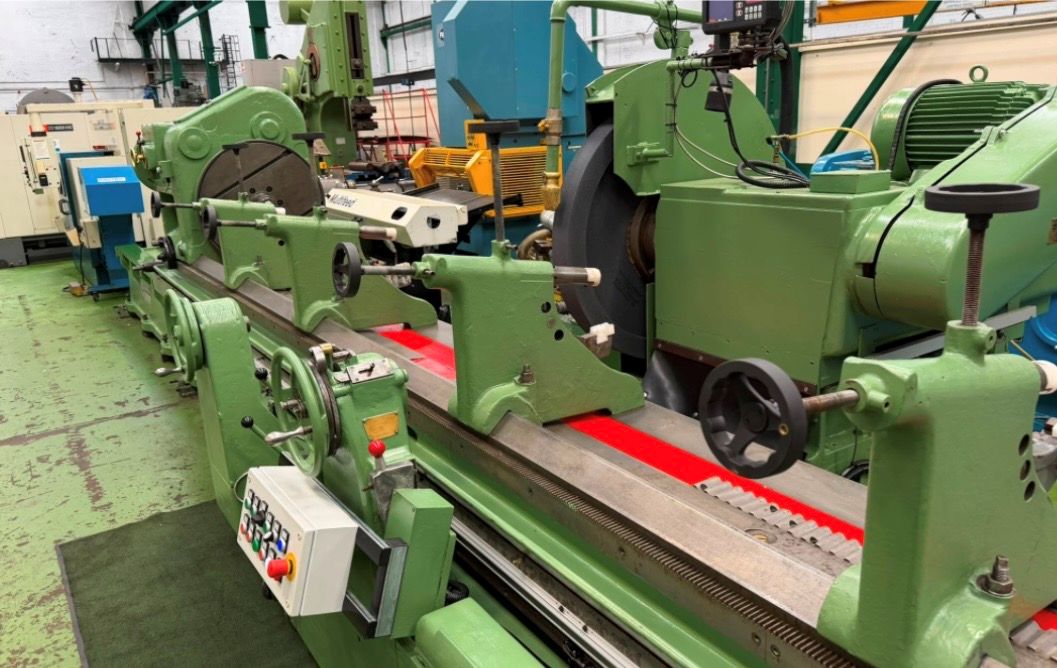

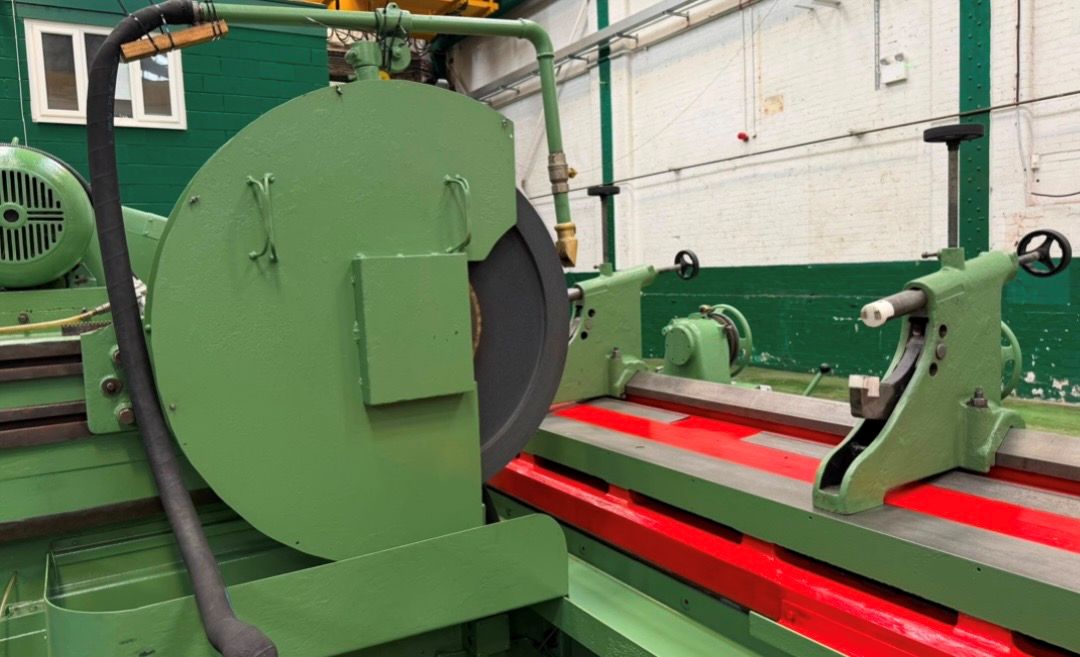

- 9 x steadies
- Coolant/Filtration Tank
Machine has had over 85000,- of retrofit work in 2023
including:
-- replacement of air bearing liners
-- 7 x steadies fully overhauled

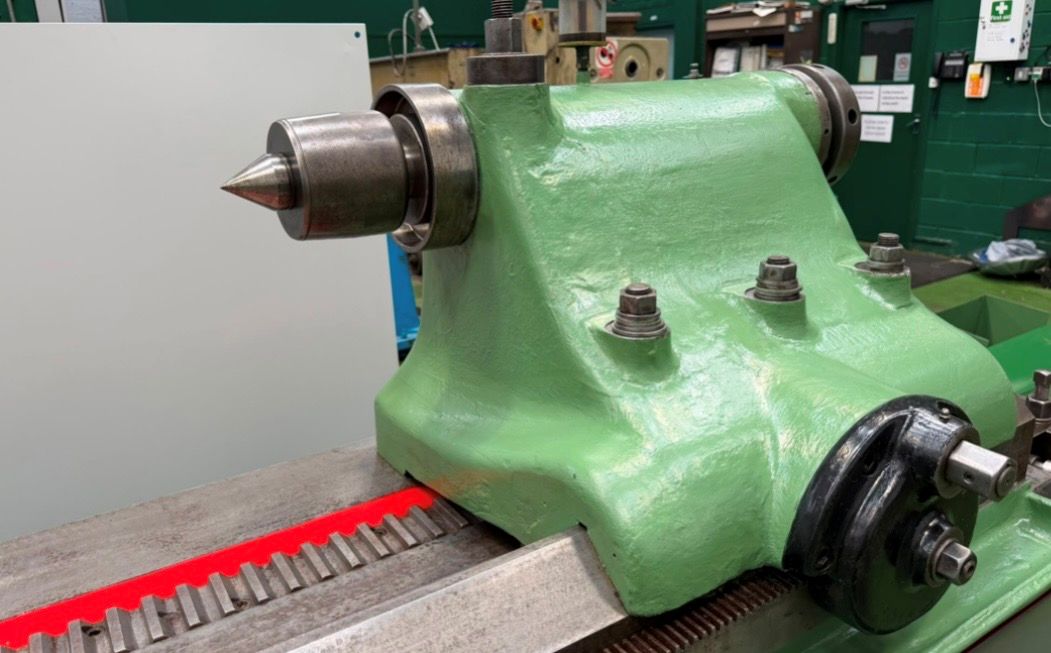

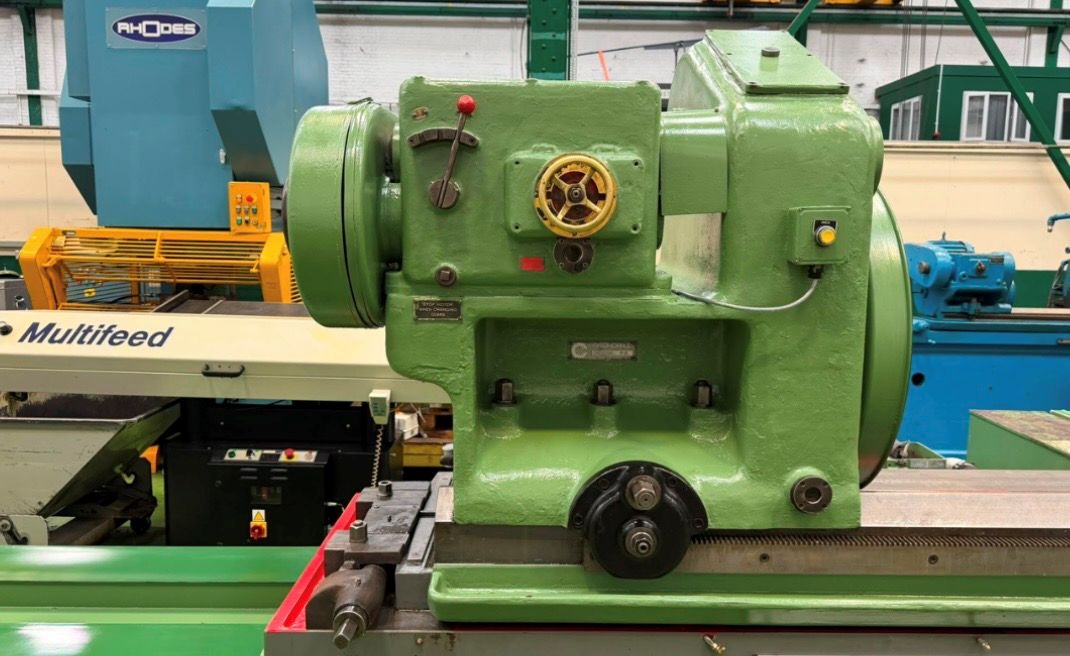

-- Overhaul of top table & centre heights of workhead & tailstock

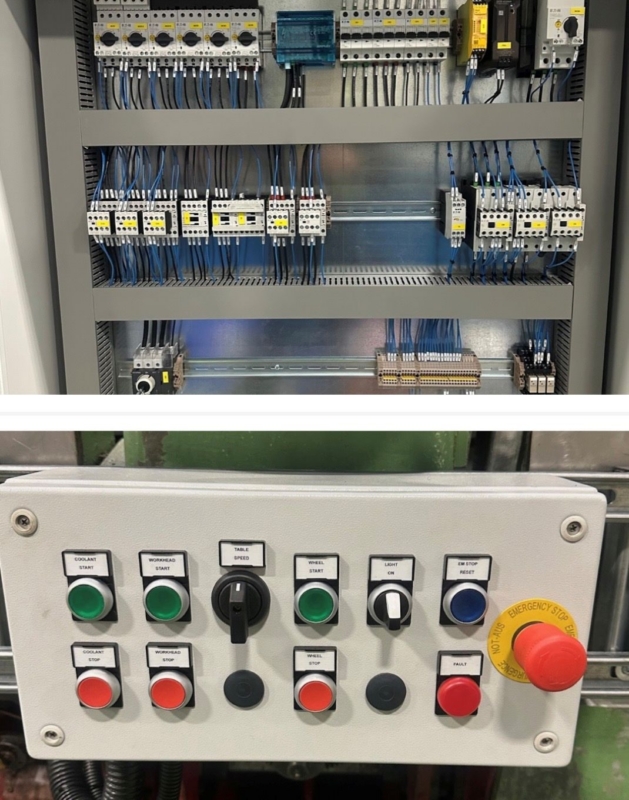

-- New electrical wiring & cabinet
|
|
|
|
