| Stock-No. |
1020-21129 |
| Category |
Gear Hobbing Machine - Vertical |
| Make |
SAMPUTENSILI |
| Type |
S 250 |
| New in |
2002 |

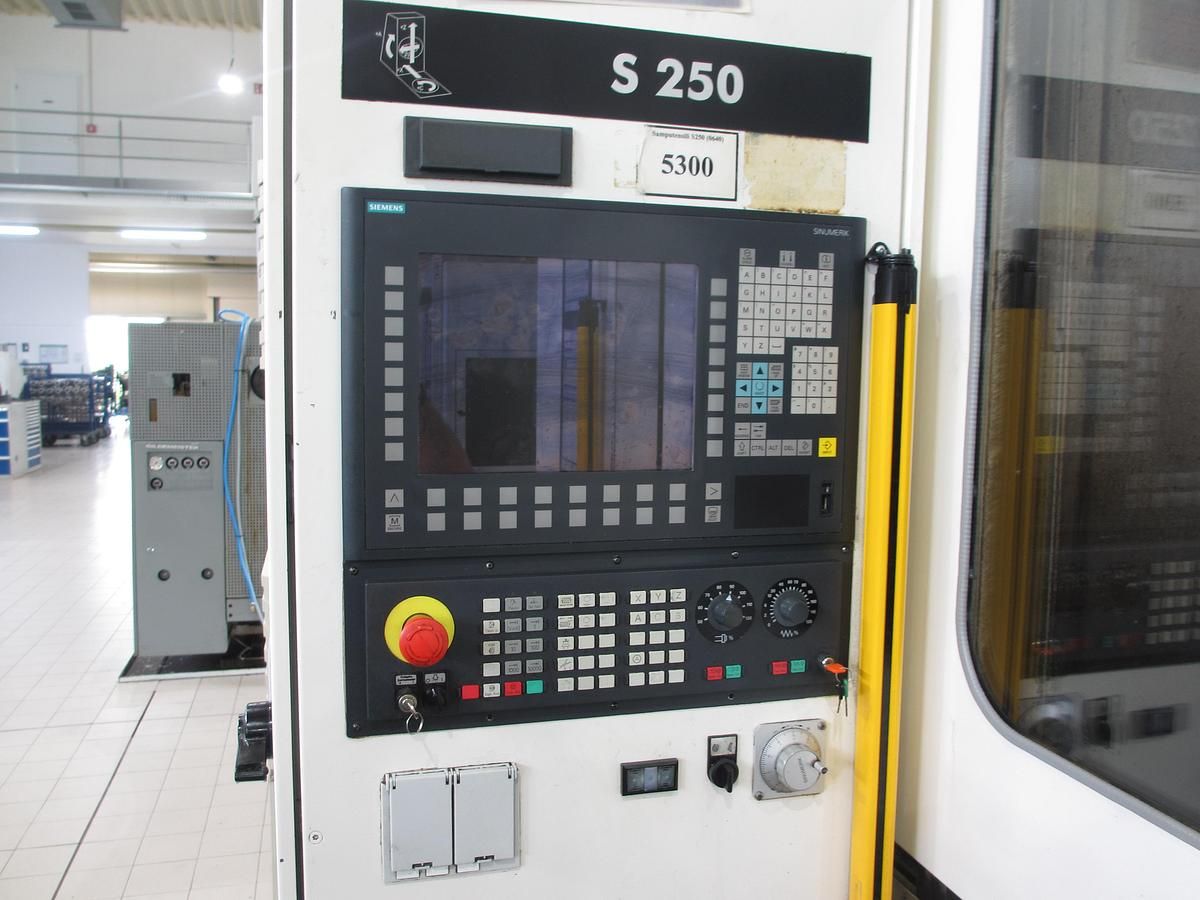

| Control |
Siemens Sinumerik 840 D |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| max. wheel diameter |
250 mm |
| gear width |
. mm |
| max. module |
8 |
| Control |
Siemens Sinumerik 840 D |
| Slide cross |
axial 600 mm |
| Slide cross |
radial 195 mm |
| Slide cross |
tangential 240 mm |
| workpiece spindle - bore |
80 mm |
| table diameter |
170 mm |
| table hole |
100H7 mm |
| table rotation speed |
5 - 420 U/min |
| feeds - axial |
0,1 - 5000 mm/min |
| feeds - radial |
0,1 - 5000 mm/min |
| feeds - tangential |
0,1 - 2500 mm/min |
| cutter speeds |
225 -1800 U/min |
| milling motor |
22 kW |
| tool taper |
HSK A80 |
| milling-head swivable +/- |
+/- 45 |
| total power requirement |
55 kVA |
| weight of the machine ca. |
11 t |
| dimensions of the machine ca. |
3150 x 2520 x 2750 m |
| dimensions of the machine ca. |
2,3 x 2,5 x 2,2 m |
| Description |
CNC control Siemens Sinumerik 840 D
- Tailstock
- Ring Loader
|
|
|
|
