| Stock-No. |
1020-21106 |
| Category |

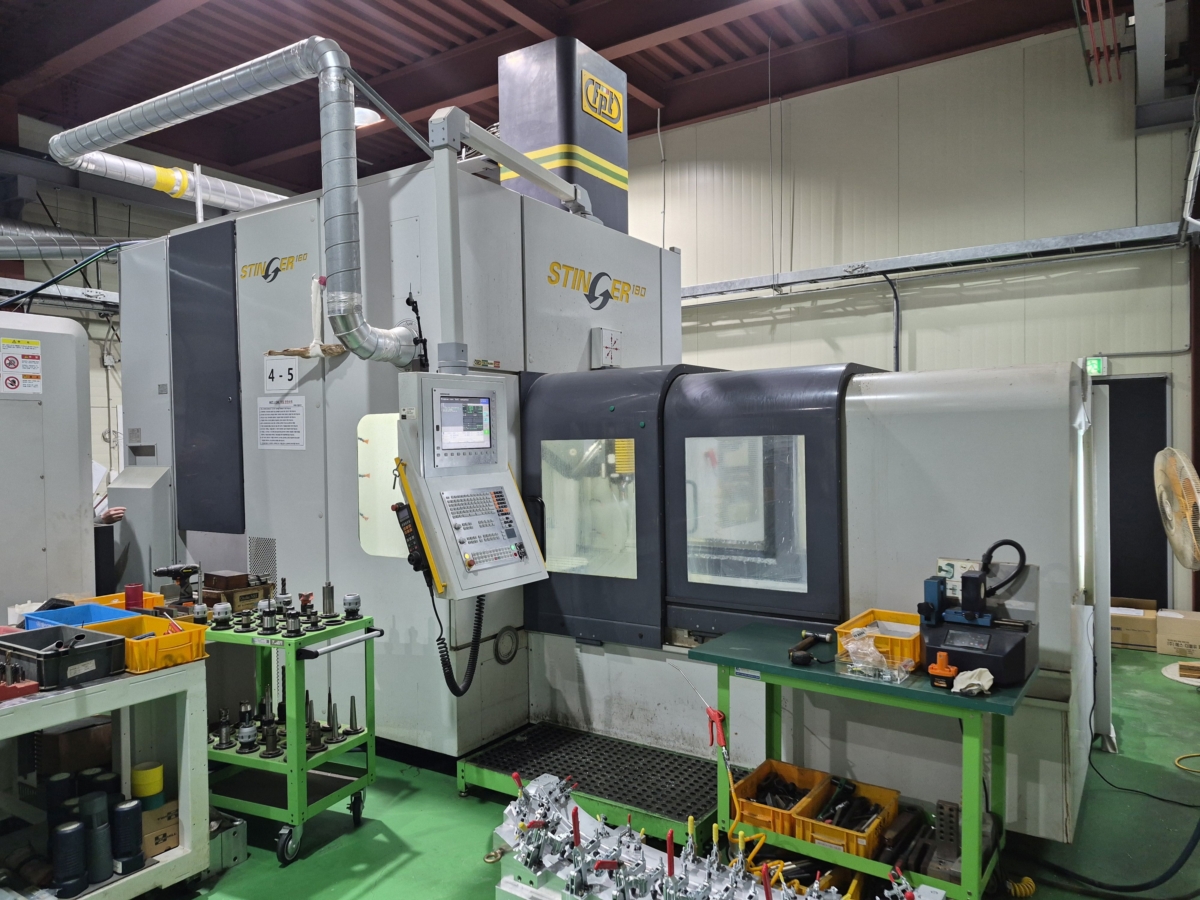

Planer-Type Milling M/C - Double Column |
| Make |
FPT |
| Type |

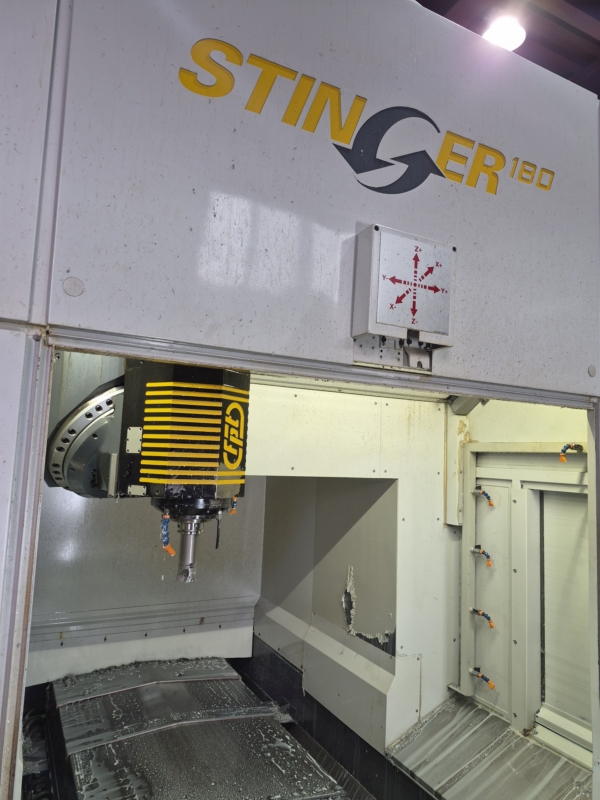

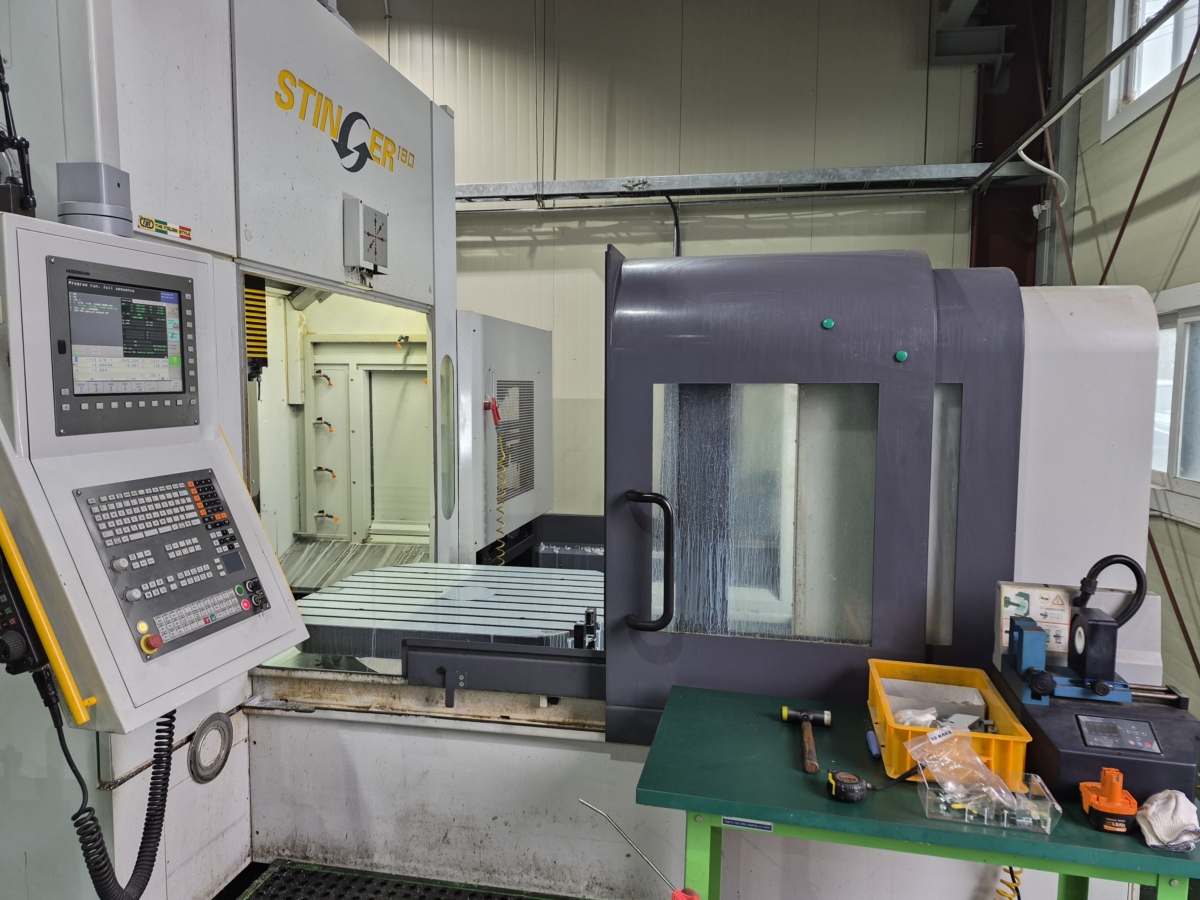

Stinger 180 |
| New in |
2016 |
| Control |
Heidenhain TNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Italy |
| Delivery time |
immediately |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| x-travel |
1750 mm |
| y-travel |
1400 mm |
| z-travel |
700 mm |
| control |
Heidenhain TNC 530 |
| Torque |
101 Nm |
| turning speeds |
15000 U/min |
| spindle taper |
HSK A63 |
| engine output |
22 / 18 kW |

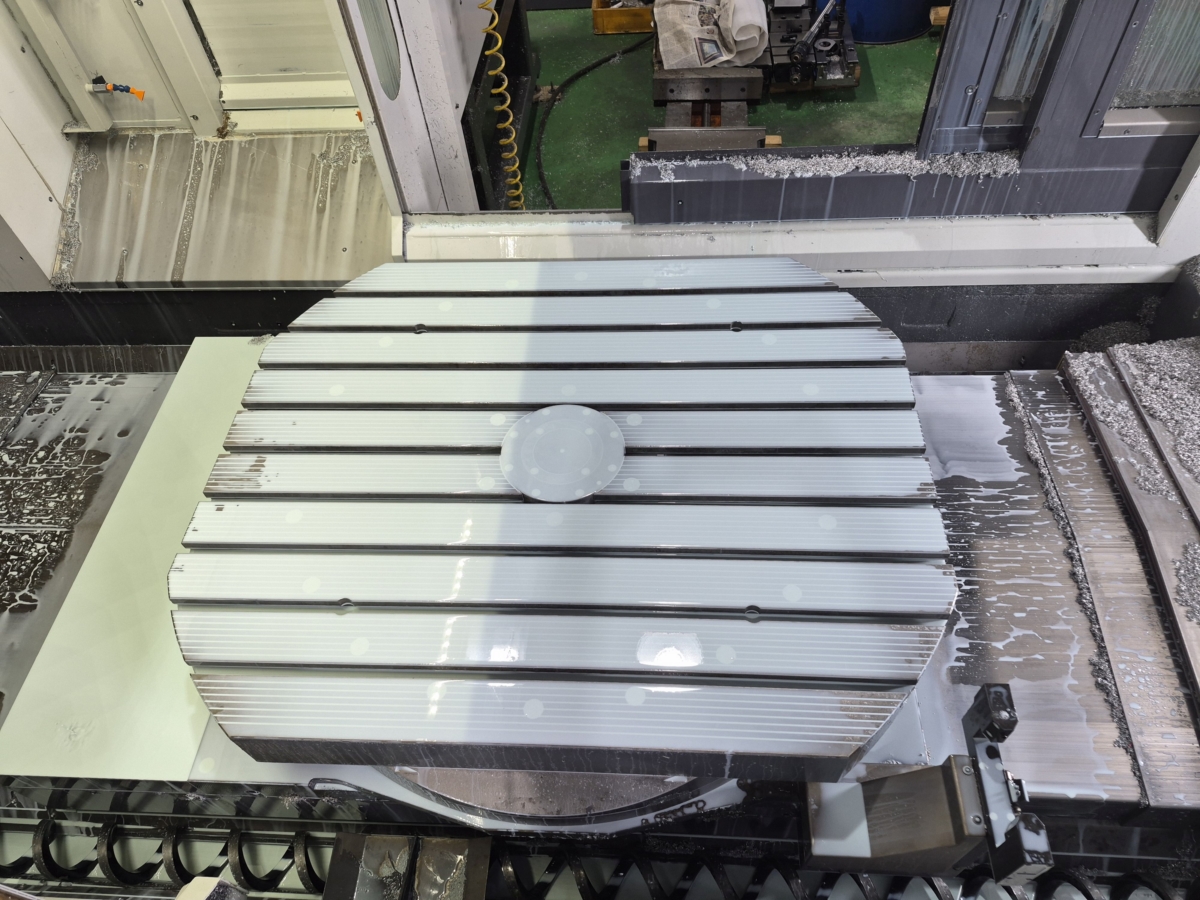

| table-size |
1200 mm |
| table load |
5000 kg |
| tool change unit |
60-fach |
| column daylight |
1430 mm |
| distance table - lower edge spindle |
105 - 905 mm |
| A-Axis |
360 / 0,001 ° |
| B-axis (table) |
0,001 ° |
| column daylight |
1430 mm |
| total power requirement |
52,9 kW |
| weight of the machine ca. |
22 t |
| dimensions of the machine ca. |
6,2 x 3,75 x 4,3 m |
| Description |
5 axes simultaneous

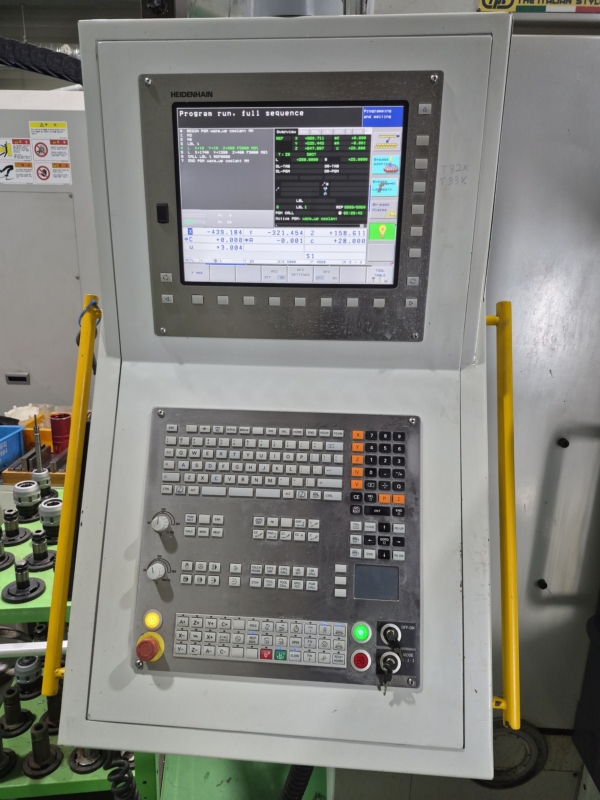

- CNC control Heidenhain TNC 530

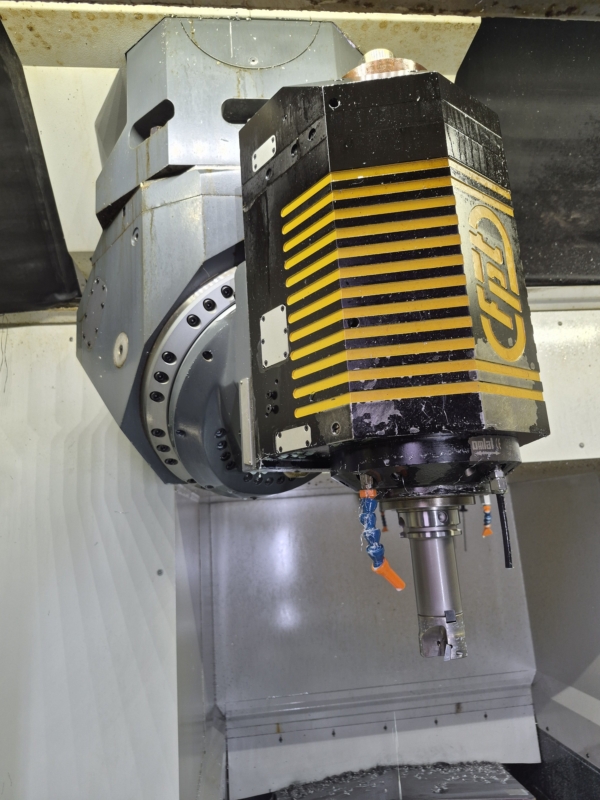

- Milling head

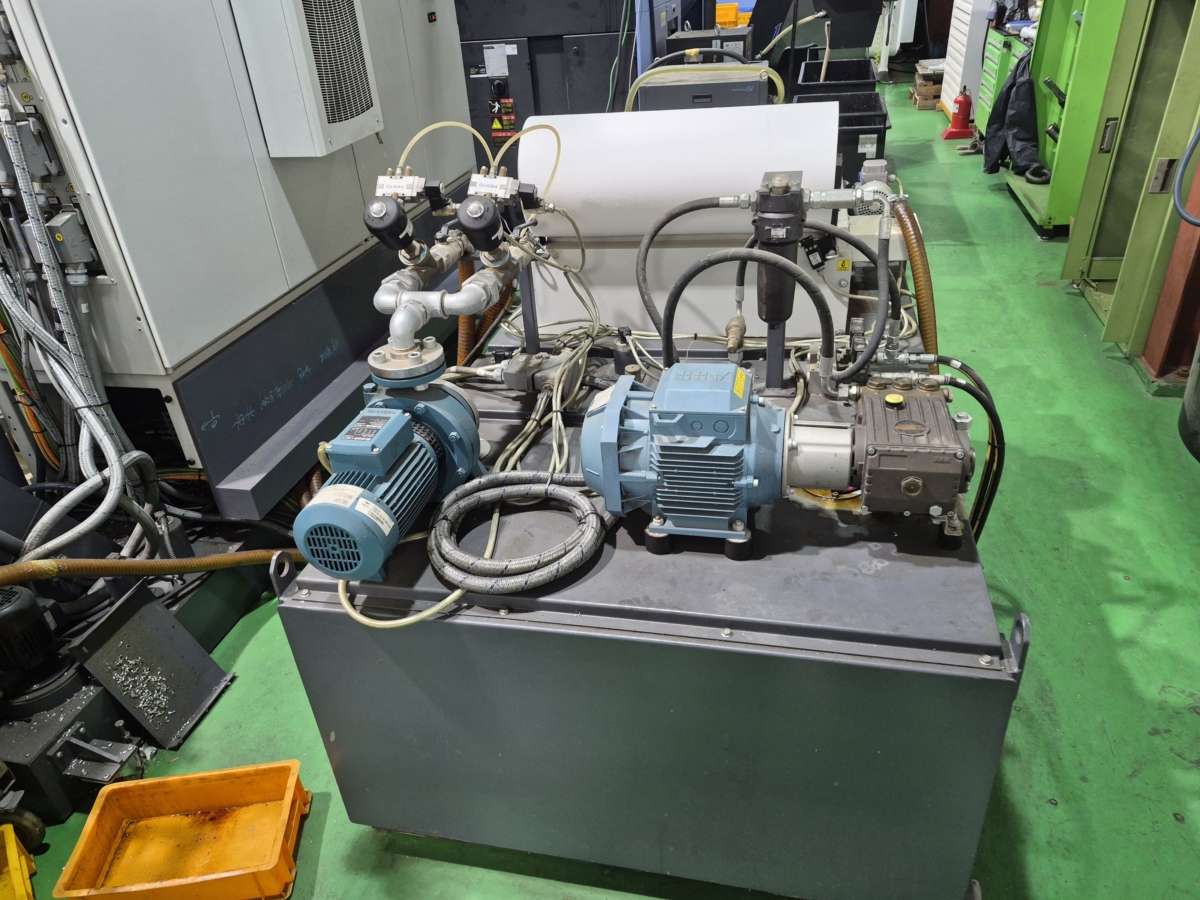

- Coolant design: external cooling + air, internal cooling + air (60 bar)
- Tool changer 60-fold (HSK-A63)

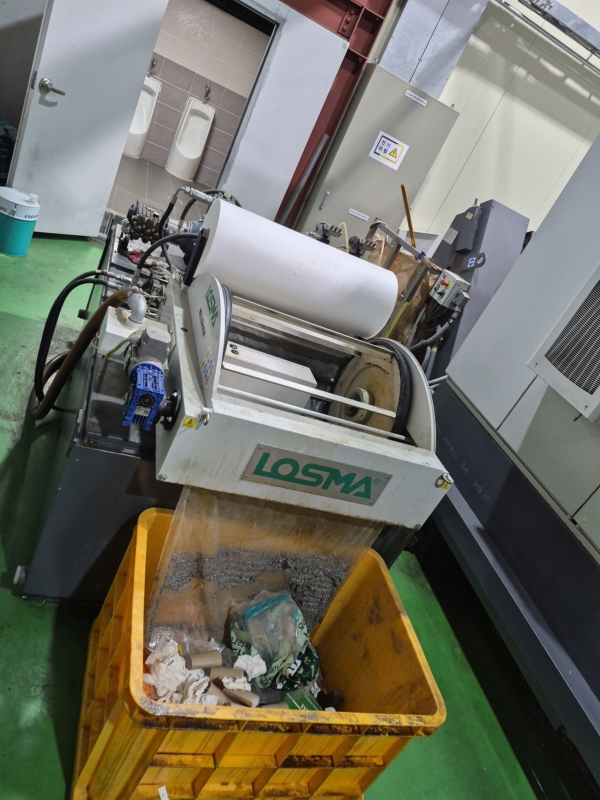

- chip conveyor
- Electronic handwheel
- CE
|
|
|
|
