| Stock-No. |
1020-21105 |
| Category |

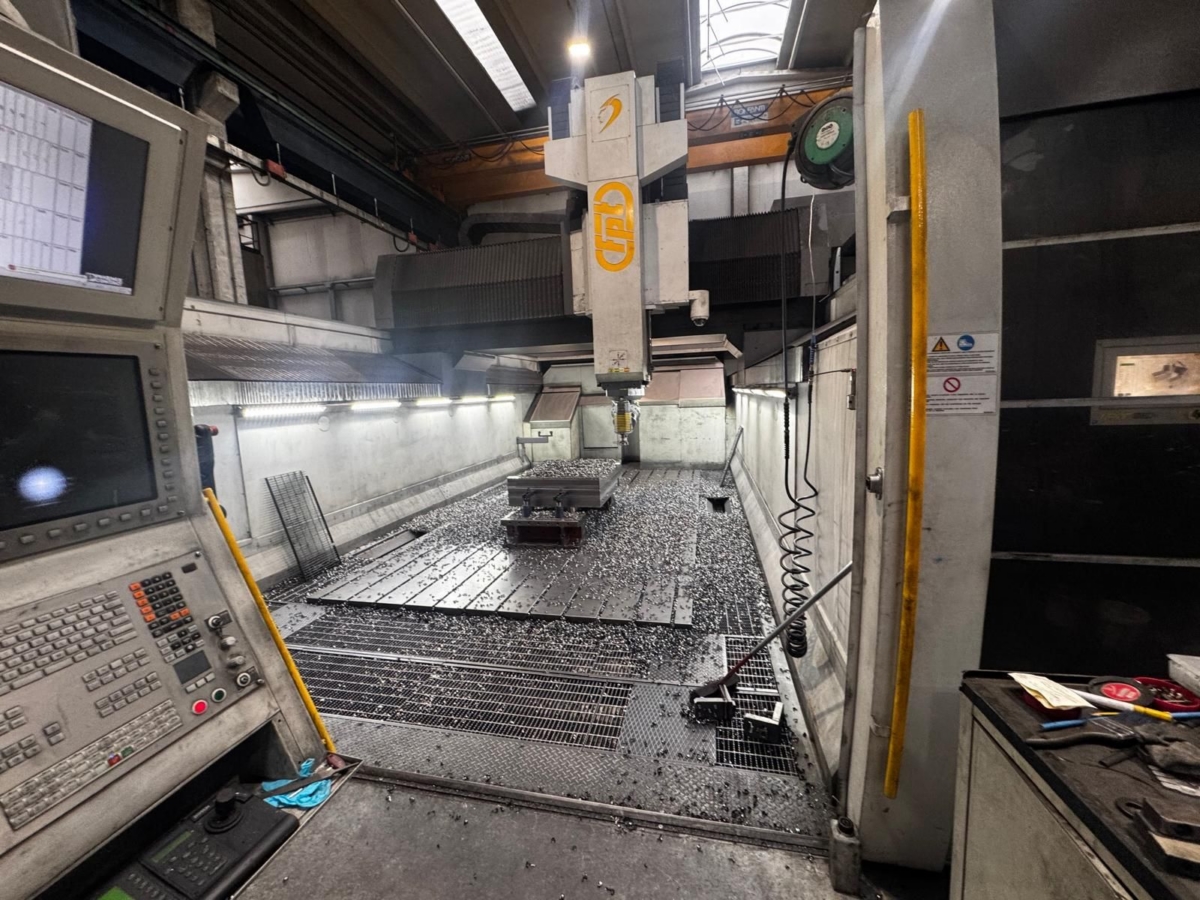

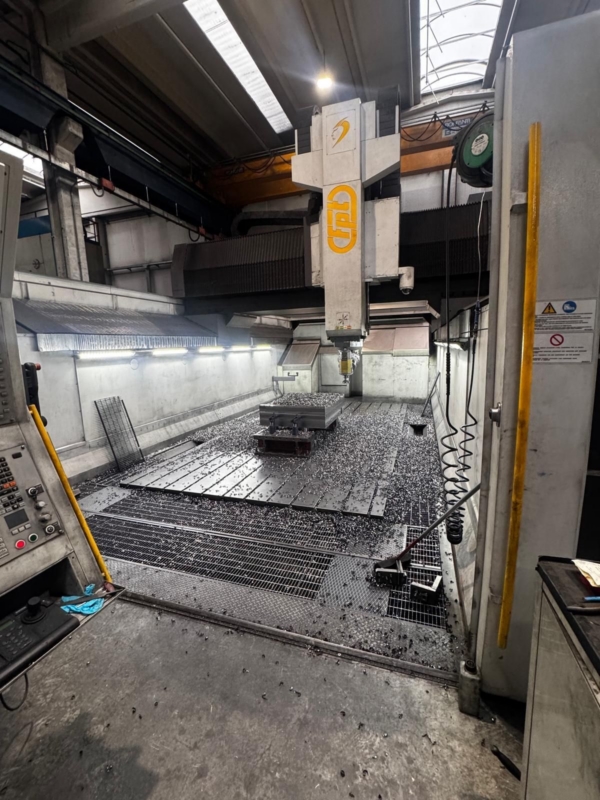

Planer-Type Milling M/C - Double Column |
| Make |
FPT |
| Type |
Dinomax |
| New in |
2016 |
| Control |
Heidenhain TNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Italy |
| Delivery time |
immediately |
| Freight basis |
EXW |
| Price |
| x-travel |
7000 mm |
| y-travel |
3200 mm |
| z-travel |
1500 mm |
| Control |
Heidenhain TNC 530 |
| table-size |
6000 x 3000 mm |
| table load |
- t |
| spindle turning speed range |
6000 / 18000 U/min |
| tool taper |
ISO 50 / HSK 63 |
| feed |
50000 mm/min |
| spindle motor |
34 kW |
| A-Axis |
+ / - 180 ° |
| c-axis |
0-360 ° |
| distance between columns |
4300 mm |
| Passage height |
2300 mm |
| total power requirement |
- kW |
| weight of the machine ca. |
- t |
| dimensions of the machine ca. |
12,2 x 9,3 x 5,9 m |
| Description |
Equipped with:

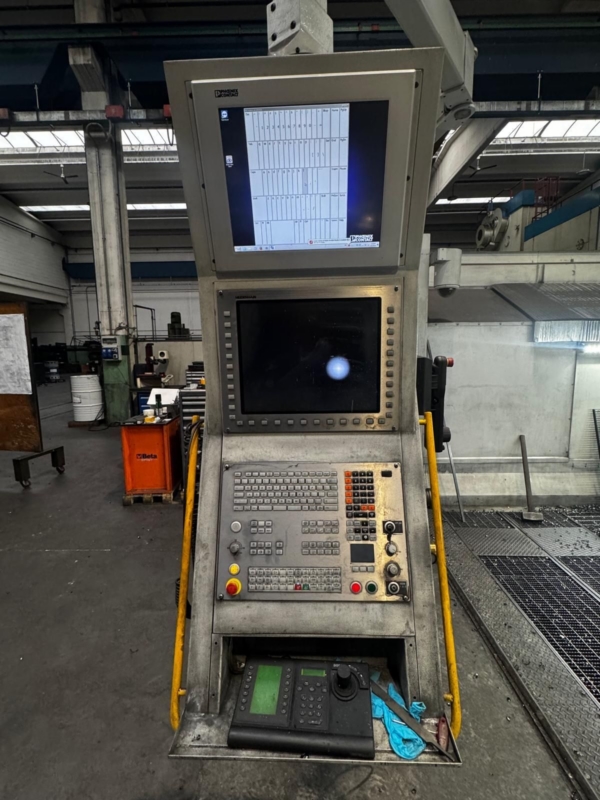

- Heidenhain TNC 530 CNC control
- 1 milling head (TAEM) ISO 50, 6,000 rpm
- 1 electric spindle head (TUPC) 18,000 rpm, HSK 63
- 1 extended head ISO 50, 6,000 rpm

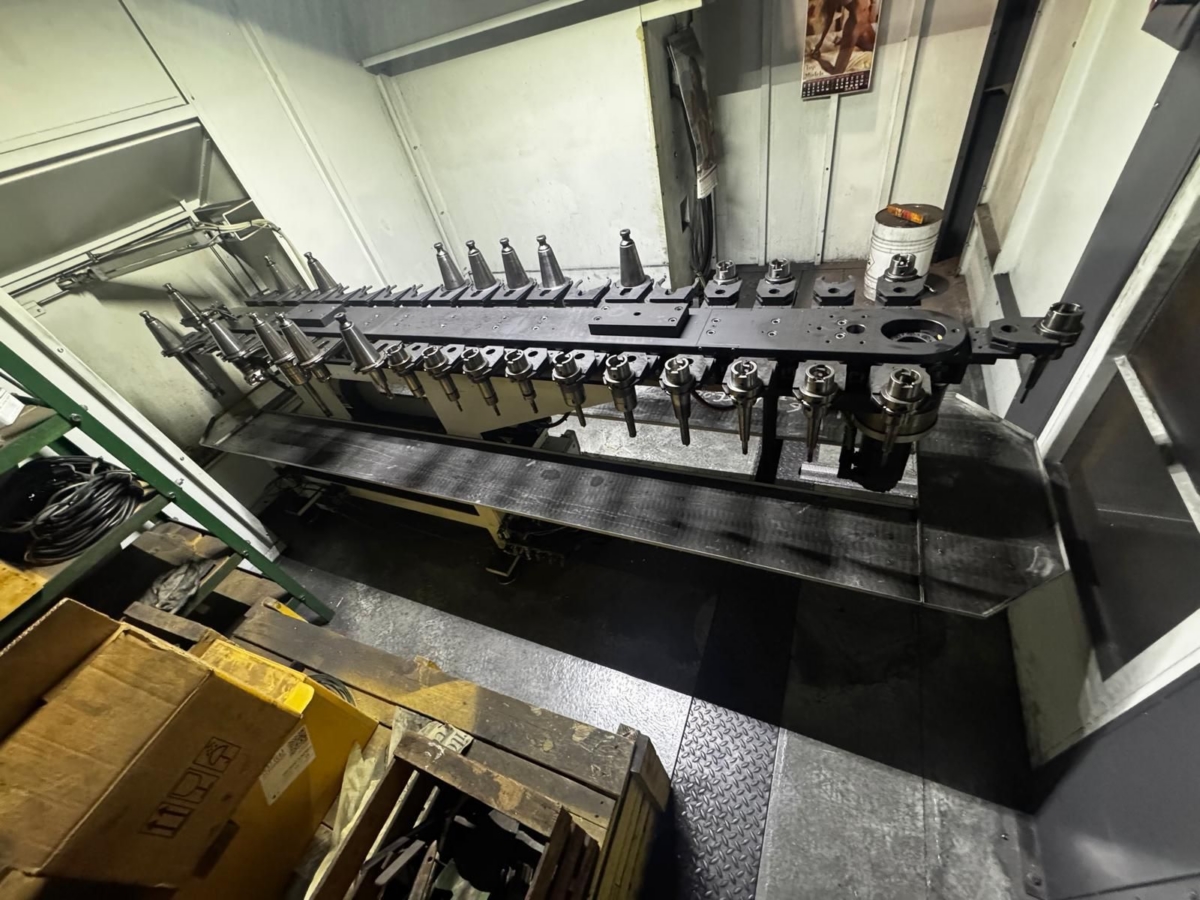

- 40-position tool changer (15x HSK A63, 25x ISO 50)

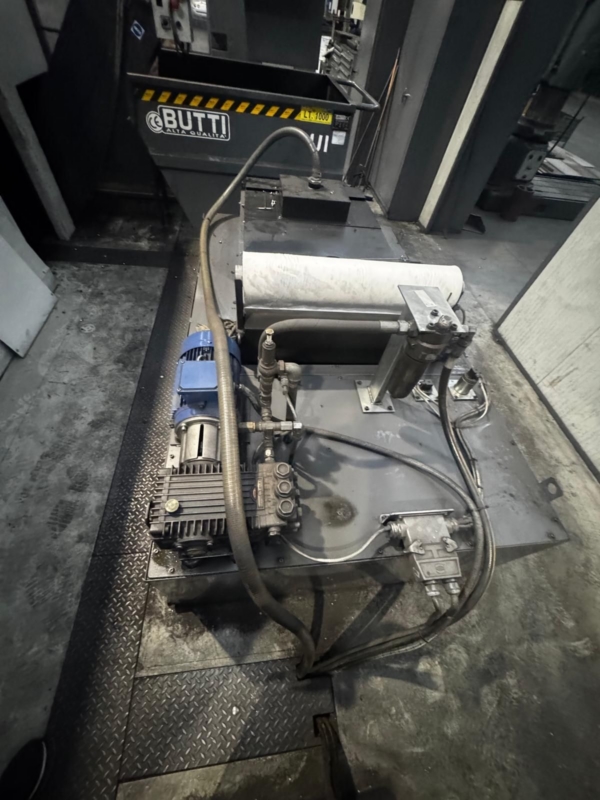

- Coolant system (40 bar IKZ / 4 bar external)
- CE mark

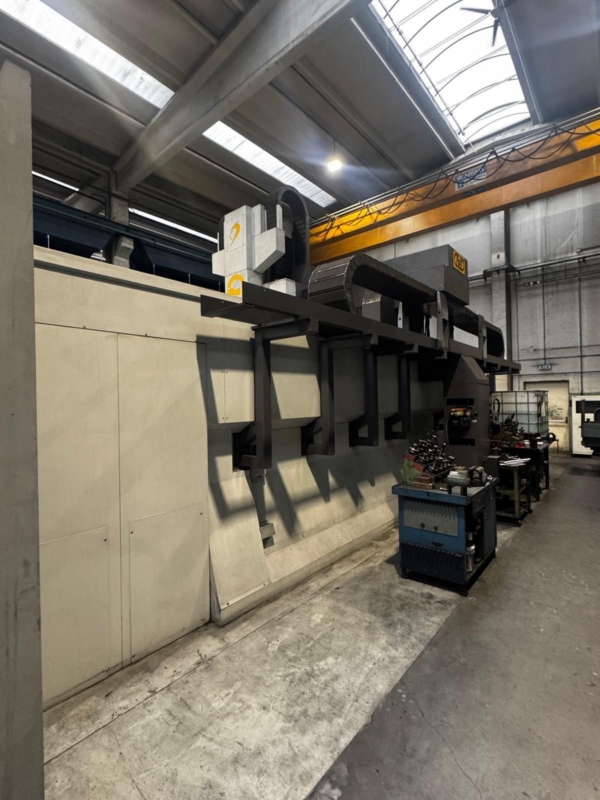

- Enclosure
|
|
|
|
