| Stock-No. |
1020-21104 |
| Category |
Bed Type Milling Machine - Universal |
| Make |
SACHMAN |
| Type |
TRT 314 HS |
| New in |
2015 |
| Control |
Heidenhain i TNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
|
| Delivery time |
after appointment |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
3000 mm |
| y-travel |
1600 mm |
| z-travel |
1500 mm |
| Control |
Heidenhain i TNC 530 |
| main spindle: |
|
| turning speed range - main spindle |
5000 min/-1 |
| Drive power - main spindle |
35 kW |
| Automatic swivel head |
Kosmo 3 |
| Indexing B axis |
0,02 ° |
| Indexing A axis |
0,02 ° |
| rotary table: |
|
| table surface area |
1600 x 1200 mm |
| max. table load |
8 t |
| tool changer: |
|
| tool taper |
SK 50 |
| number of tool places |
120 Pos. |
| total power requirement |
48 kVA |
| weight of the machine ca. |
- t |
| Description |
- CNC Control Heidenhain iTNC 530
- Probe M+H, radio transmission

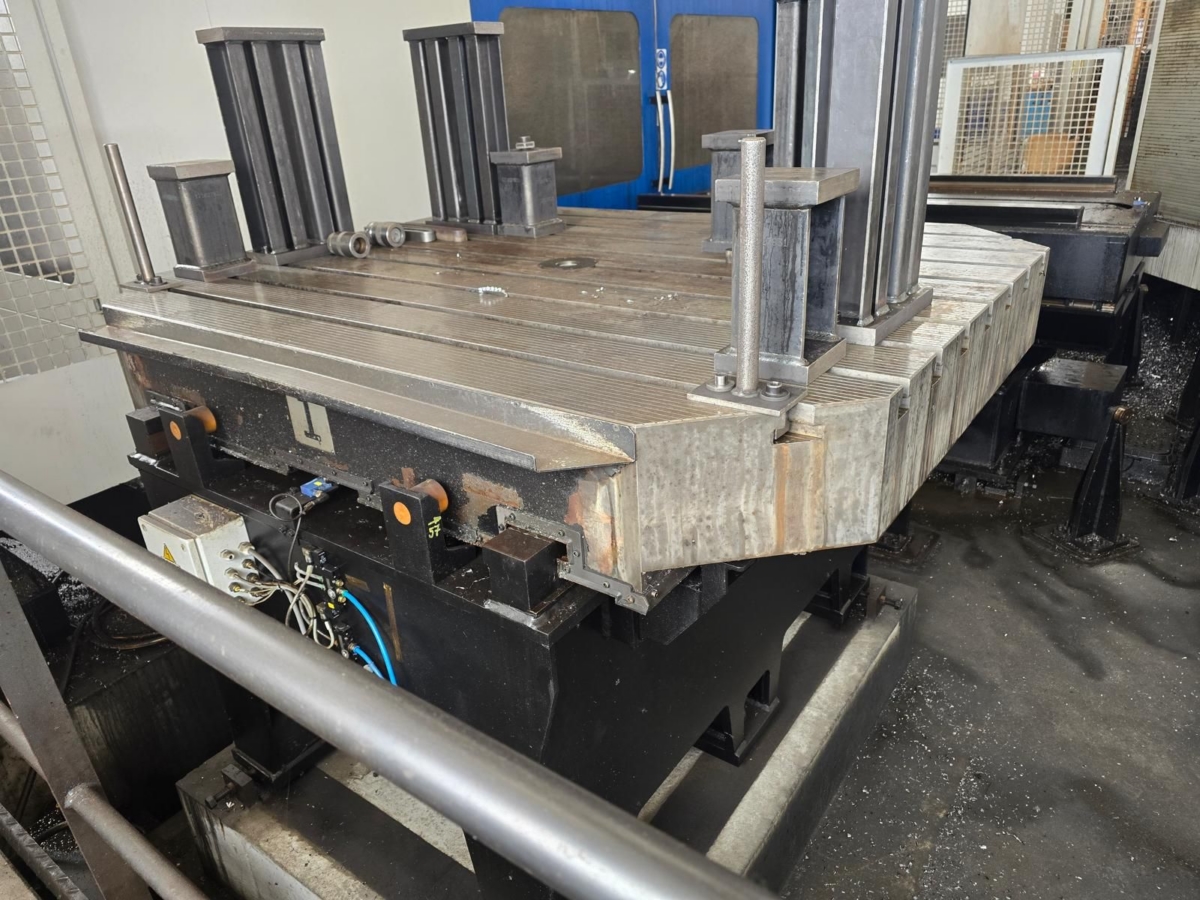

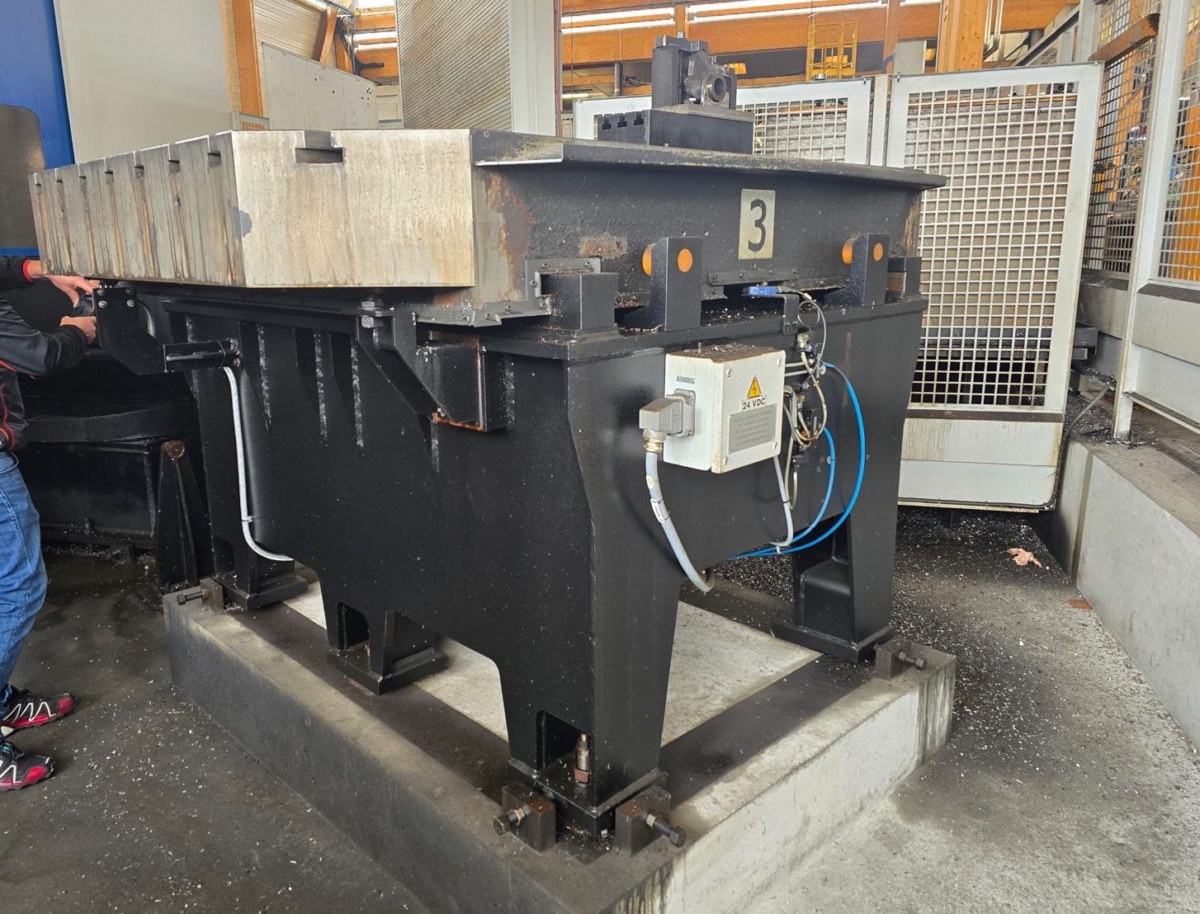

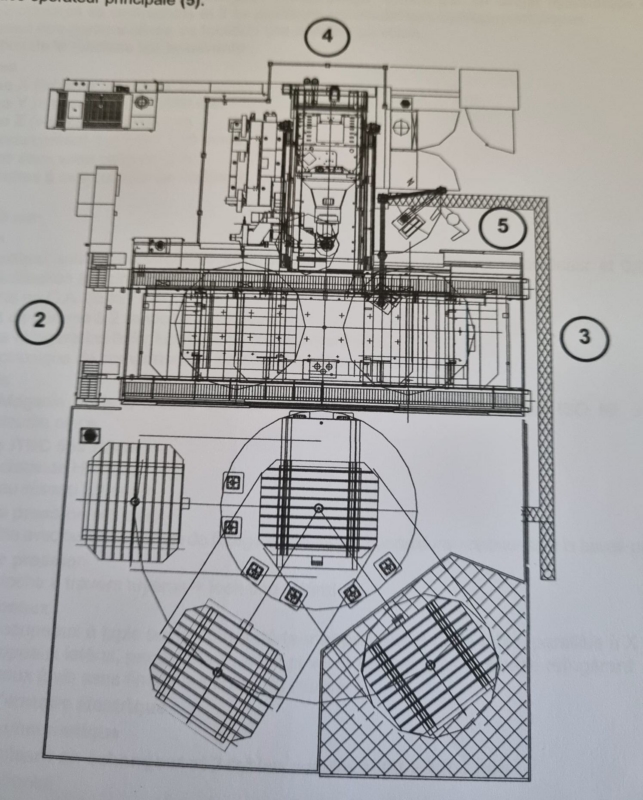

- Pallet Cnager 3-fold 1600 x 1200mm

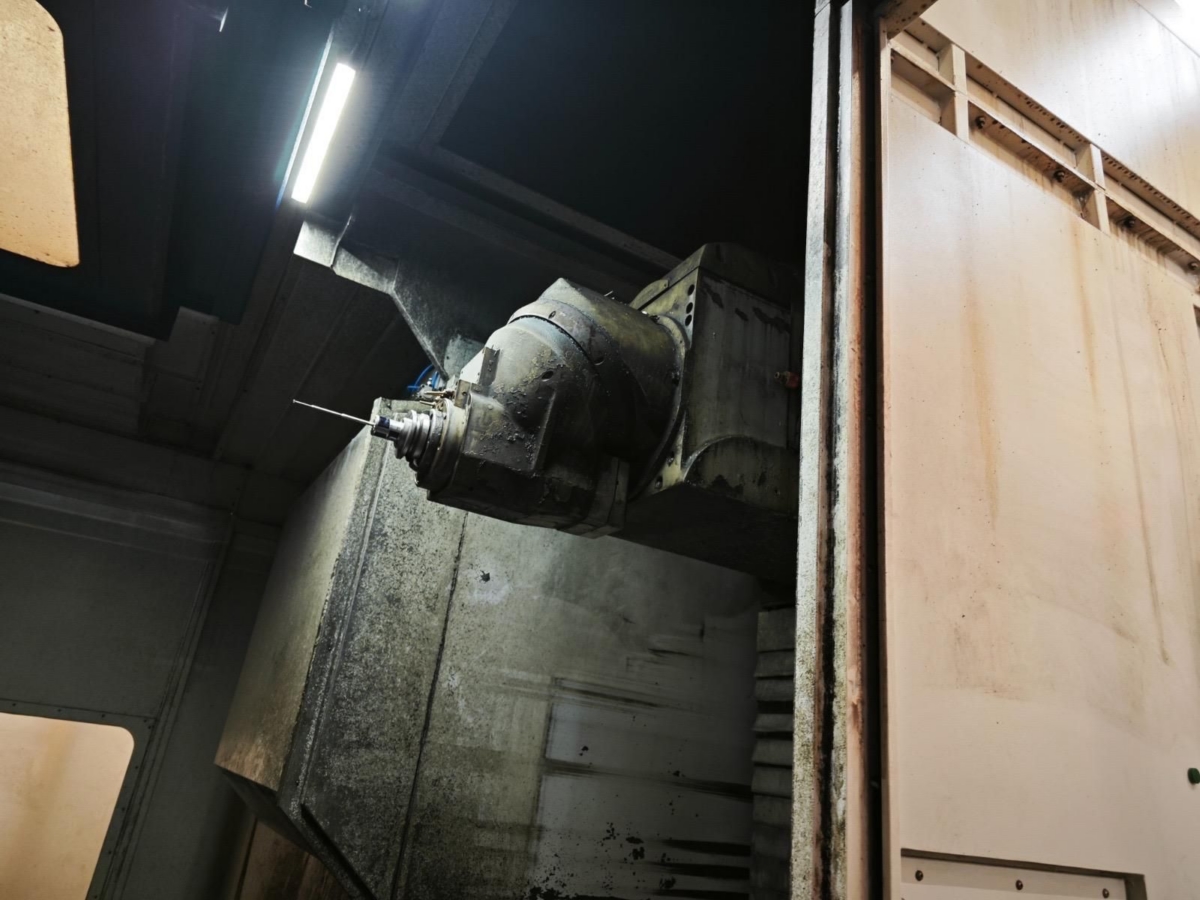

- Milling Head KOSMO 3
-- 0,02 x 0,02°

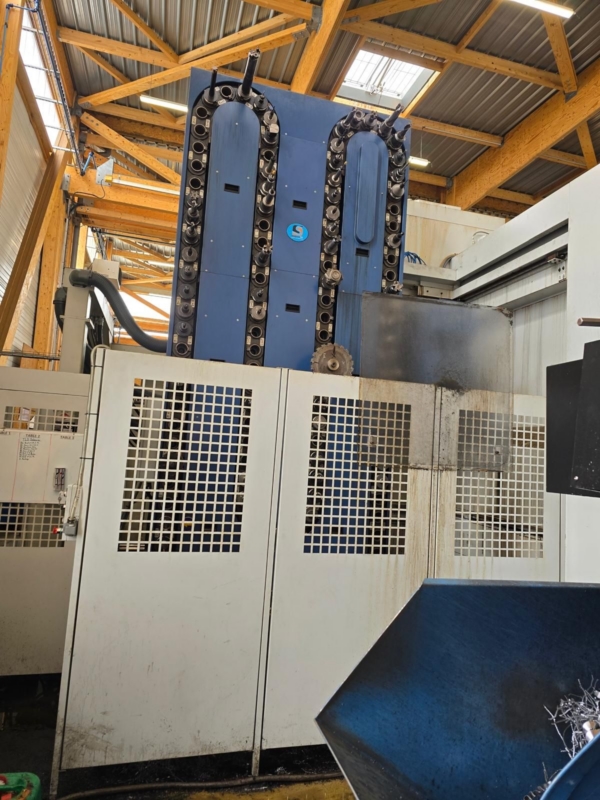

- ATC 120-fold

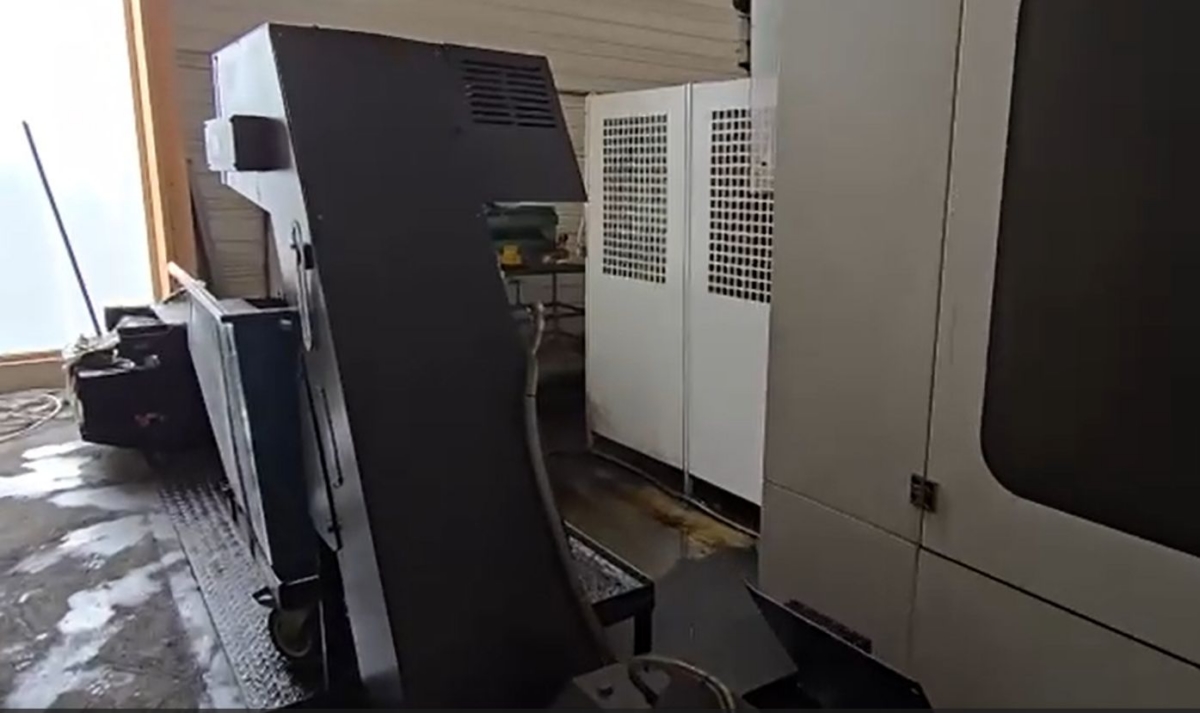

- 2x belt chip conveyor
- electronic handwheel
- NC rotary table

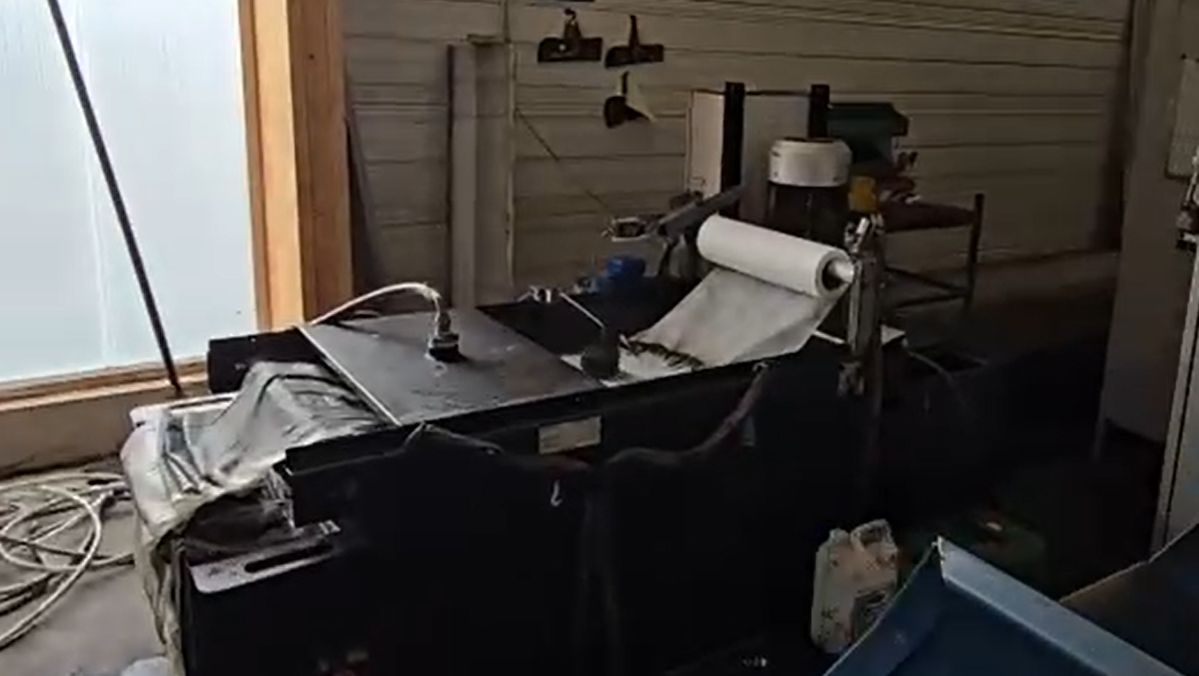

- IKZ 40 bar with paper band filter
|
|
|
|
