| Stock-No. |
1020-21098 |
| Category |

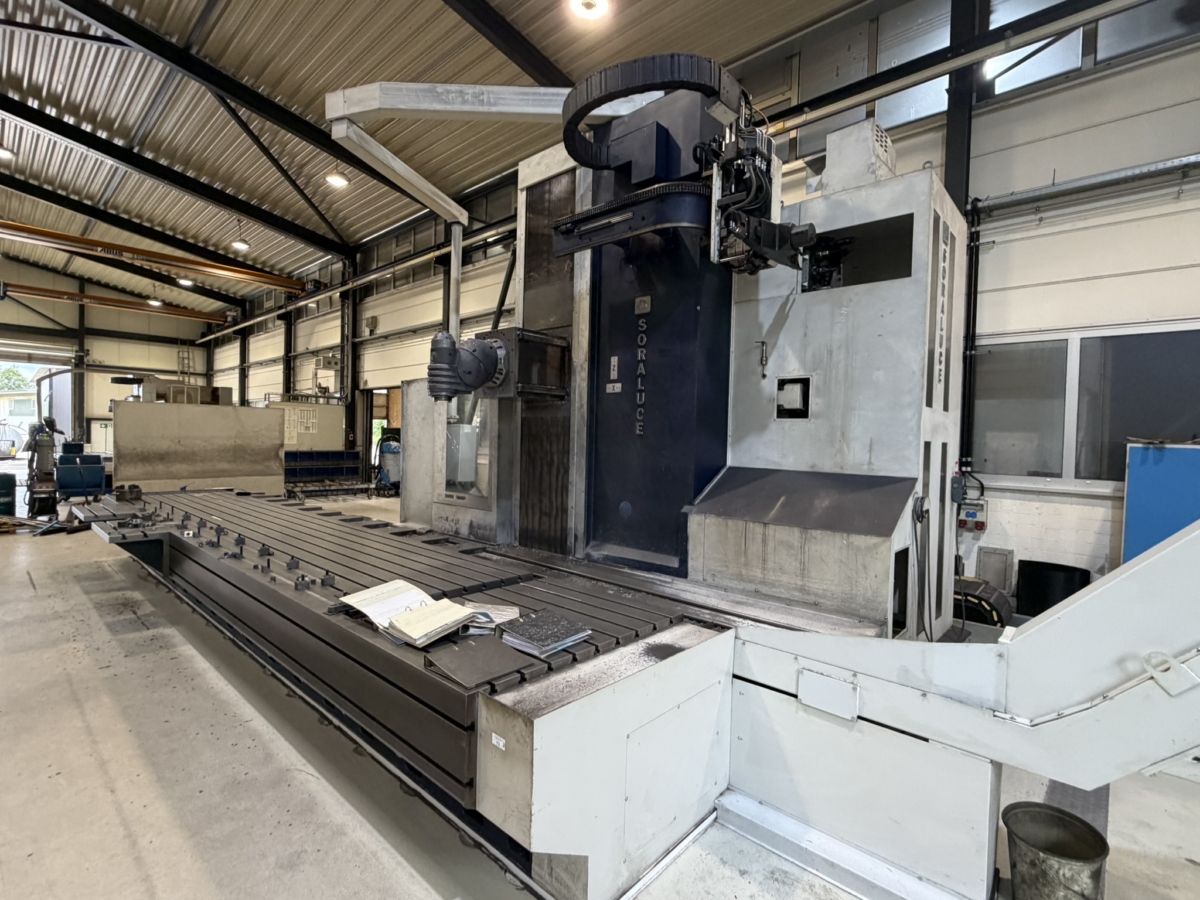

Travelling column milling - fixed table |
| Make |
SORALUCE- |
| Type |
SP-8000 |
| New in |
2011 |
| Control |
Heidenhain iTNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Spain |
| Delivery time |
immediately |
| Freight basis |
ex work |
| Price |
| travel -x axis |
6500 mm |
| travel -y axis |
2000 mm |
| travel -z axis |
1500 mm |
| Control |
Heidenhain iTNC 530 |

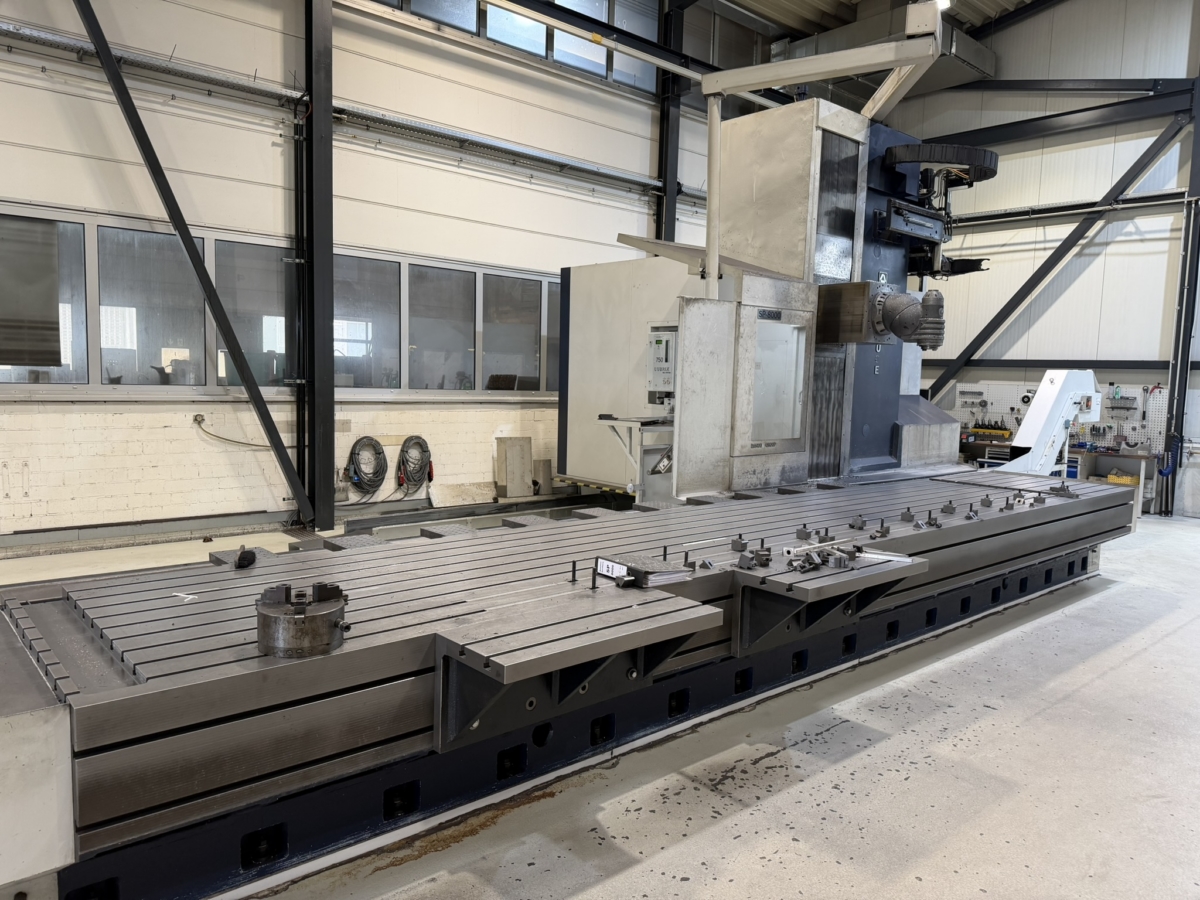

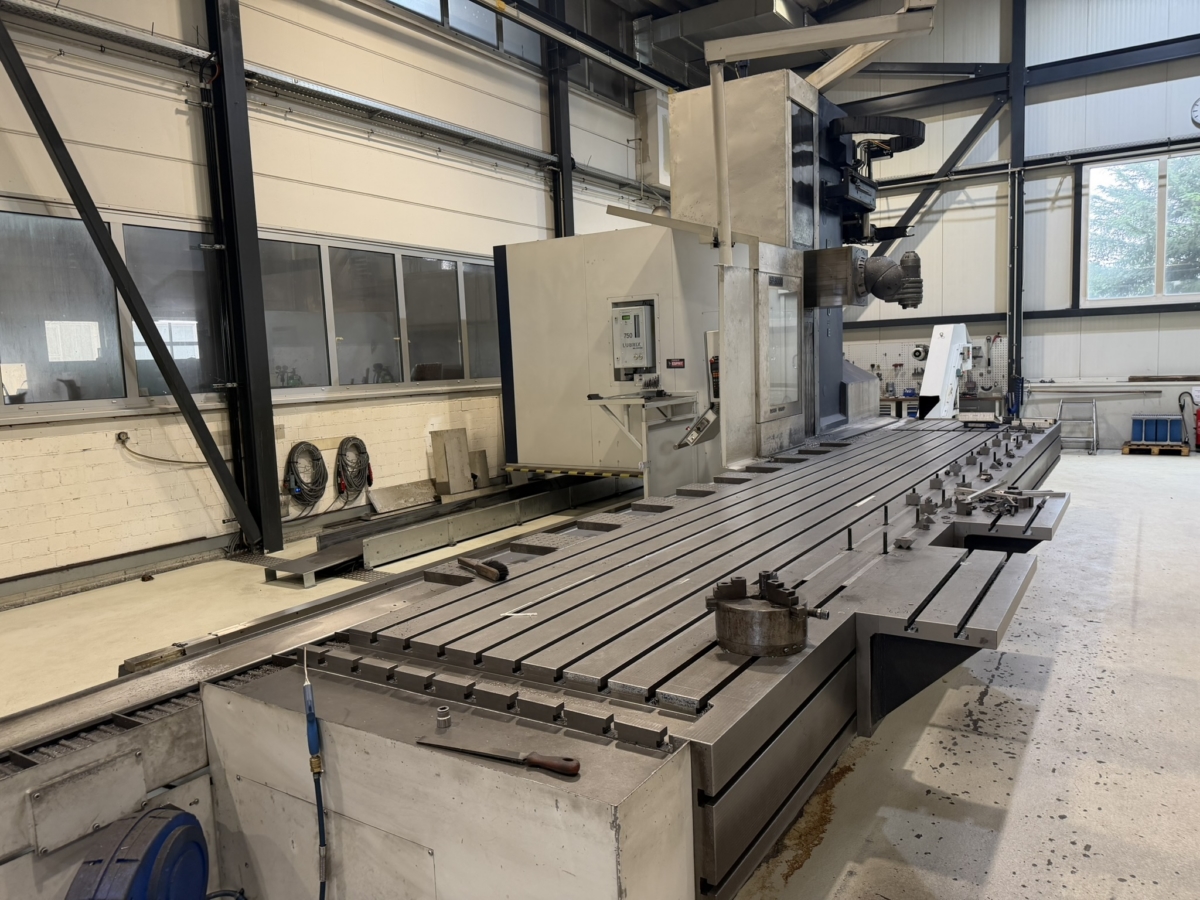

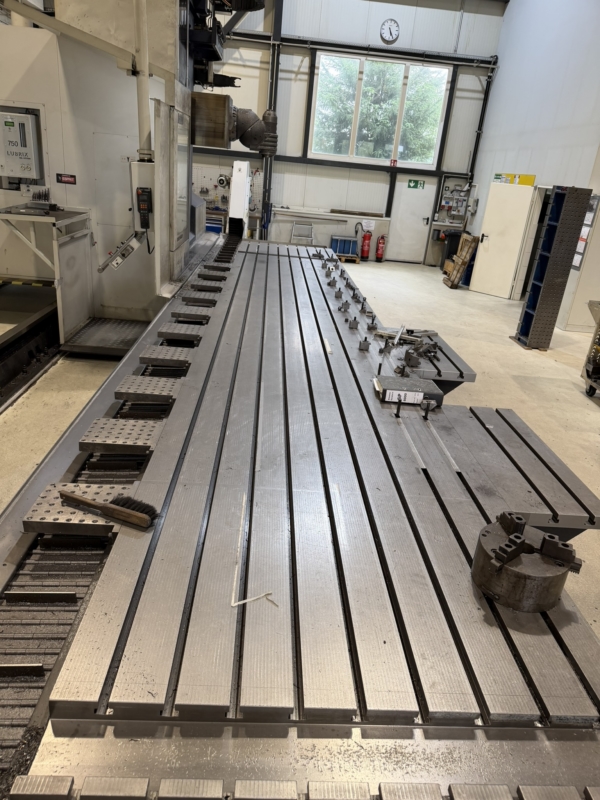

| table-size |
8000 x 1300 mm |
| tool taper |
ISO 50, DIN 69871A |
| Main drive |
32 kW |
| spindle turning speed range |
20 - 4.000 U/min |
| feeds |
2 x 19.2 / 26,1/21,1/18,1 Nm |
| max. torque on the spindle |
910 Nm |
| handwheel |
HR 550 FS |
| total power requirement |
- kW |
| weight of the machine ca. |
26,8 t |
| dimensions of the machine ca. |
- m |
| Description |
- CNC Control Heidenhain iTNC 530

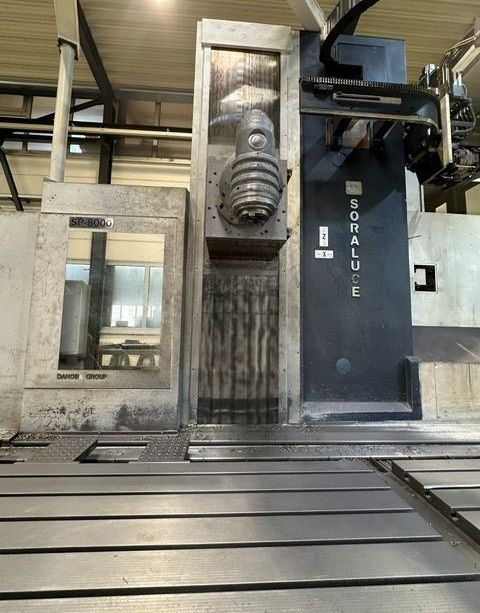

- Automatically indexing orthogonal milling head with 1° division
- 5-sided machining
- 40-position tool changer
- M&H Wireless Probe 20.41 MULTI

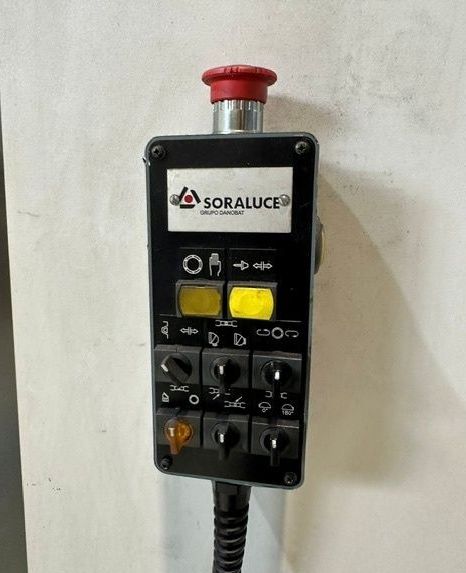

- Electronic handwheel with wireless transmission
- Lubrix minimum quantity lubrication
- Chip conveyor
- 2 support brackets 1,000 x 400 mm
- Air/oil lubrication of milling head
Operating Hours
Control ON: 32,632 h
Machine ON: 29,709 h
Program Run: 10,731 h
|
|
|
|
