| Stock-No. |
1020-21097 |
| Category |
Bed Type Milling Machine - Universal |
| Make |
SORALUCE |
| Type |
TR-35 |
| New in |
2018 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
ex work |
| Price |
| x-travel |
3500 mm |
| y-travel |
1300 mm |
| z-travel |
1600 mm |
| table-size |
3800 x 1200 mm |
| T-slots |
7 x 22 H12 |
| T-slot - distance |
140 mm |
| Main drive |
43 kW |
| speeds |
20 - 4.000 U/min |
| Torque |
900 Nm |
| tool taper |
ISO 50 DIN 69871 |
| feeds |
16.000 mm/min |
| rapid traverse feeds |
35.000 mm/min |
| Control |
HEIDENHAIN TNC 640 |
| handwheel |
HR 510 |
| milling head -swivable |
2,5 x 2,5 Grad |
| Main drive |
43 kW |
| total power requirement |
- kW |
| weight of the machine ca. |
ca. 24 t t |
| dimensions of the machine ca. |
- m |
| Description |

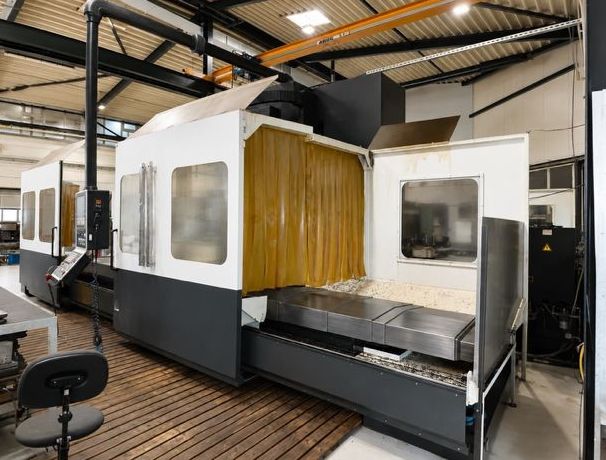

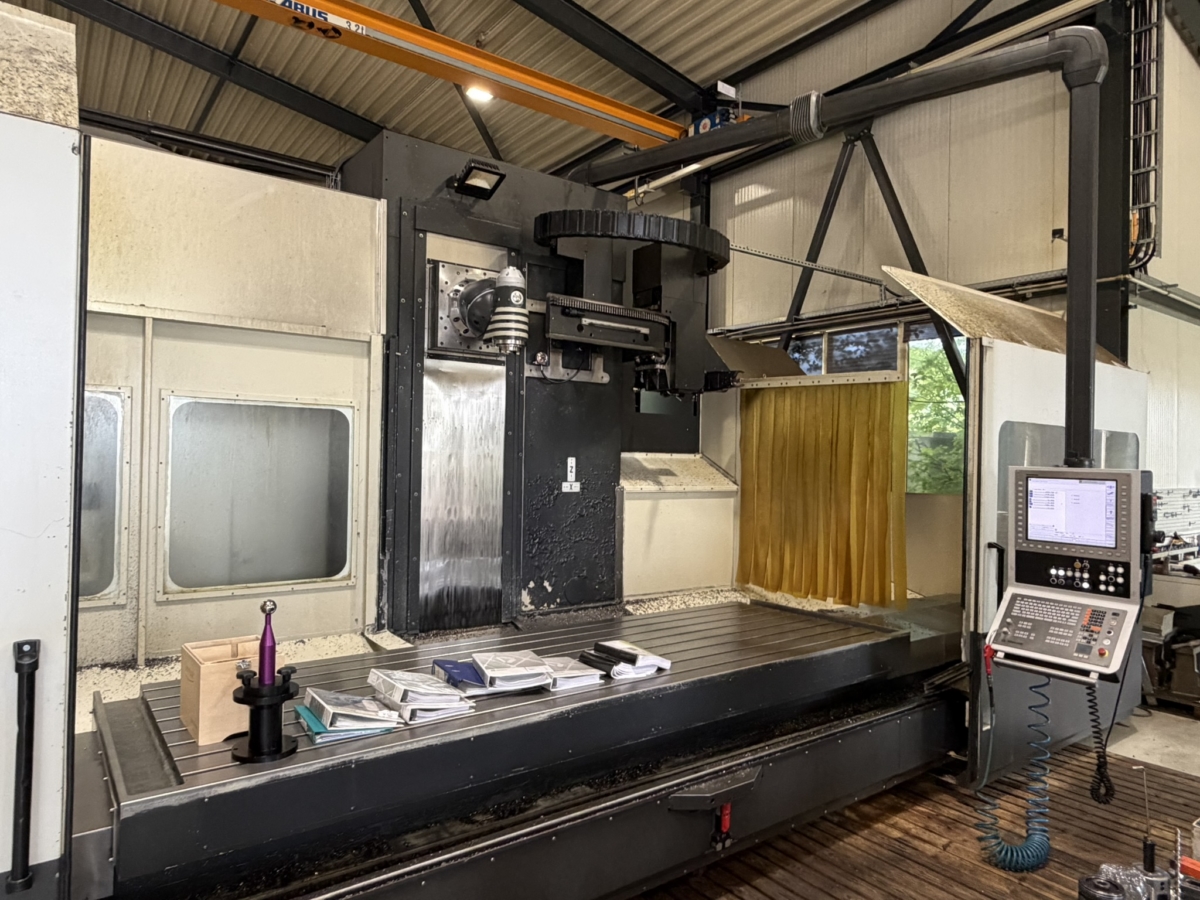

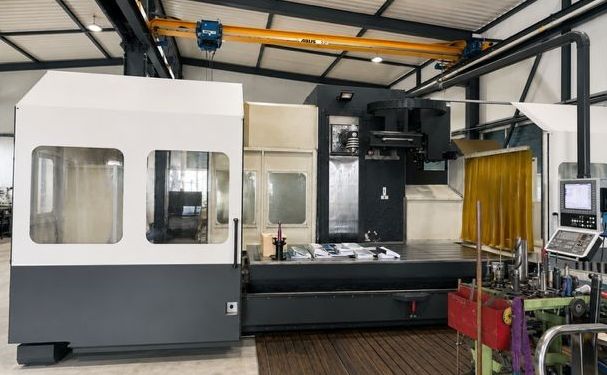

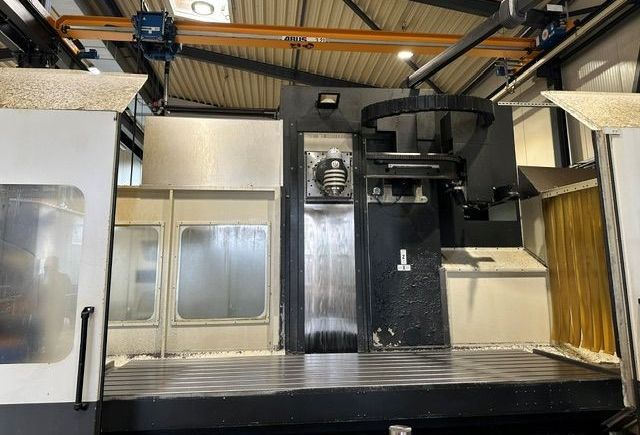

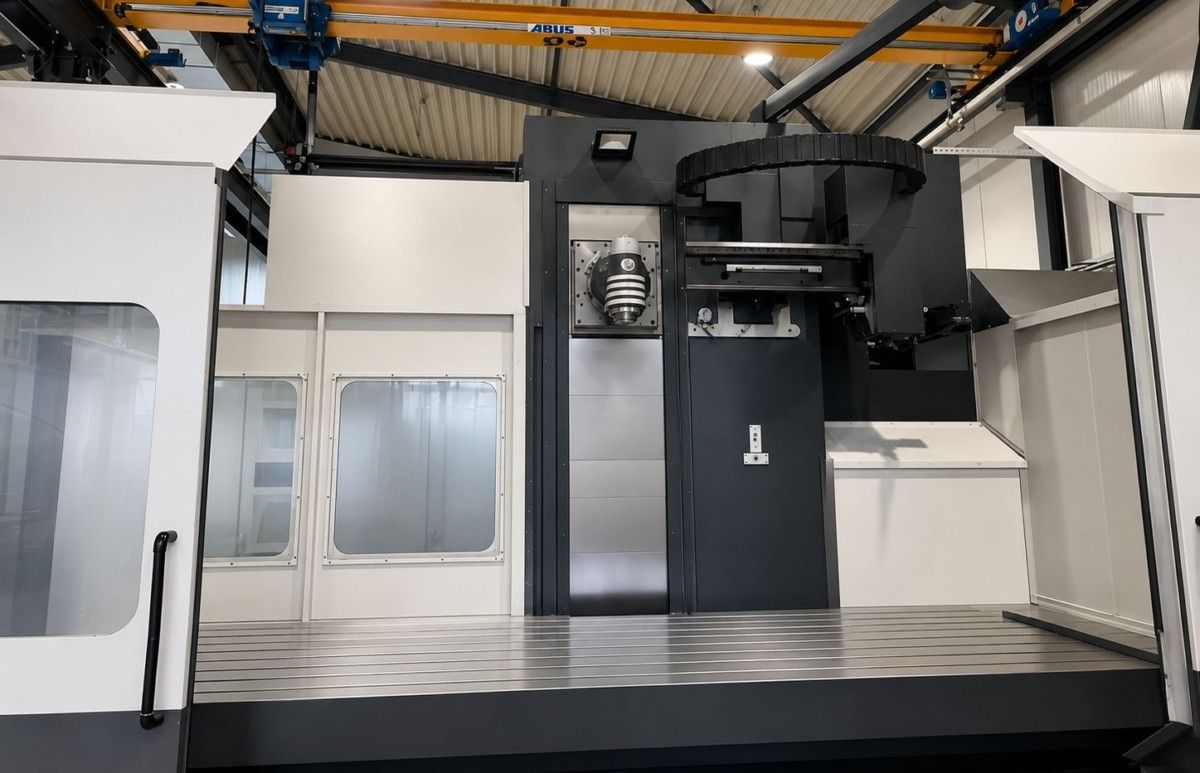

CNC bed-type milling and drilling center featuring:
- HEIDENHAIN TNC 640 CNC control

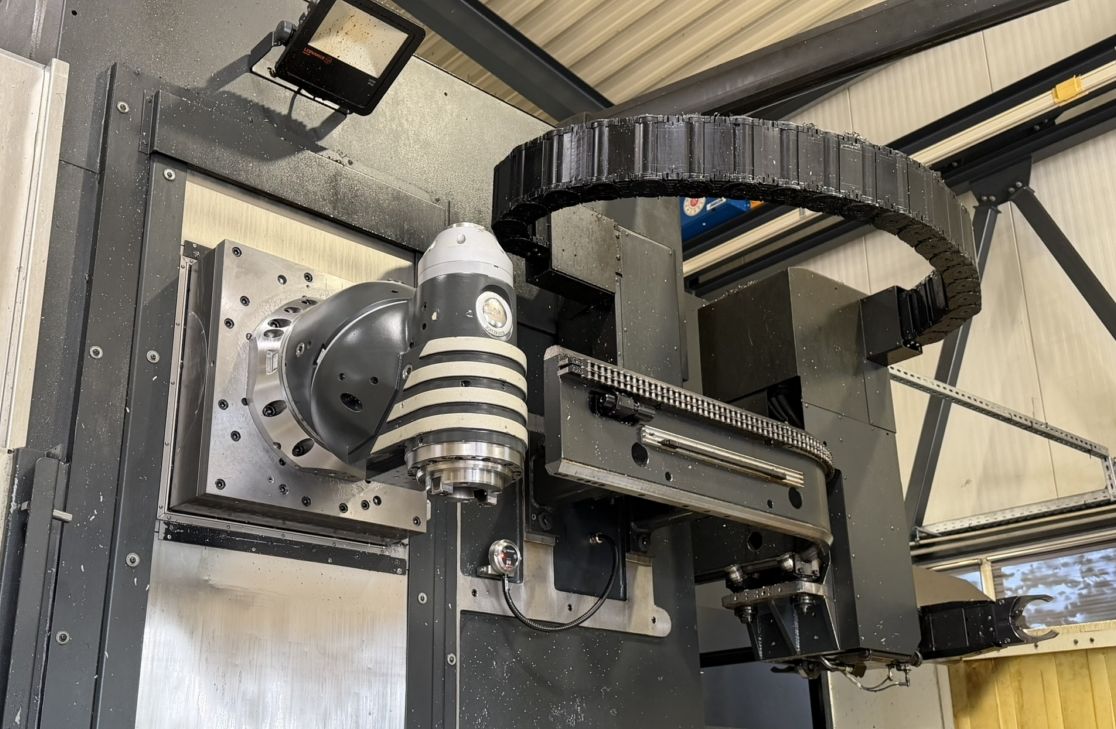

- H200 universal milling head, 2.5 x 2.5°

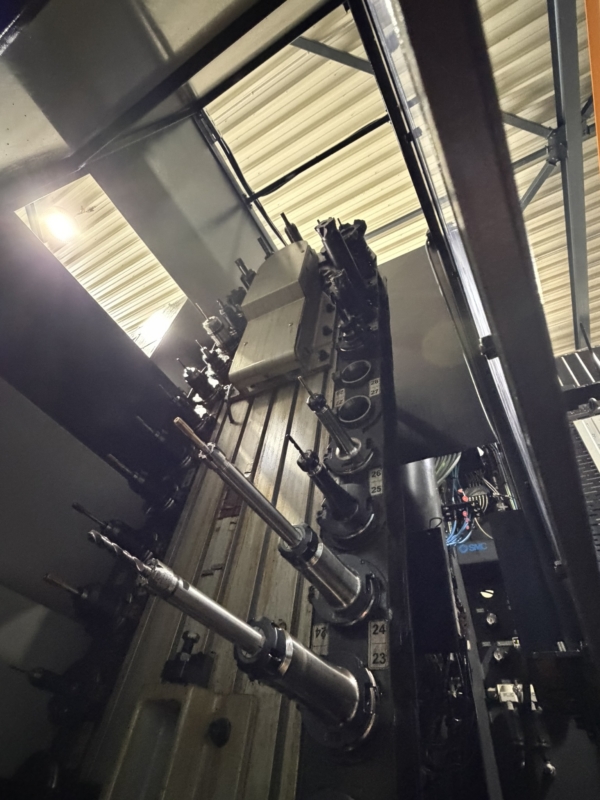

- 40-position tool changer
- 5-axis interpolation
- M collision monitoring
- Interpolation turning
- M&H wireless probe
- IKZ 20 bar, paper belt filter & magnetic separator

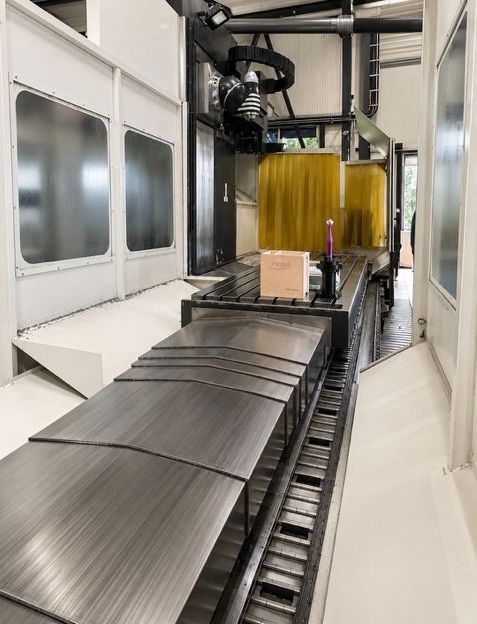

- Full enclosure
- 3 chip conveyors
- Includes tool holders.

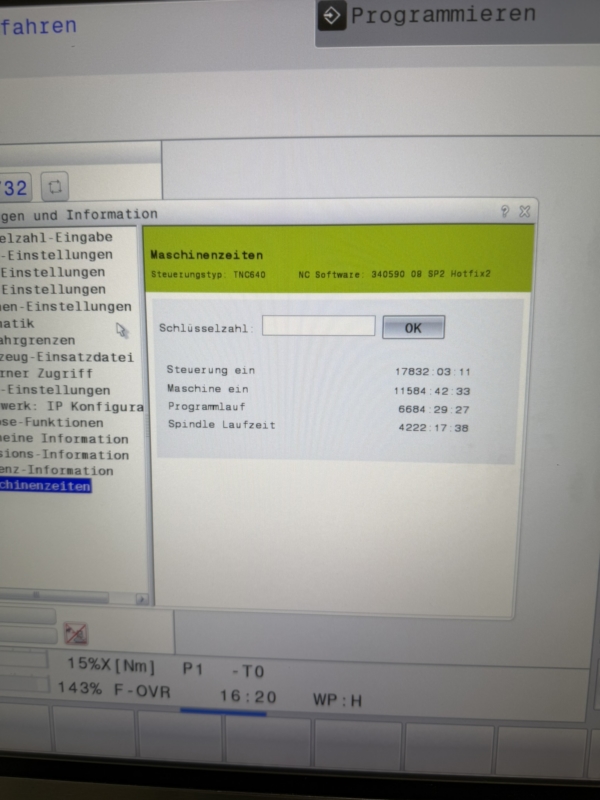

Only 11600h Work- & 4222 spindle hours
|
|
|
|
