| Stock-No. |
1020-21095 |
| Category |
CNC Turning- and Milling Center |
| Make |
DMG MORI |
| Type |
CTX beta 1250 TC |
| New in |
2010 |
| Control |
Siemens 840D |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter |
500 mm |
| turning length |
1200 mm |
| control |
Siemens 840D |
| greates pass round over bed |
700 mm |
| Main spindle: |
|
| turning speed range - main spindle |
20 - 5000 min/-1 |
| power capacity - main spindel |
25 /34 kW |
| C-Axis |
0,0001 ° |
| spindle diameter |
65 mm |
| milling spindle |
|
| milling spindle motor |
23 / 13 kW |
| milling head speed |
12000 U/min |
| b-axis |
+/- 120 ° |
| axis stroke: |
|
| x-axis |
490 mm |
| y-axis |
+/- 100 mm |
| z-axis |
1300 mm |
| feeds: |
|
| rapid traverse ( X / Y / Z ) |
60 / 22,5 / 30 m/min |
| feed power |
5,6 / 5,6 / 7,4 kN |
| number of toolpositions |
24 pos. |
| tool taper |
HSK A 63 |
| total power requirement |
- kW |
| weight of the machine ca. |
15 t |
| dimensions of the machine ca. |
6 x 3 x 2,3 m |
| Description |

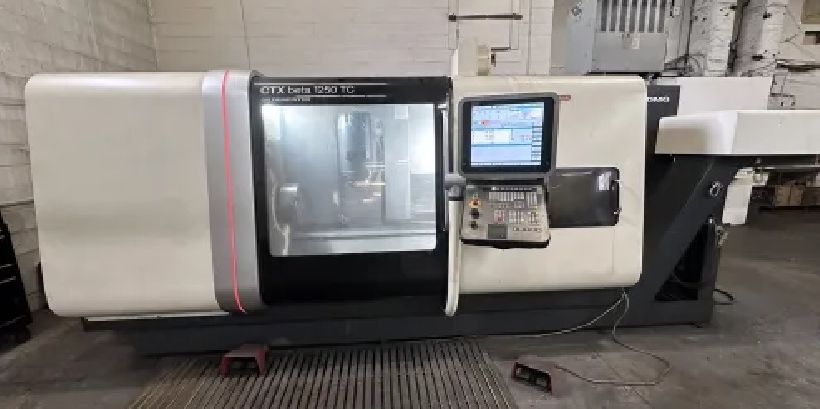

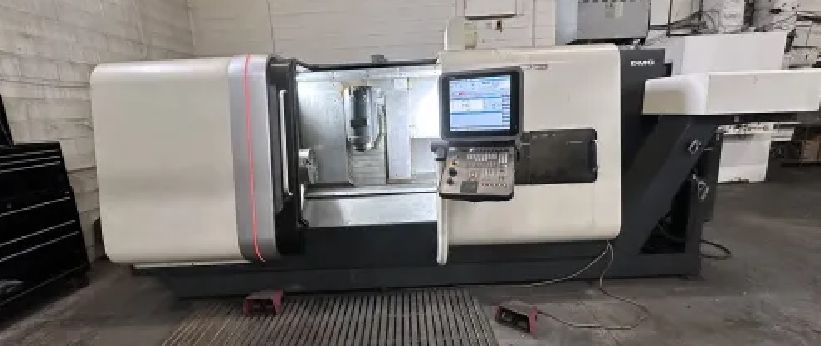

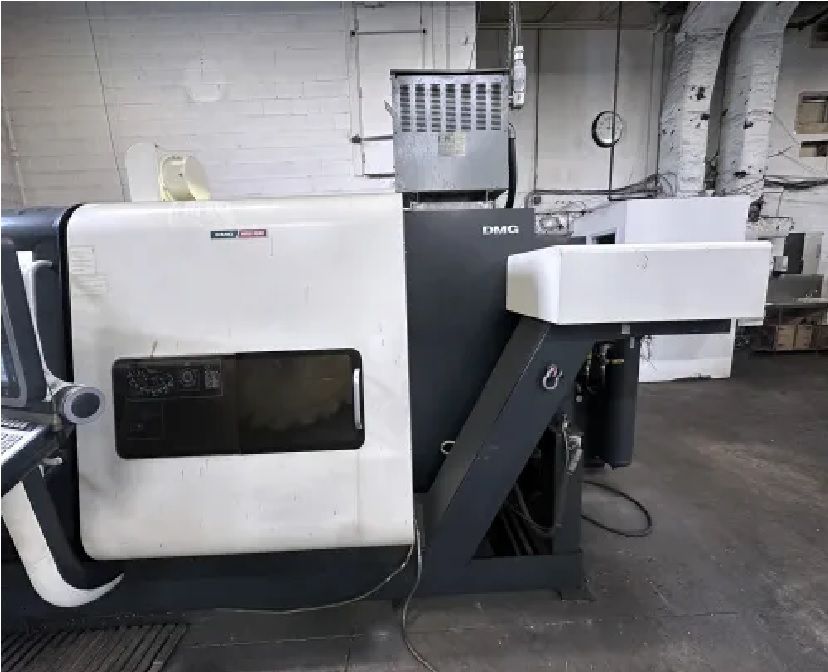

CNC turning and milling center - 5 axes simultaneous
- CNC control Siemens 840D Ergo Line with ShopTurn
- C-axis (0.0001°)

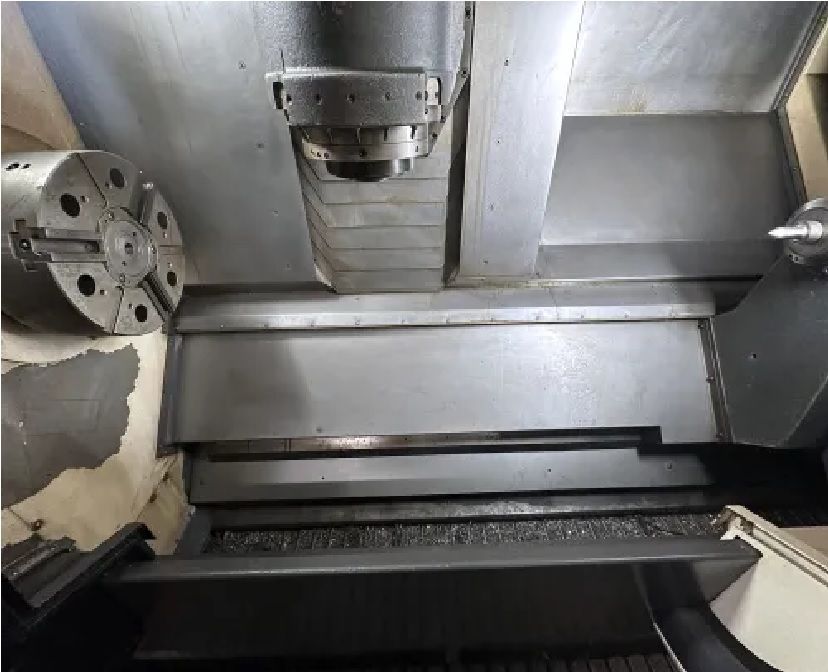

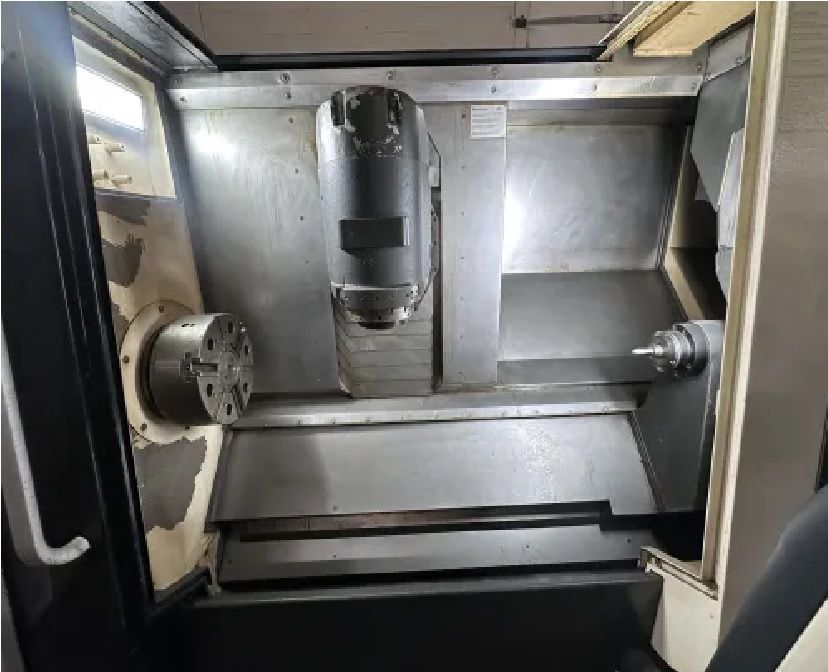

- Milling head with B-axis
- Y-axis

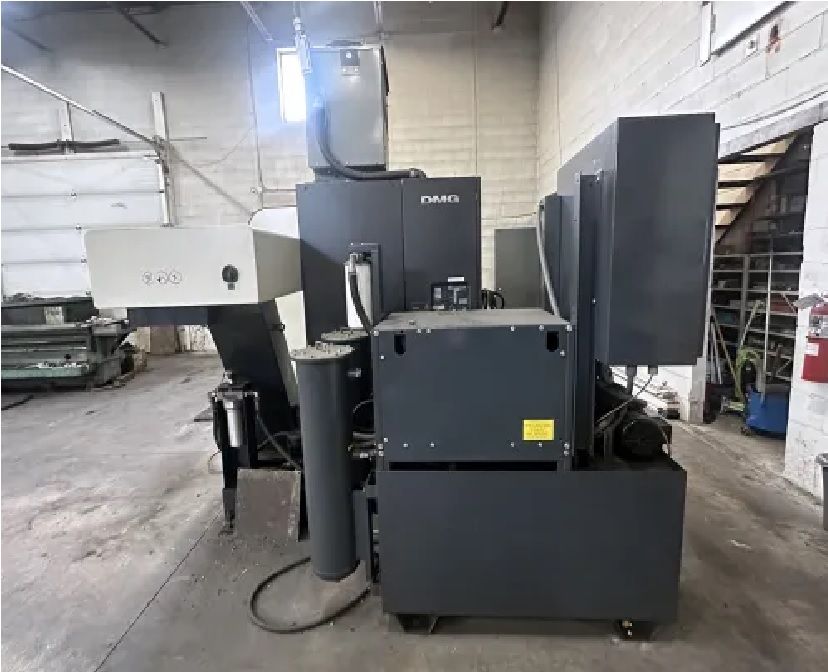

- Coolant device/paper belt filter (through Spindle)
- Chip conveyor

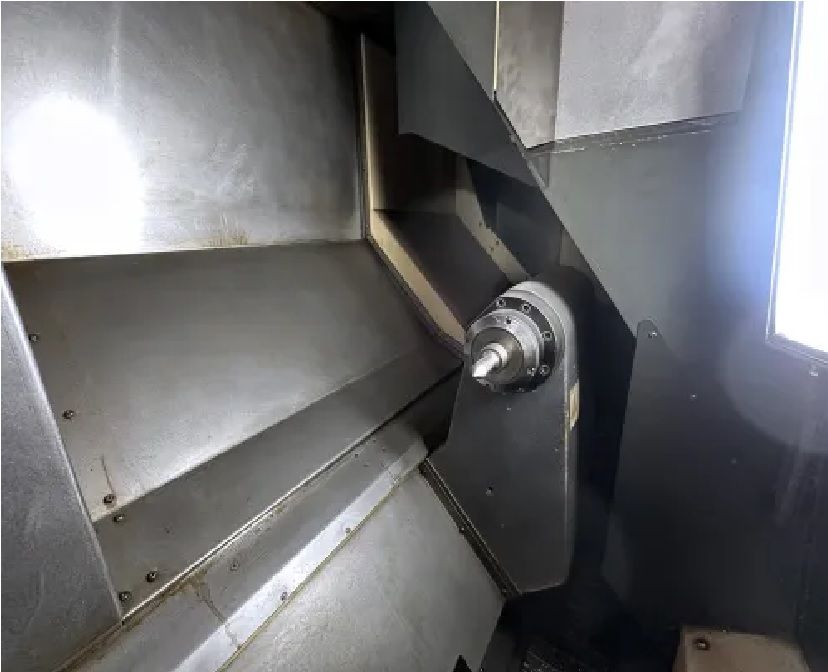

- Tailstock

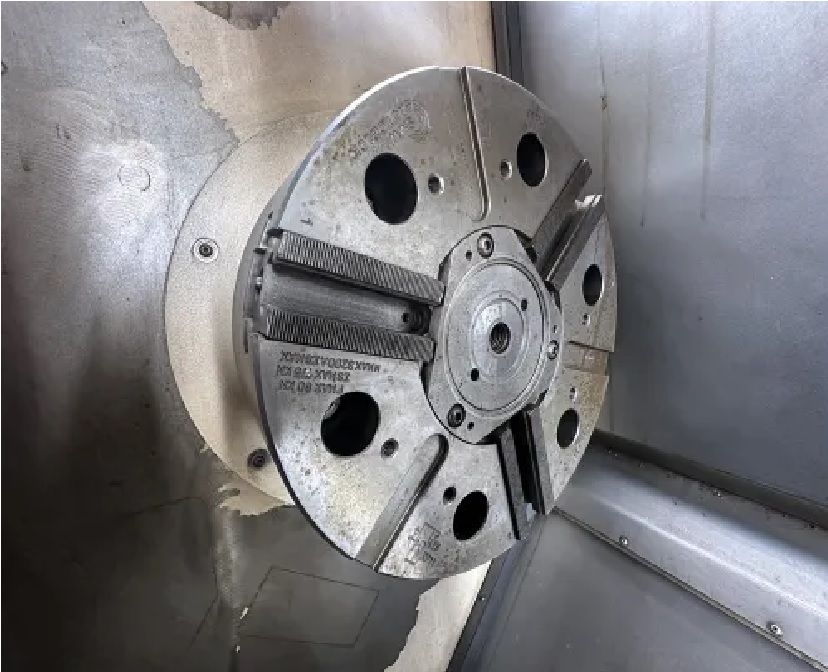

- SMW AutoBlock Chuck 10"
- Mill-Turn Package
- Capto C6 spindle taper
- Tool Magazin for 24 tools

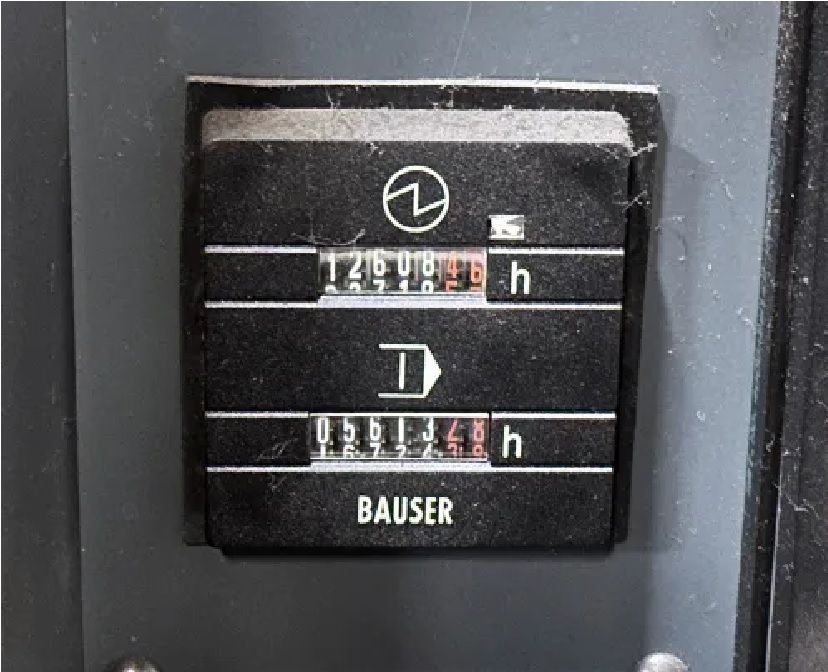

approx. 12600h Work and 5600h Spindle Hours
|
