| Stock-No. |
1020-21079 |
| Category |
Machining Center - Universal |
| Make |
DMG-MORI |
| Type |
DMU 50 |
| New in |
2018 |
| Control |
Heidenhain TNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
650 mm |
| y-travel |
520 mm |
| z-travel |
475 mm |
| control |
Heidenhain TNC 530 |
| tool adaptor |
|
| turning speeds |
15000 U/min |
| spindle motor |
25/35 kW |
| tool change unit |
30 pos. |
| table surface area |
630 X 500 mm |
| workpiece weight |
300 kg |
| c-axis |
360 (0,001) ° |
| A-Axis |
-35 / +110 ° |
| rapid traverse |
42 m/min |
| feed |
10 m/min |
| total power requirement |
31 kVA |
| dimensions of the machine ca. |
3,3 x 2,2 x 2,78 m |
| total wight |
7,5 t |
| Description |

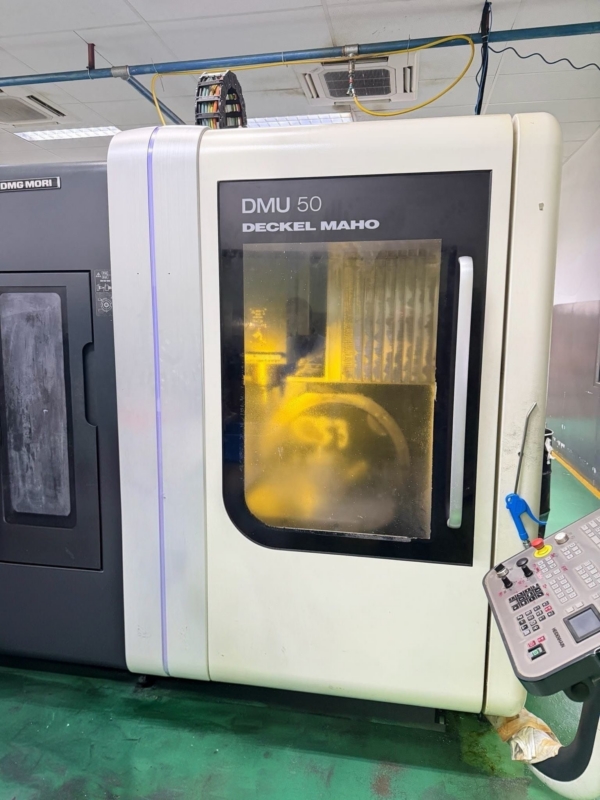

5-Axis Machine ausgestattet mit:

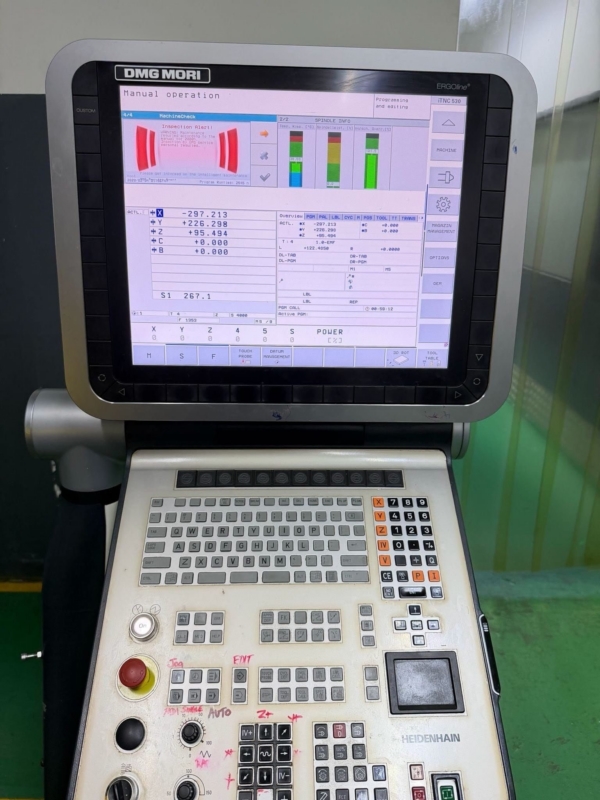

- CNC Control Hiedenhain TNC 530 / DMG ERGOLine
- elektr. Handwheel

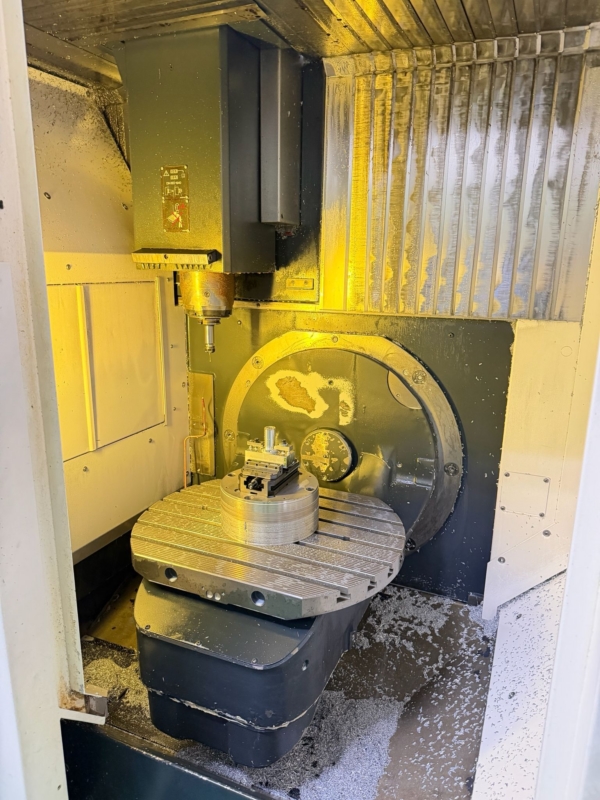

- NC-Rotary / swivelling Table
- Coolat
- Vollkabine
- ATC 30-fold
- Renishaw Measuring
- Chip Conveyor
- 3D-Quick-Set
|
|
|
|
