| Stock-No. |
1020-21076 |
| Category |
Machining Center - Vertical |
| Make |
DOOSAN |
| Type |
MP 6500 |
| New in |
2022 |
| Control |
Fanuc 31i-MB |
| Location |
ab Lager - demontiert |
| Origin |
Corea |
| Delivery time |
to be agreed |
| Freight basis |
ex location |
| Price |
| x-travel |
1100 mm |
| y-travel |
650 mm |
| z-travel |
550 mm |
| Control |
Fanuc 31i-MB |
| distance spindle nose and table |
150 - 700 mm |
| Main spindle: |
|
| turning speed range - main spindle |
10 - 20000 min/-1 |
| power capacity - main spindel |
22 / 11 kW |
| max. Torque |
Nm |
| tool taper |
BT 40 |
| work table: |
|
| table surface area |
1200 x 650 mm |
| max. table load |
800 kg |
| Tool-Presetter: |
|
| number of toolpositions |
30 pos. |
| tool taper |
BT 40 |
| feeds: |
|
| rapid traverse ( X / Y / Z ) |
30 m/min |
| feed speeds |
1500 mm/min |
| total power requirement |
48,55 kVA |
| weight of the machine ca. |
10 t |
| dimensions of the machine ca. |
3,65 x 3,30 m |
| Description |

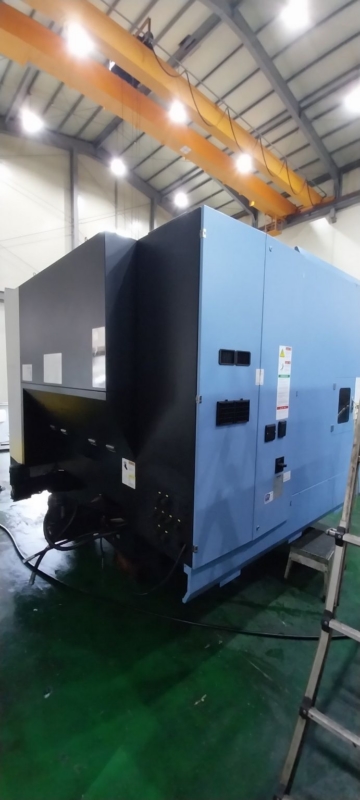

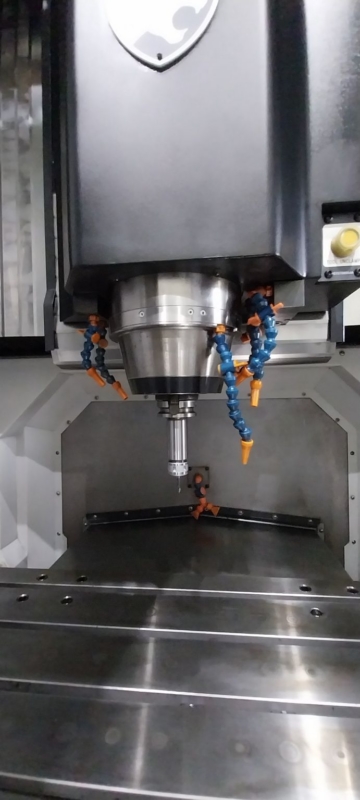

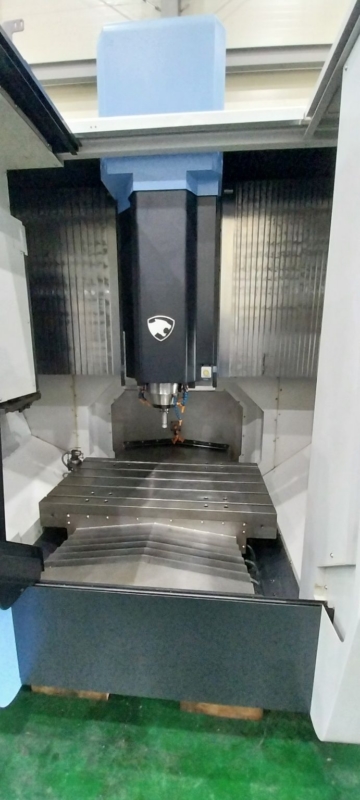

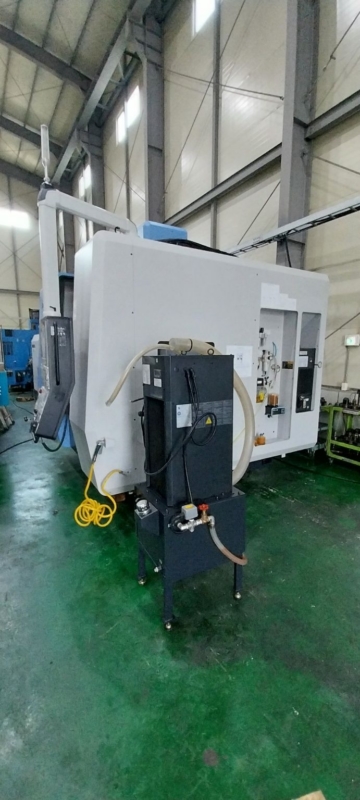

CNC Machining Center Vertical

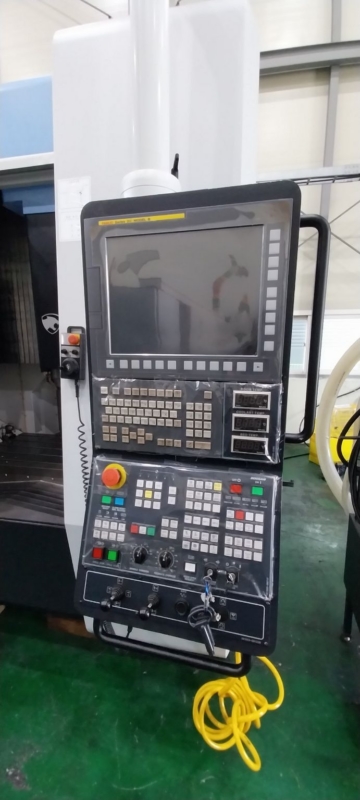

- CNC control Fanuc 31i-MB

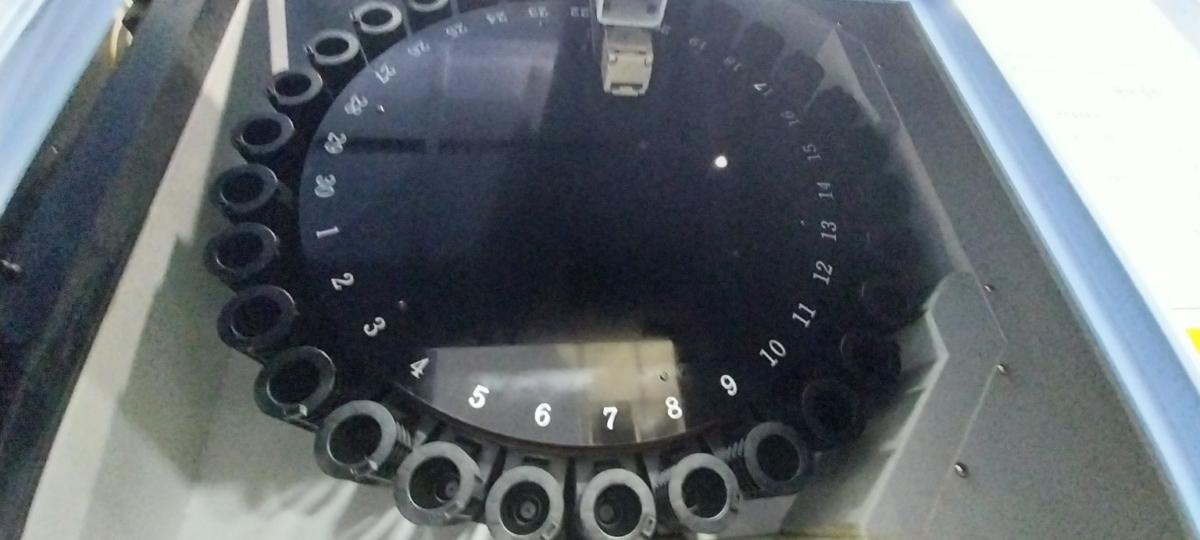

- ATC 30-fold (BT 40)
- Chip Conveyor
- Tool Measure
- Mold Optio
n
-
|
