| Stock-No. |
1020-21062 |
| Category |
Machining Center - Horizontal |
| Make |
STARRAG-HECKERT |
| Type |

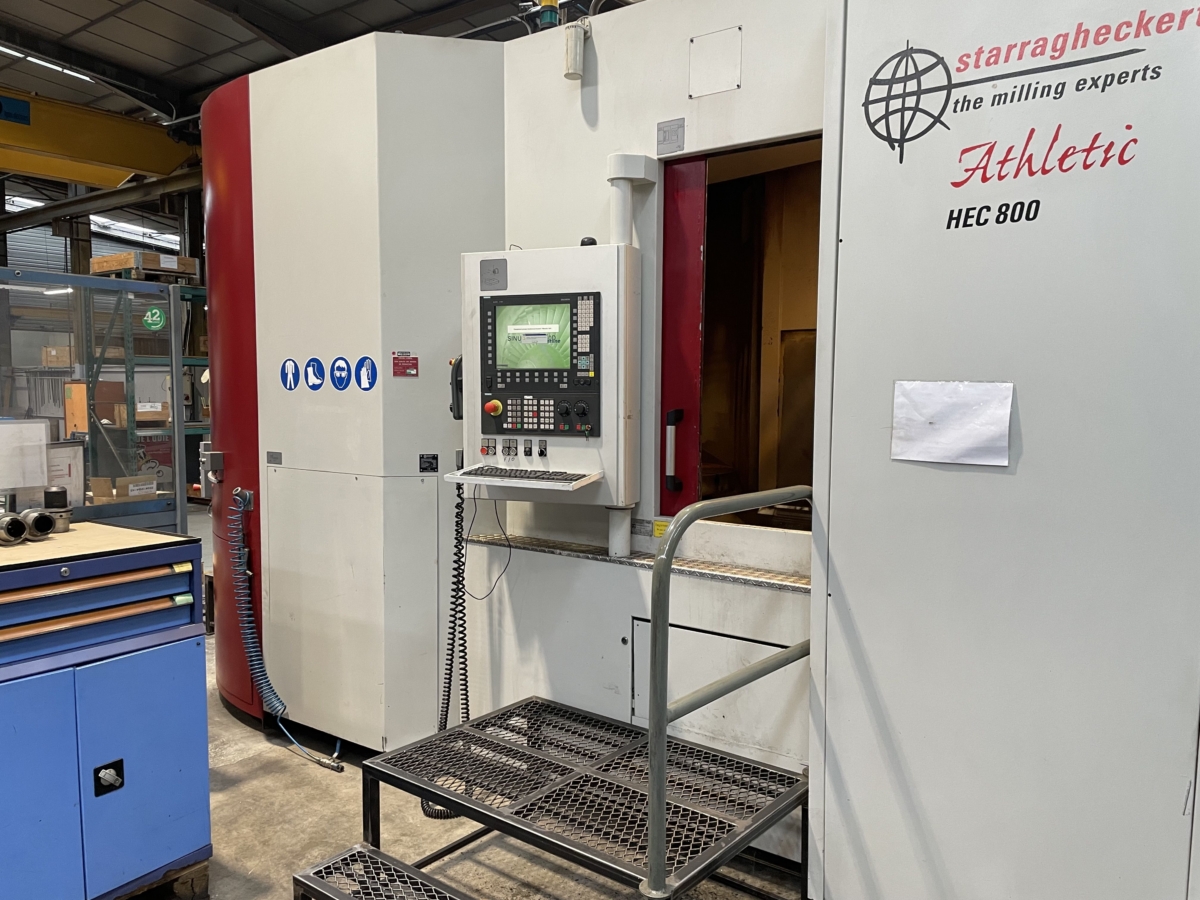

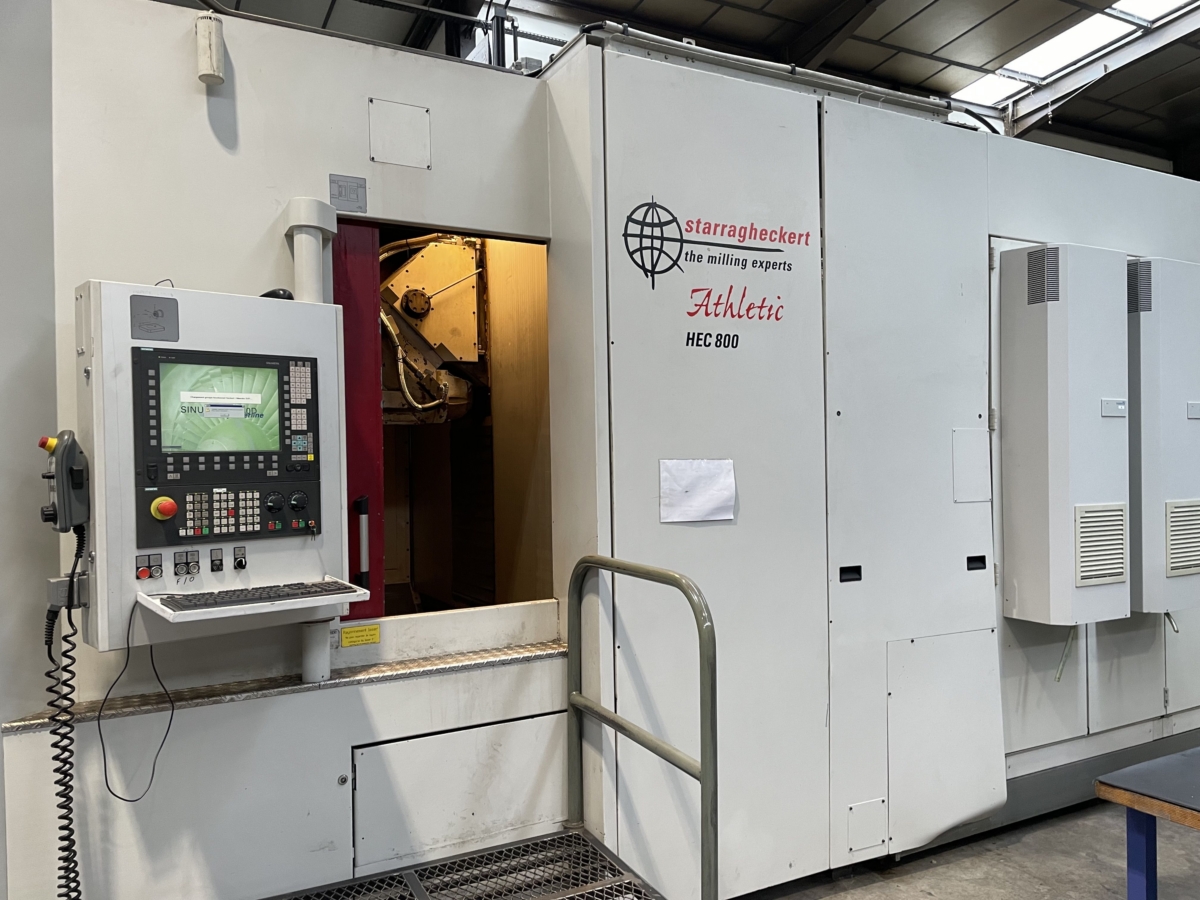

HEC 800 Athletic |
| New in |
2006 |
| Control |
Siemens 840D PL |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
1450 mm |
| y-travel |
1100 mm |
| z-travel |
1300 mm |
| control |
Siemens 840D PL |
| Main spindle: |
|
| power capacity - main spindel |
50 kW |
| max. Torque |
1.500 Nm |
| turning speed range - main spindle |
20 - 6.000 min/-1 |
| spindle diameter |
110 mm |
| tool taper |
HSK A 100 |
| Tool-Presetter: |
Turmmagazin / Tool Tower |
| change-time chip to chip |
5,5 sec |
| feed range |
1 - 65000 mm/min |
| rapid traverse ( X / Y / Z ) |
65 m/min |
| pallet changer: |
|
| size of pallet |
1.000 x 800 mm |
| max. palett load |
2000 kg |
| max. workpiece height |
1.700 mm |
| Number of pallettes |
2 pos. |
| dimension of workpiece |
1400 x 1400 mm |
| total power requirement |
- kW |
| weight of the machine ca. |
25 t |
| dimensions of the machine ca. |
8100 x 5350 x 4150 m |
| Description |

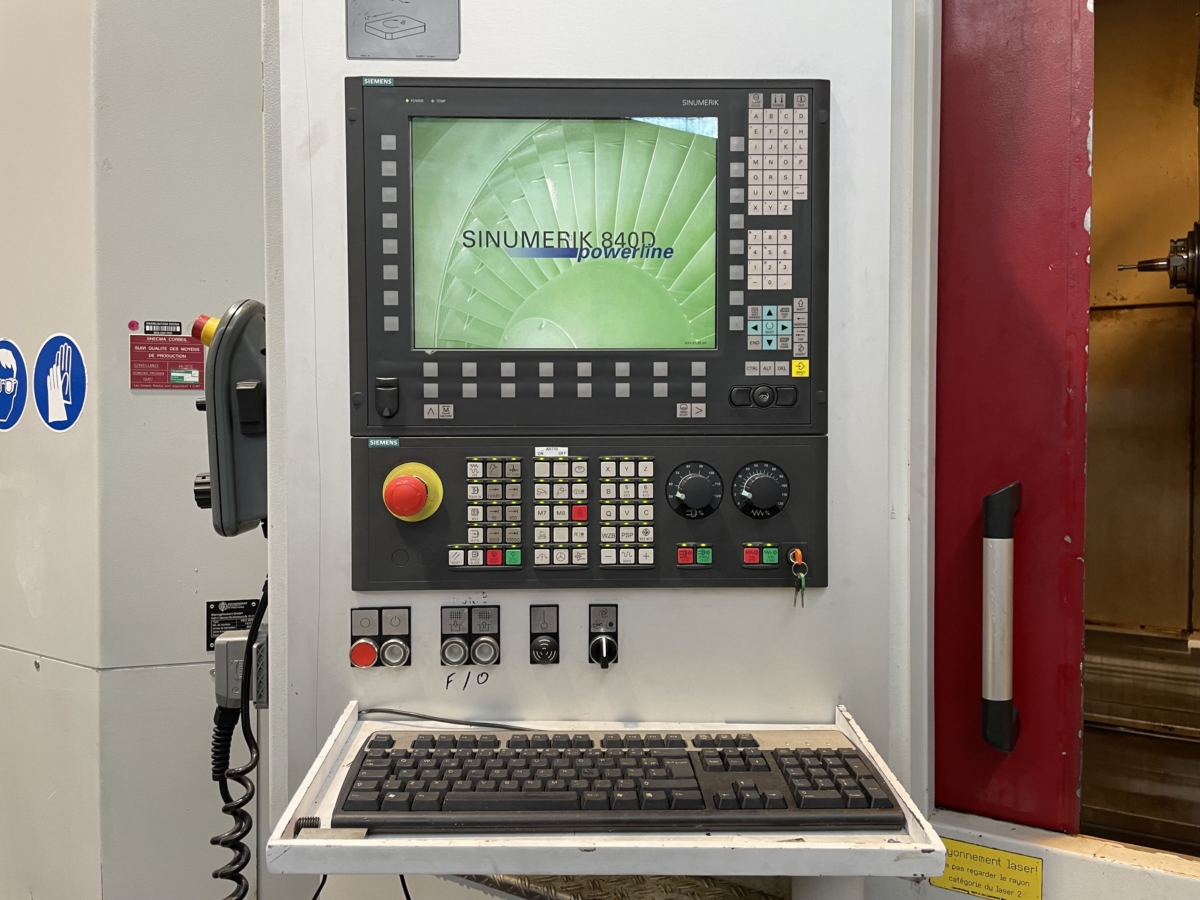

- Siemens 840D Powerline CNC control

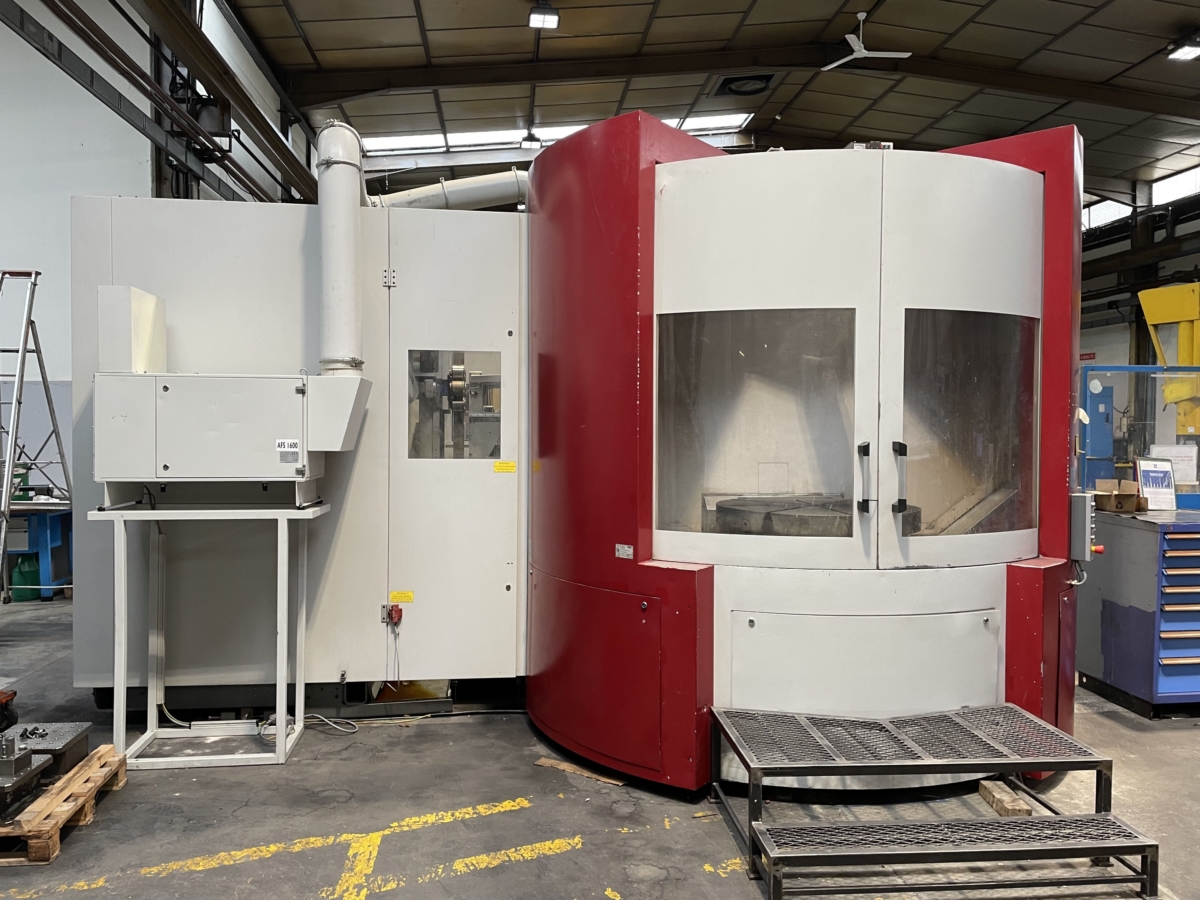

- 2-position pallet changer
- 180-position tool changer (HSK A 100)

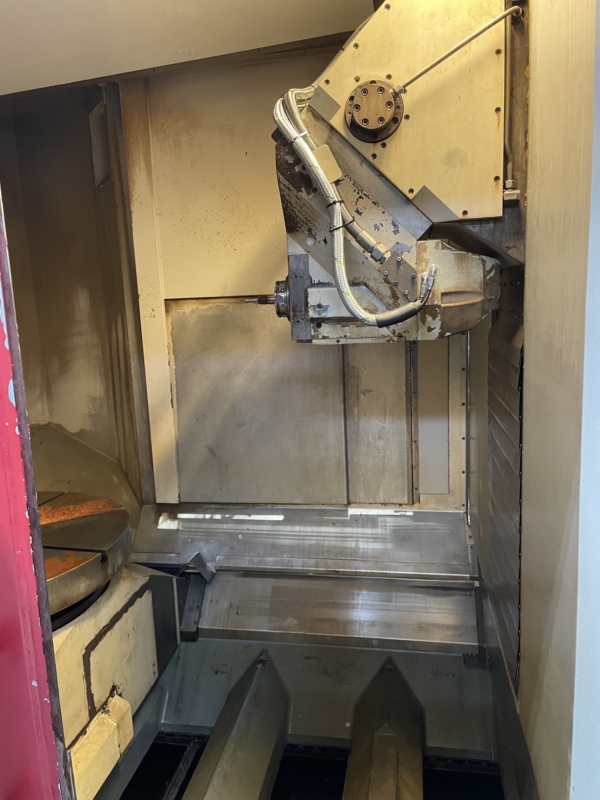

- Milling head with 180° B-axis (0.001°)
- C-axis table (0.001°)
- 80 bar coolant system with filter
- Spindle cooling

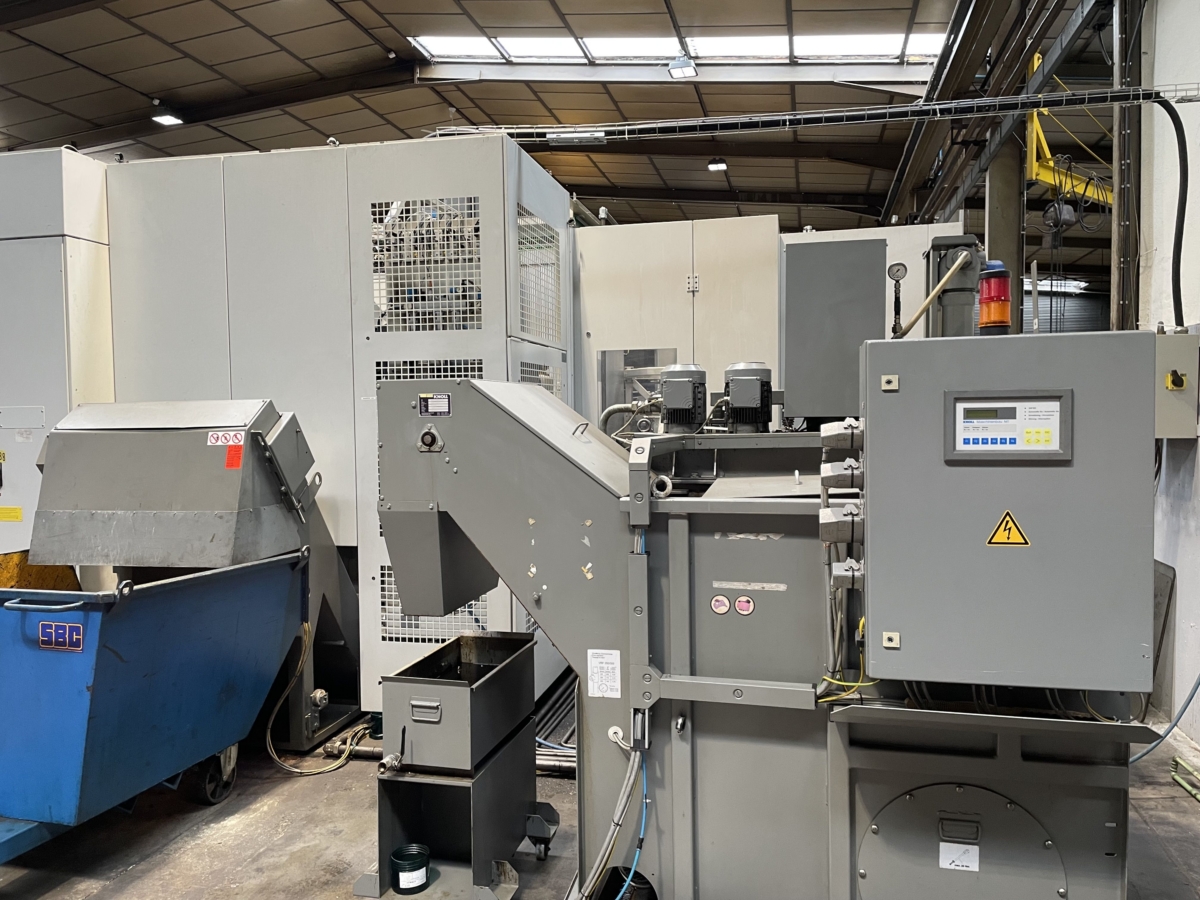

- Chip conveyor
- Interface: Ethernet / RS232
- External handwheel
- Renishaw
- Laser tool measurement
- Rigid threaded bore
- FLUSHING TANK
- Cooling unit for cutting fluid
- Central flushing
- Wash shower
- Cabin cleaning
|
