| Stock-No. |
1020-20896 |
| Category |
Roll Grinder |
| Make |
WALDRICH-SIEGEN |
| Type |
WS II x 5200 |
| New in |
1997 reb |
| Control |
Siemens 810 |
| Location |
ab Lager - demontiert |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
ex location |
| Price |
| grinding diameter |
1000 mm |
| grinding length |
5200 mm |
| centre height |
550 mm |
| roll diameter |
1000 mm |
| roll length |
5260 |
| max. workpiece weight between centres |
16000 kg |
| grinding wheel size |
600 x 80 x 305 mm |
| faceplate speeds from - to |
9 - 90 U/min |
| Drive |
44 kW |
| grinding wheel turining speeds |
720 -1800 U/min |
| grinding motor |
36 KW |
| feed |
60 - 3000 U/min |
| Control |
Siemens 810 |
| total power requirement |
- kW |
| weight of the machine ca. |
- t |
| dimensions of the machine ca. |
- m |
| Description |
Refurbished/modernised in 1997

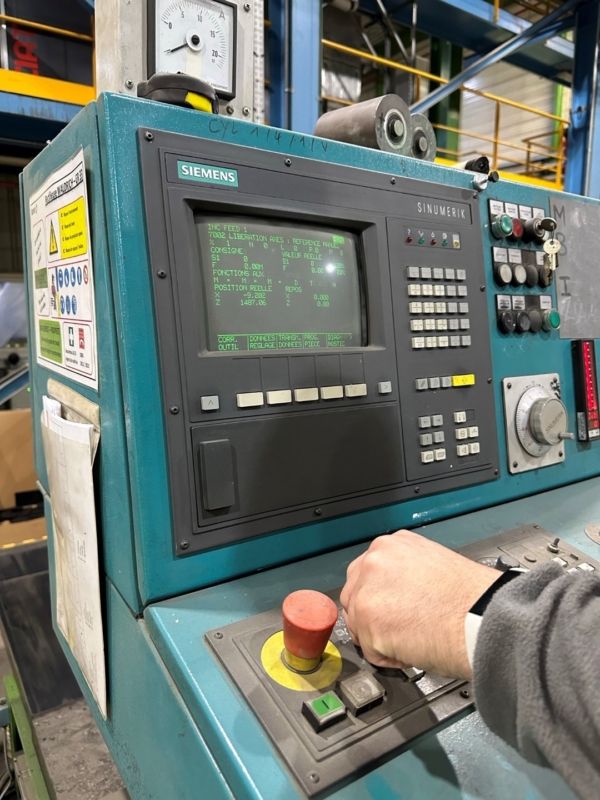

- Siemens 810D CNC control
- Movable grinding slide
- Coolant system
- 2 support steady rests
Main spindle: Direct drive

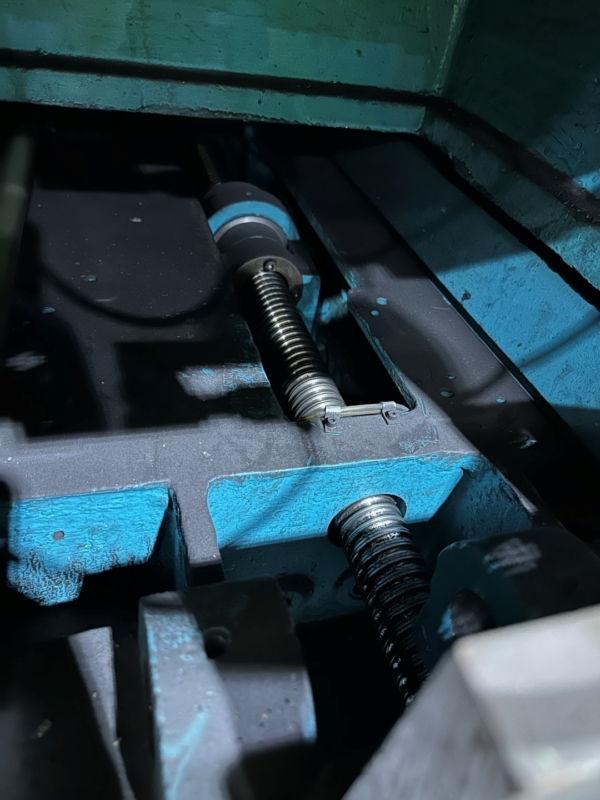

X-axis: Ball screw with linear scale
Z-axis: Rack and pinion with linear scale
X-axis travel: 500 mm
Z-axis travel: 6000 mm
|
