| Stock-No. |
1020-20893 |
| Category |
CNC Turning- and Milling Center |
| Make |
MAZAK |
| Type |
Quick Turn 250 MSY |
| New in |
2022 |
| Control |
Mazatrol Smooth G |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Japan |
| Delivery time |
March 2026 |
| Freight basis |
ex works "is as is" |
| Price |
| turning diameter |
380 mm |
| turning length |
1000 mm |
| swing dia. |
695 mm |
| X-Axis movement |
234 mm |
| Y-Axis movement |
100 mm |
| Z-Axis movement |
1090 mm |
| Minimum indexing C-Axis main Spindle |
0,0001 ° |
| Number of tools on turret |
12 |
| Number of driven tools |
12 x |
| Spindle speed driven tools |
5000 1/min |
| Spindle motor driven tools |
5,5 / 3,7 kW |
| Tool type |
Mazak VDI |
| control |
Mazatrol Smooth G |
| Main Spindle: |
|
| Spindle Speed |
4000 1/min |
| spindle motor |
26 / 22 kW |
| spindle bore diameter |
80 mm |
| 2nd Spindle: |
|
| spindle turning speed range |
6000 U/min |
| spindle motor |
11 / 7,5 kW |
| spindle bore |
80 mm |
| spindle distance |
1005 mm |
| total power requirement |
43 kVA |
| Weight |
6,65 t |
| dimensions of the machine ca. |
5,6 x 1,95 x 1,9 m |
| Description |

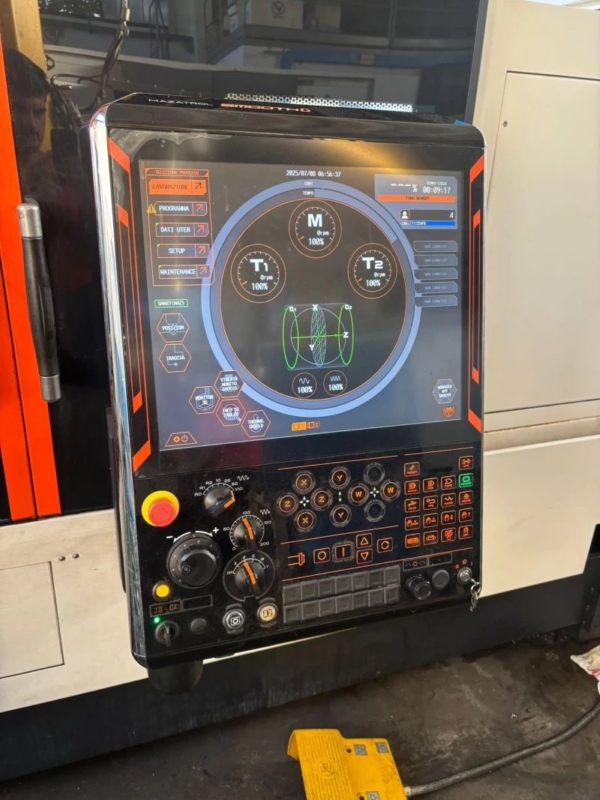

- Mazatrol SmoothG CNC control

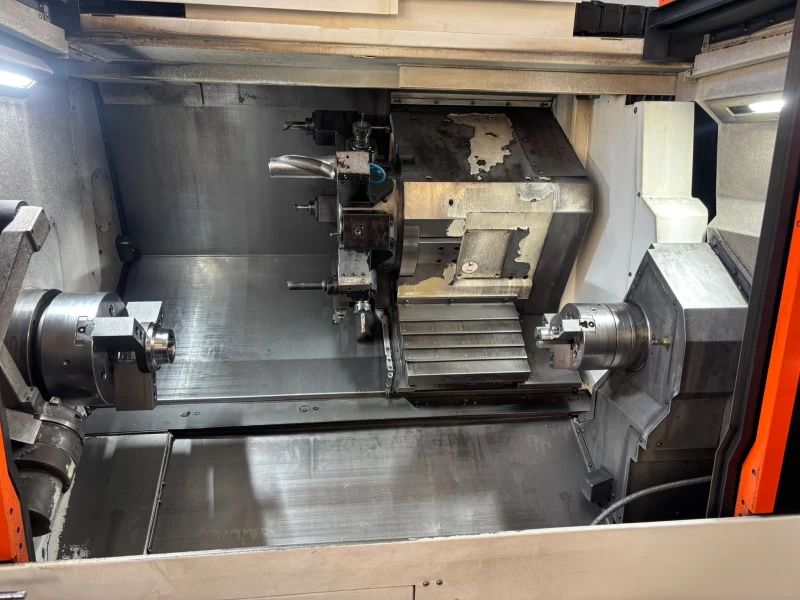

- Main and counter spindle

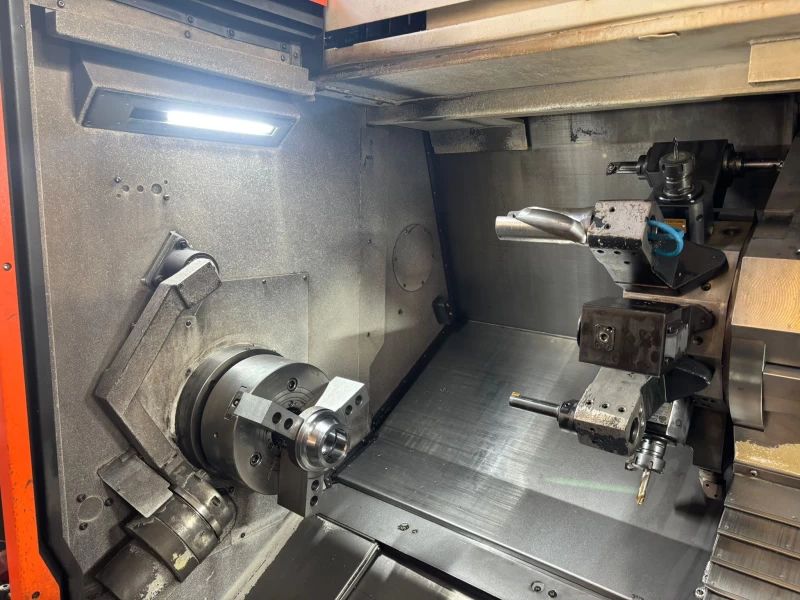

- 12-station tool turret with driven tools and Y-axis
- 3-jaw chuck
-- Main: 10"
-- Counter: 6"
- Chip conveyor
- Coolant system
- Extraction system
|
|
|
|
