| Stock-No. |
1020-20891 |
| Category |

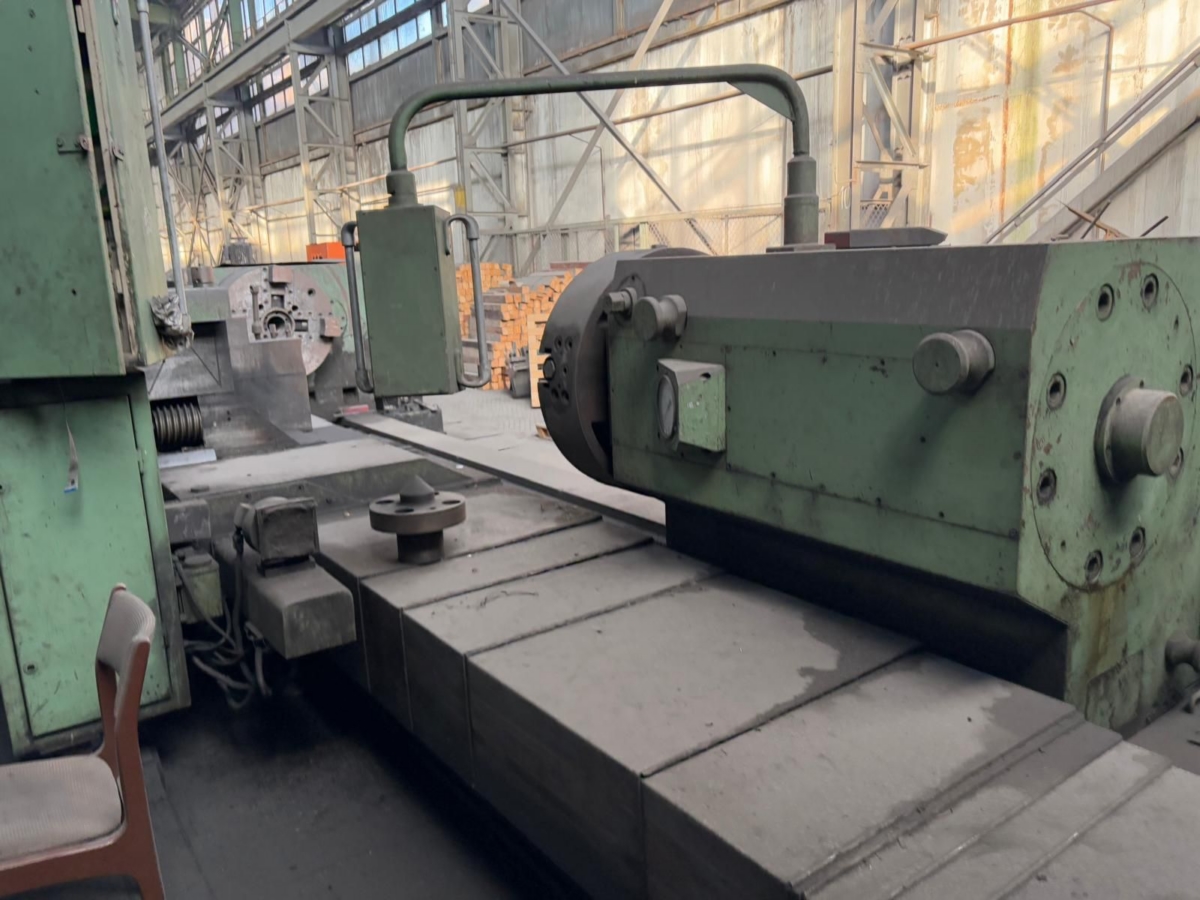

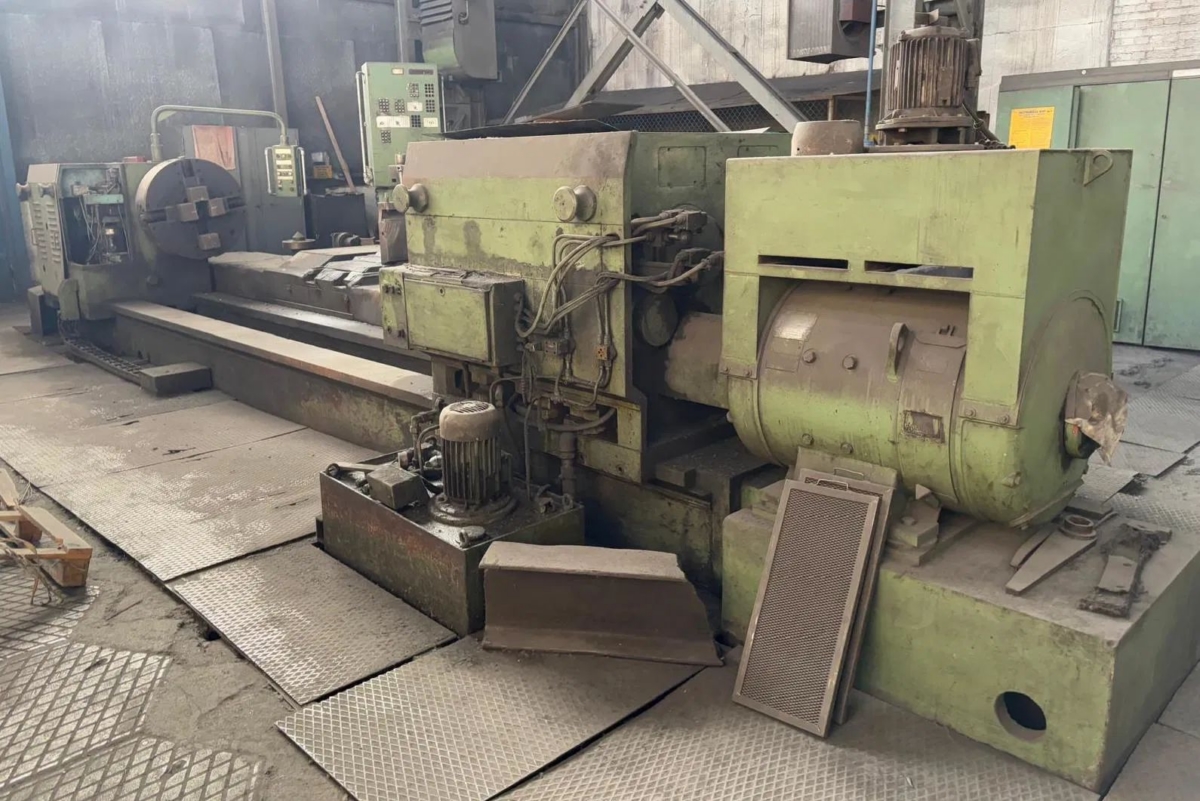

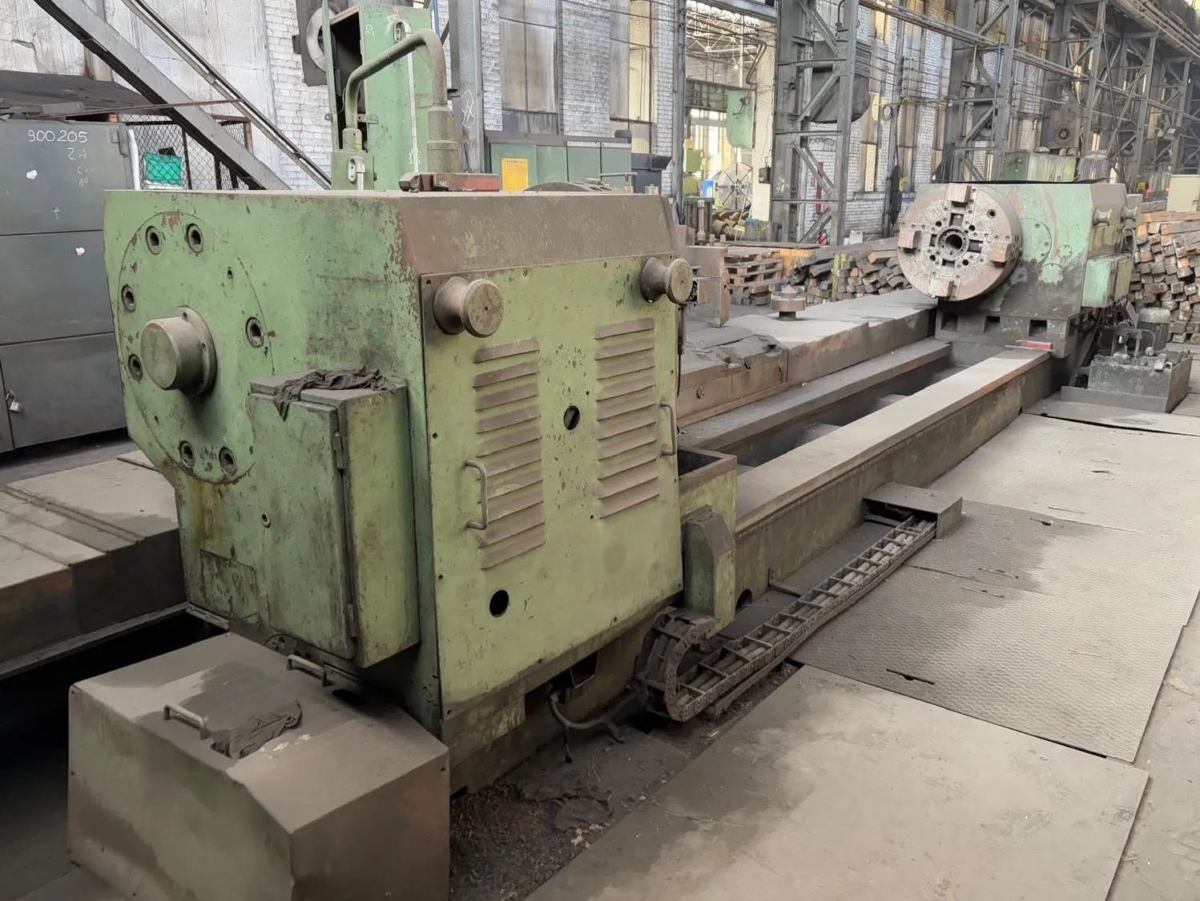

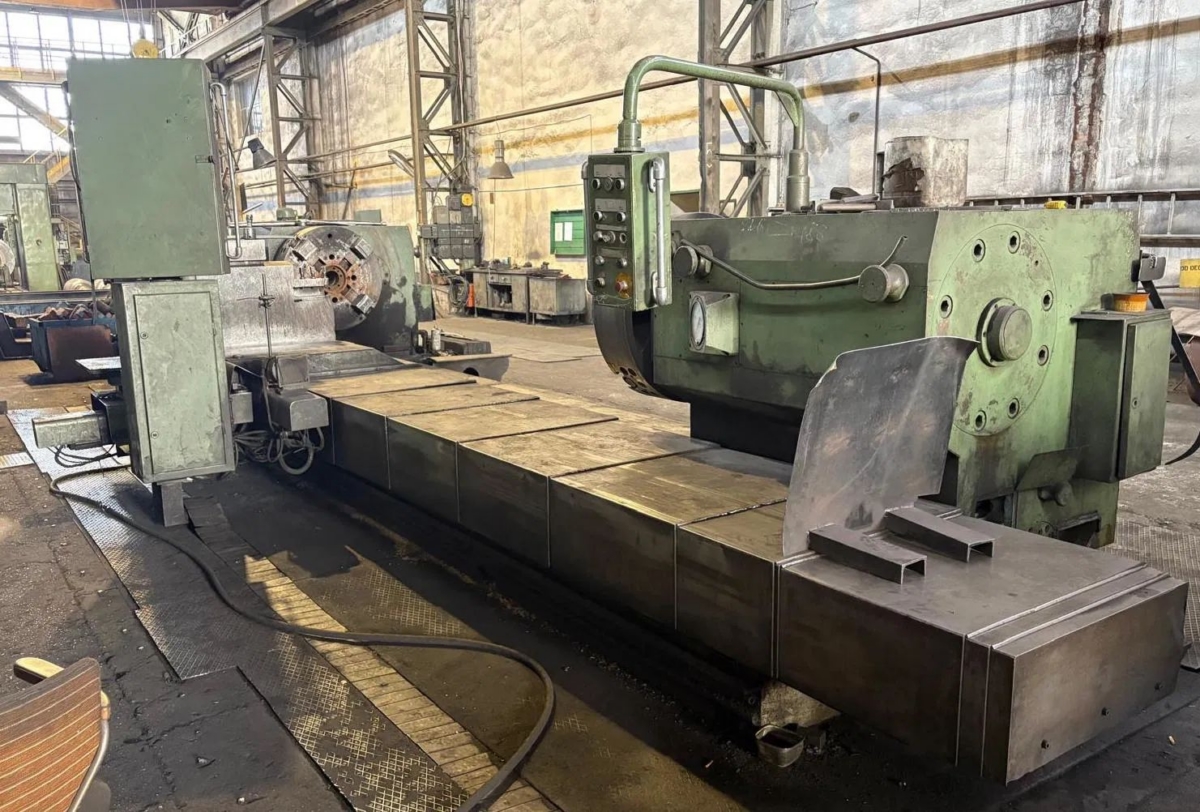

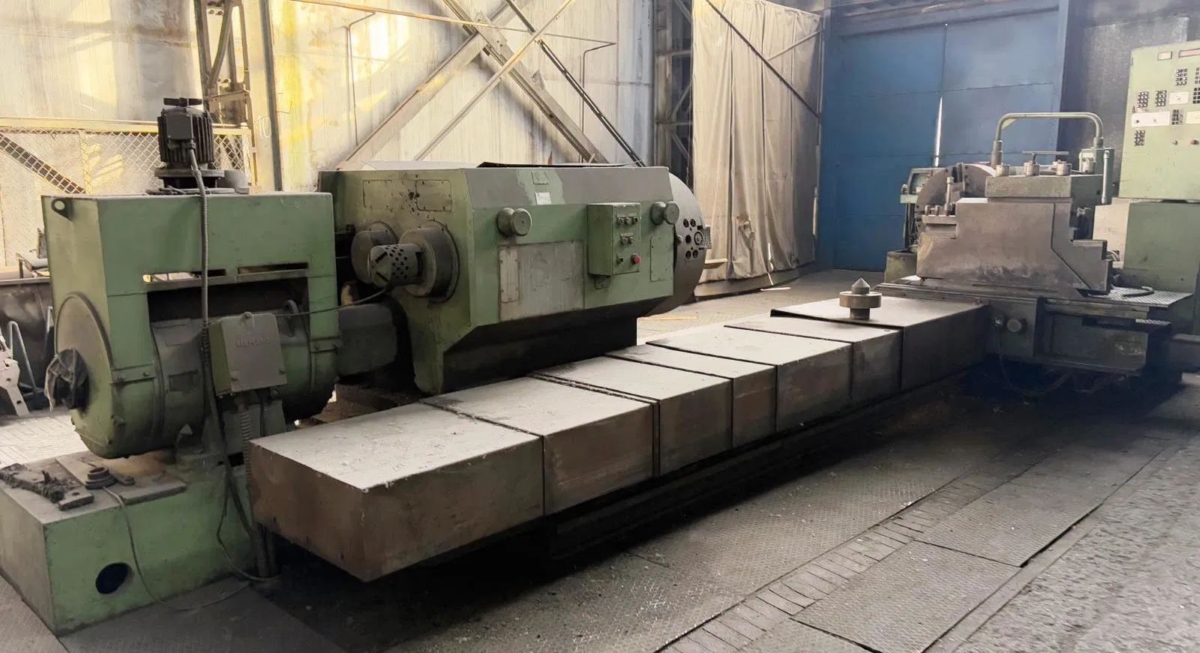

Crankshaft Turning Lathe |
| Make |
HOESCH-MFD |
| Type |
D1000 N-1 x 5000 |
| New in |
1978 |
| Control |
|
| Location |
ab Werksstandort unter Strom |
| Origin |
Germany |
| Delivery time |
Septembre 2018 |
| Freight basis |
ex foundation place "is as is" |
| Price |
| turning diameter |
2000 mm |
| turning length |
5000 mm |
| turning diameter over slide rest |
1050 mm |
| turning diameter over bed |
2000 mm |
| faceplate diameter max. |
1200 mm |
| spindle turning speed range |
1,6 - 250 U/min |
| main drive motor |
110 kW |
| max. workpiece weight between centres |
25 t |
| workpiece weight max. |
40 t |
| centre height |
700 mm |
| swing diameter max. over bed cover |
1140 mm |
| max.workpiece weight:each extra steadyrest |
3000 kg |
| total power requirement |
120 kW |
| weight of the machine ca. |
55 t |
| dimensions of the machine ca. |
- m |
| Description |
- Face Plate Ø 1200 mm
- Coolant
- Rapid travel
- Tail stock mit Face Plate
|
