| Stock-No. |
1020-20890 |
| Category |

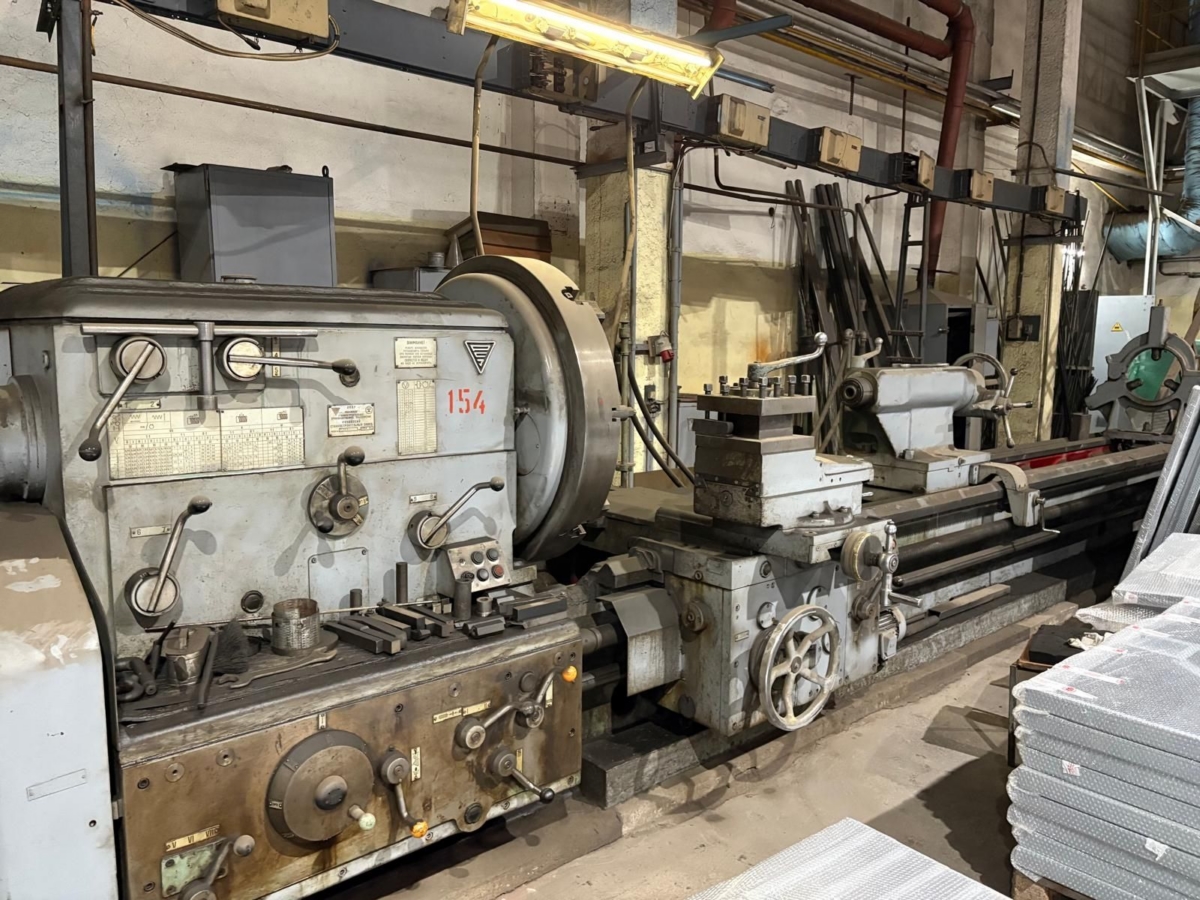

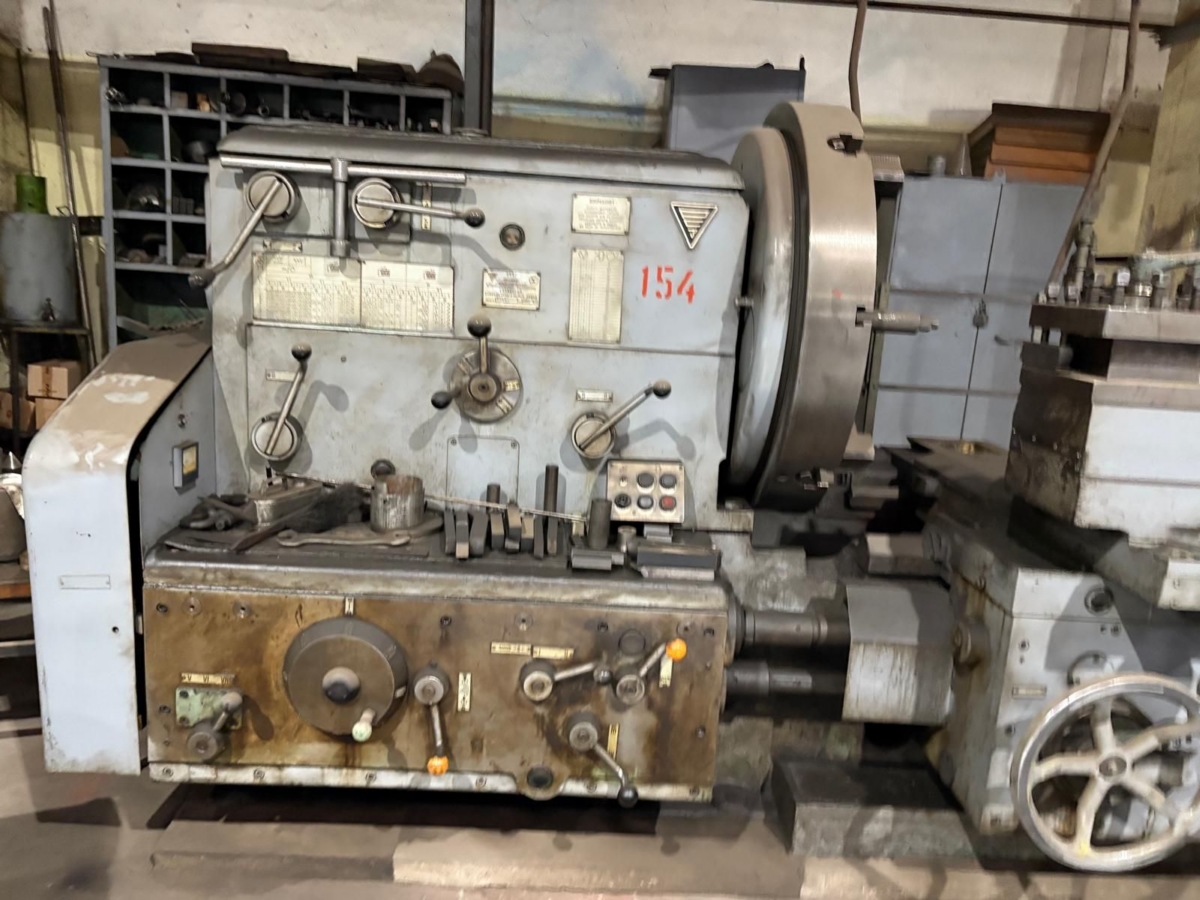

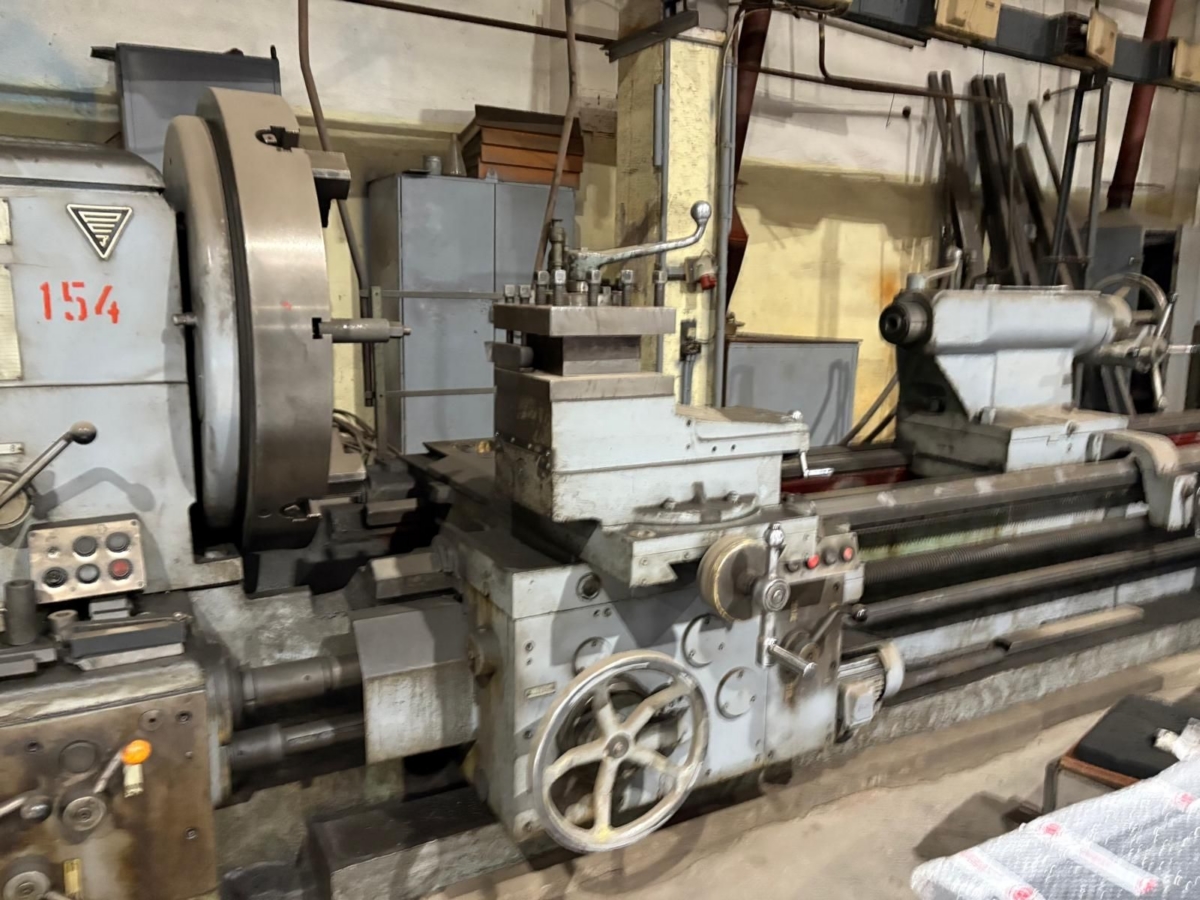

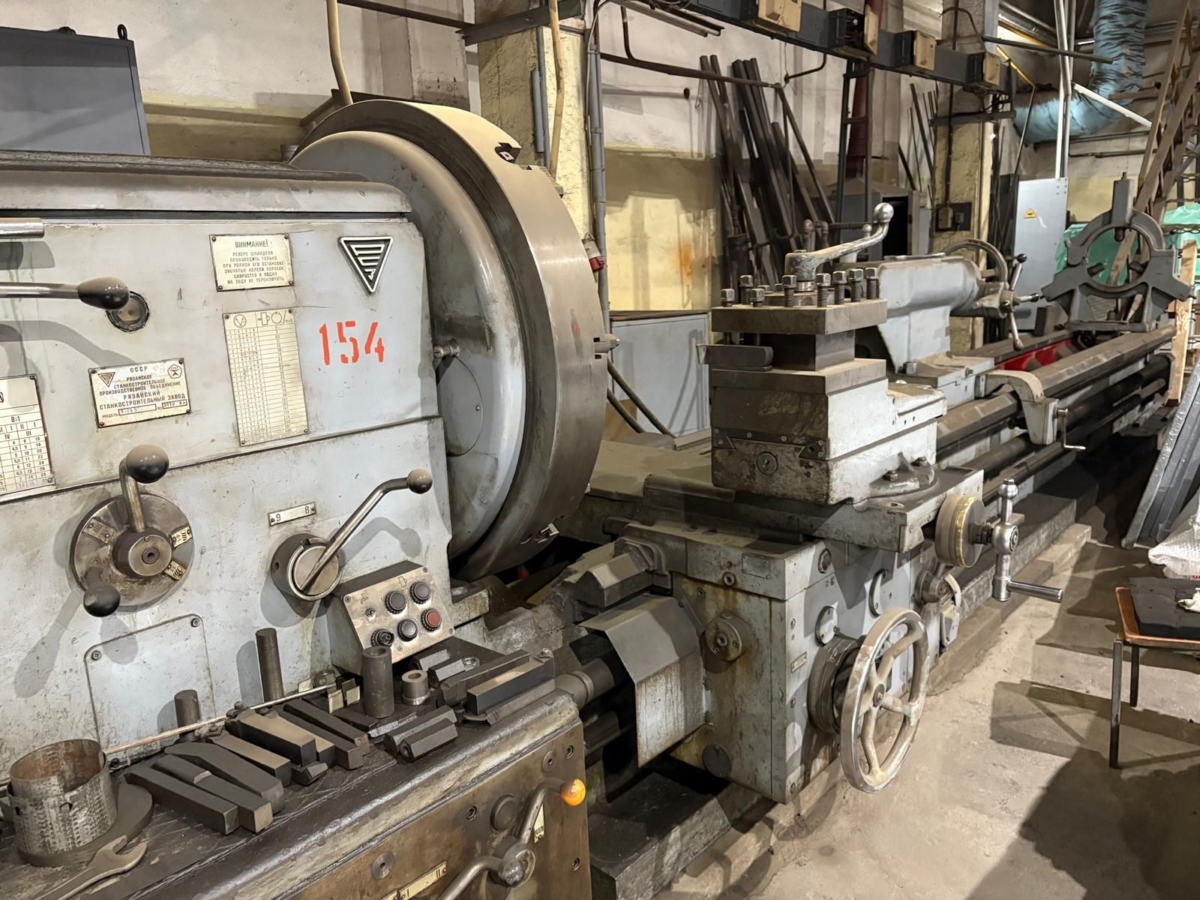

Heavy Duty Lathe |
| Make |
STANKO-RYAZAN |
| Type |
1M65 x 5000 |
| New in |
1989 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Russia |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter over bed |
1020 mm |
| turning diameter over slide rest |
660 mm |
| turning length |
5000 mm |
| min./max workpiece dia. |
210 - 880 mm |
| spindle diameter |
115 mm |
| spindle taper |
140 |
| spindle turning speed range |
5 - 500 U/min |
| feeds - longitudinal |
0,20 - 3,05 mm/U |
| feeds - cross |
0,07 - 1,04 mm/U |
| slide adjustment |
|
| longitudinal |
5000 mm |
| cross |
680 mm |
| workpiece weight |
5000 kg |
| main drive motor |
22 kW |
| thread - mm pitch |
1 - 120 mm |
| thread - module |
0,5 - 30 |
| thread - inch |
28 / 1/4 " |
| spindle bore |
84 mm |
| tail stock |
|
| tailstock quill taper MT |
5 |
| tailstock quill stroke |
300 mm |
| total power requirement |
27 kW |
| weight of the machine ca. |
15,5 t |
| dimensions of the machine ca. |
6,5 x 2,2 x 1,8 m |
| Description |
- 1 fixed bezel
- Faceplate Ø 1000 mm
- 4-fold steel holder

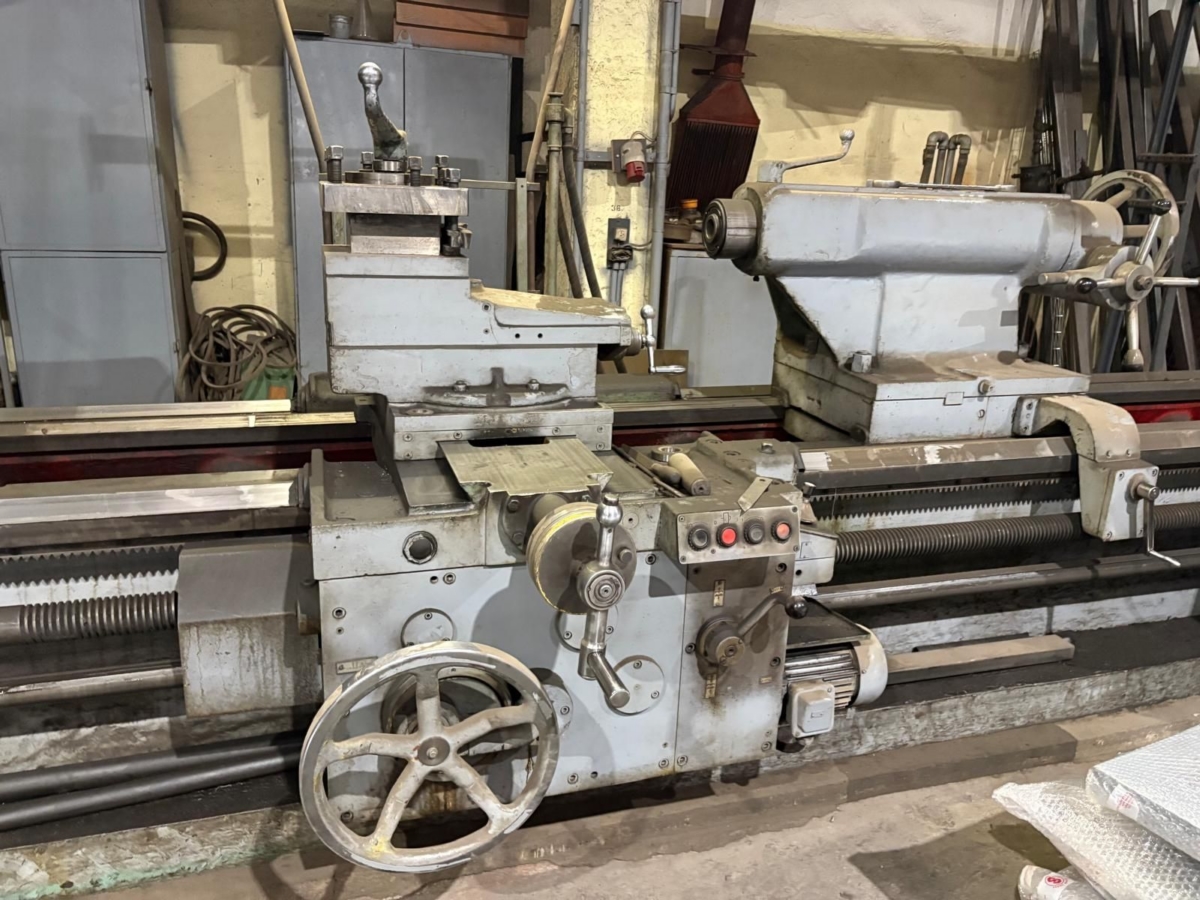

- Tailstock

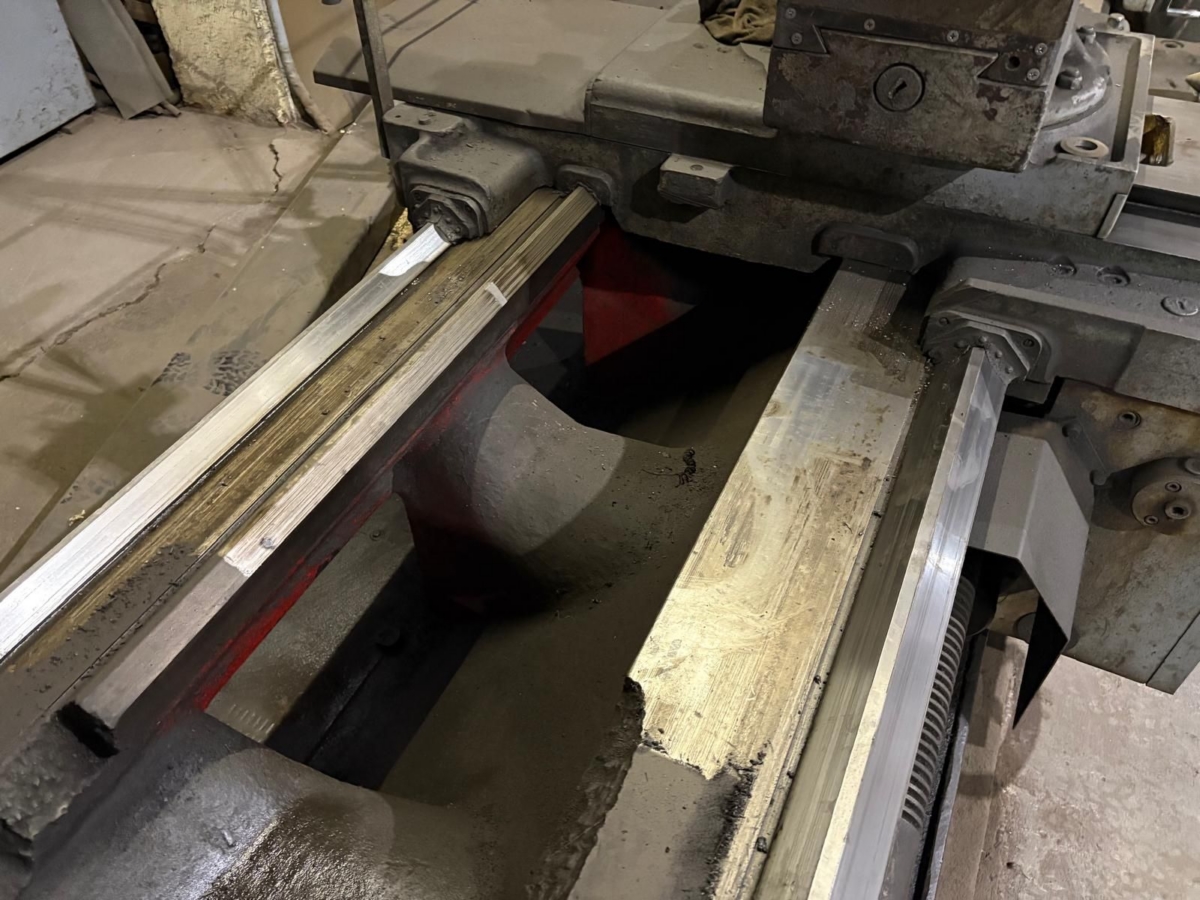

- 2-track bed design
|
|
|
|
