| Stock-No. |
1020-20886 |
| Category |
lathe-conventional-electronic |
| Make |
WEILER |
| Type |
COMMODOR |
| New in |
1984 |
| Control |
|
| Location |
ab Lager NRW |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
ex location |
| Price |
| turning diameter over bed |
380 mm |
| turning diameter over slide rest |
190 mm |
| turning length |
1000 mm |
| number of spindle speeds |
25 - 2000 U/min. |
| turning speeds |
18 Stk. |
| spindle bore |
Ø 56,0 mm |
| tailstock quill taper MT |
DIN 228 / MK 4 |
| quill stroke |
150 mm |
| bed width |
310 mm |
| spindle taper |
DIN 55027 / 6 |
| feeds - longitudinal |
0,022 - 0,8 mm/U |
| feeds - cross |
0,011 - 0,4 mm/U |
| thread |
M 0,3 - 10,0 mm |
| voltage |
380 V |
| total power requirement |
7,5 kW |
| weight of the machine ca. |
1600 kg |
| Description |

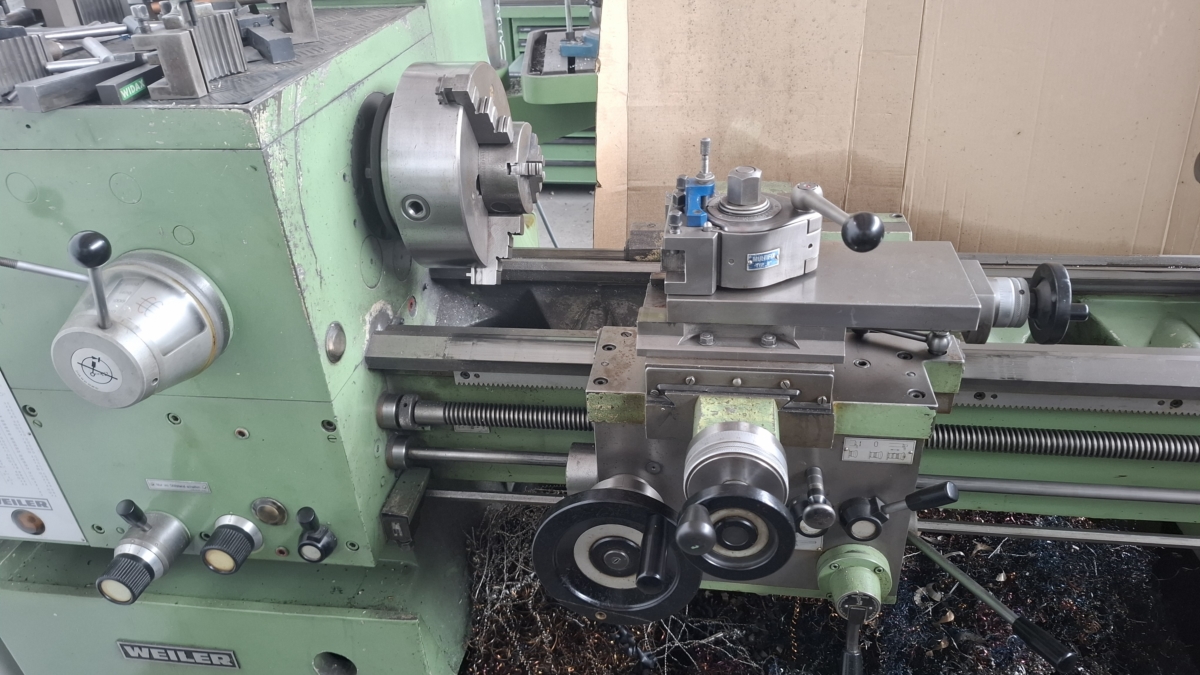

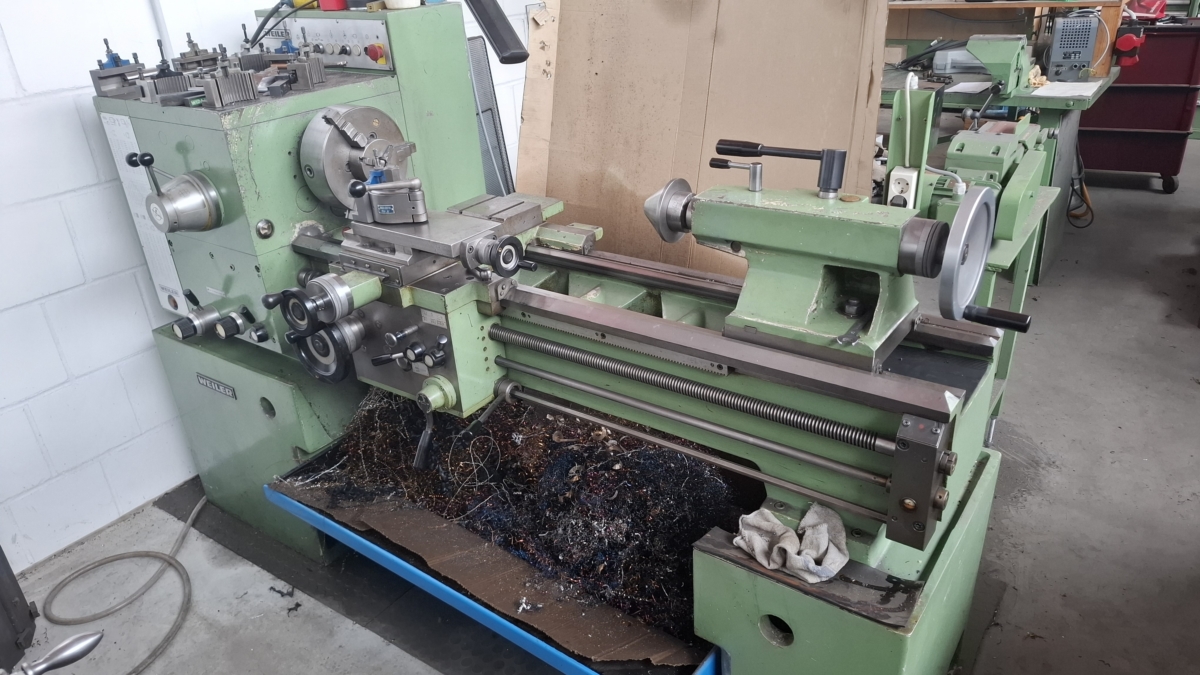

Lathe with precision-ground and induction-hardened bed.
From workshop area
- Robust lead and feed screw lathe

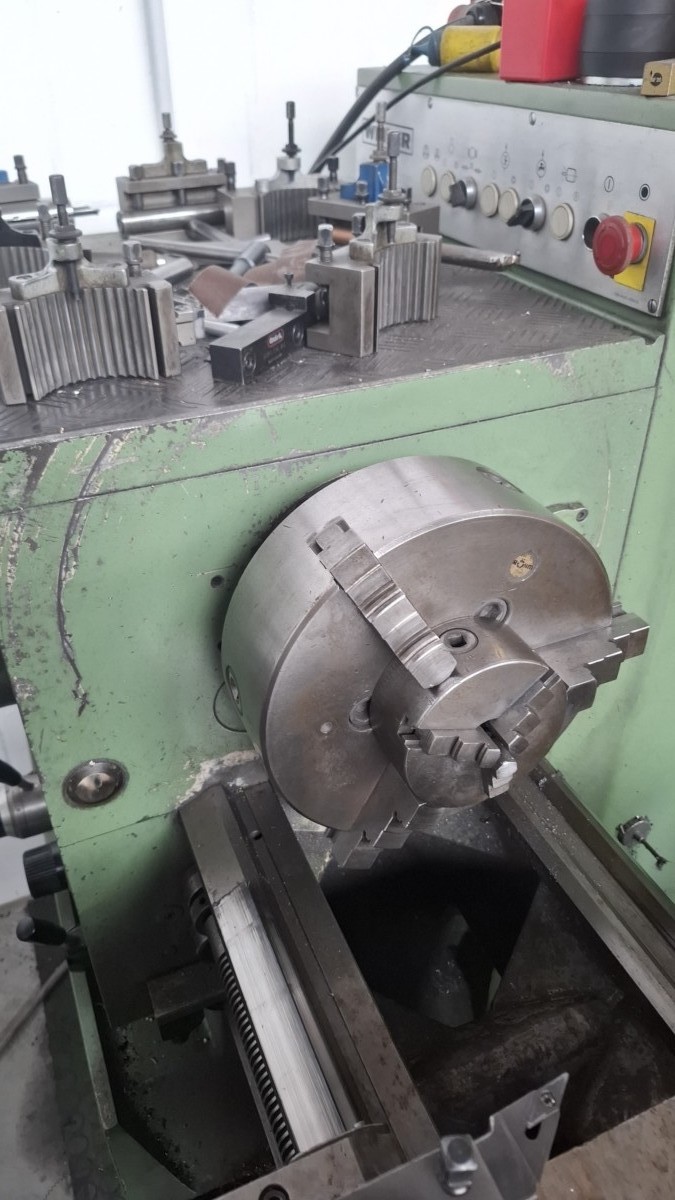

- RÖHM 3-jaw chuck Ø 250 mm

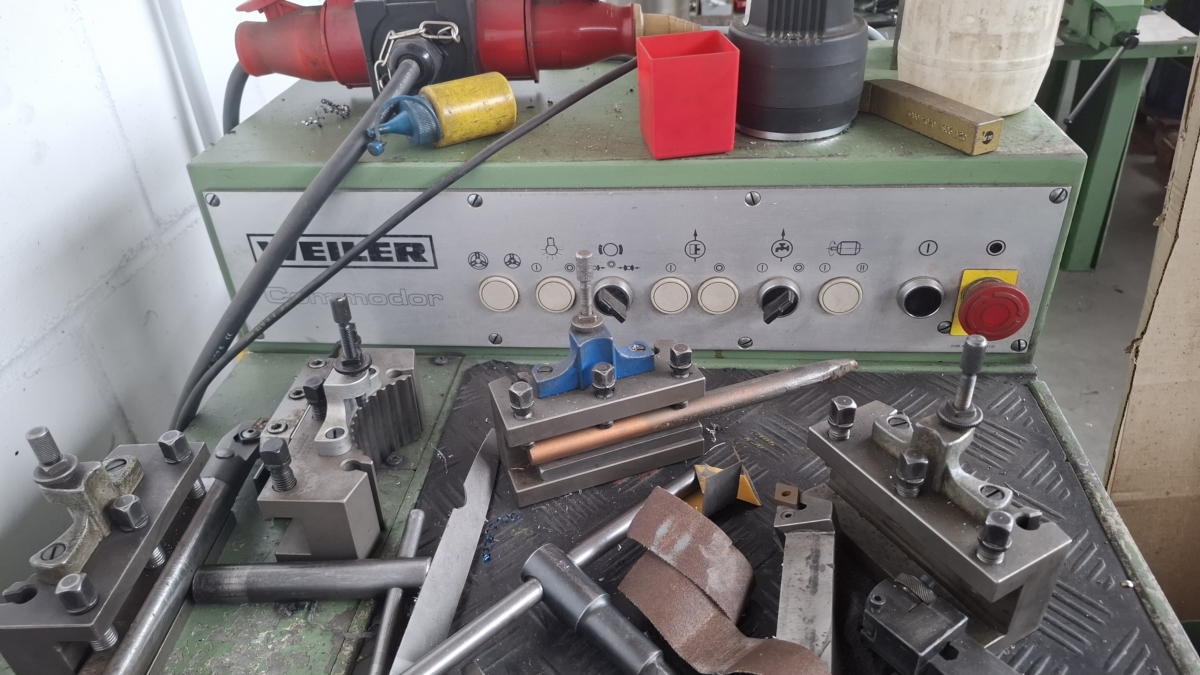

- MULTIFIX steel holder - size B - with various inserts
- Movable tailstock
- Emergency stop button at the front
- Adjustable bed stop
- Chip tray including coolant tray
- Various accessories
|
|
|
|
