| Stock-No. |
1020-20884 |
| Category |
CNC Lathe |
| Make |
DOOSAN |
| Type |

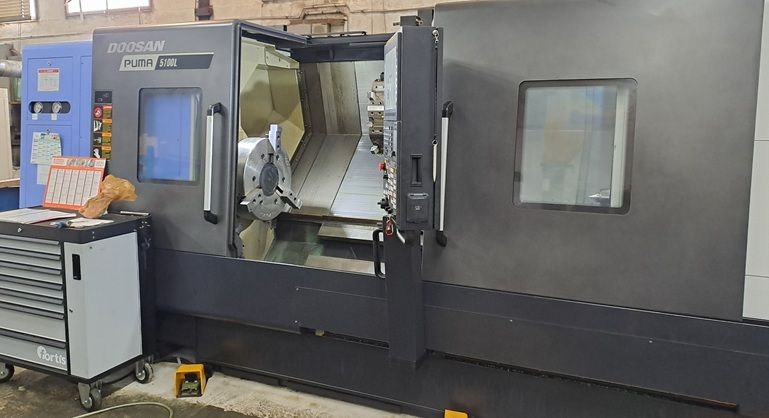

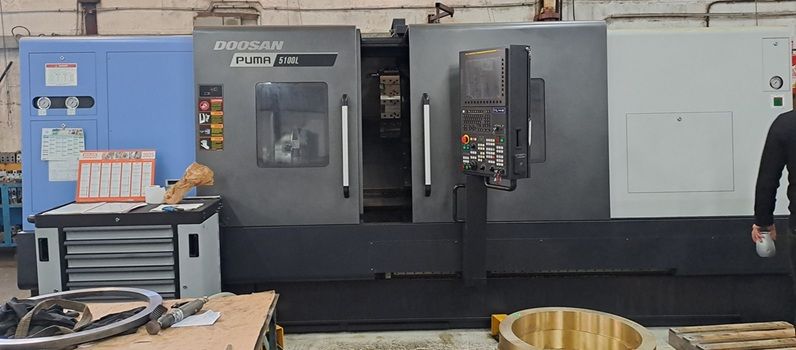

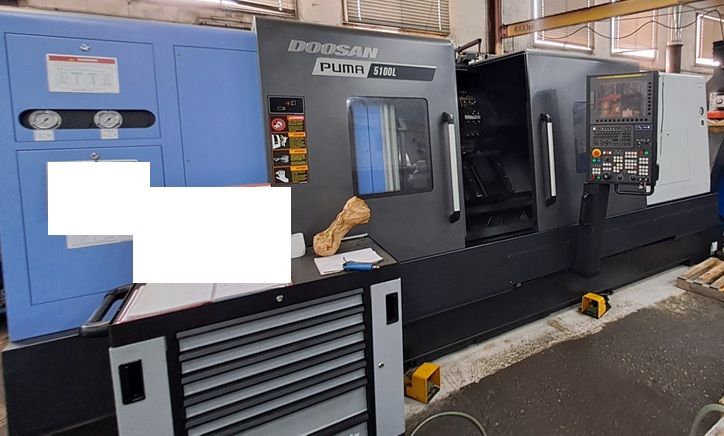

PUMA 5100 LB |
| New in |
2022 |
| Control |
FANUC 0iT |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Korean |
| Delivery time |
short-dated |
| Freight basis |
ex location |
| Price |
| turning diameter |
650 mm |
| turning length |
2042 mm |
| control |
FANUC 0iT |
| greates pass round over bed |
900 mm |
| swing diameter over slide rest |
690 mm |
| max. turning diameter |
650 mm |
| spindle turning speed range |
1500 U/min |
| spindle drive motor |
45 / 37 kW |
| spindle nose |
A1-15 |
| bar material dia. |
165,5 mm |
| Number of tools |
12 St. |
| travel -x axis |
362 mm |
| travel -z axis |
2155 mm |
| tail stock |
|
| tailstock adjustment |
1000 mm |
| diameter of quill |
120 mm |
| quill stroke |
120 mm |
| max. workpiece weight -without tailstock |
1400 kg |
| workpiece weight max. |
2600 kg |
| Rapid Travel X / Y / Z-Achse |
16 / - / 20 m/min |
| total power requirement |
60,25 kW |
| weight of the machine ca. |
12,5 t |
| dimensions of the machine ca. |
5,98 x 2,5 x 2,88 m |
| Description |
- Fanuc F0i CNC control

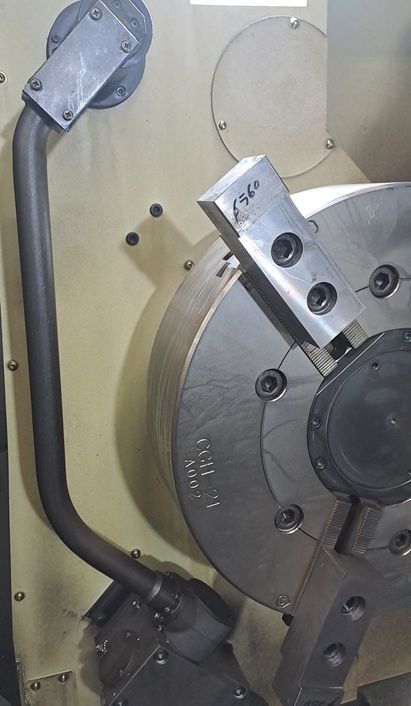

- 21' chuck

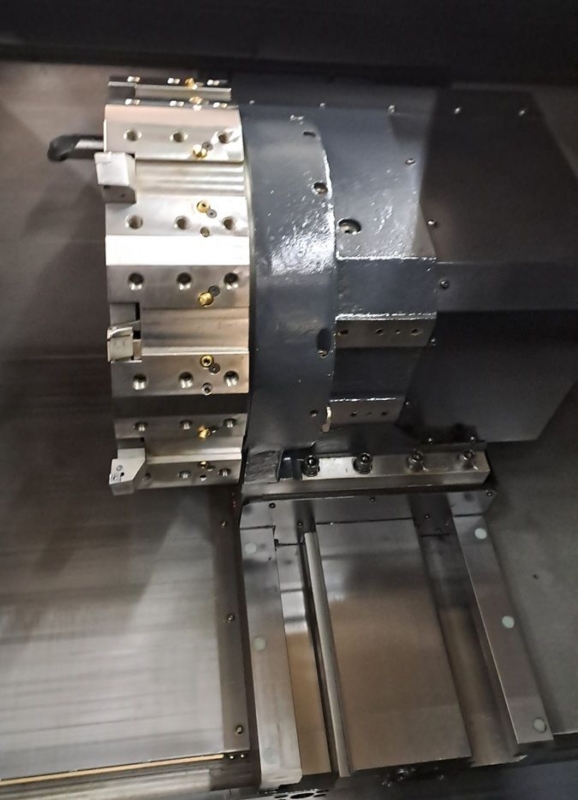

- 12-station turret
- MT 6 tailstock
- Chip conveyor

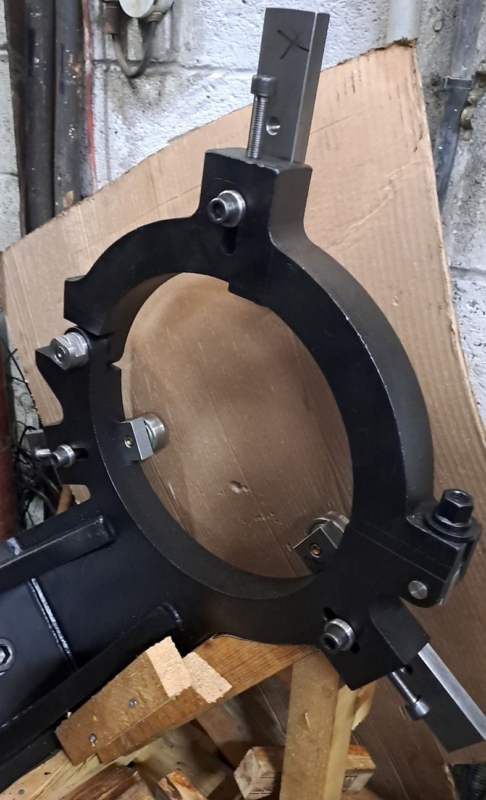

- 1 steady rest

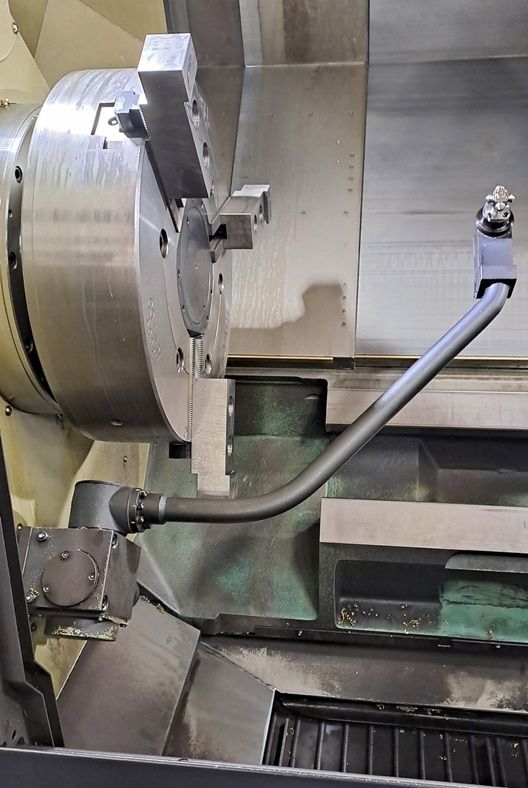

- 1 tool measuring arm
- 14.5 bar coolant system
- Oil separator
- Chip conveyor
- Programmable tailstock
- Plate for manual steady rest
- Tool load management
- Automatic presetting arm
- Preparation for hydraulic steady rest

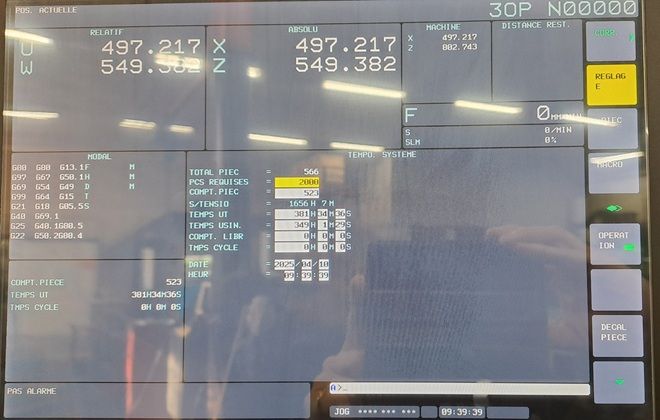

Operating hours: 1656h Working hours 400h
|
