| Stock-No. |
1020-20883 |
| Category |
milling machining centers - horizontal |
| Make |
DOOSAN |
| Type |
NHM 8000 |
| New in |
2014 |
| Control |
Fanuc 31i |
| Location |
ab Lager - demontiert |
| Origin |
Korean |
| Delivery time |
short-dated |
| Freight basis |
ex works "is as is" |
| Price |
| x-travel |
1400 mm |
| y-travel |
1050 mm |
| z-travel |
1200 mm |
| Control |
Fanuc 31i |
| spindle turning speed - stepless |
6000 U/min |
| spindle taper |
ISO 50 |
| spindle motor |
35 / 22 kW |
| pallet table size |
800 x 800 mm |
| workpiece weight |
2000 kg |
| distance spindle center to table |
75 - 1125 mm |
| Rapid Travel X / Y / Z-Achse |
24 m/min |
| dimension of workpiece |
1450 x 1550 mm |
| total power requirement |
71 kVA |
| weight of the machine ca. |
27 t |
| dimensions of the machine ca. |
7,3 x 4,3 x 3,75 m |
| Description |

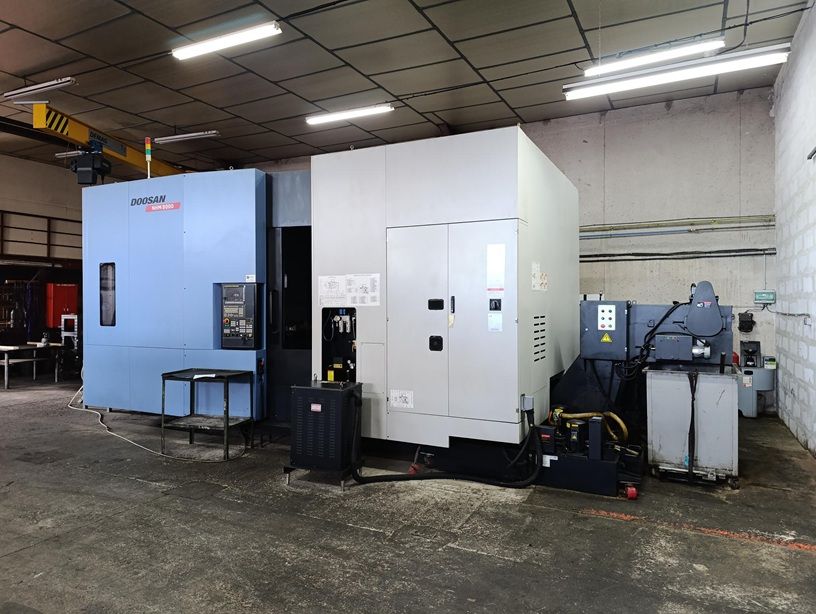

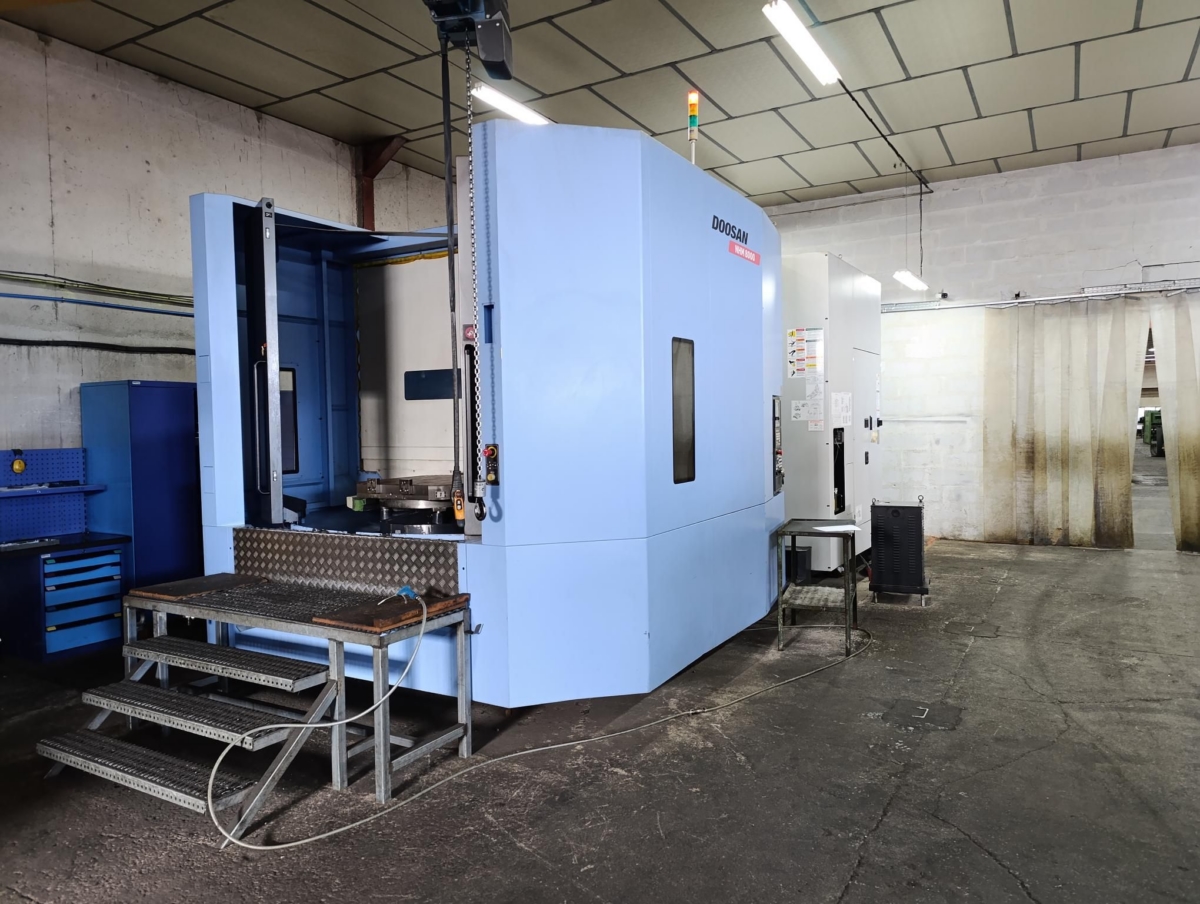

Horizontal 4-axis CNC machining centre
- Fanuc 31i CNC control
- 60-position tool changer (ISO 50)

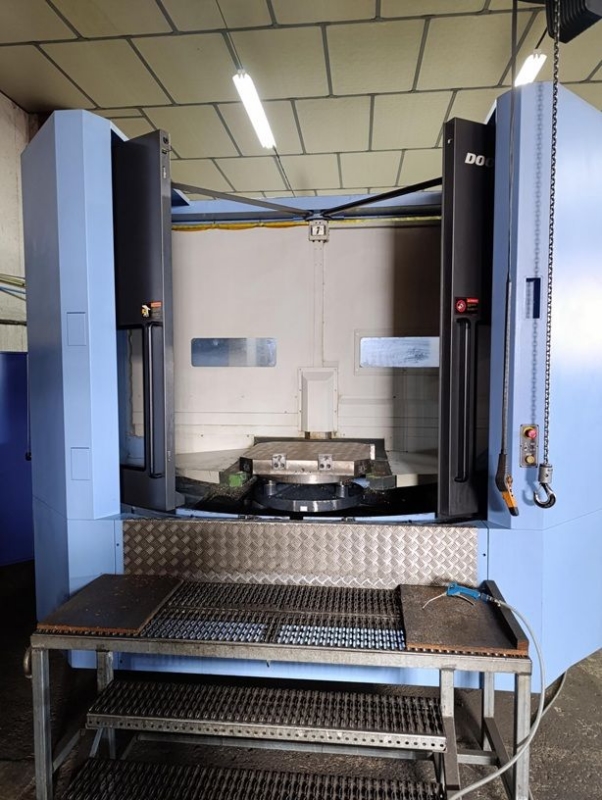

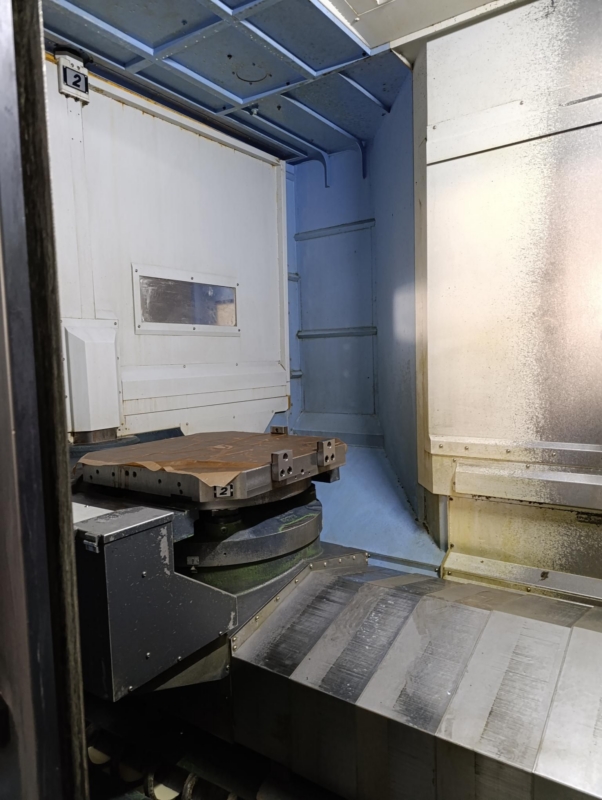

- Rotary table (1° division) with 2 pallets
- High-pressure cooling 70 bar with cyclone filter system
- Chip conveyor
- Tool loading management
- Renishaw RMP 60
- TS 27R tool probe

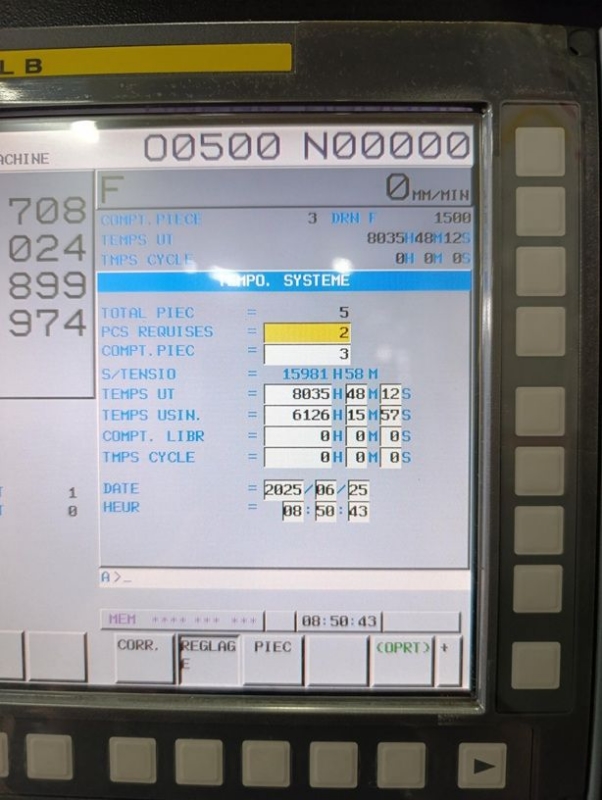

Spindle running hours 6000h, running hours: 8050h
|
