| Stock-No. |
1020-20882 |
| Category |

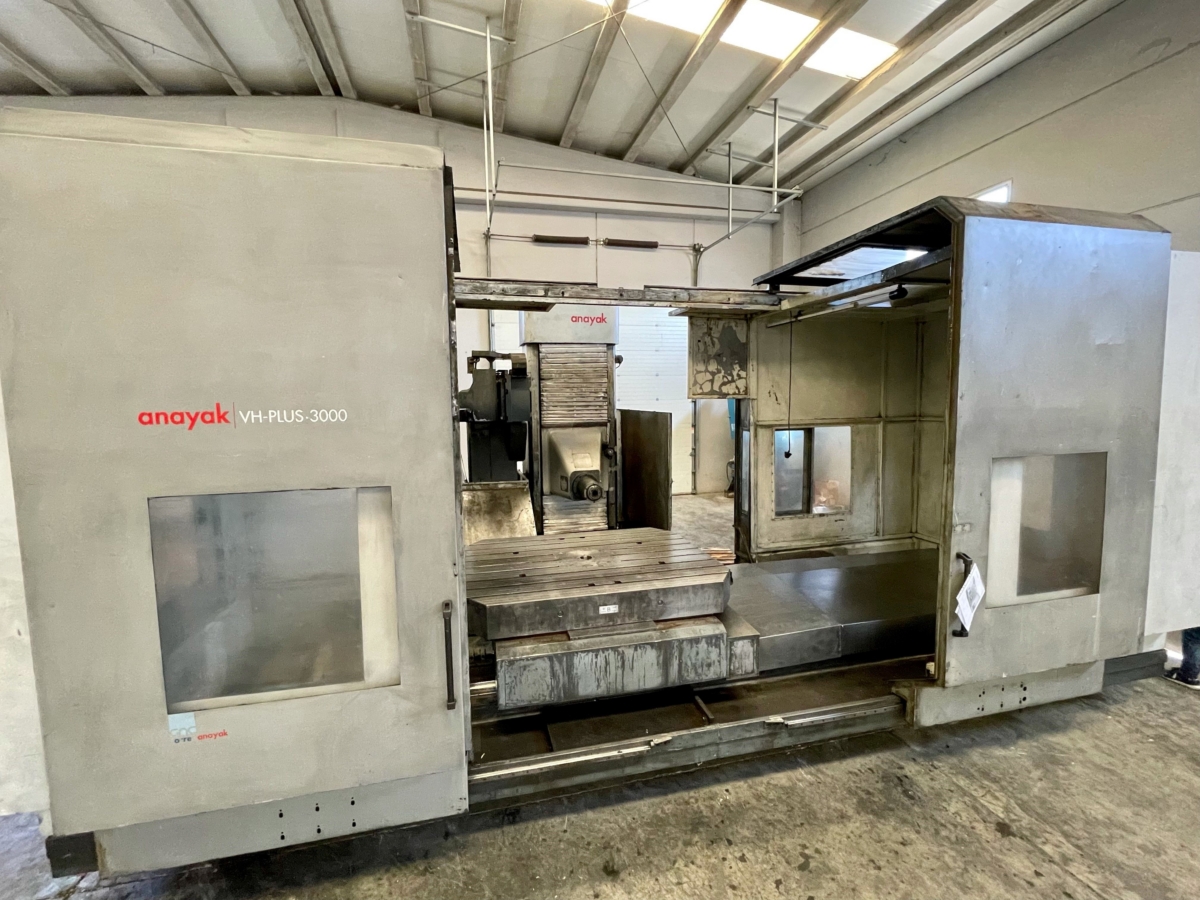

Bed Type Milling Machine - Universal |
| Make |
ANAYAK |
| Type |
VH PLUS 3000 MG |
| New in |
2008 |
| Control |
HEIDENHAIN iTNC 530 |
| Location |
ab Lager - demontiert |
| Origin |
Spain |
| Delivery time |
short-dated |
| Freight basis |
ex location |
| Price |
| x-axis |
3000 mm |
| y-axis |
1270 mm |
| z-axis |
2000 mm |
| b-axis |
360° ° |
| Control |
HEIDENHAIN iTNC 530 |
| table weight |
13000 Kg |
| rapid feed |
20.000 mm/min |
| table surface area |

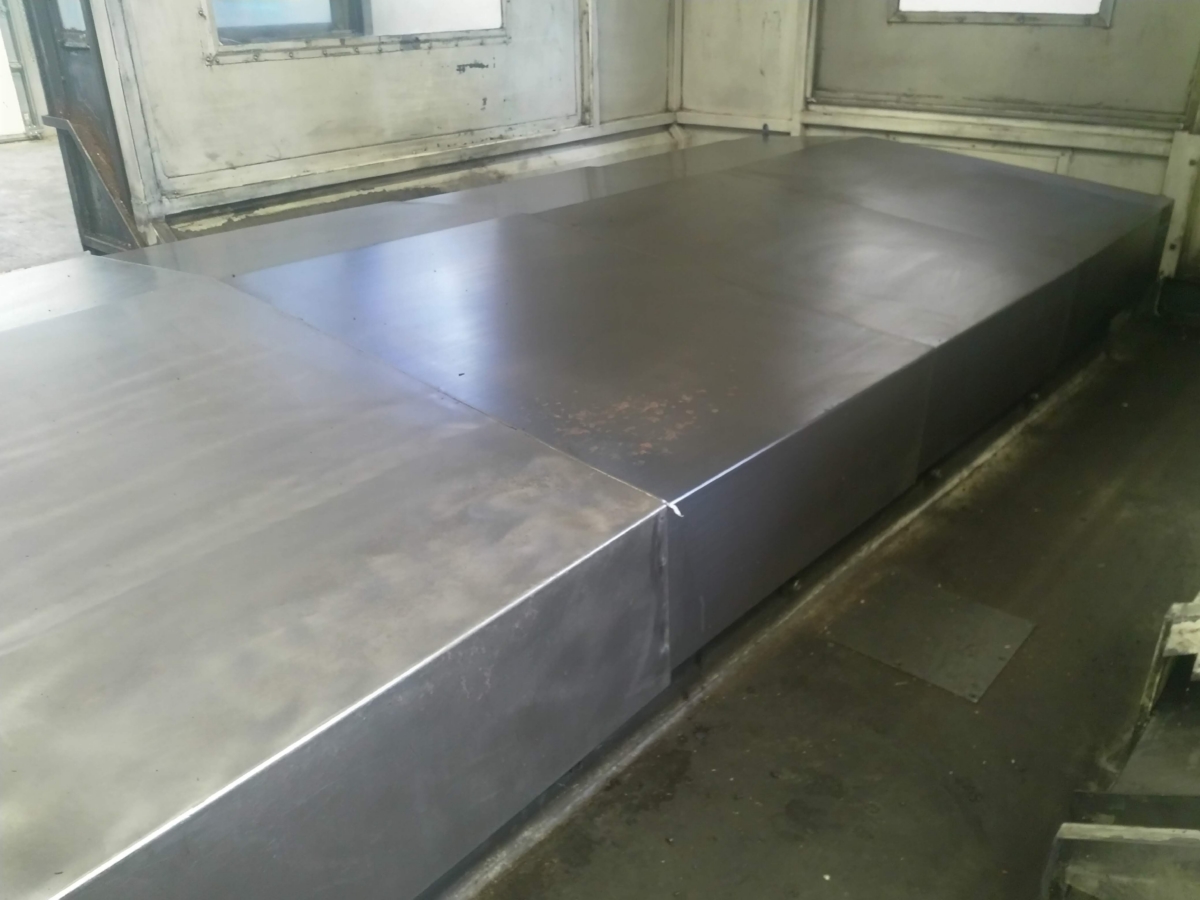

2000 x 1600 mm |
| working feed |
10.000 mm/min |
| taper |
SK 50 |
| turning speeds |
60 - 5000 U/min |
| Motor power |
22 kw |
| weight of the machine ca. |
39000 kg |
| dimensions of the machine ca. |
9 x 7 x 3,5 m |
| Description |
equipped with:

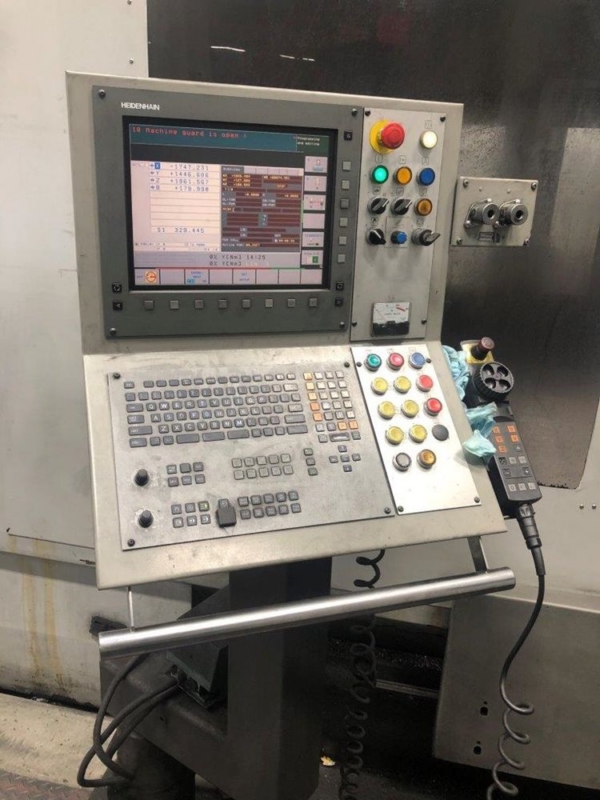

- CNC Control Heidenhain iTNC 530 & Handwheel HR 410
- ATC 60-fold (SK 50)
- Rotary Table with B-Axis
- Coolant through Spindle 22bar
- Chip Conveyor
- Rigid Tapping
Many Spares inc new slideway covers, GRUNDFOS pumps, 2 Ballscrews and 1
remanuf. Ballscrew
20030h working hours
|
|
|
|
