| Stock-No. |
1020-20880 |
| Category |
Planer-Type Milling M/C - Double Column |
| Make |
KAFO |
| Type |
RV 4135 |
| New in |
2019 |
| Control |
Fanuc 0i-MF |
| Location |
ab Werksstandort Non-EU |
| Origin |
Taiwan |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
4100 mm |
| y-travel |
3500 mm |
| z-travel |
1100 mm |
| distance between columns |
2700 mm |
| distance table - lower edge spindle |
200 - 1300 mm |
| table-size |
4000 x 2100 mm |
| table load |
17 t |
| spindle motor |
37 / 45 kW |
| spindle turning speed range |
10000 (Built-in driven) U/min |
| tool taper |
BT 50 |
| feed in x - axis |
10 mm/min |
| feed in y - axis |
10 mm/min |
| feed range Z-direction |
10 mm/min |
| control |
Fanuc 0i-MF |
| total power requirement |
56 kVA |
| weight of the machine ca. |
47,5 t |
| dimensions of the machine ca. |
10,8 x 7,8 x 5,75 m |
| Description |

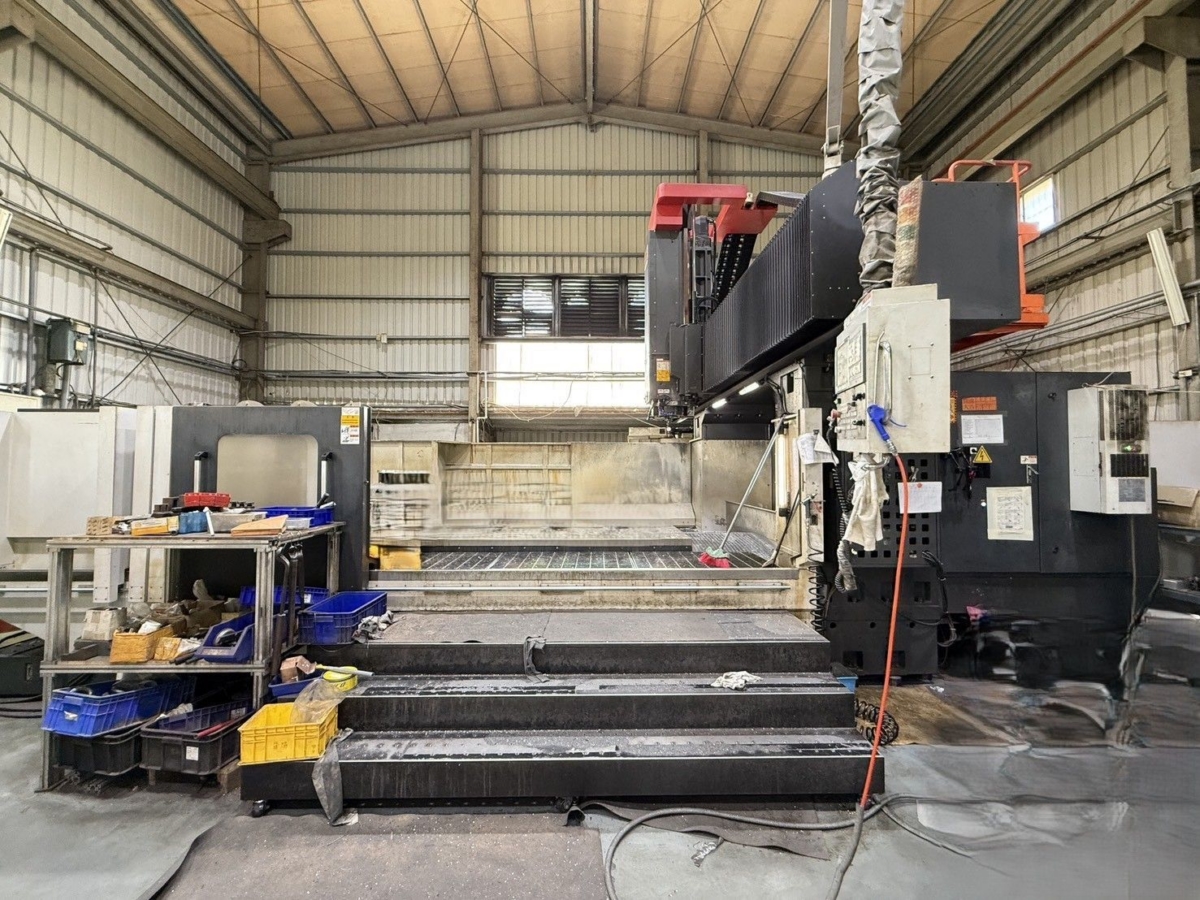

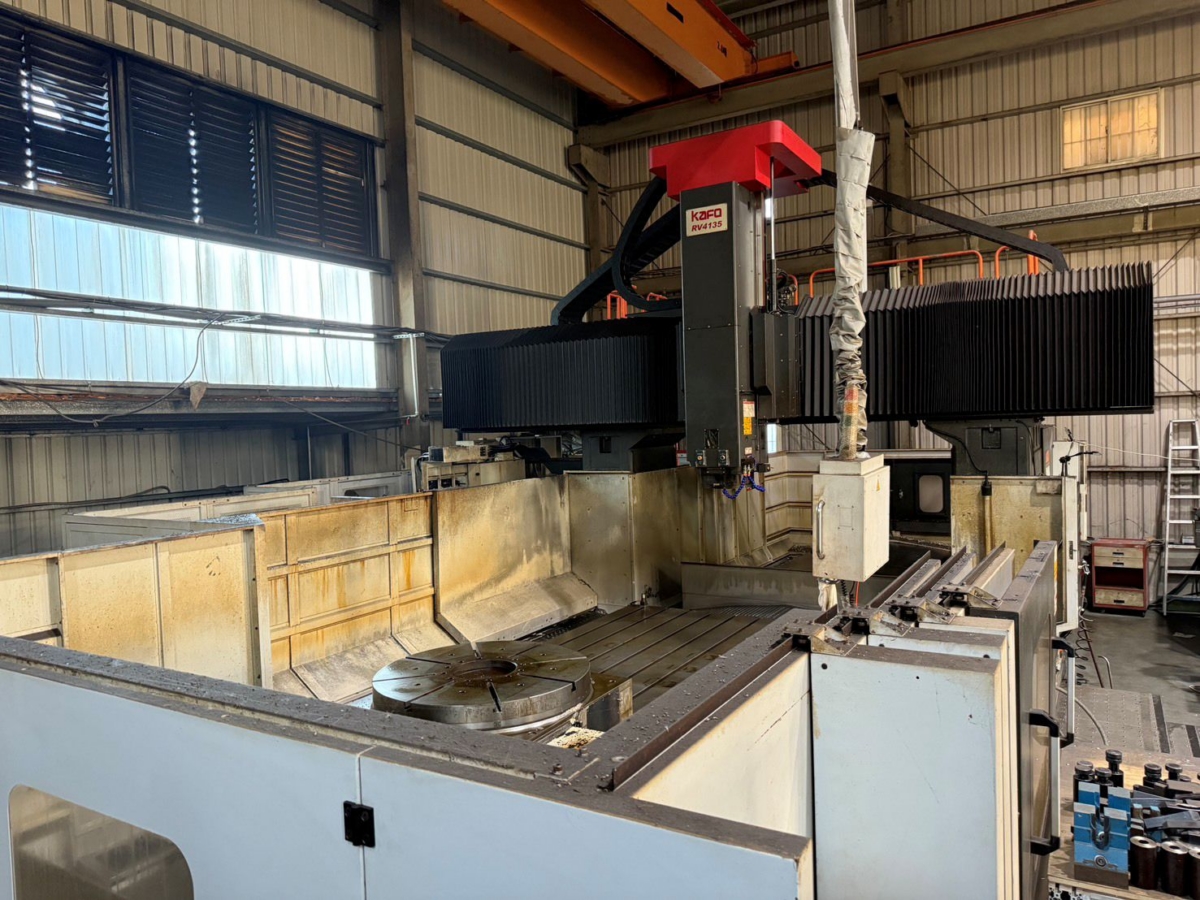

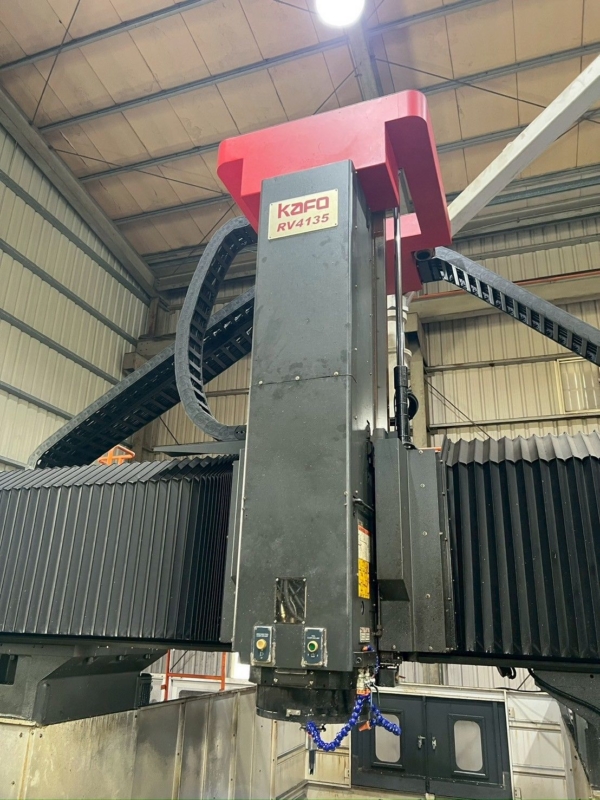

Portal milling machine (5-sided machining) equipped with:

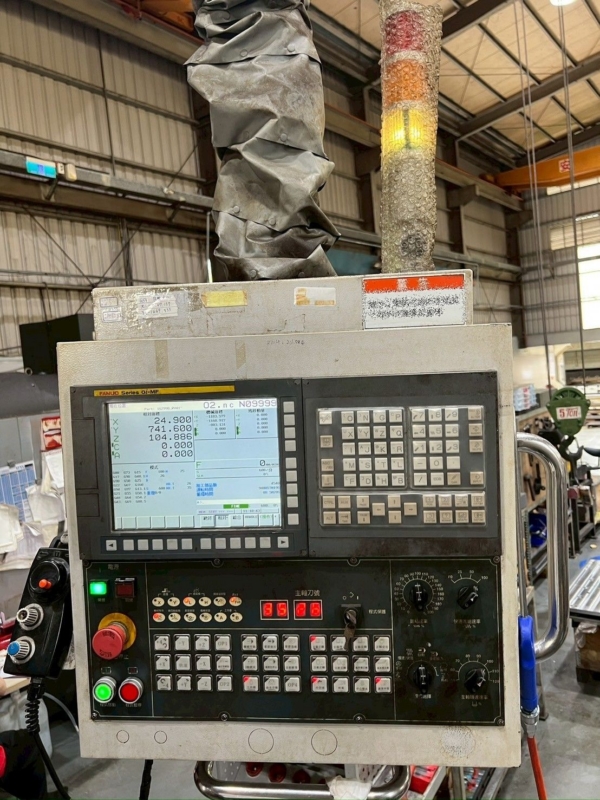

- Fanuc 0i-MF CNC control

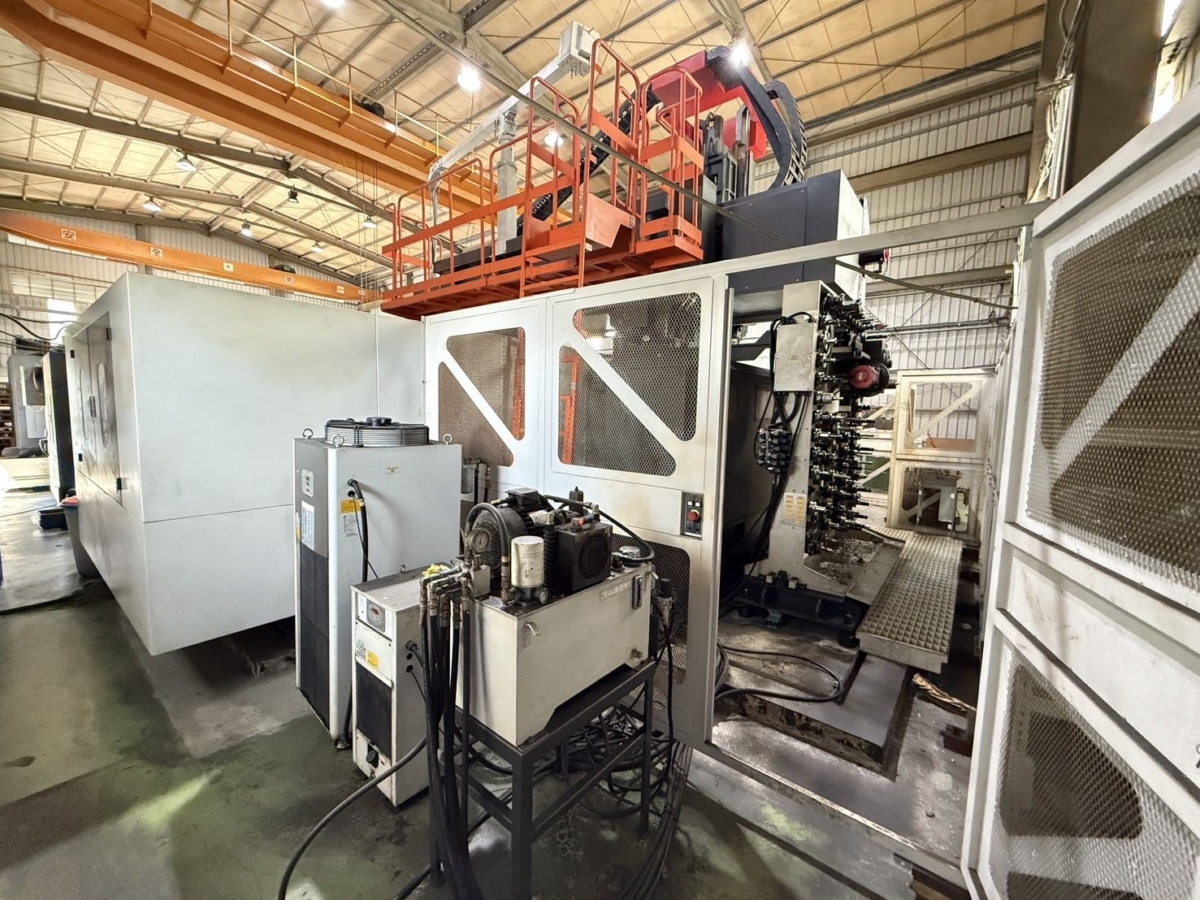

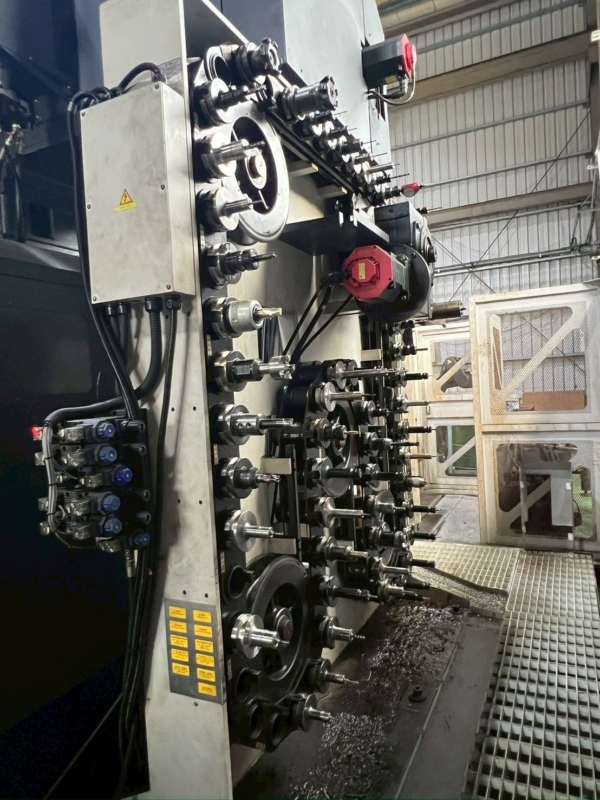

- 60-position tool changer (BT 50)

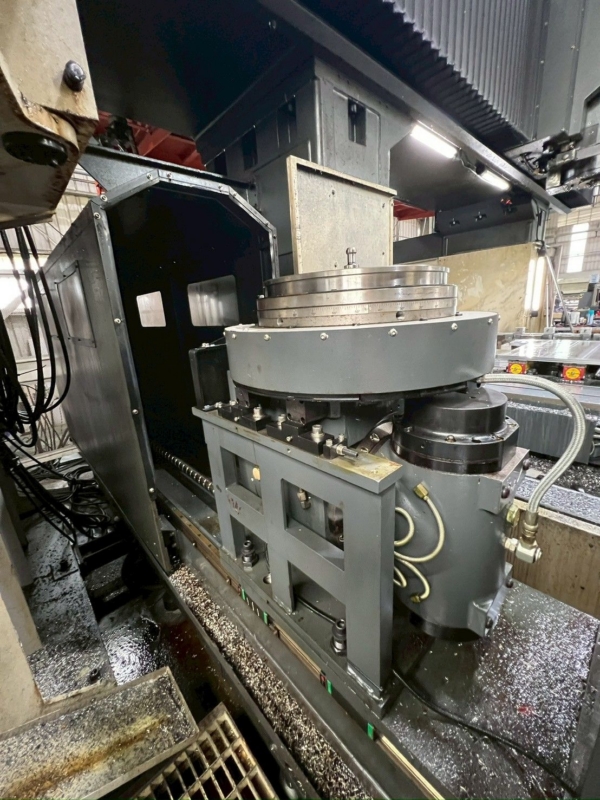

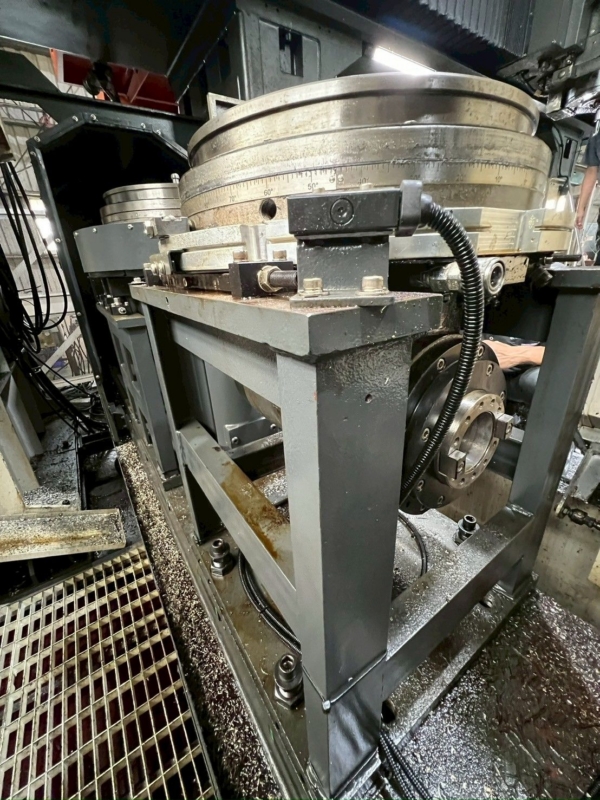

- Auto head Storage:
-- 90° angle milling head (4500 rpm, 25kW)
-- Universal milling head with automatic 5° indexing (25 kW, 3500 rpm)

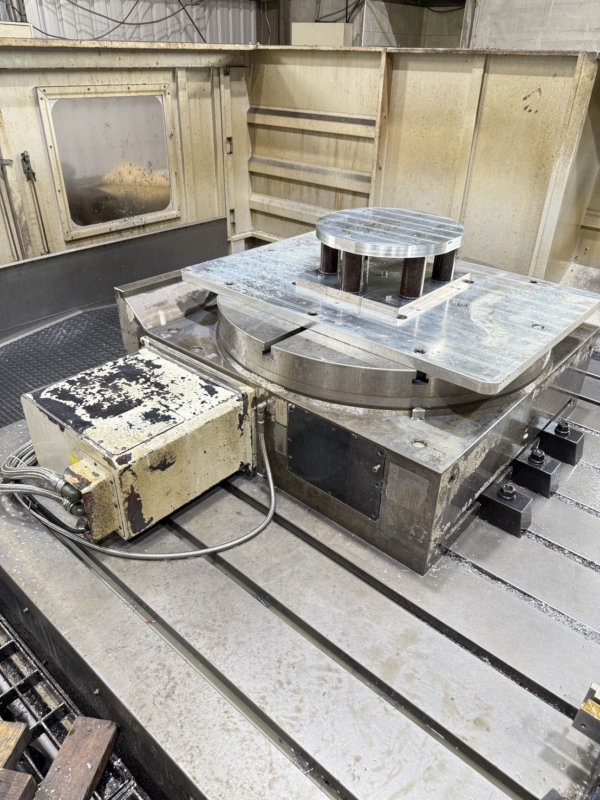

- 4th axis as NC rotary table (dia. 1000 mm, 4.9 t)
- Coolant (extranal)
- Oil separator
- Spindle oil cooling
- Chip conveyor
|
|
|
|
