| Stock-No. |
1020-20877 |
| Category |

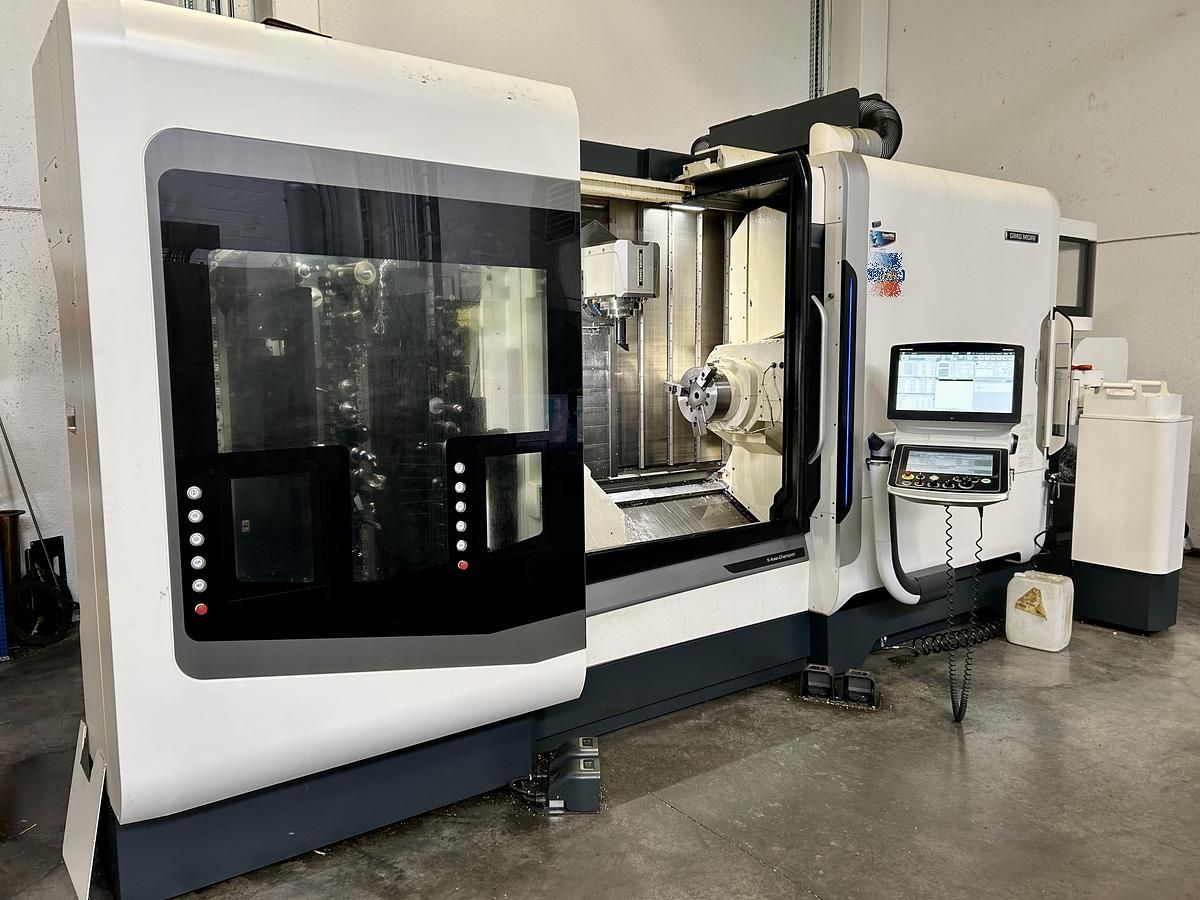

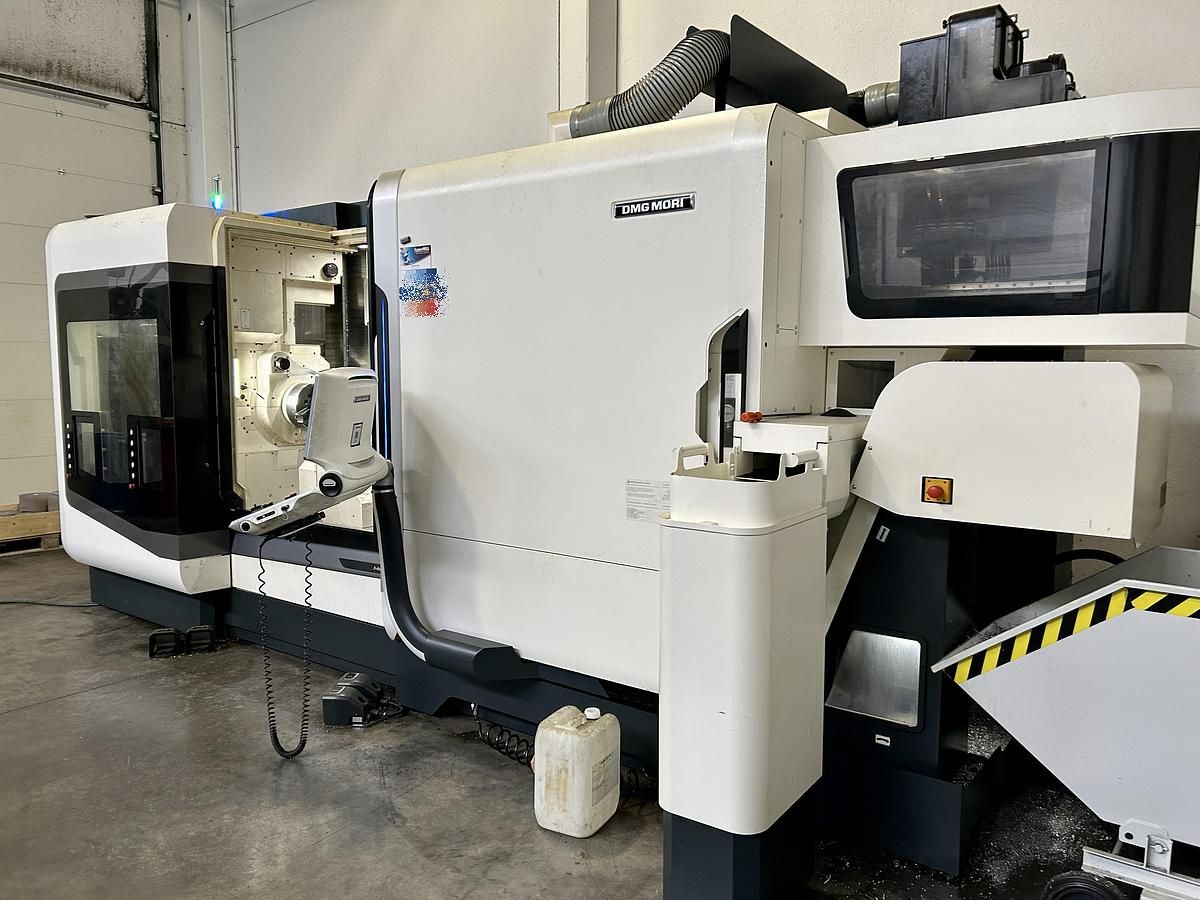

CNC Turning- and Milling Center |
| Make |
DMG MORI |
| Type |
NTX 2500 - 1500 |
| New in |
2020 |
| Control |
CELOS ERGOline |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
after appointment |
| Freight basis |
Ex Site - factory |
| Price |
| x-axis |
675 mm |
| z-axis |
1530 mm |
| y-axis |
300 mm |
| control |
CELOS ERGOline |
| turning speed range - main spindle |
4000 min/-1 |
| spindle passage |
91 mm |
| spindle motor |
18,5 / 15 kW |
| speed range - counter spindle |
4000 min/-1 |
| tool length - max. |
400 mm |
| tool diameter |
130 mm |
| no. of tools in turret 1 |
12 |
| milling head speed |
12000 U/min |
| milling spindle - taper |
Capto C6 |
| milling spindle drive |
22 kW |
| total power requirement |
88 kVA |
| total wight |
18,2 t |
| dimensions of the machine ca. |
- m |
| Description |
Equipped with:

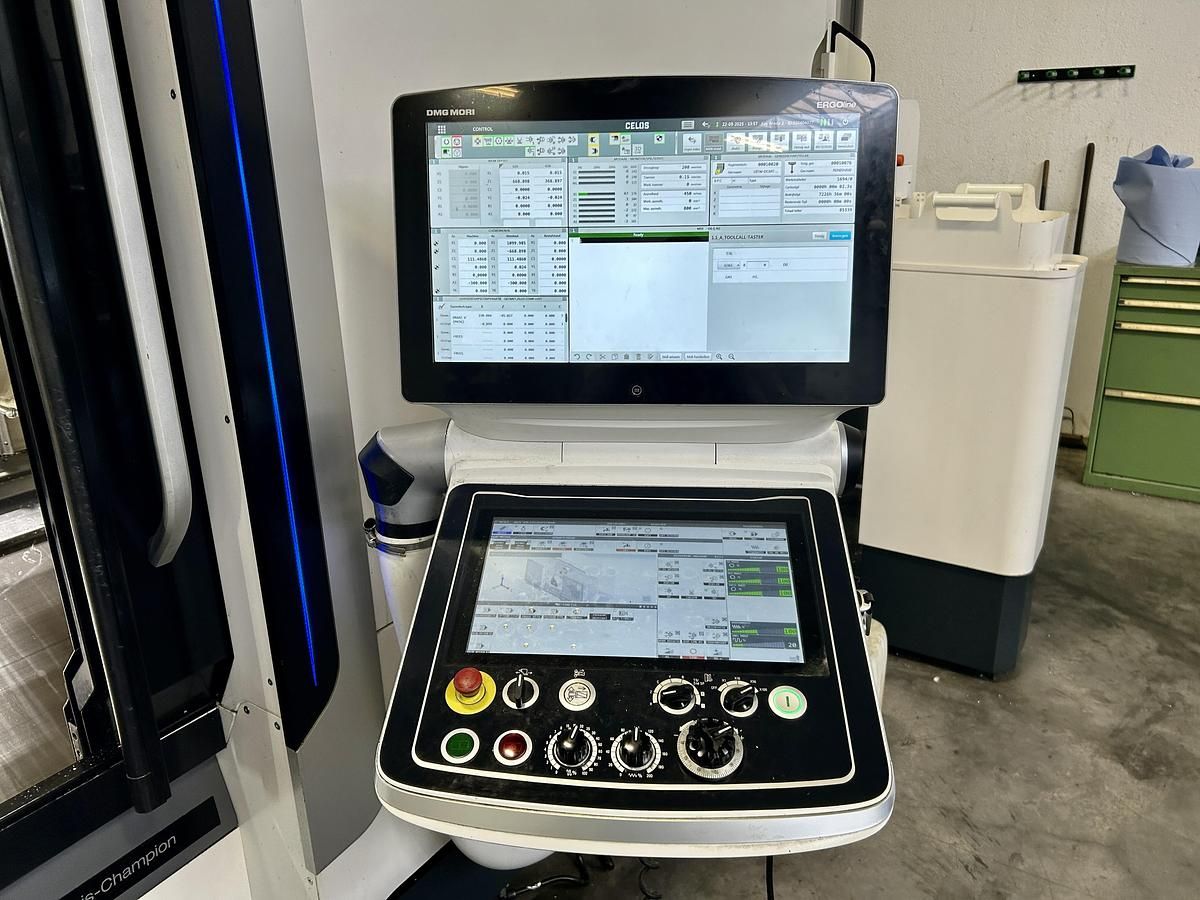

- CELOS ERGOline CNC control

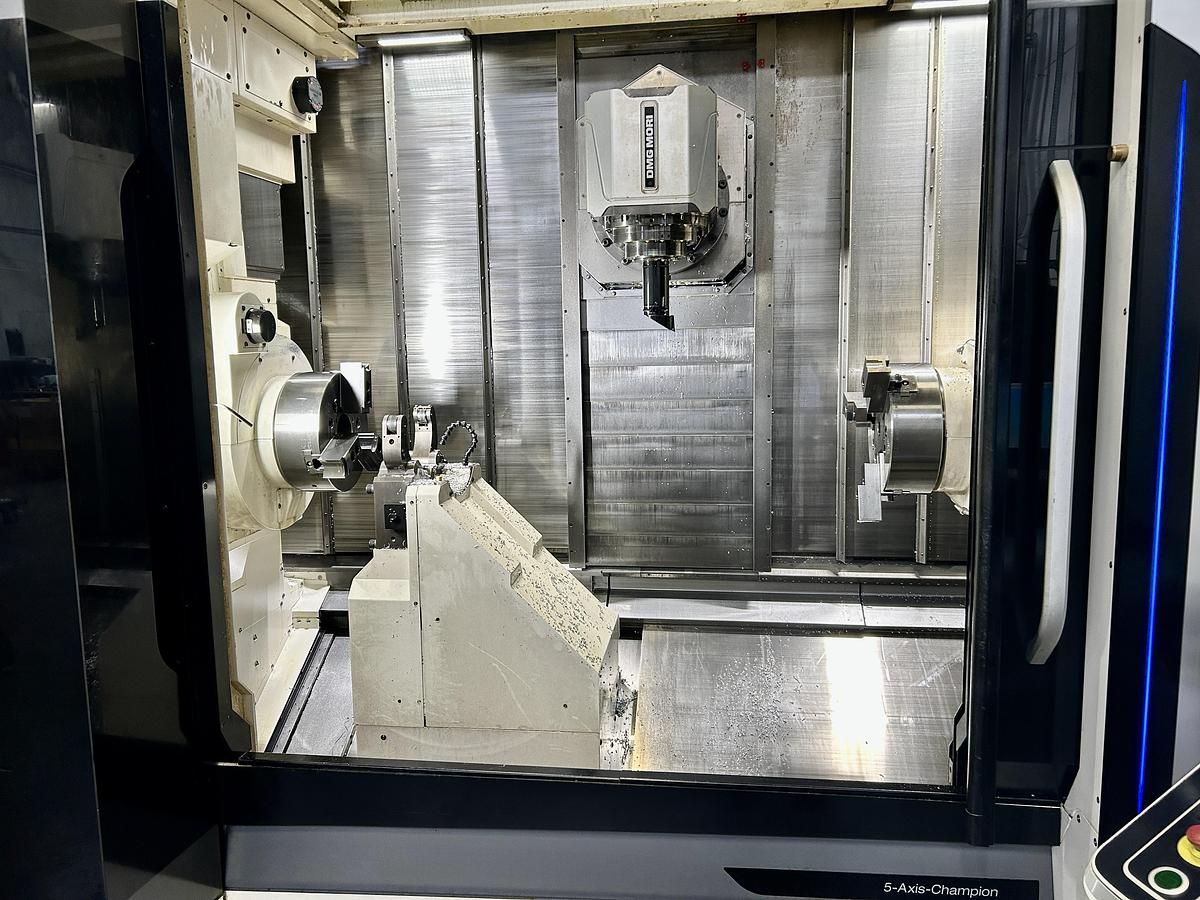

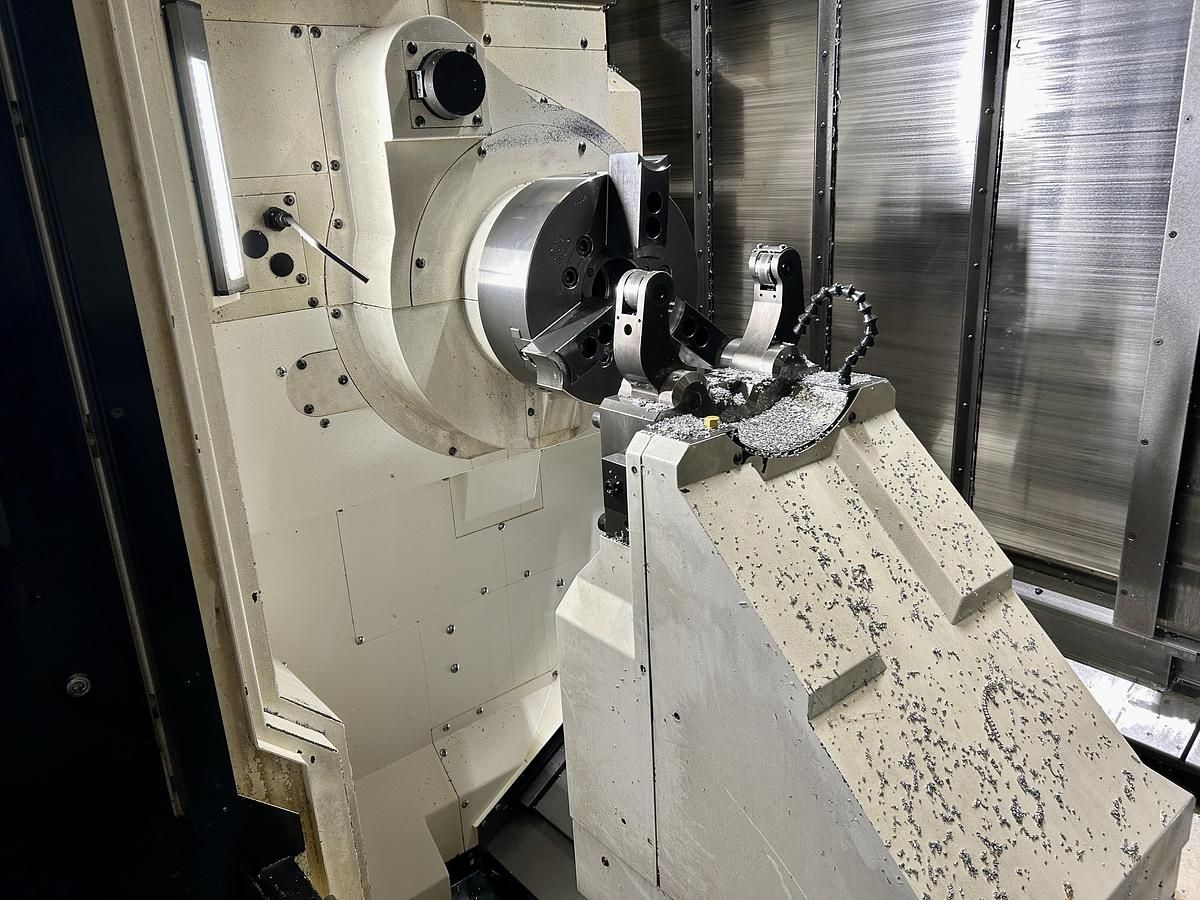

- Main and counter spindle with 4000 rpm, 91 mm passage

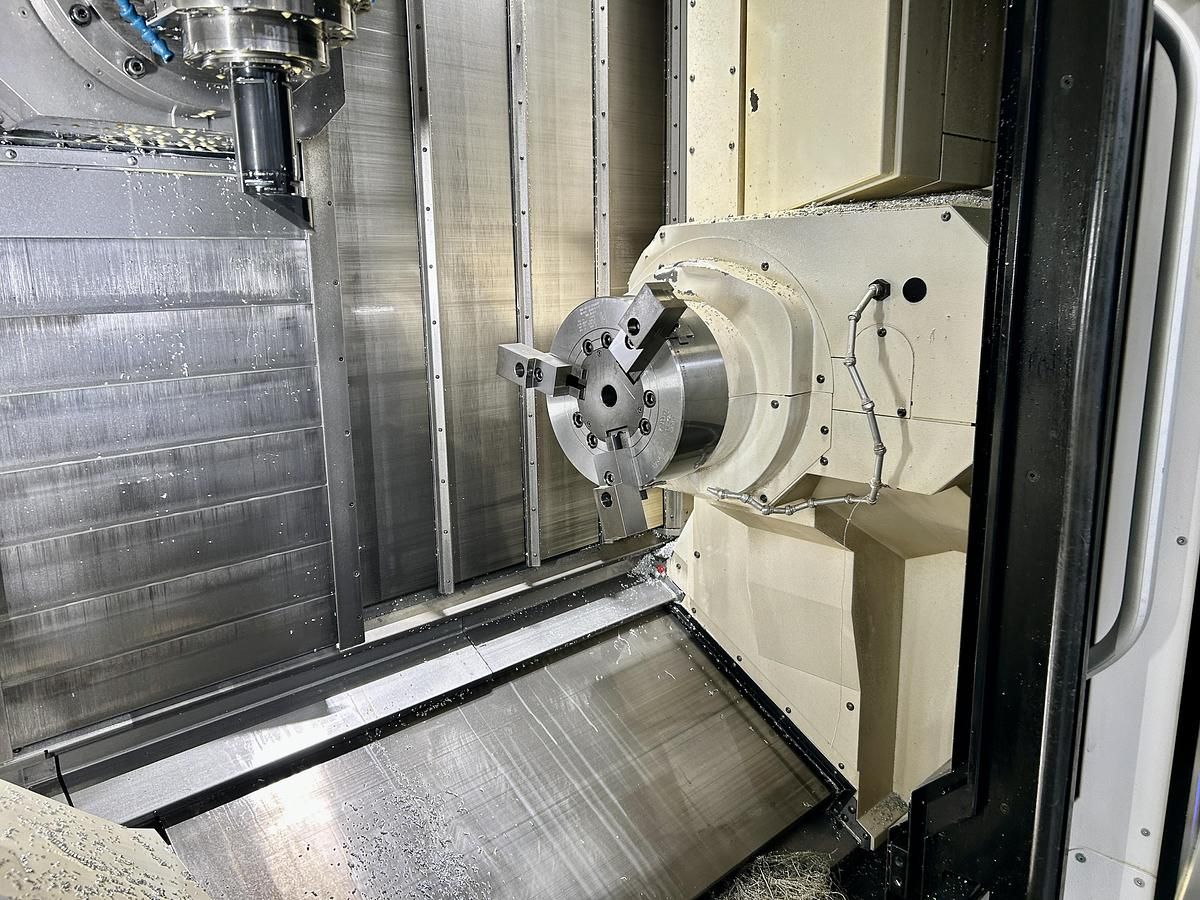

- Kitagawa 304 mm chuck

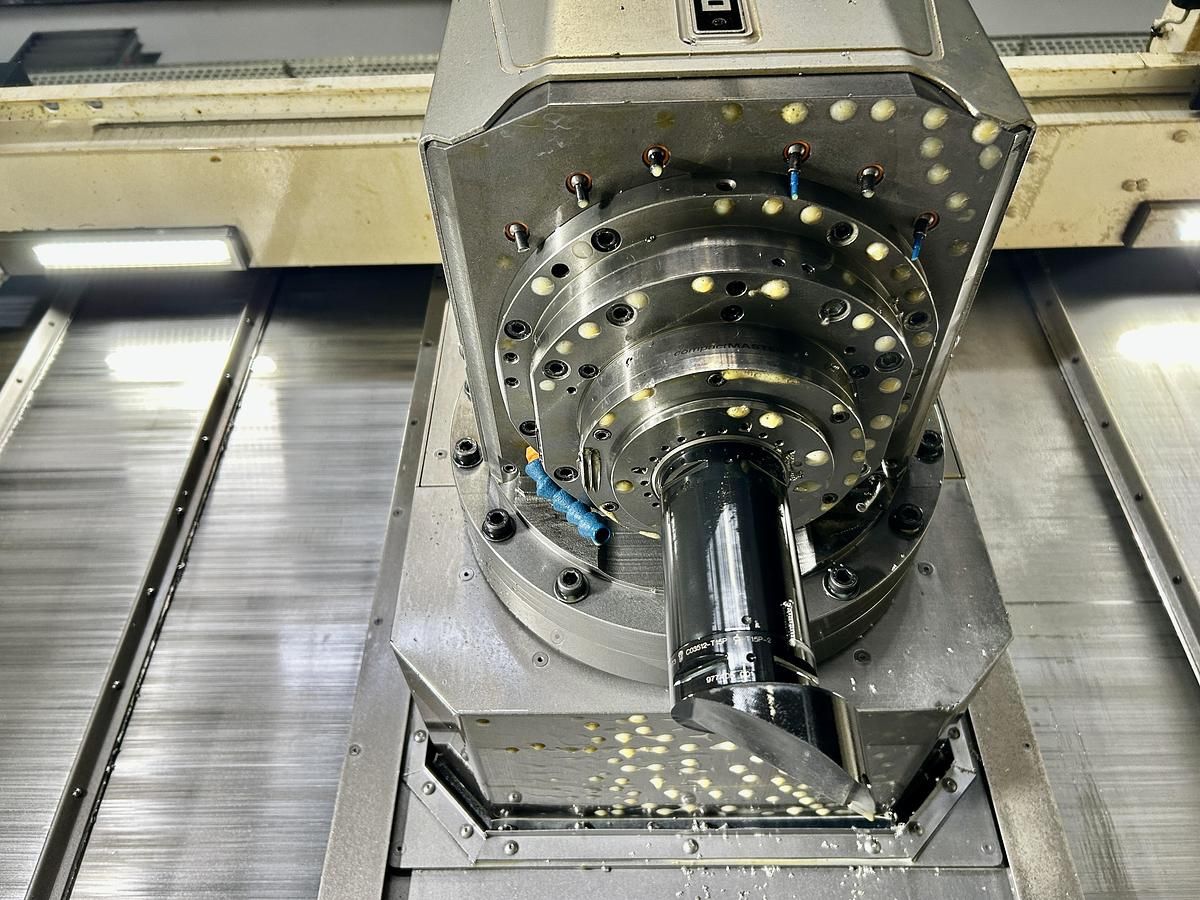

- Milling spindle with Capto C6 and 12,000 rpm, 22 kW

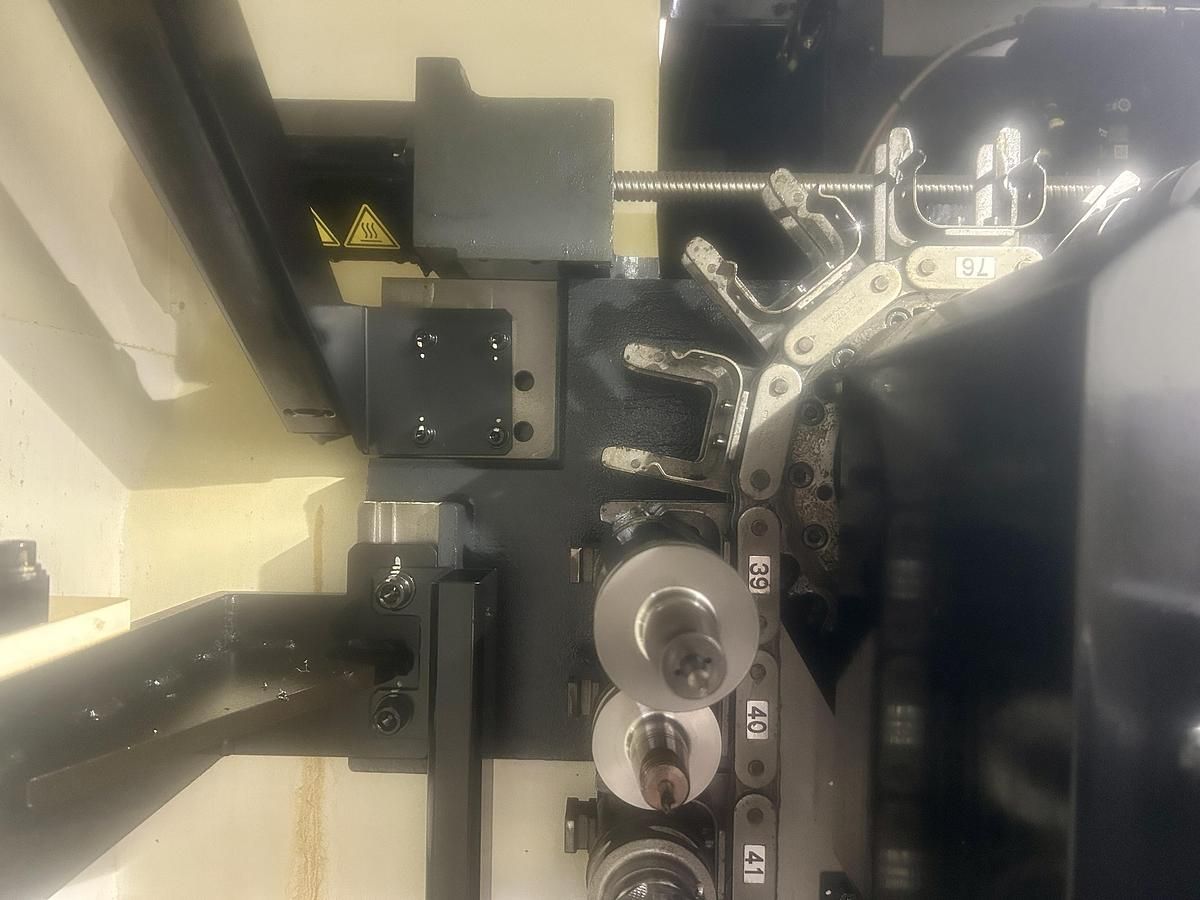

- 76-position tool changer
- Counter spindle with tailstock function
- Manual tool presetter

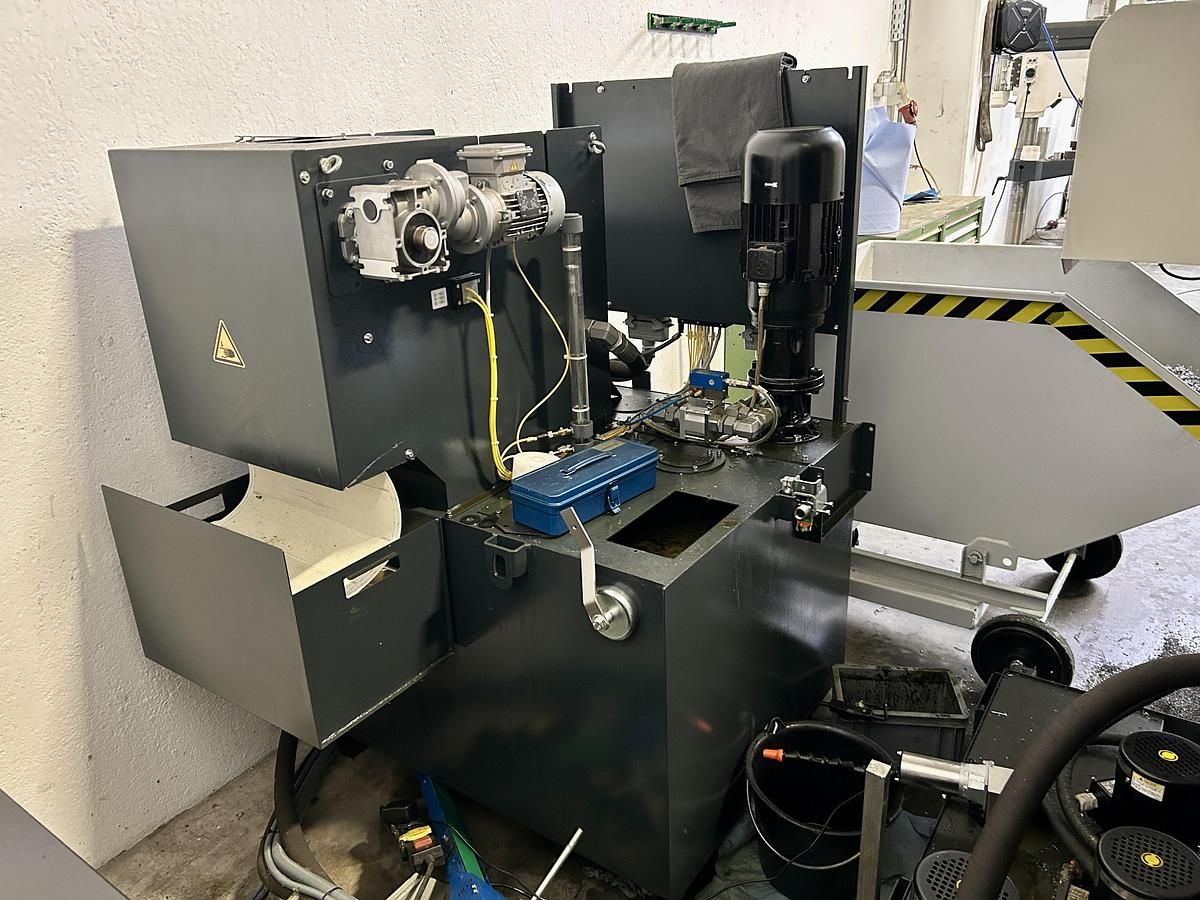

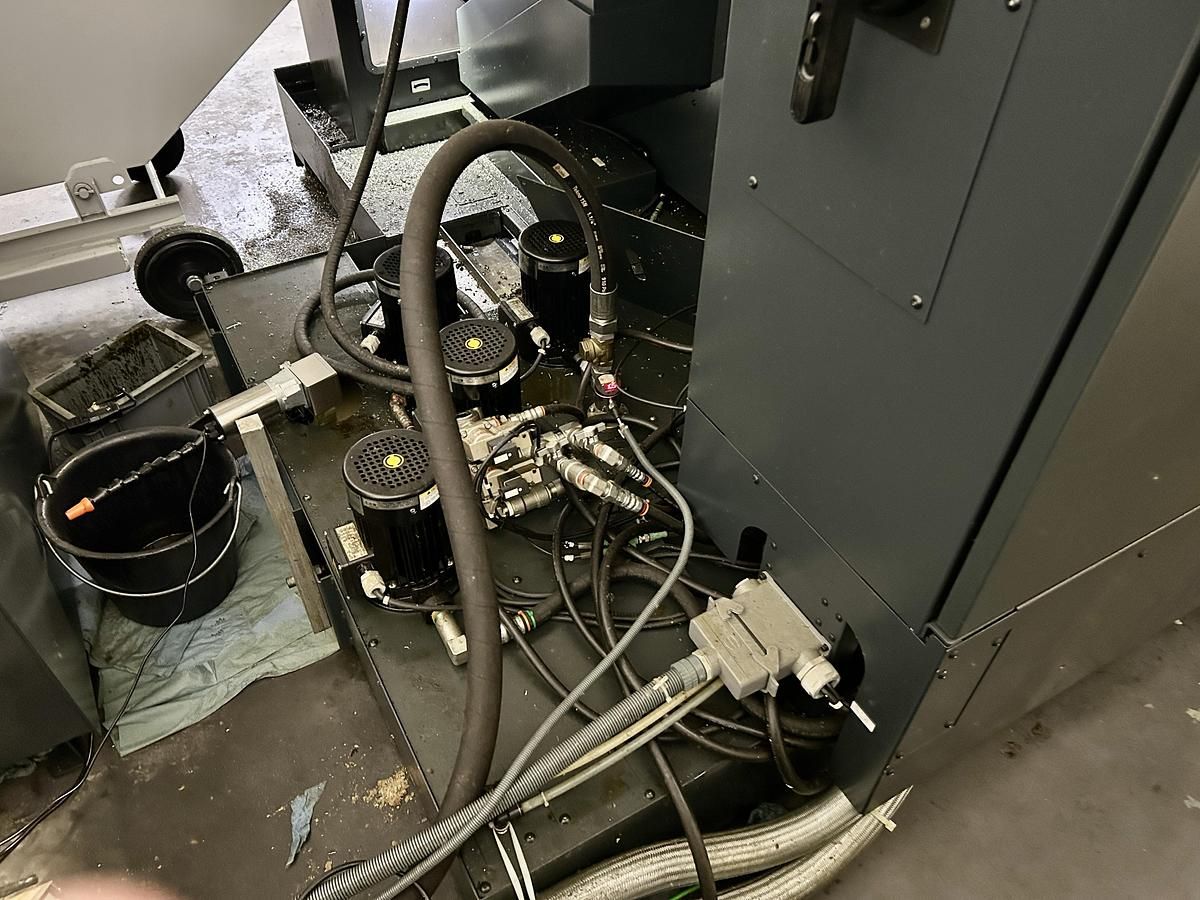

- High-pressure coolant system / IKZ 70 bar
- Coolant gun
- Chip conveyor
- Oil skimmer
- Oil separator
- Renishaw
Power On: 17700h, Machining: 7200h
|
|
|
|
