| Stock-No. |
1020-20876 |
| Category |

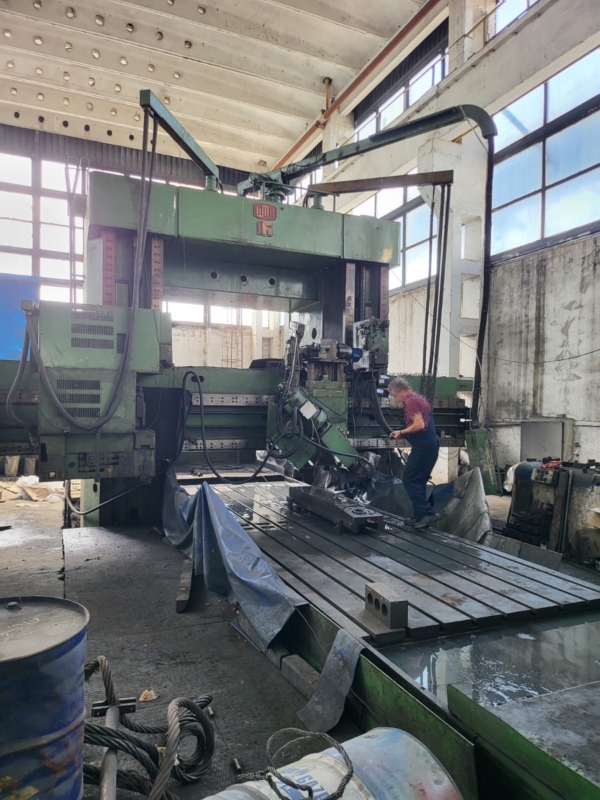

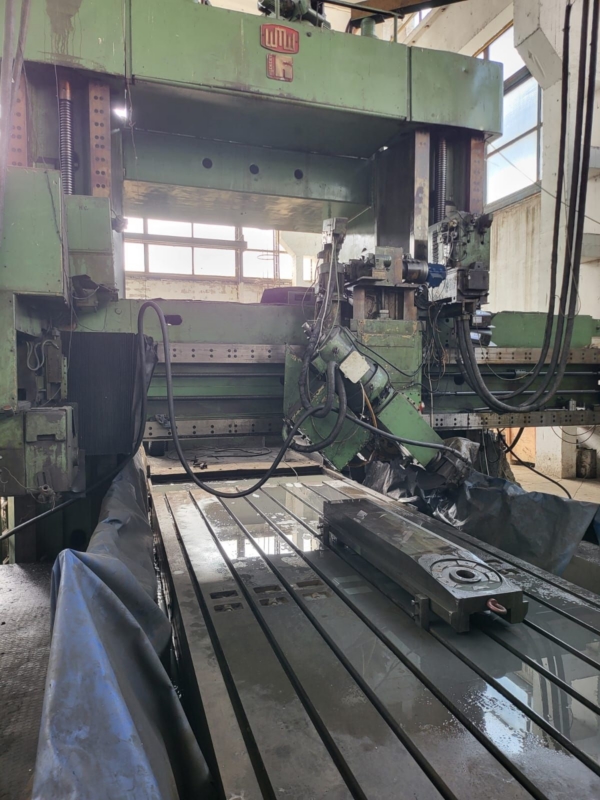

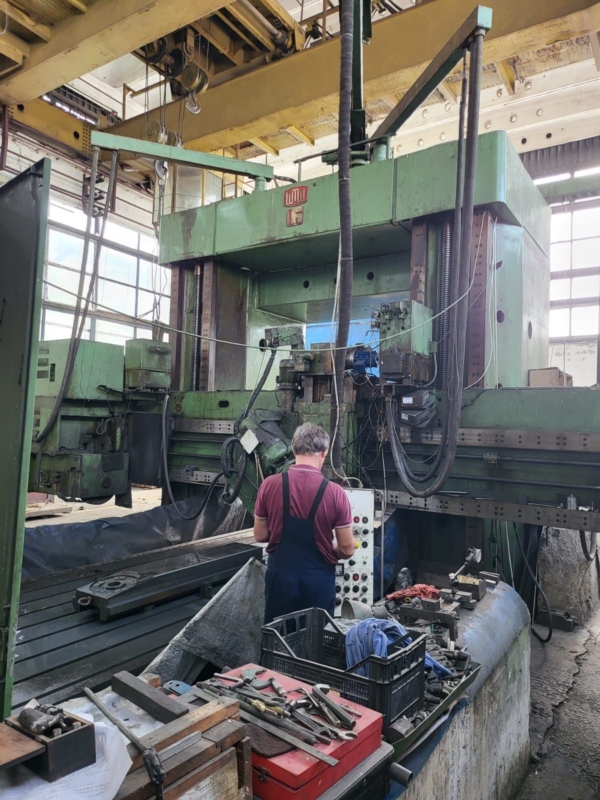

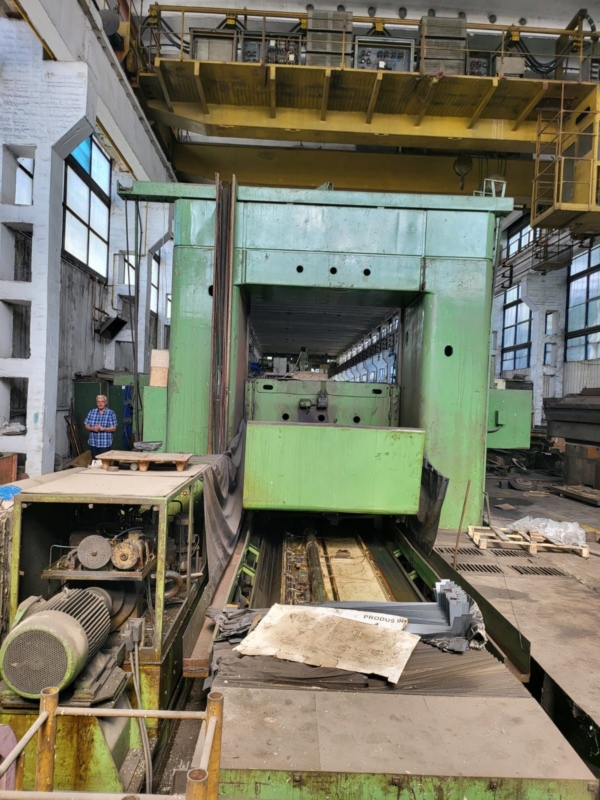

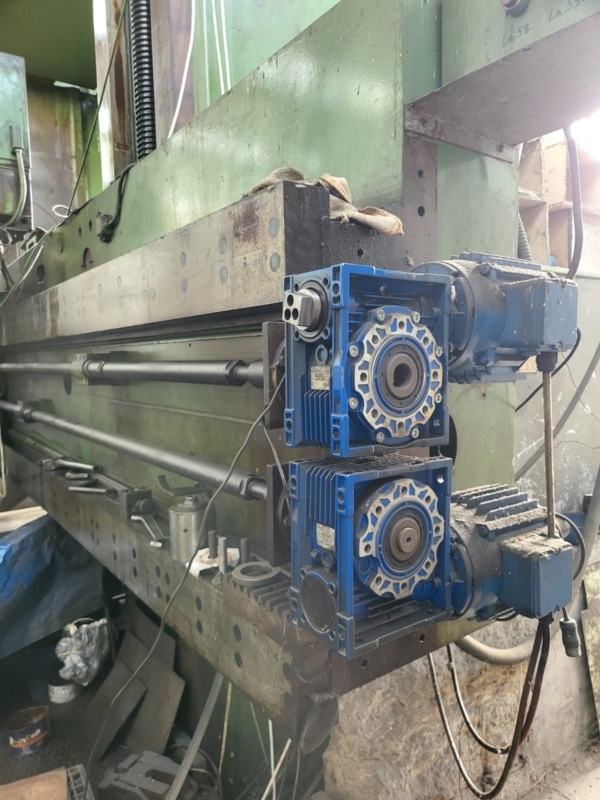

Slideway Grinding Machine |
| Make |
ASCHERSLEBEN |
| Type |
SFBZ 2200/6000 |
| New in |
1972 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| grinding length |
6000 mm |
| grinding width |
2200 mm |
| workpiece height |
2000 mm |
| column daylight |
mm |
| table surface area |
6000 x 2200 mm |
| table speed -stepless- |
2 - 50 m/min |
| workpiece weight |
15 t |
| adjustment speed of cross-rail |
560 mm/min |
| grind. wheel dimensions for face grinding |
63...200 mm |
| grind. wheel dimensions for peripheral grind. |
315x50x76 mm |
| grind. wheel dimensions for peripheral grind. |
400x40x127 mm |
| adjustment range - horizontal |
500 mm |
| swival range +/- |
60 ° |
| total power requirement |
86 kW |
| total wight |
130 t |
| dimensions of the machine ca. |
22x7x4 m |
| weight of the machine ca. |
56 t |
| Description |

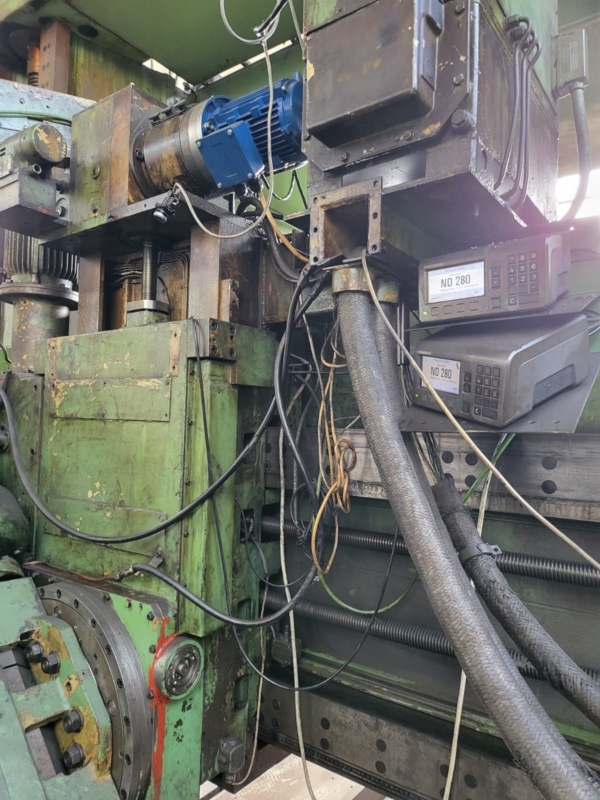

- Digital Read Out
|
