| Stock-No. |
1020-20874 |
| Category |
Table Type Boring and Milling Machine |
| Make |
UNION |
| Type |
CBFK 150/2 |
| New in |
1990/05 |
| Control |
|
| Location |
ab Werksstandort unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
ex foundation place "is as is" |
| Price |
| x-travel |
3000 mm |
| y-travel |
2000 mm |
| z-travel |
1600 mm |
| spindle diameter |
150 mm |
| spindle taper ISO |
50 |
| spindle stroke |
700 mm |
| spindle turning speed - stepless |
5 - 2500 U/min |
| rapid traverse |
10000 mm/min |

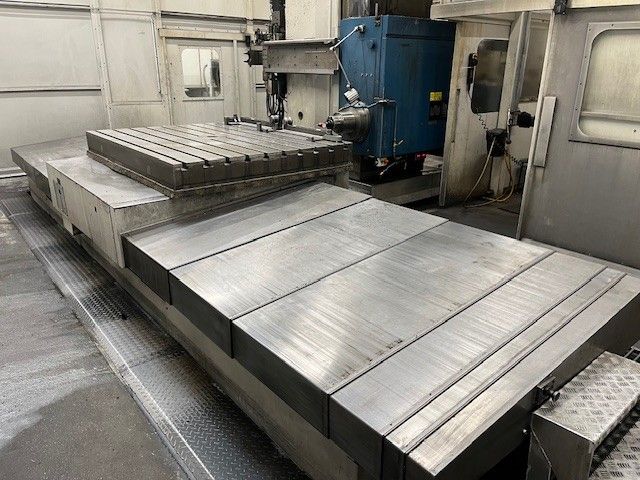

| table surface area |
1600 x 2000 mm |
| workpiece weight |
ca. 20 t |
| spindle drive motor |
50 kW |
| feeds x/y/z -stepless |
1 - 9999 mm/min |
| table positioning |
360.000 ° |
| total power requirement |
ca. 70 kW |
| weight of the machine ca. |
40 t |
| dimensions of the machine ca. |
6,0 x 8,0 x 4,5 m |
| Description |

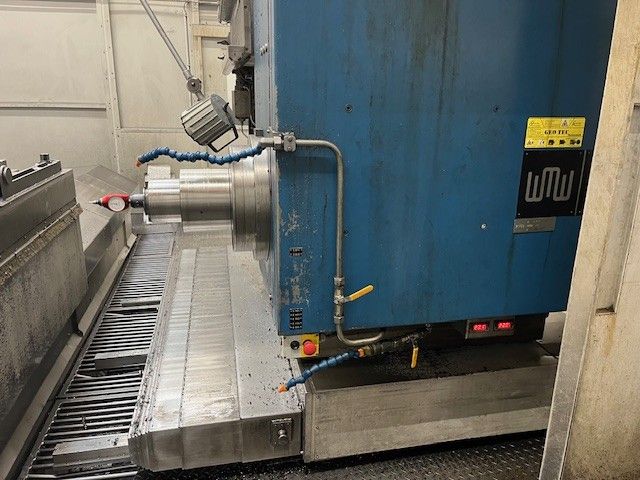

Horizontal drilling and milling machine / machining centre in cross-table design
with:

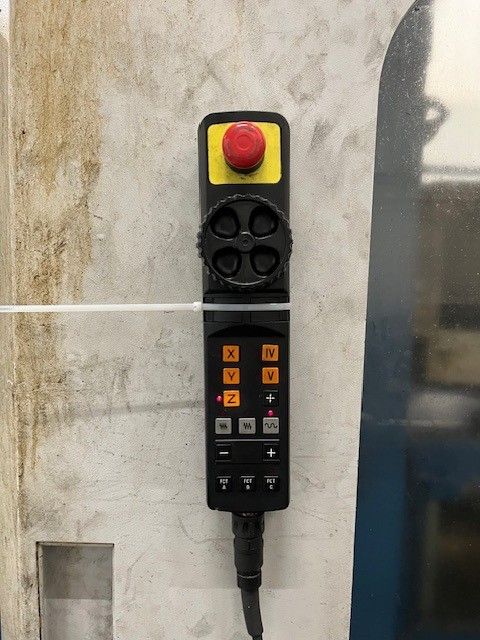

2005 new 5-axis CNC control Dr. Heidenhain TNC 430 - electronic handwheel HR
410 for all axes with V24 interface, punched tape reader, new electrics,
new hydraulics, new servo motors, measuring probe for workpiece measurement

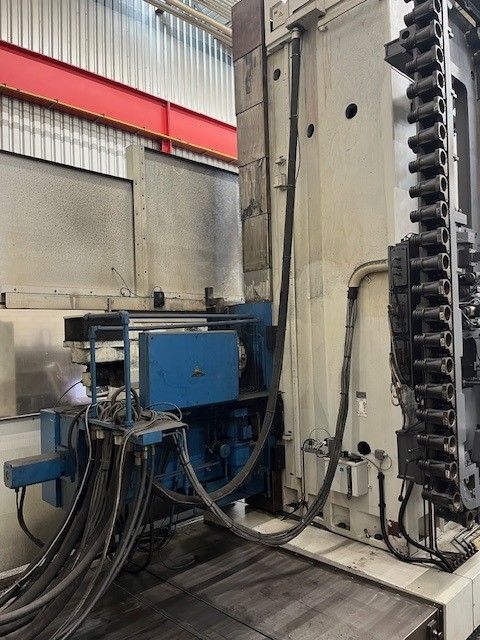

- 60-position chain tool changer model WM III k02
- B-axis (table rotary adjustment) 360,000 °
- IKZ - internal spindle cooling, 20 bar
- Chip conveyor

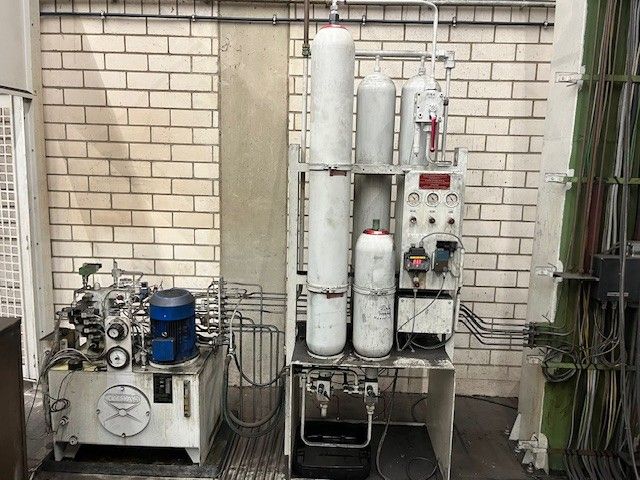

- Oil cleaning and cooling system with magnetic separator, etc.
- Splash guard
|
|
|
|
