| Stock-No. |
1020-20868 |
| Category |

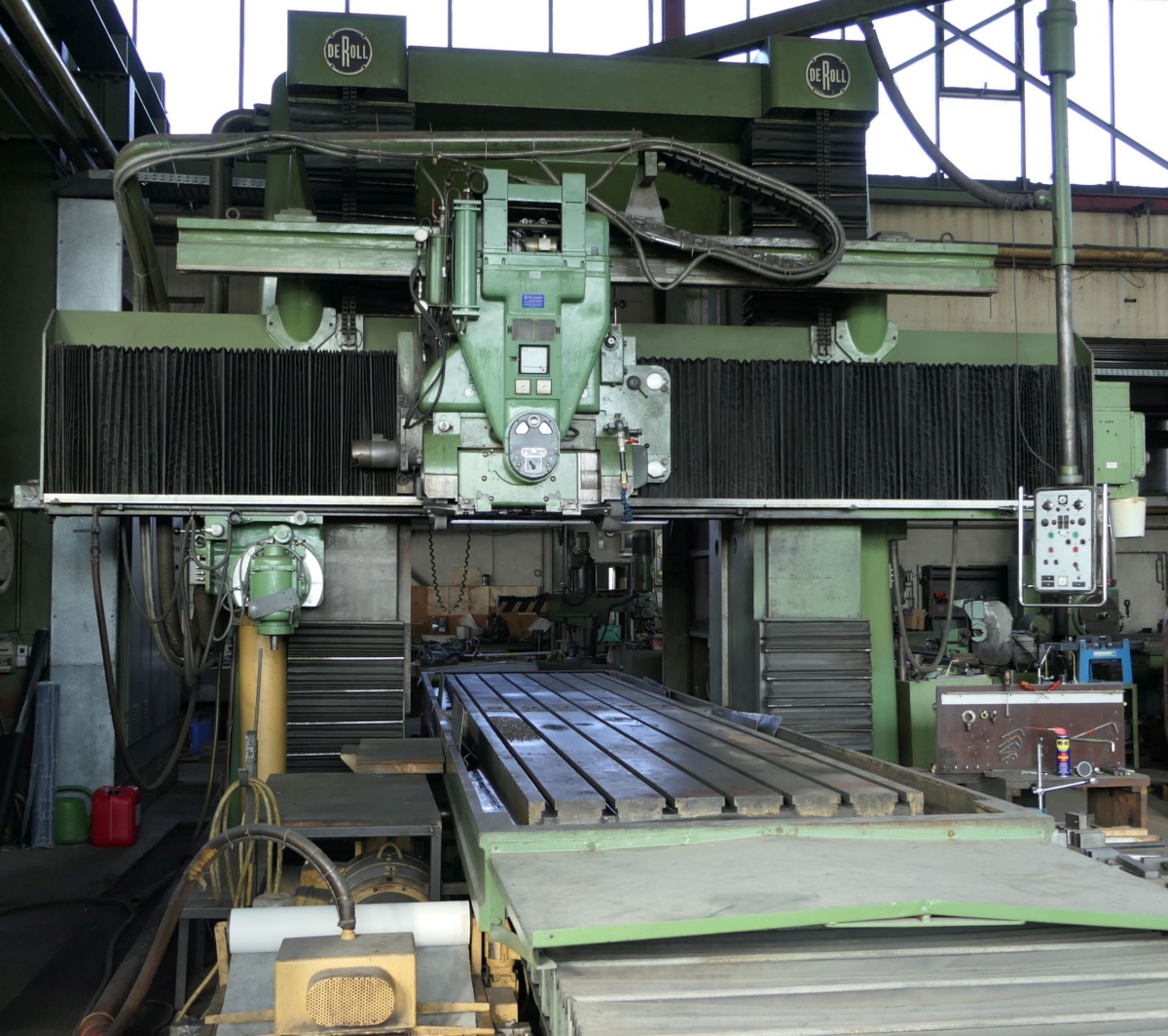

Slideway Grinding Machine - Double Col. |
| Make |
DE ROLL |
| Type |
|
| New in |
1966 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Switzerland |
| Delivery time |
sofort |
| Freight basis |
Ex Site - factory |
| Price |
| grinding length |
7500 mm |
| grinding width |
1400 mm |
| workpiece height |
1700 mm |
| column daylight |
1850 mm |
| table surface area |
7705 x 1250 mm |
| workpiece weight |
15 t |
| table speed -stepless- |
- m/min |
| grinding motor |
- kW |
| turning speeds |
- U/min |
| total power requirement |
- kW |
| weight of the machine ca. |
72 t |
| dimensions of the machine ca. |
- m |
| Description |
Machine is equipped with:

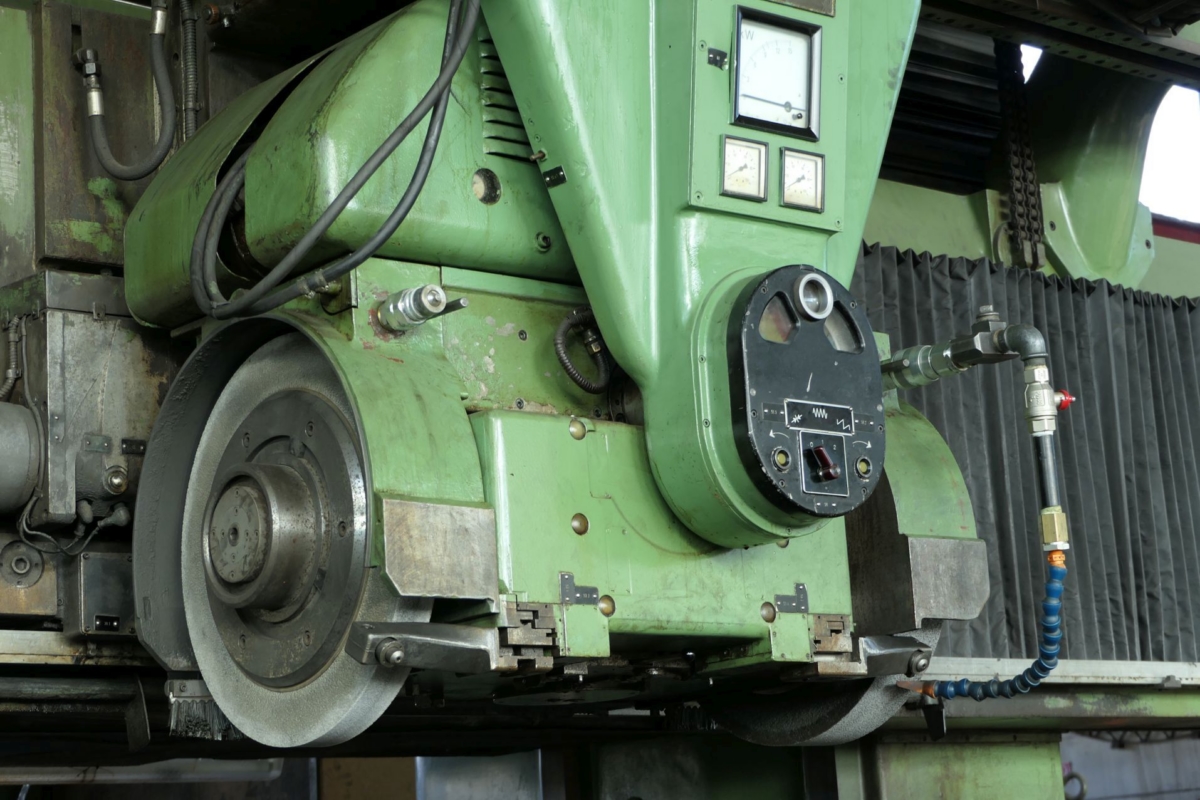

- Double grinding head
-- Grinding wheel on the right and left of the main spindle
-- Each side can be swivelled through 90°
-- Thanks to the special grinding head, there is no need to change or profile
the grinding wheel when prism or V-groove grinding
- Separate underhand grinding support
- Automatic grinding wheel dressing
|
