| Stock-No. |
1020-20862 |
| Category |
CNC Lathe |
| Make |
GURUTZPE |
| Type |
A-1000 CNC x 5000 |
| New in |
1999/2020 |
| Control |
FAGOR 8055 TC |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Spain |
| Delivery time |
short-dated |
| Freight basis |
EXW - ex site factory |
| Price |
| turning diameter |
1220 mm |
| turning length |
5000 mm |
| control |
FAGOR 8055 TC |
| turning diameter over slide |
880 mm |
| turning diameter over bed |
1220 mm |

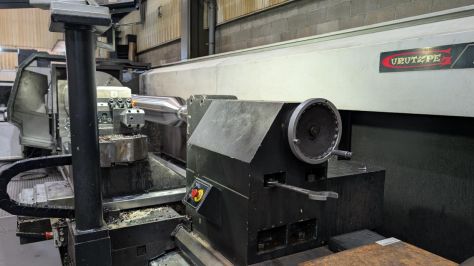

| tail stock |
M80 |
| tailstock quill diameter |
180 mm |
| tailstock quill stroke |
260 mm |
| spindle turning speed - stepless |
0 - 1000 U/min |
| spindle motor |
40 kW |
| total power requirement |
kW |
| weight of the machine ca. |
t |
| dimensions of the machine ca. |
m |
| Description |
complete retrofit in 2020
- CNC Control Fagor 8055 TC

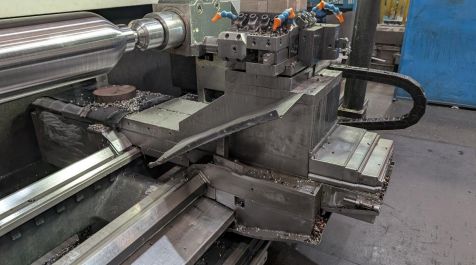

- Tool holder turret:SAUTER model 0.5.320.025, vertical axis

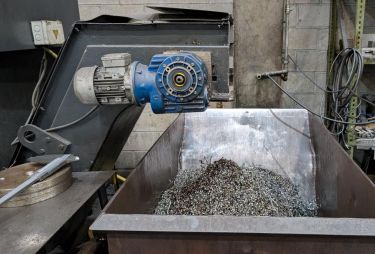

- Chip Conveyor

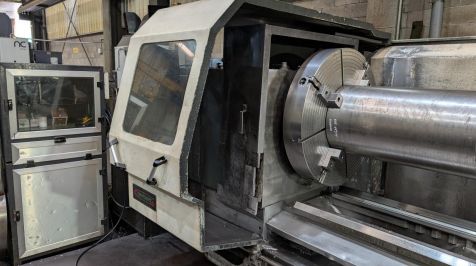

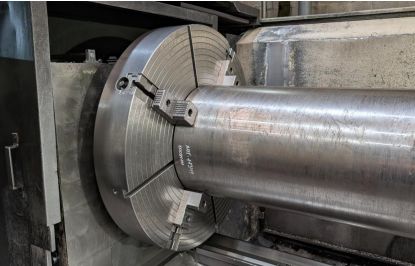

- 4-jaw chuck Ø1000 mm
- 3-jaw chuck Ø500 mm

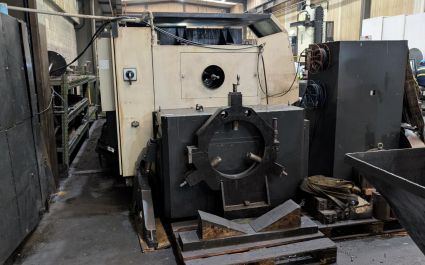

- Steady Ø500 mm
- Movable bezel Ø250 mm
- Special bar for machining very long interiors
- Coolant
RETROFITTING IN 2020
Grinding of carriage guides on the X and Z axes
Preloading of X and Z axis ball screw nuts
New Turcite placed on the X and Z axis carriages
General review and disassembly of the engine and head regulator
General review and disassembly of the motors and regulators of the X
and Z axes
Disassembly and inspection of the SAUTER tool holder
Checking and cleaning the electrical cabinet
Complete review of the hydraulic circuit
|
