| Stock-No. |
1020-20855 |
| Category |
Heavy Duty Lathe |
| Make |
HERKULES |
| Type |
2400X10000mm |
| New in |
unbekannt |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
According to the arrangement |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter over bed |
2400 mm |
| turning diameter over slide rest |
2200 mm |
| turning length |
10000 mm |
| power capacity |
185 kW |
| faceplate diameter |
1600 (2050) mm |
| turning speeds |
1,5 -150 U/min |
| max. torque on the faceplate |
220000 Nm |
| max. workpiece weight |
70000 kg |
| main drive |
185 kW |

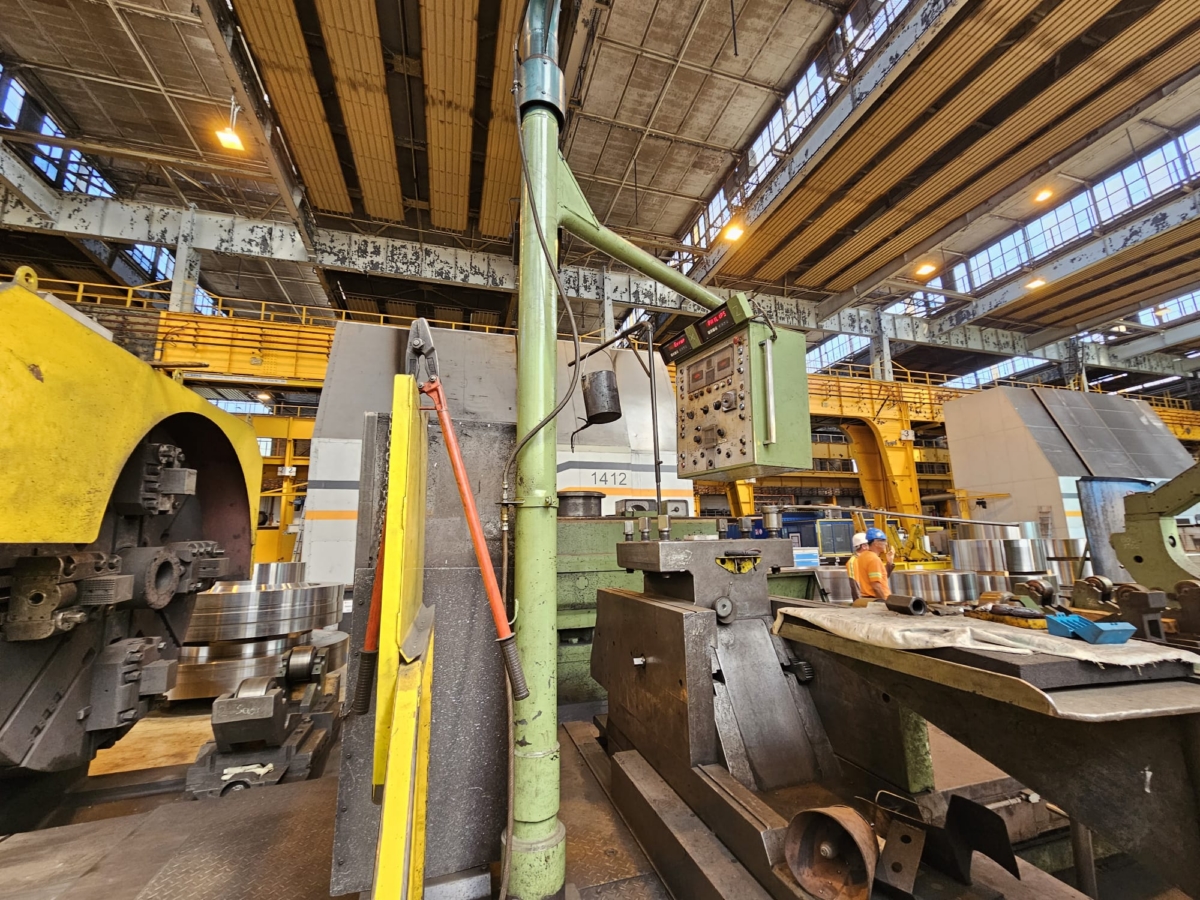

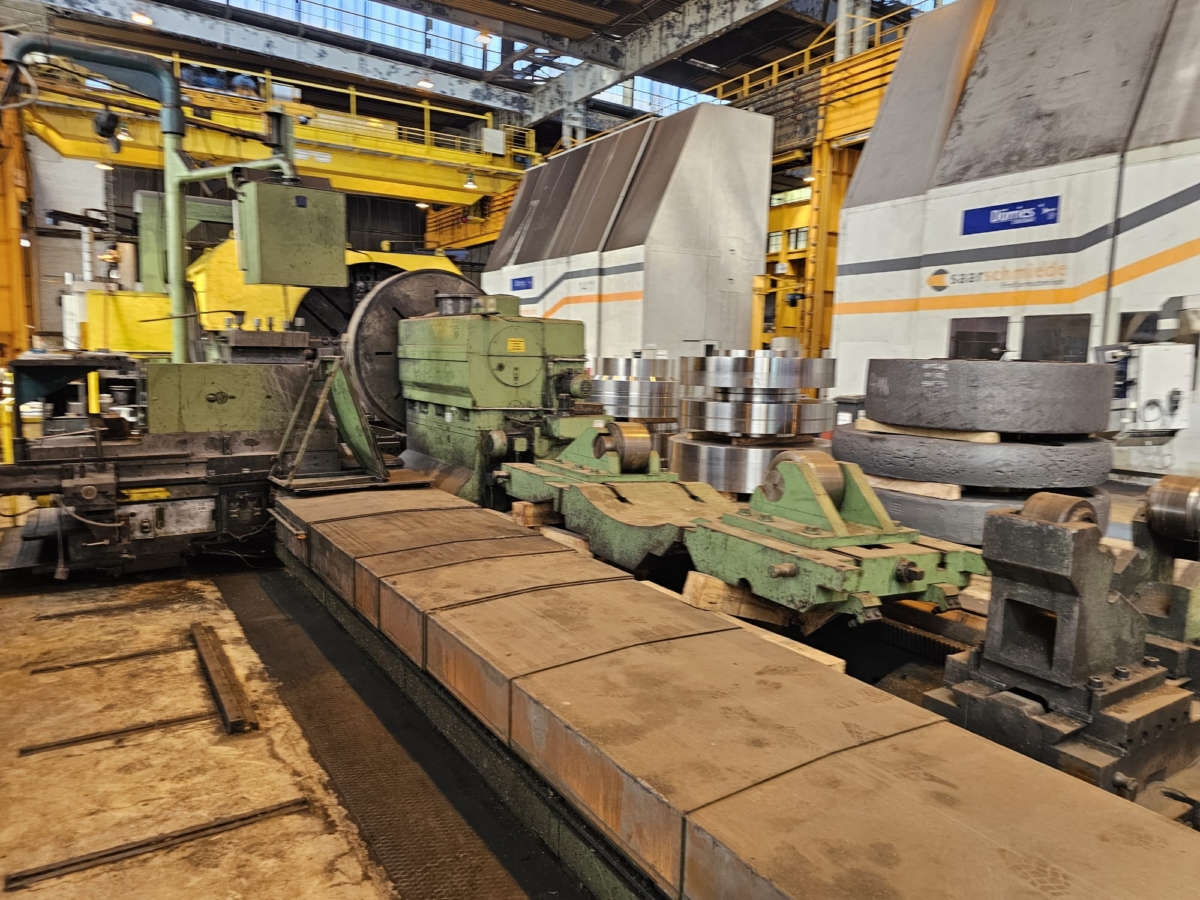

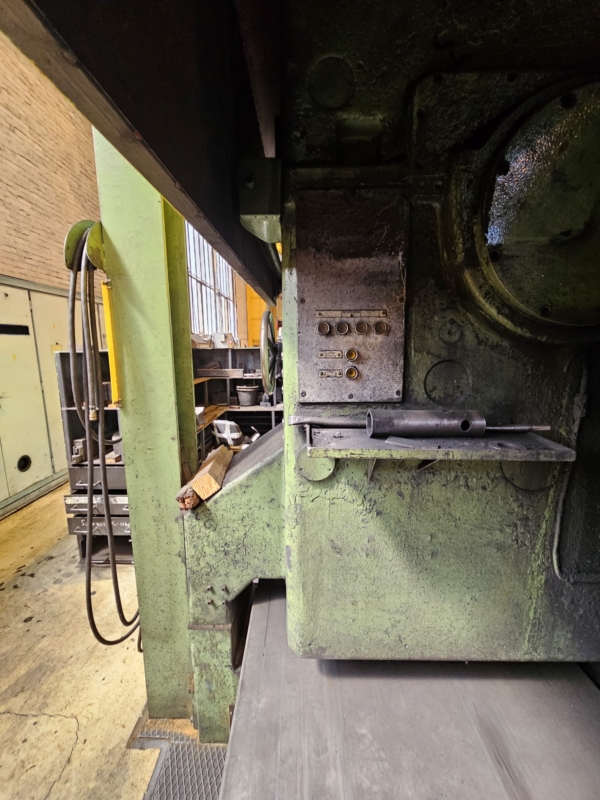

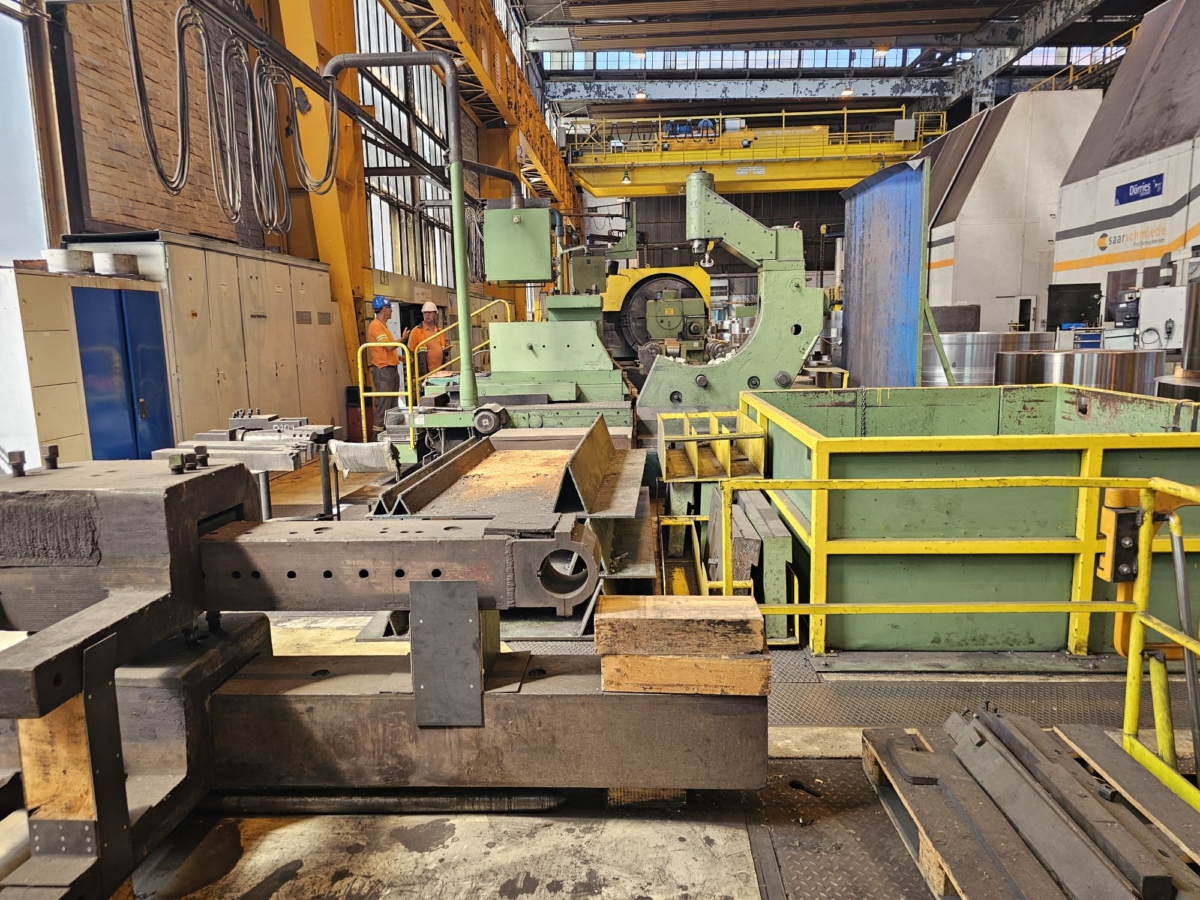

| Description |

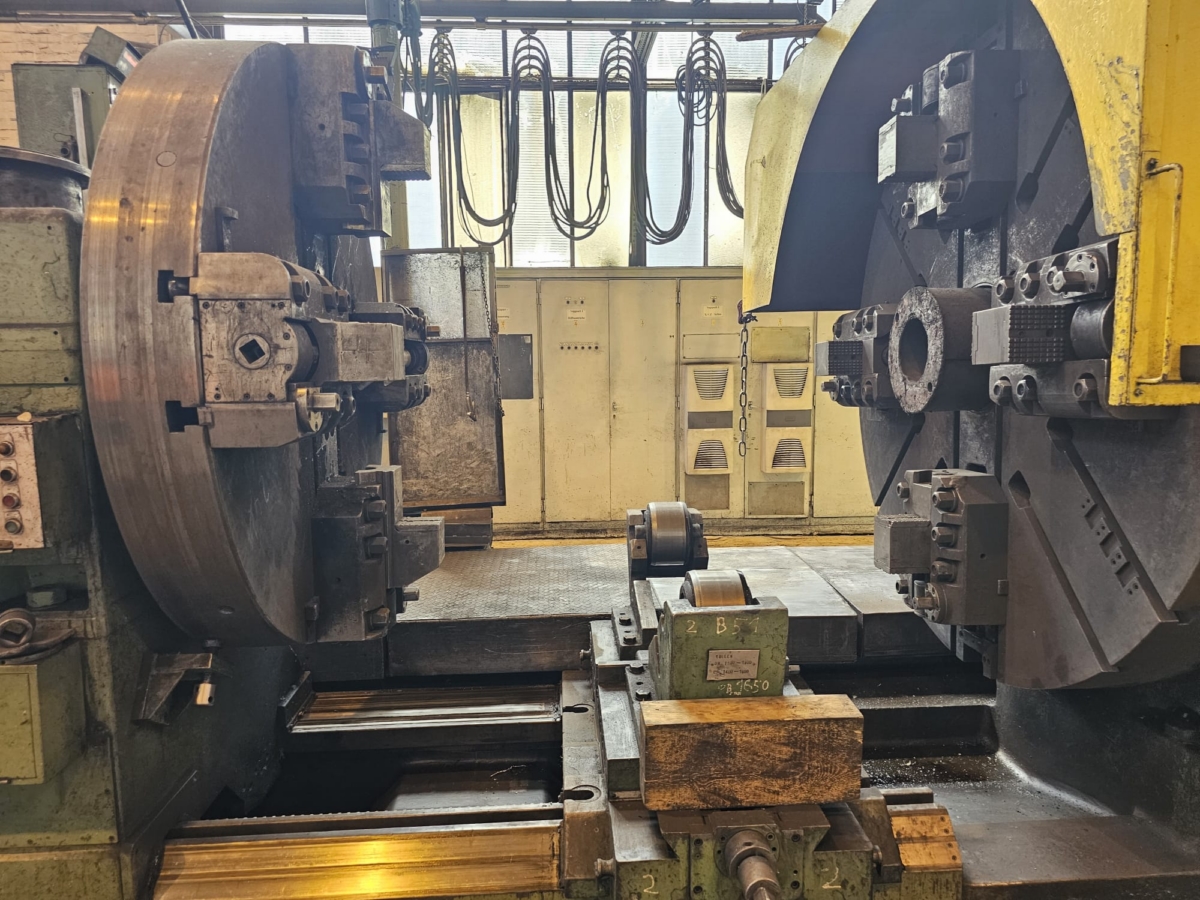

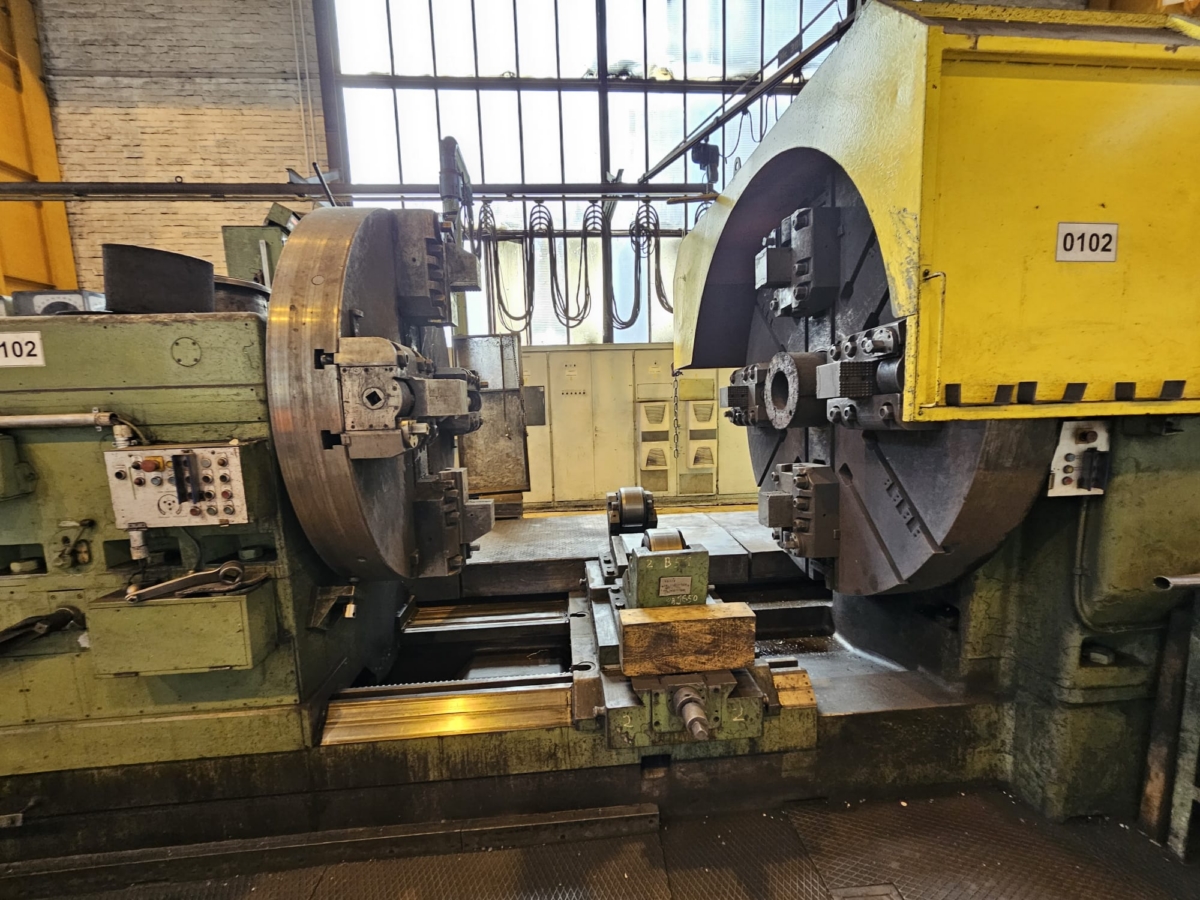

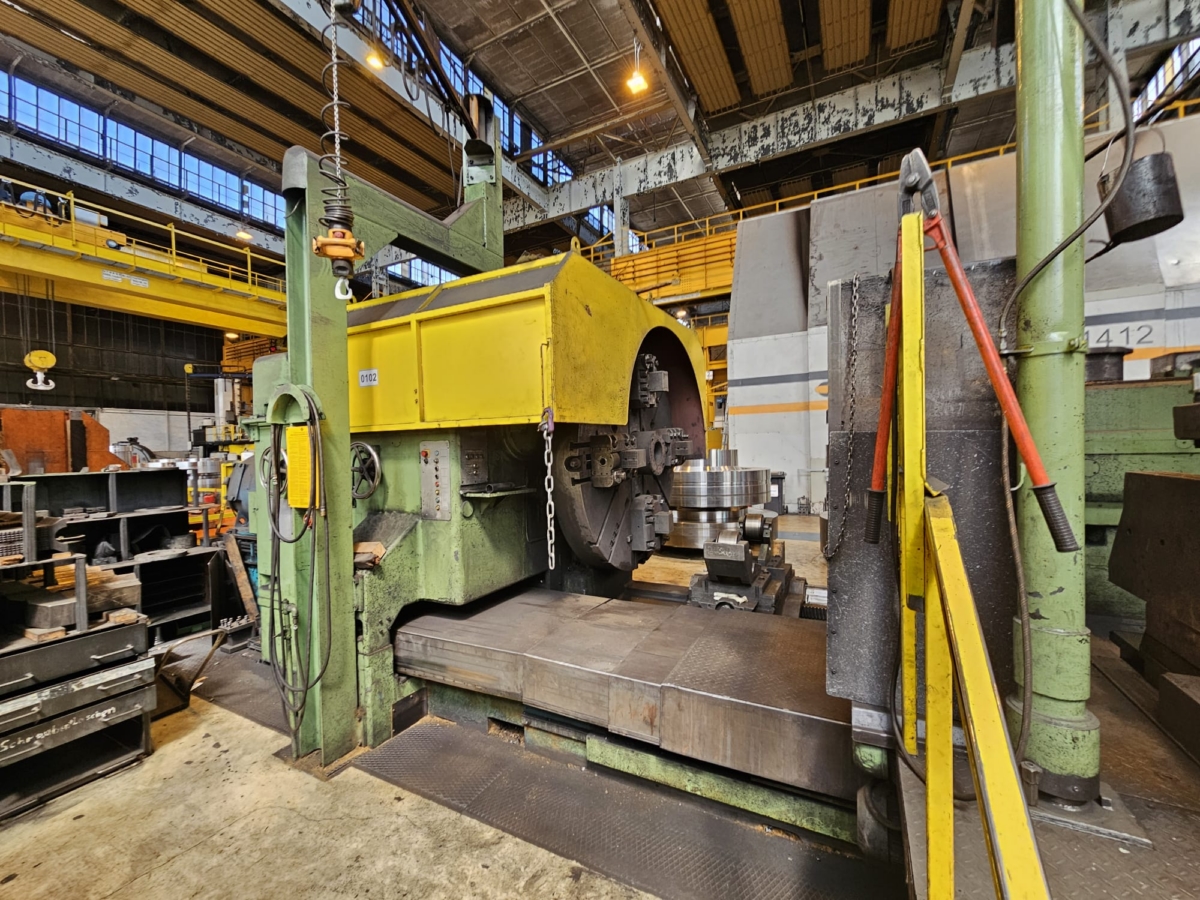

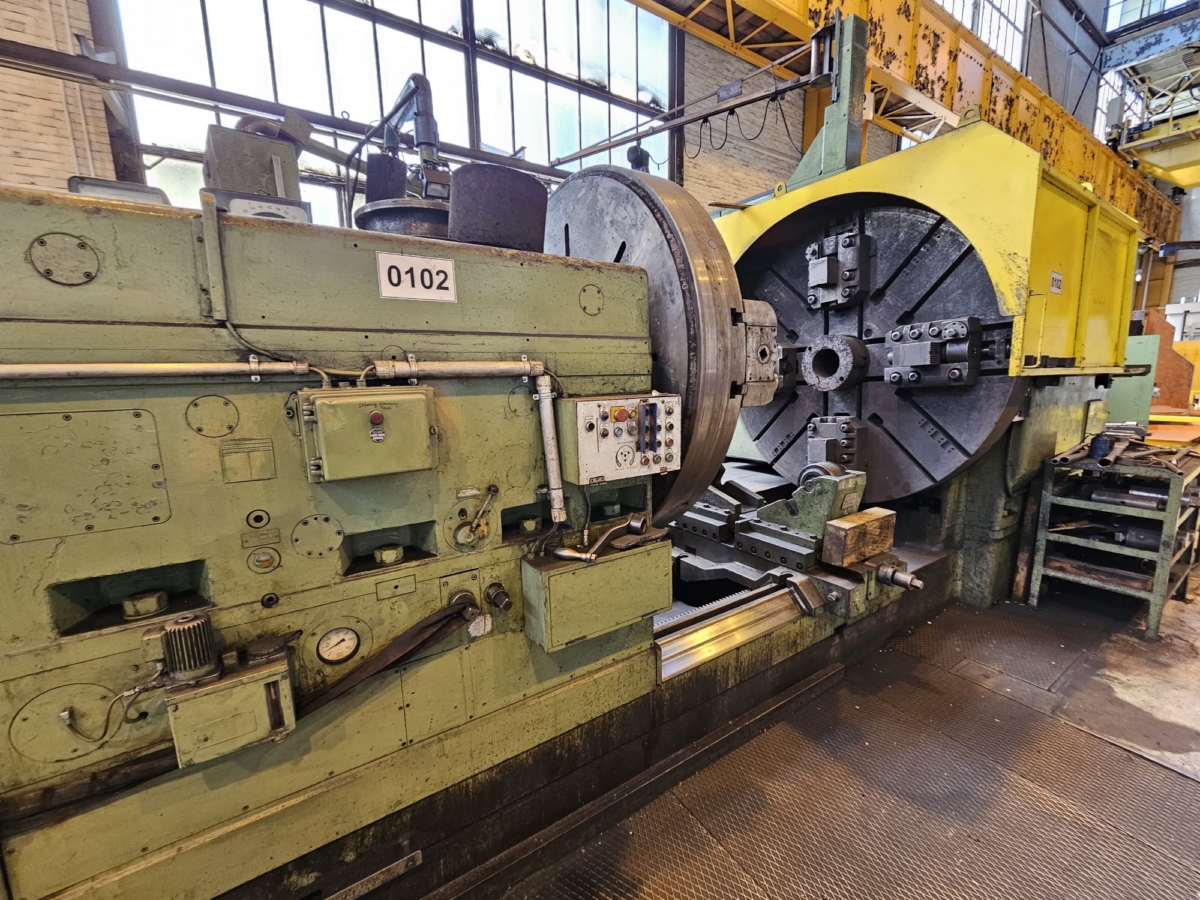

- Faceplate:
-- Clamping diameter in faceplate: 300-1600 mm with special claws up to 2050 mm

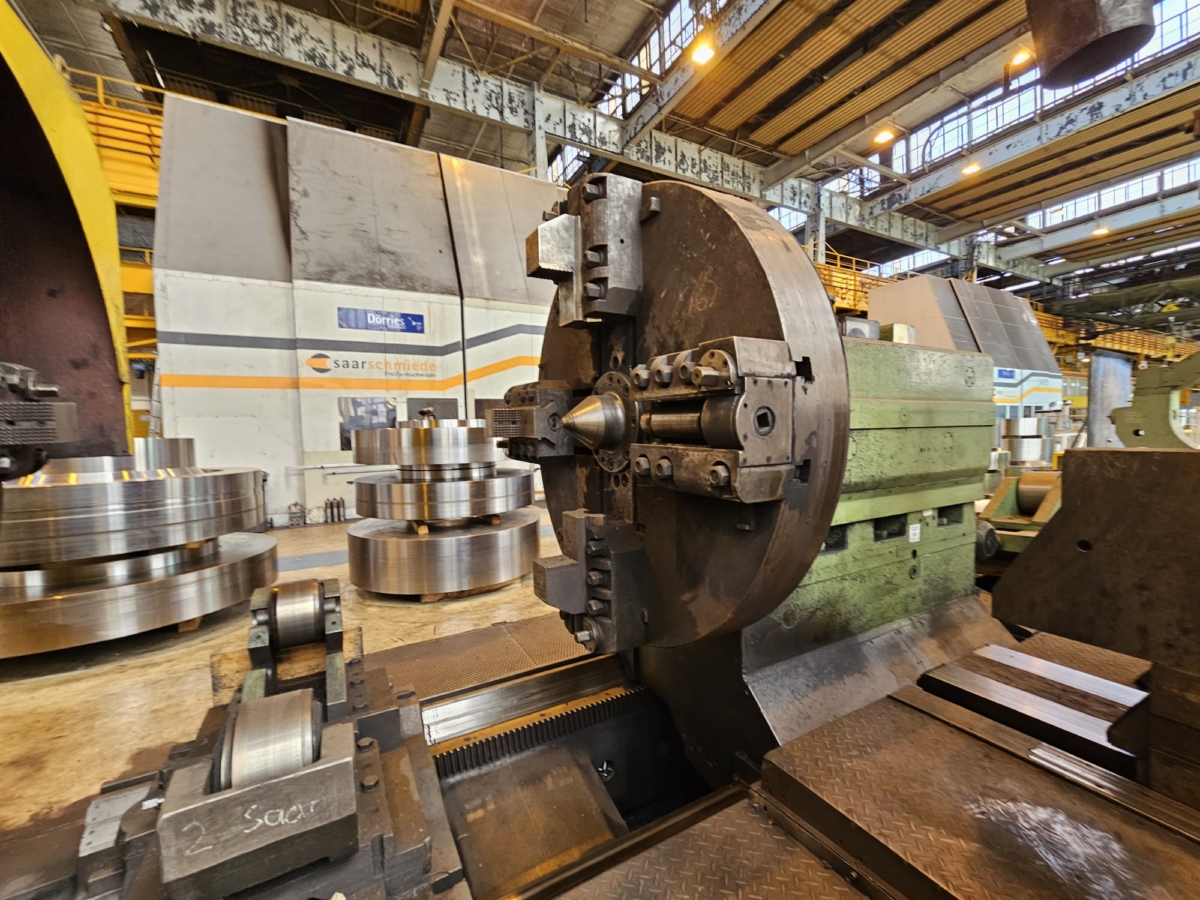

- Tailstock with faceplate:
-- Clamping diameter in tailstock faceplate: 300-1400 mm
-- Diameter of faceplate (removable): 1650 mm
-- Flange centre point angle: 70°
Quick adjustment: 1250 mm/min
Mounting in roller blocks: 1000 - 2250 mm
Mounting in roller steady rests: 300 - 1100 mm

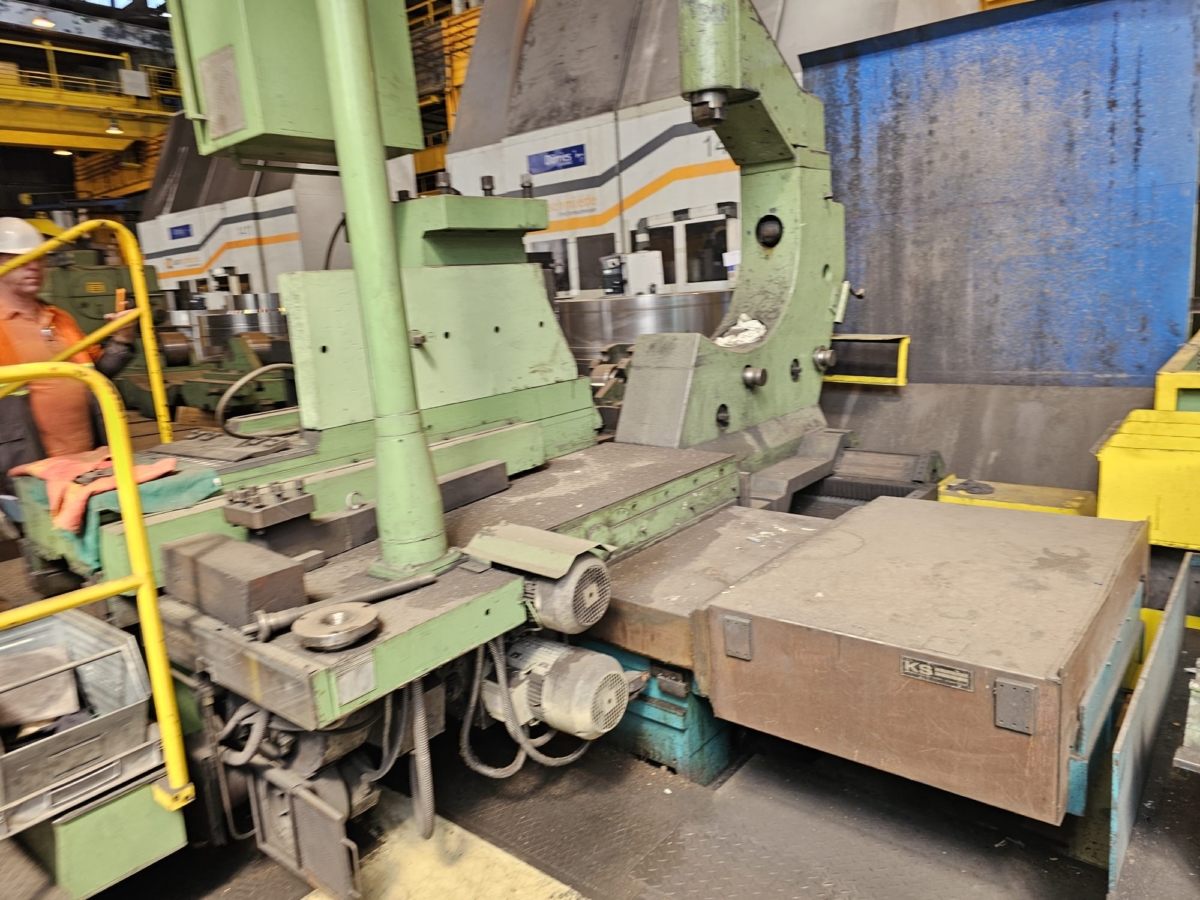

- Supports
-- Travel of the plunge slide: 500 mm
-- Travel of the face slide: 1400 mm
-- Quick adjustment, longitudinal: 2000 mm/min
-- Quick adjustment, face: 800 mm/min
-- Stepless feed, longitudinal: 0.6 - 300 mm/min
-- Stepless feed, cross: 0.3 - 120 mm/min
-- Max. cutting force on support: 20,000 kg
- Special equipment
-- Copying device for first support
Copying length 8,500 mm
Max. copying depth in one pass 500 mm
-- Boring device: Boring bar 460 x 390 mm
Drilling diameter 600 - 1000 mm
Maximum drilling depth in one pass 2700 mm
At Ks of 200 kp/mm² - s max. = 1.5 mm/rev
a = max. chip cross-section 30 mm² at a projection of 1000 mm
with increasing drilling depth, reduced chip cross-section
-- A guide ruler for cone turning, adjustment angle up to 8° and a maximum
cone length (in one pass) of 2000 mm, adjustment accuracy ± 5 minutes.
-- A guide ruler for taper turning, adjustment angle up to 15° and a maximum
taper length (in one pass) of 1000 mm, adjustment accuracy ± 5 minutes.
-- A base for sliding jaw steady rests for the 340 cylindrical grinding machine
|
|
|
|
