| Stock-No. |
1020-20852 |
| Category |
Roll Grinder |
| Make |
MEUSELWITZ |
| Type |
SAXW 1000 x 8000 |
| New in |
1965 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| grinding diameter |
1000 mm |
| grinding length |
8000 mm |
| swing diameter |
1200 mm |
| centre height |
600 mm |
| max. workpiece weight between centres |
10000 kg |
| workpiece weight max. |
20000 kg |
| workpiece turning speeds |
5 - 60 U/min |
| grinding slide speed stepless |
22 - 2240 mm/min |
| rapid travel - grinding head longitudinal |
3500 mm/min |
| turning speed range - grinding spindle |
450 - 1610 U/min |
| grinding wheel size |
425 /710 x 63 x 305 mm |
| tailstock adjustment |
max. 6000 mm |
| workpiece-drive |
20 kW |
| grinding motor |
30 kW |
| crowning with reference to bobbin radius |
0,01 - 1,5 mm |
| total power requirement |
52 kW |
| weight of the machine ca. |
35,4 t |
| dimensions of the machine ca. |
13,1 x 3,3 x 2,35 m |
| Description |

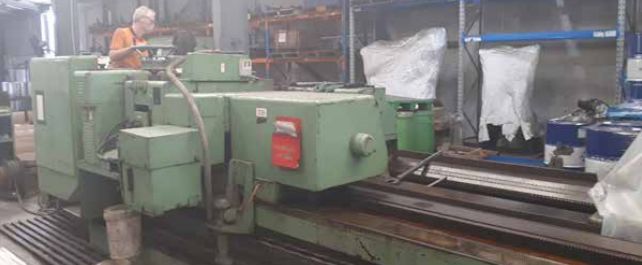

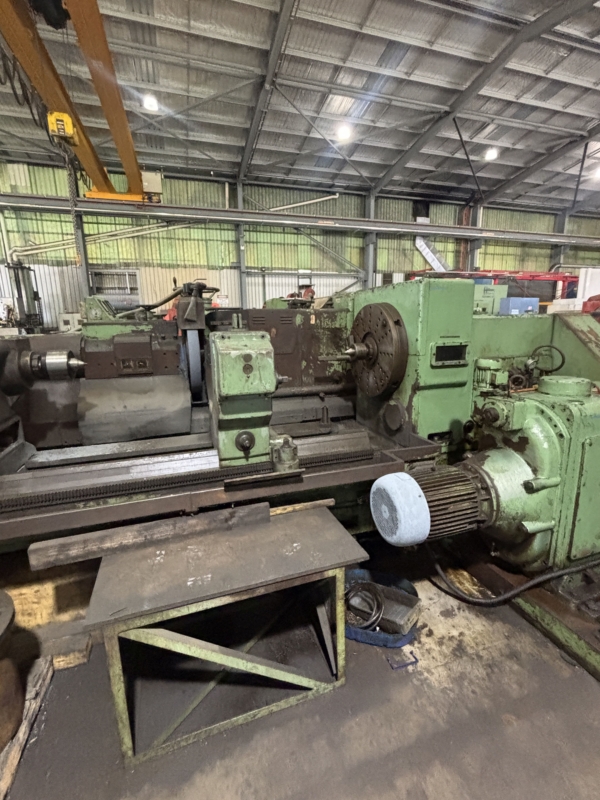

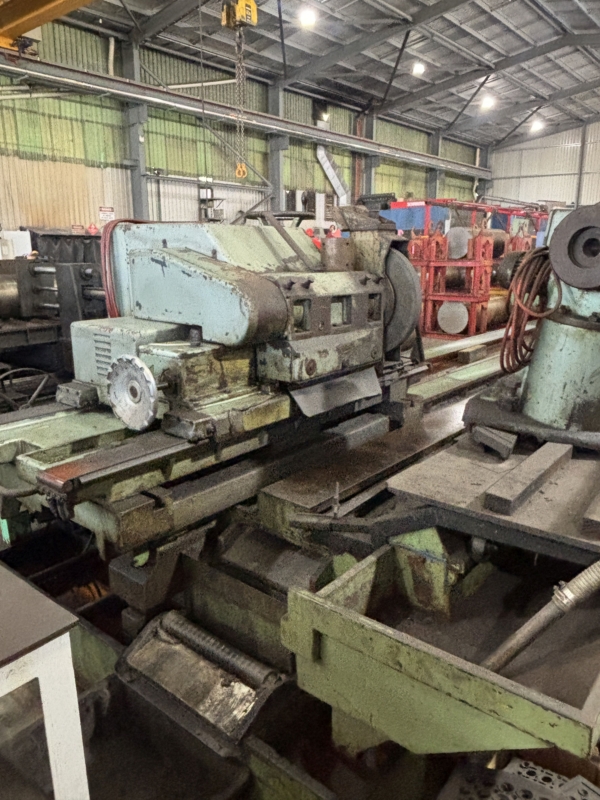

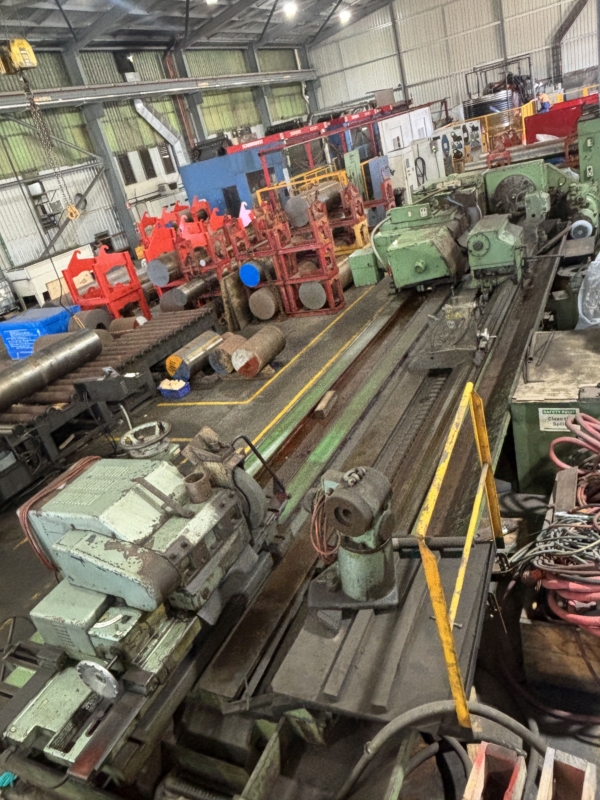

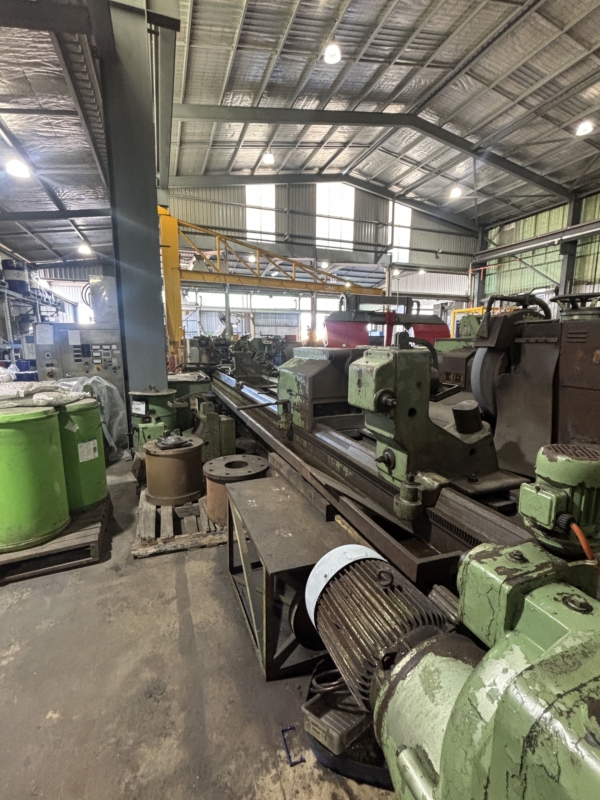

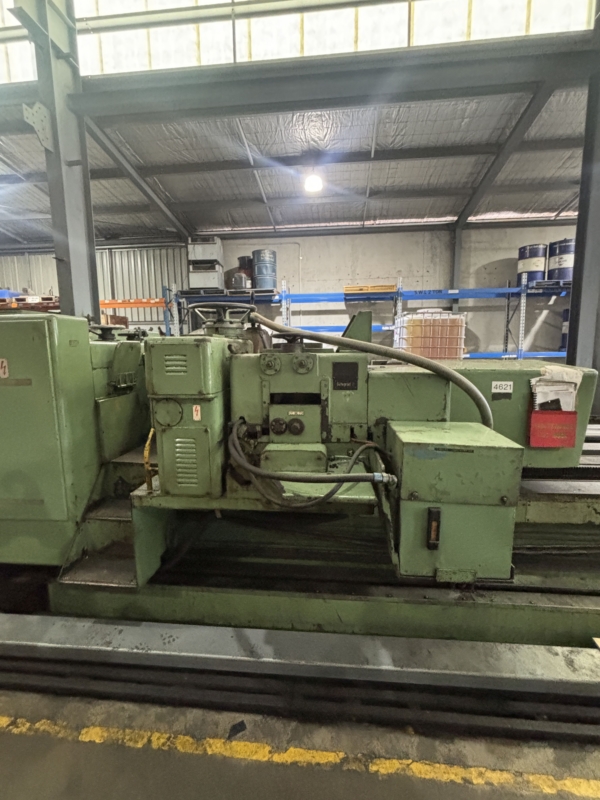

Roller grinding machine with movable grinding spindle carriage

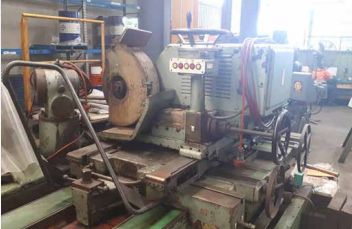

- 2 Grinding Supports
- Hollow and crown grinding device
- Telescopic covers
- Coolant system
- Position tolerance 0.005

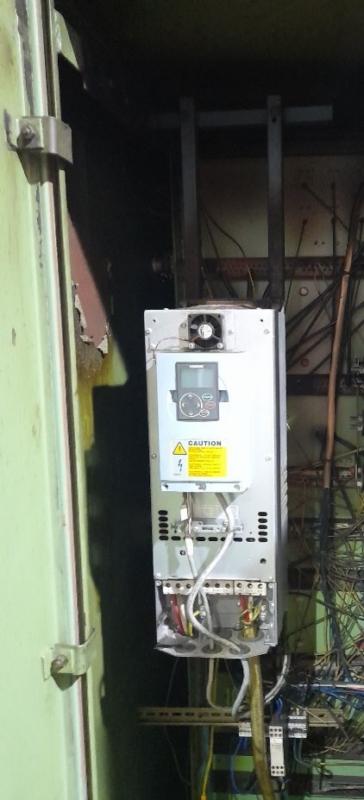

- Frequency converter for grinding wheel speed
Machine grinds smoothly between 0.2 and 0.4Ra
|
