| Stock-No. |
1020-20850 |
| Category |
CNC Turning- and Milling Center |
| Make |
MAZAK |
| Type |
HQR 150 - MSY |
| New in |
2023 |
| Control |
Mazatrol Smooth |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Japan |
| Delivery time |
immediately or upon agreement |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter |
320 / 270 mm |
| workpiece length - max. |
620 mm |
| control |
Mazatrol Smooth |
| swing diameter |
300 / 172 mm |
| workpiece weight |
kg |
| ------------ MAIN SPINDLE ------------ |
|
| turning speeds |
5000 U/min |
| passage of spindle |
76 mm |
| c-axis |
0,0001 |
| spindle motor |
15 / 11 kW |
| spindle nose |
A2-6 |
| travel -x axis |
175 / 111 mm |
| travel -y axis |
100 / 70 mm |
| travel -z axis |
520 / 580 mm |
| rapid travel x/y/z |
30 / 26 / 40 m/min |
| 2nd Spindle: |
|
| spindle turning speed range |
6000 U/min |
| spindle motor |
11 / 7,5 kW |
| spindle nose |
A2-5 |
| spindle passage |
61 mm |
| w-axis |
625 mm |
| bar capacity |
65 mm |
| total power requirement |
39,2 kVA |
| weight of the machine ca. |
9,1 t |
| dimensions of the machine ca. |
2,87 x 2,3 x 2,4 m |
| Description |

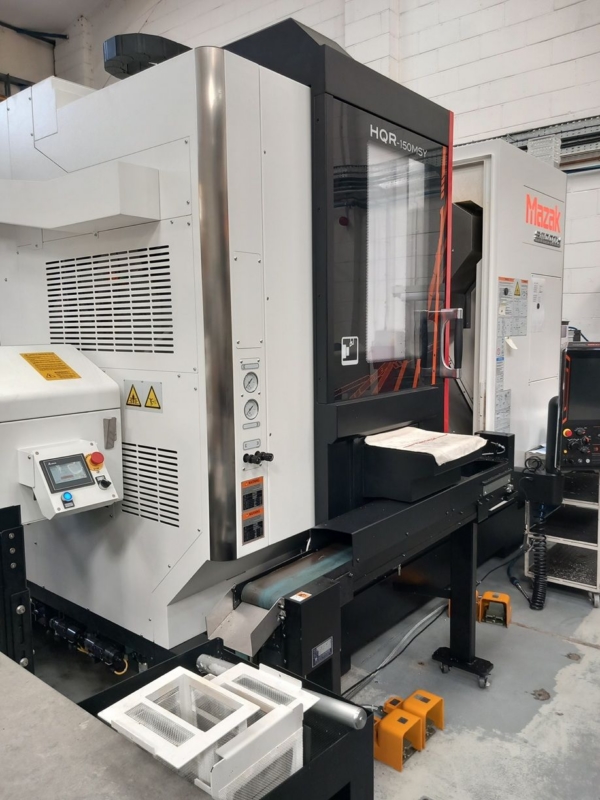

Highly efficient CNC turning centre with 2 turrets / 2 spindles for driven
tools and long Y-axis travel
- Smooth CNC control

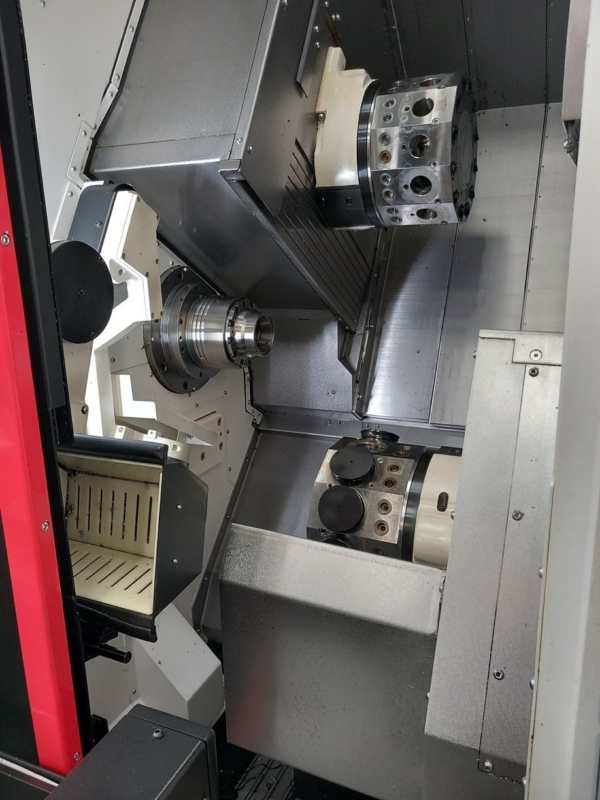

- Main & counter spindle

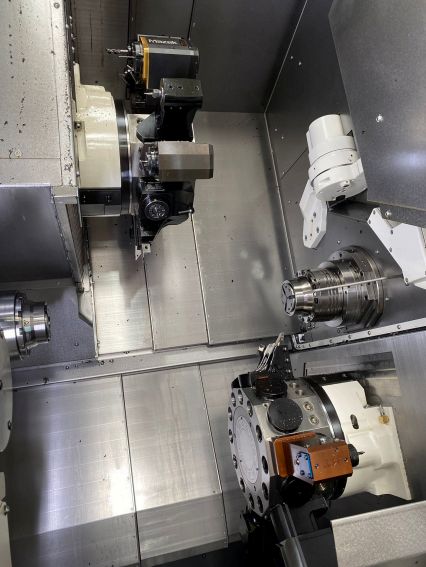

- 2 tool turrets
-- 12-station tool turret (2x)
-- Spindle for rotary tool: spindle speed 6000 rpm, 5.5/2.2 kW
- IKZ 70 bar
- Renishaw measuring pin
- Chip conveyor

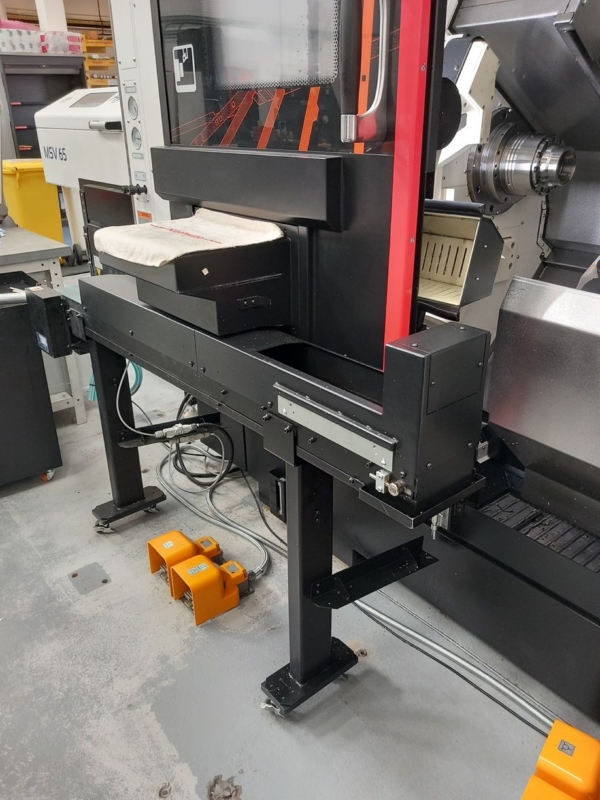

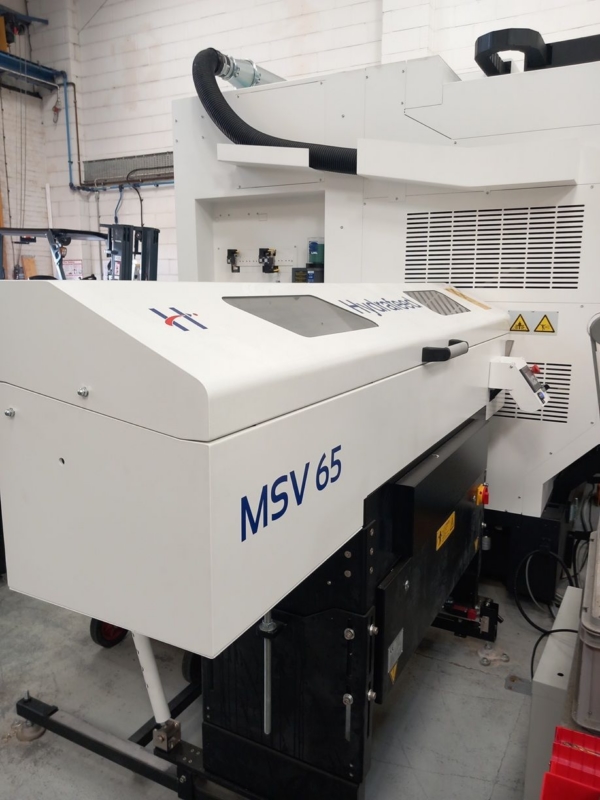

- MSV 65 bar loader

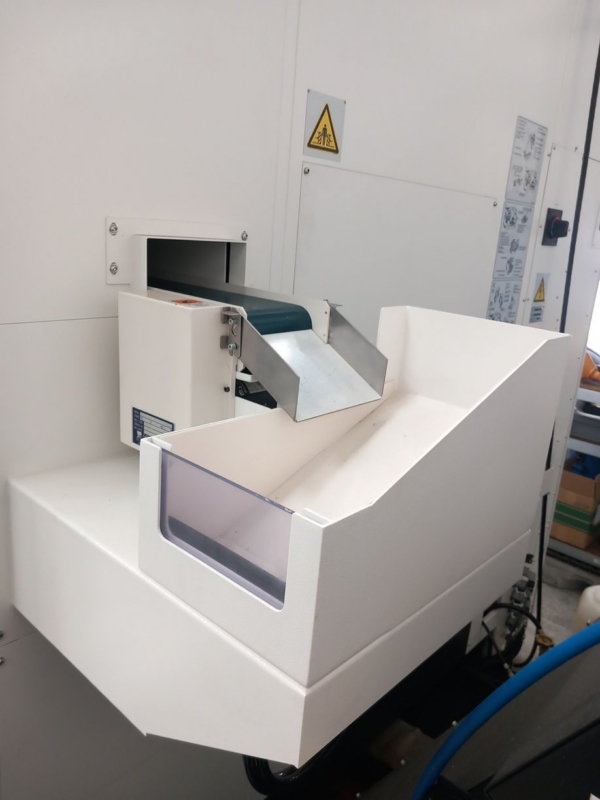

- Parts conveyor
- Parts ejector

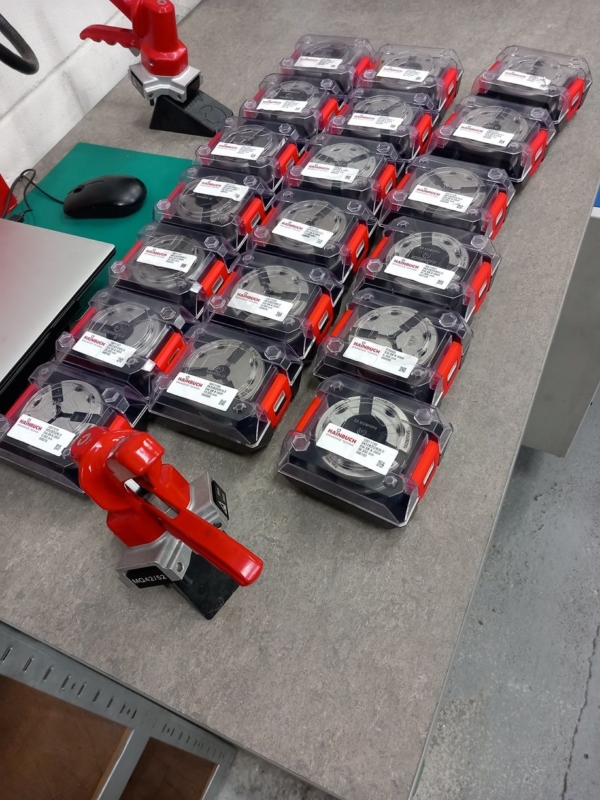

- HAINBUCH collet chuck with collets.

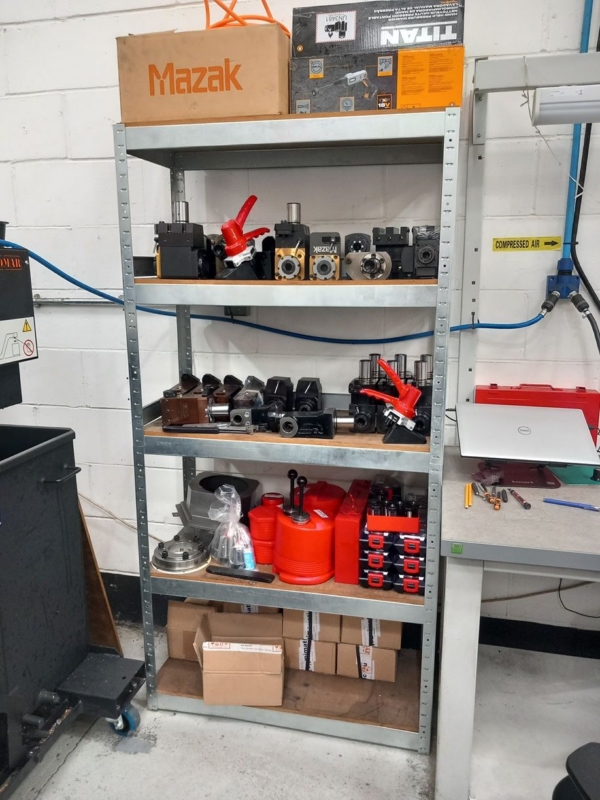

Selection of driven tools

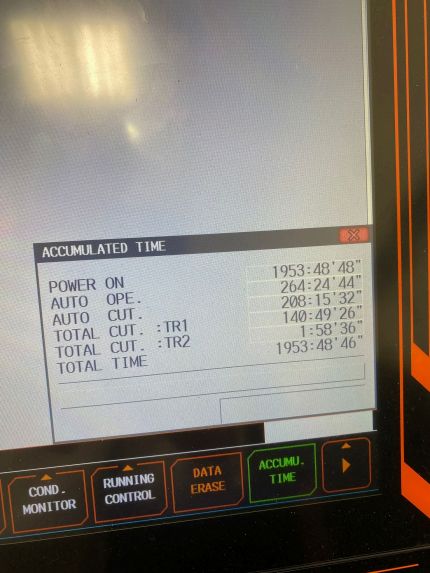

Operating time 270 hours. The machine has been used very little.
|
|
|
|
