| Stock-No. |
1020-20849 |
| Category |
Cylindrical Grinding Machine - Universal |
| Make |
STUDER |
| Type |
favorit 1044 |
| New in |
2019 |
| Control |
Fanuc 0i-TD |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Switzerland |
| Delivery time |
immediately |
| Freight basis |
ex foundation "is as is, where is" |
| Price |
| centre height |
175 mm |
| grinding length |
400 mm |
| grinding diameter |
350 mm |
| control |
Fanuc 0i-TD |
| Resolution |
0,0001 mm |
| grinding spindle head: |
|
| grinding wheel turining speeds |
3200 U/min |
| grinding spindle - swivable |
0,15 -30 ° |
| grinding wheel size |
500 x 63 x 203 mm |
| peripheral speed |
max. 50 m/sec |
| power capacity |
11,5 kW |
| workpiece spindle head: |
|
| Number of revolutions |
1 - 1.500 rpm |
| power capacity |
1,8 kW |
| spindle passage |
26 mm |
| Fitting taper |
MK 4 |
| Tailstock: |
|
| taper of center |
MK 3/4 |
| quill stroke |
35 mm |
| diameter of quill |
50 mm |
| fine adjustment |
+/- 0,04 mm |
| axis stroke: |
|
| x-axis |
370 mm |
| z-axis |
500 mm |
| b-axis |
255 ° |
| feeds: |
|
| feed speeds |
X: 0,001 - 15.000 mm/min |
| feed speeds |
Z: 0,001 - 20.000 mm/min |
| workpiece weight |
150 kg |
| workpiece length - max. |
640 mm |
| max. workpiece diameter |
349 mm |
| total power requirement |
20 kVA |
| weight of the machine ca. |
7,5 t |
| dimensions of the machine ca. |
4,6 x 4,8 x 2,55 m |
| Description |

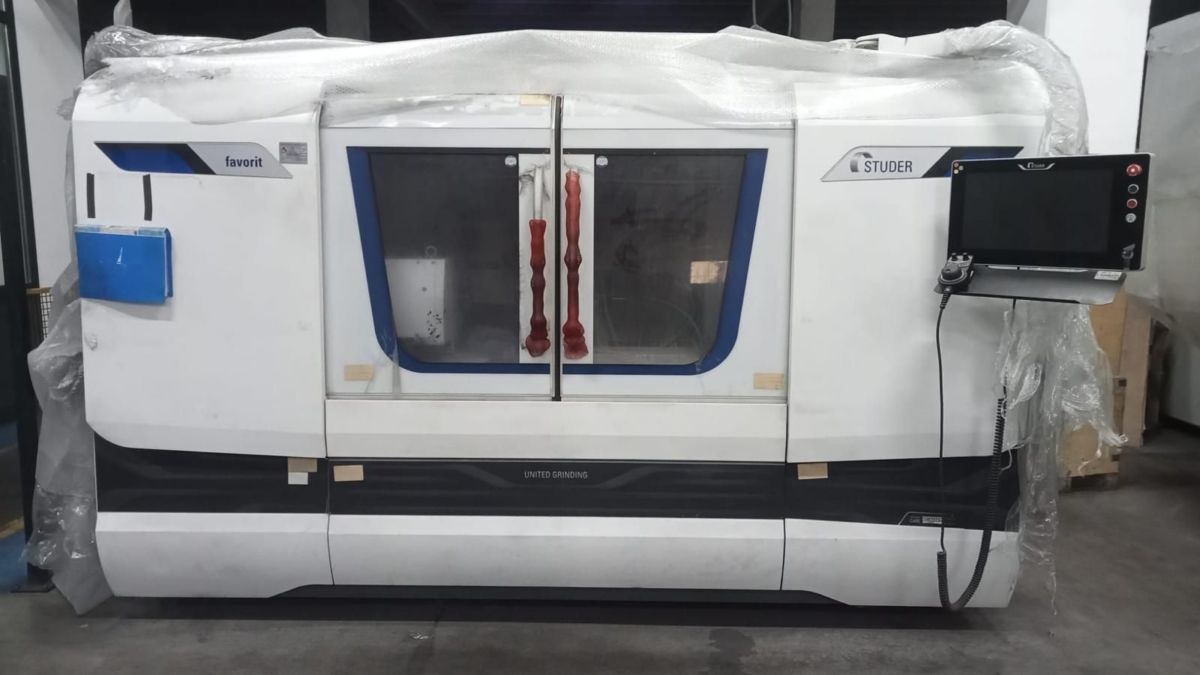

Unused machine (still in packaging) equipped with:

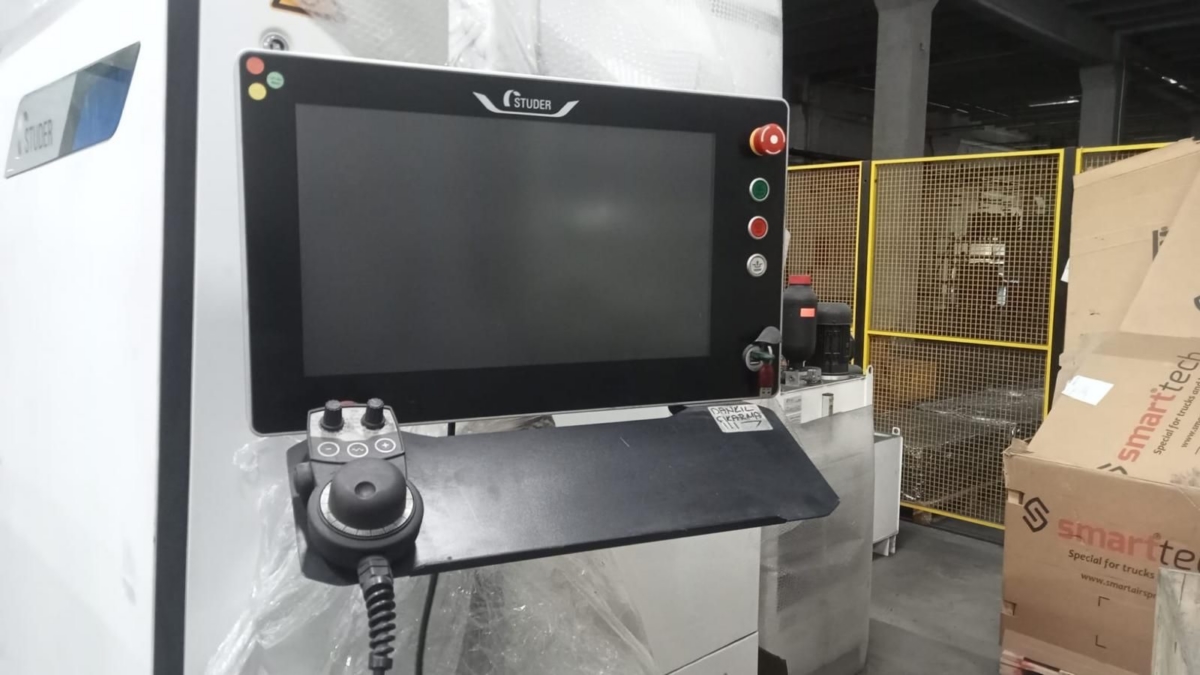

- FANUC 0i-TF CNC control (Windows-based), StuderWIN software
- Grinding head for external, flat, conical and profile grinding (3° Hirth
toothing)
- Direct measuring system 0.0001 mm (linear)
- extraction system

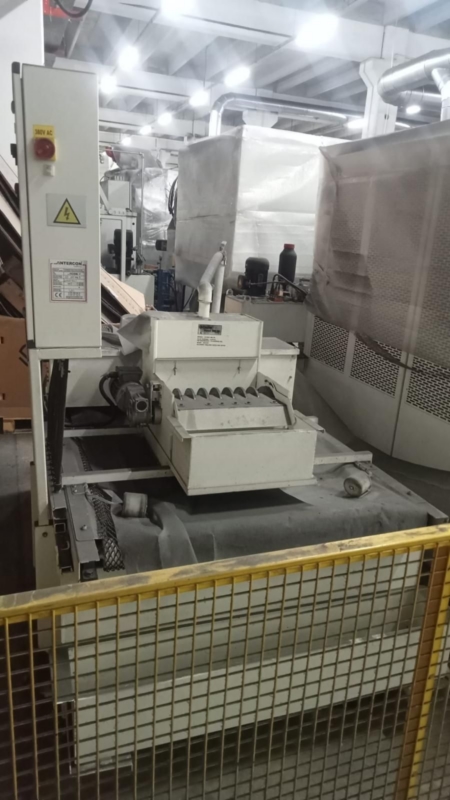

- coolant system with paper belt filter
- balancing system
- measuring device
- diamond dressing device
- various clamping devices (chucks, collets, centres)
- various grinding wheels, diamond dressing rollers, set of spare parts
Running time: TEST RUN only 700h
