| Stock-No. |
1020-20837 |
| Category |

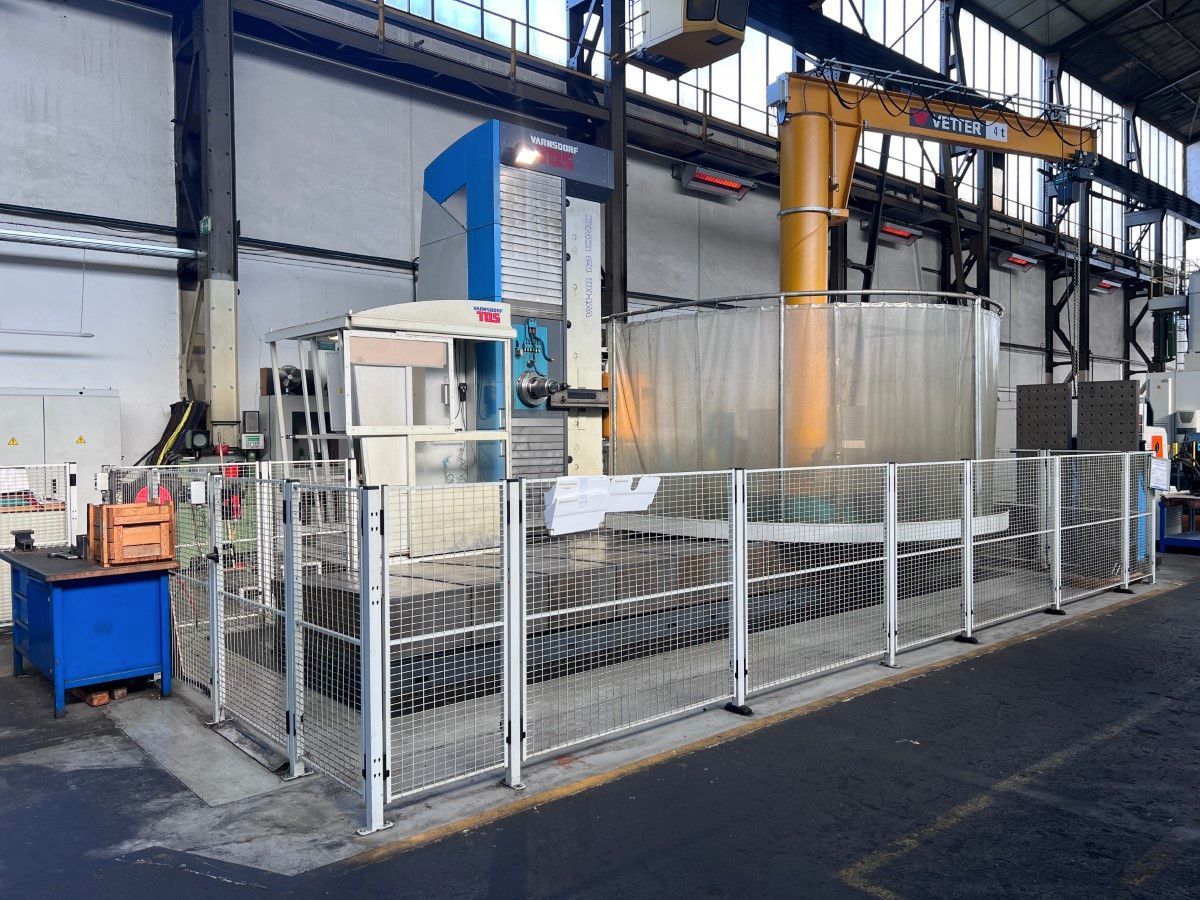

Table Type Boring and Milling Machine |
| Make |
TOS-VARNSDORF |
| Type |
WHQ 13 CNC |
| New in |
2018 |
| Control |
Heidenhain TNC 640 |
| Location |
ab Werk demontiert |
| Origin |
Czech Republic |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| spindle diameter |
130 mm |
| x-travel |
3500 mm |
| y-travel |
2500 mm |
| z-travel |
1600 mm |
| w-axis |
800 mm |
| b-axis |
360 ° |

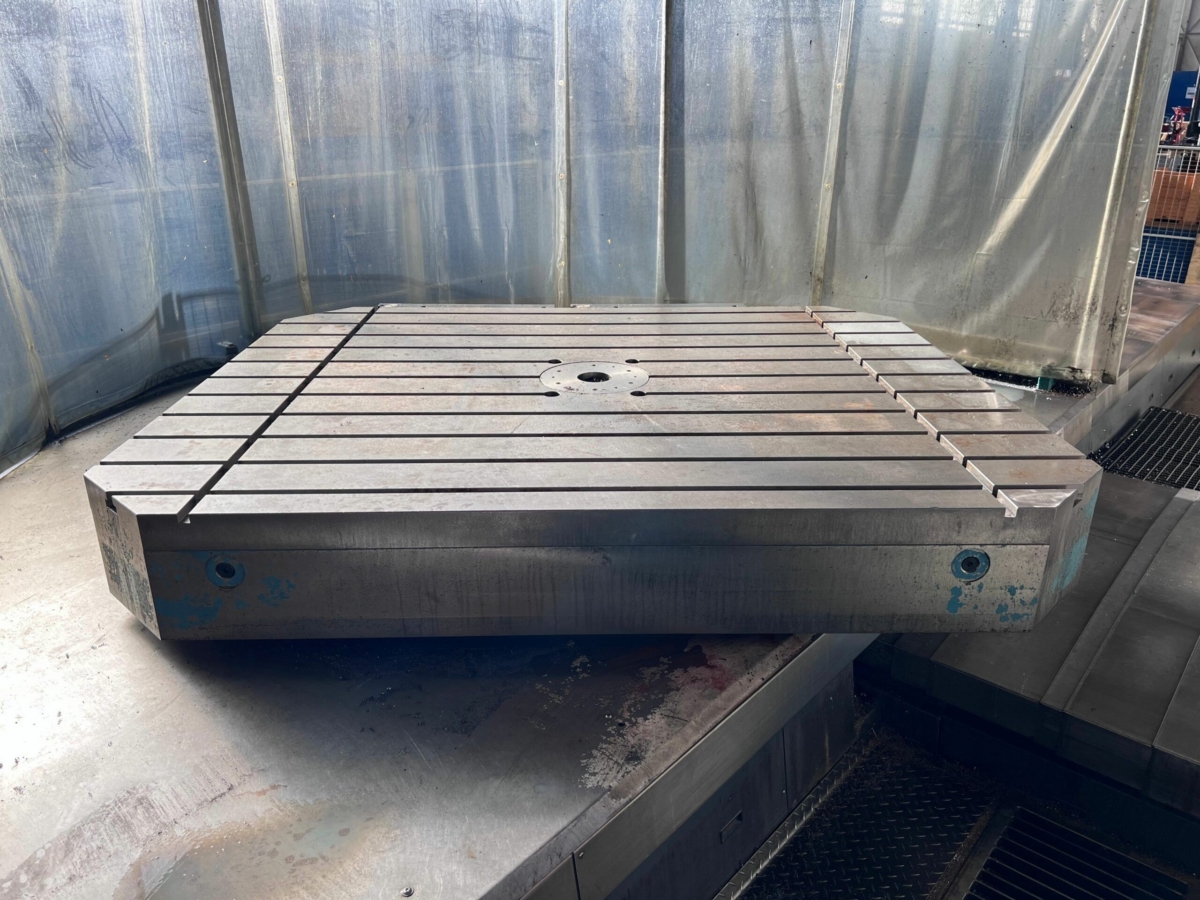

| table: |
1800 x 2200 |
| table load |
25 t |
| feed range |
10000 mm/min |
| spindle turning speed range |
10 - 3000 U/min |
| spindle taper ISO |
50 |
| spindle motor |
37/46 kW |
| rapid traverse |
10 m/min |
| Control |
Heidenhain TNC 640 |
| total power requirement |
70 kW |
| weight |
38 t |
| range L-W-H |
8,5 x 8,6 x 5,5 mm |
| Description |
Equipped with:

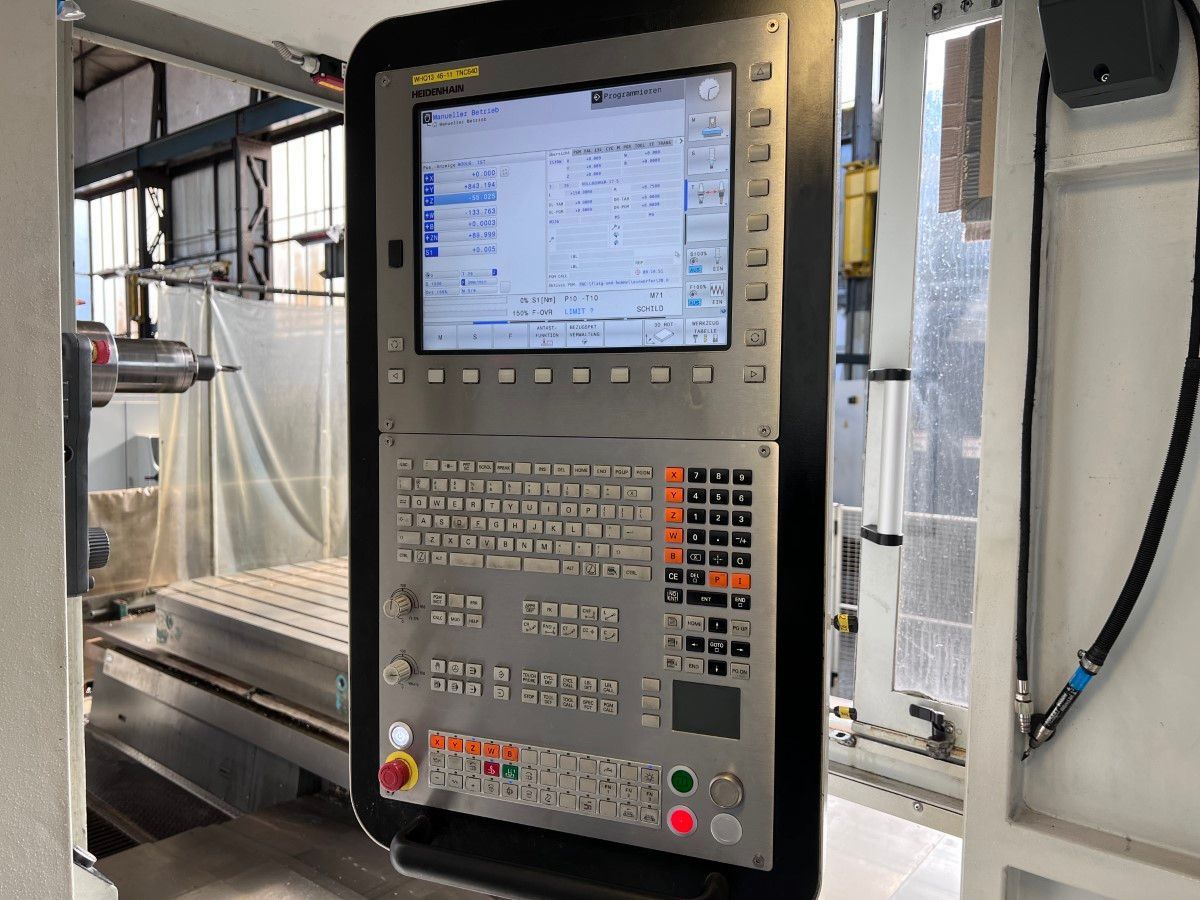

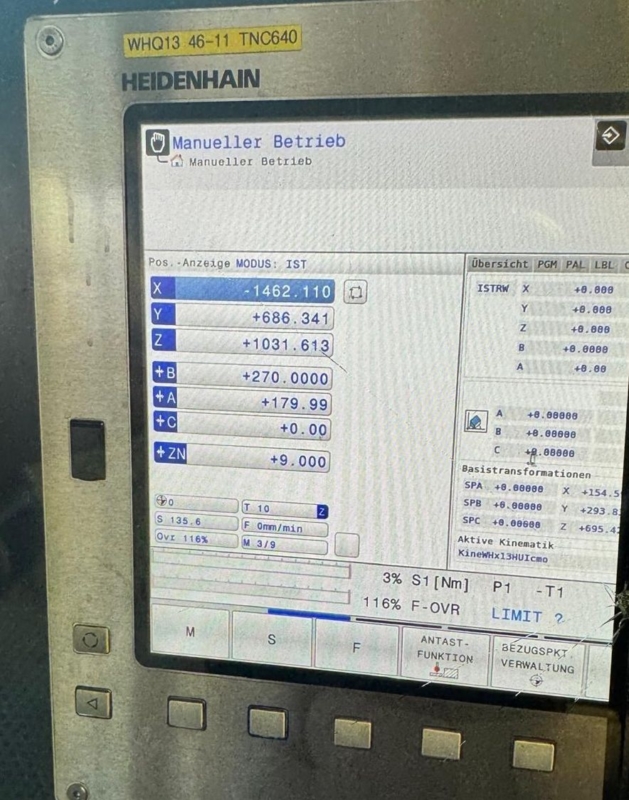

- Heidenhein iTNC 640 CNC control & HR 510 handwheel

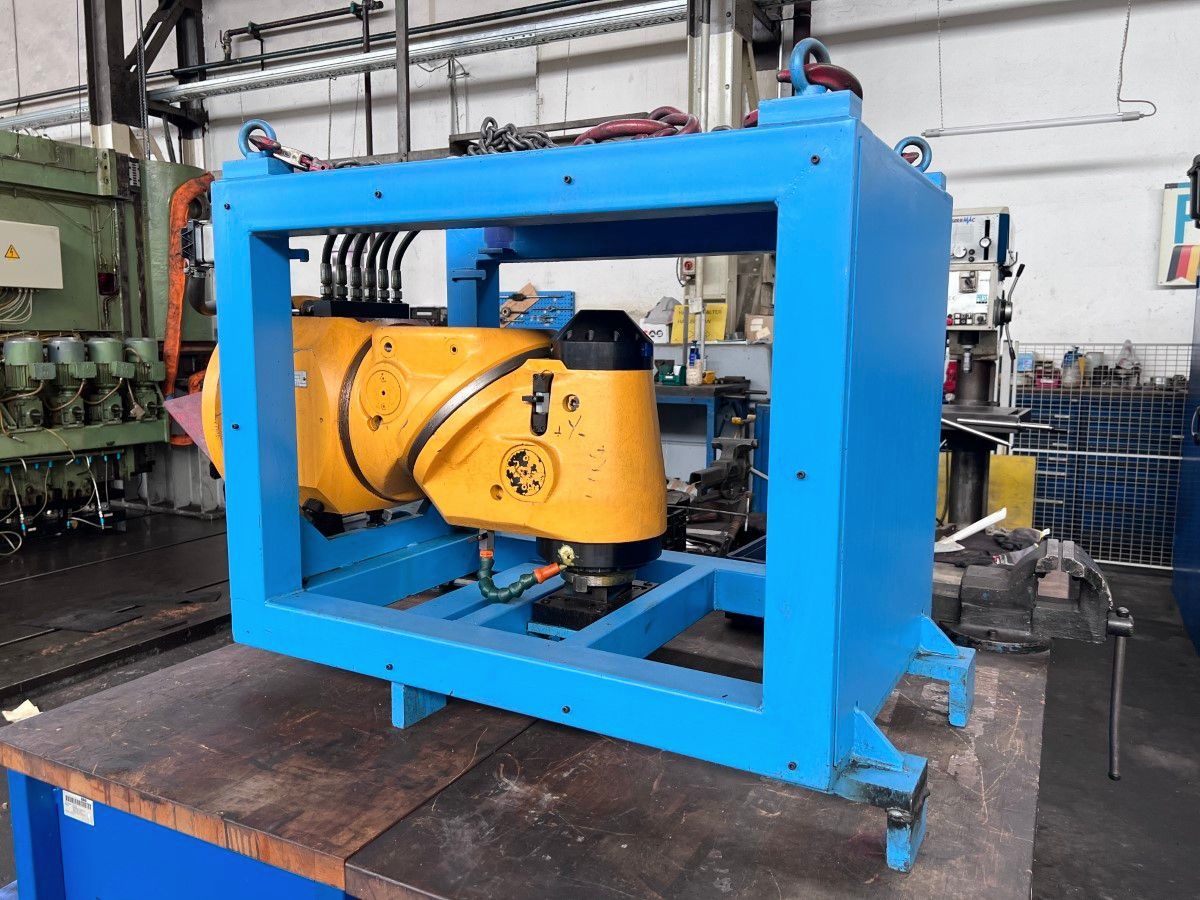

- HUI 50 automatic milling head

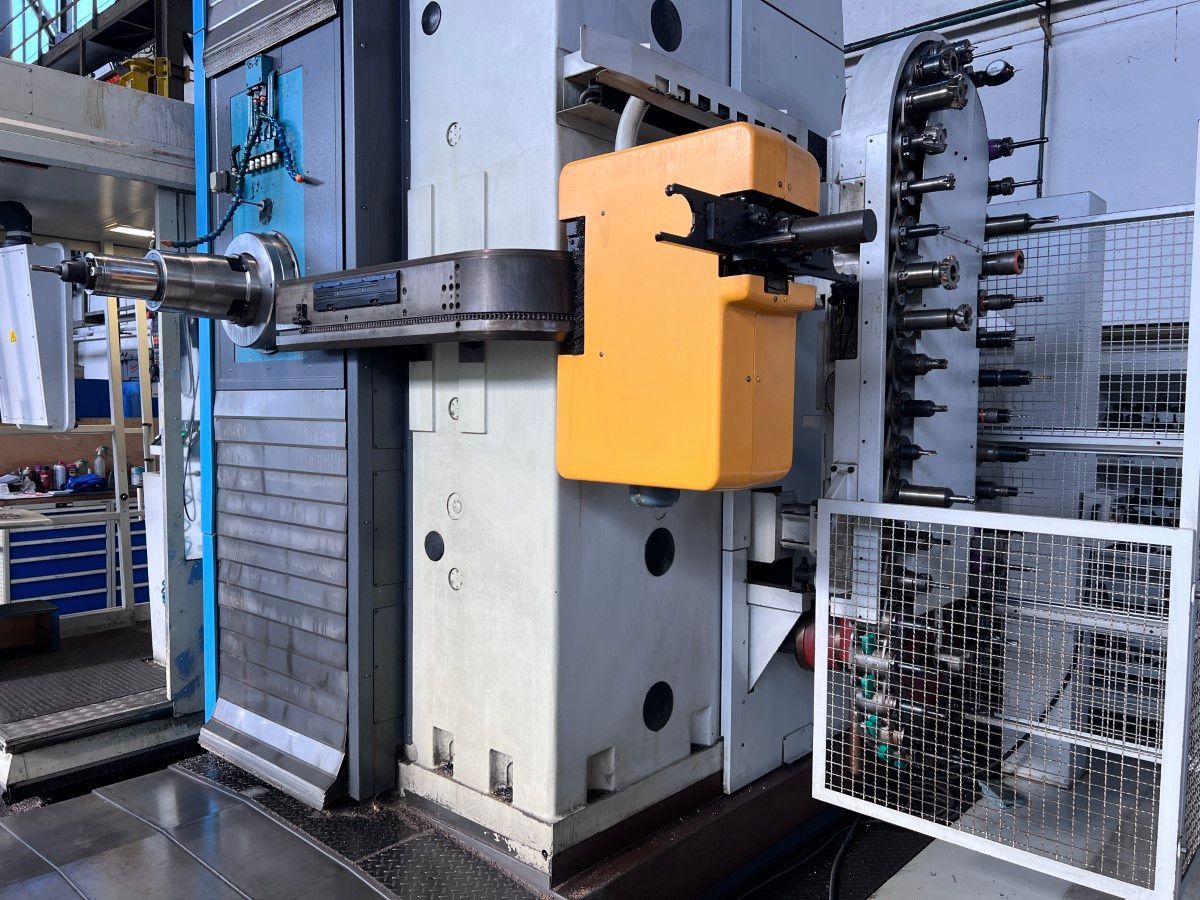

- 40-position tool changer (ISO 50)
- B-axis in rotary table
- Heidenhain optical scales
- NC rotary table
- Coolant system with paper belt filter, Coolant through Spindle 20bar
- Chip conveyor
- Heidenhain TS 460 measuring probe
- Movable operating platform
- Pfannenberg oil cooler
- Central lubrication
ca 4450h Spindle Hours
|
|
|
|
