| Stock-No. |
1020-20835 |
| Category |
Straightening Machine - Bar Material |
| Make |
SIMAC / SMS-MEER |
| Type |
RL 230-2M |
| New in |
1998 |
| Control |
Siemens SPS/PLC |
| Location |
ab Werk demontiert |
| Origin |
Italy |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| diameter |
20 - 100 mm |
| workpiece length |
3000 - 12000 mm |
| number of rolls |
2 |
| Control |
Siemens SPS/PLC |
| Tensile Strength |
70 kg/mm² |
| feed speeds |
60 m/min |
| Angle |
10 - 22 ° |
| main drive motor |
132 kW |
| roll speed |
180 U/min |
| total power requirement |
- kW |
| weight of the machine ca. |
24,5 t |
| dimensions of the machine ca. |
7500 x 3000 x 2850 m |
| Description |
Machine was retrofitted (Eletric) and not much used

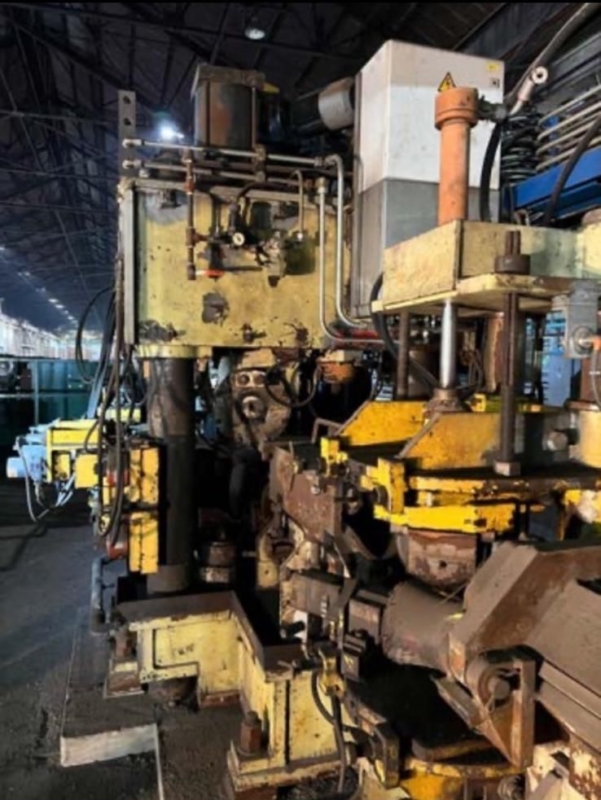

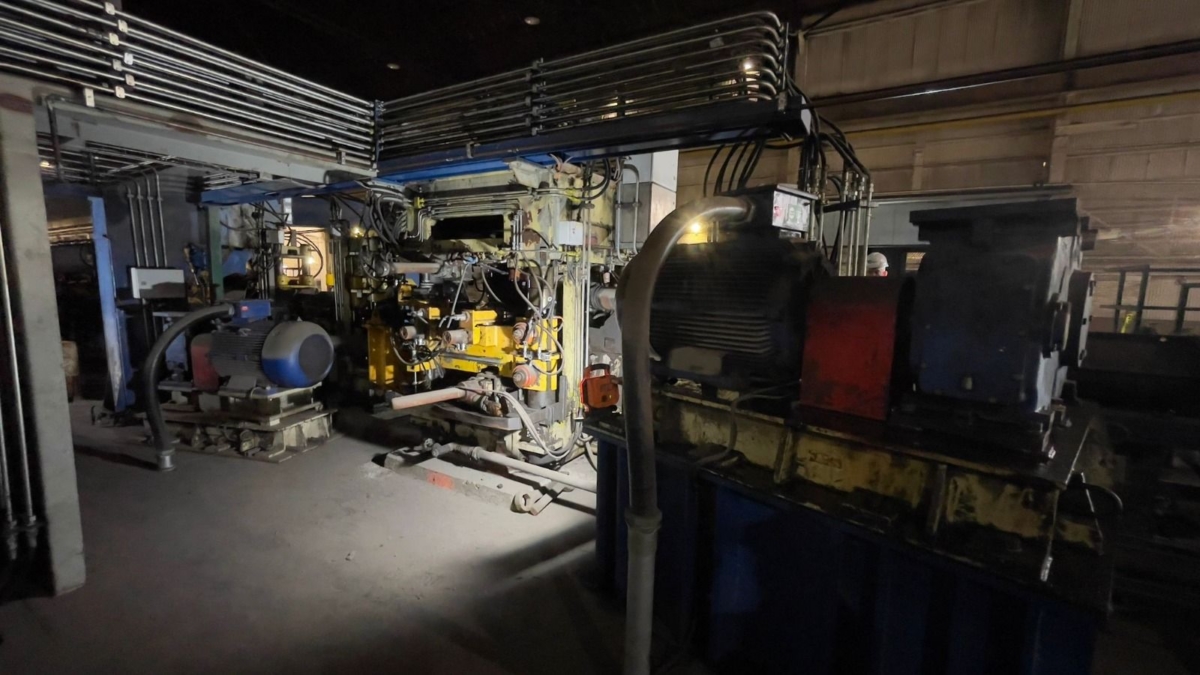

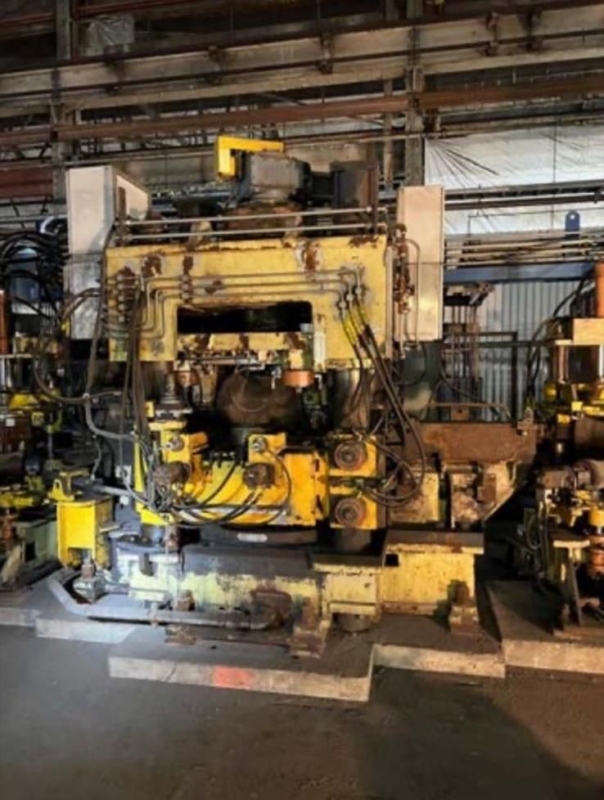

2 roller straightening machine, fully hydraulic and equipped with:
- Siemens PLC/SPS control system
- Hydraulic roller

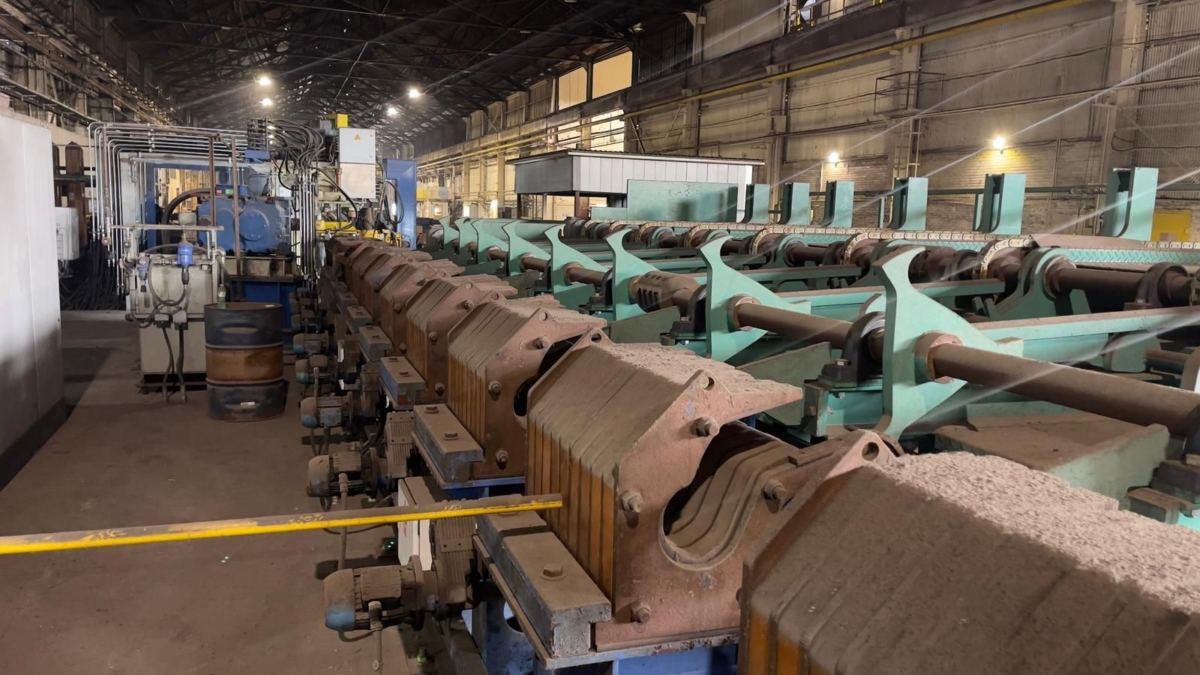

- Loading table with chain transport
- Infeed channel with pressure roller
- Pressure rollers
- Gearboxes and motors
- Siemens Sinamics drives

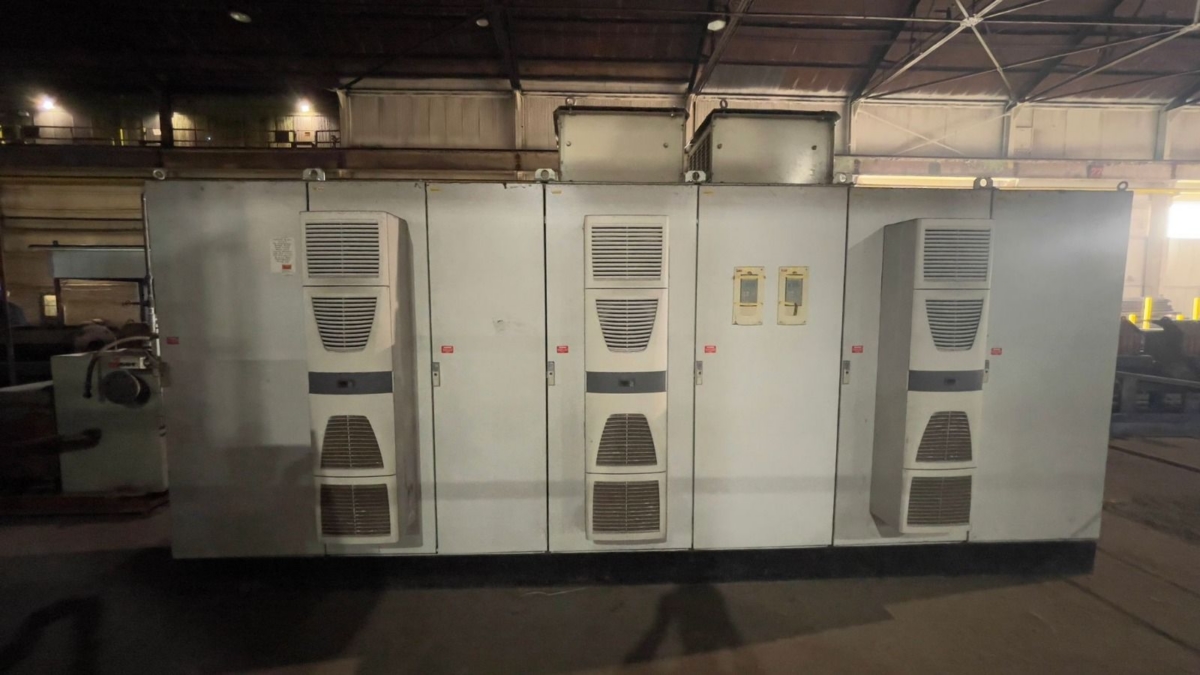

- New electrical system

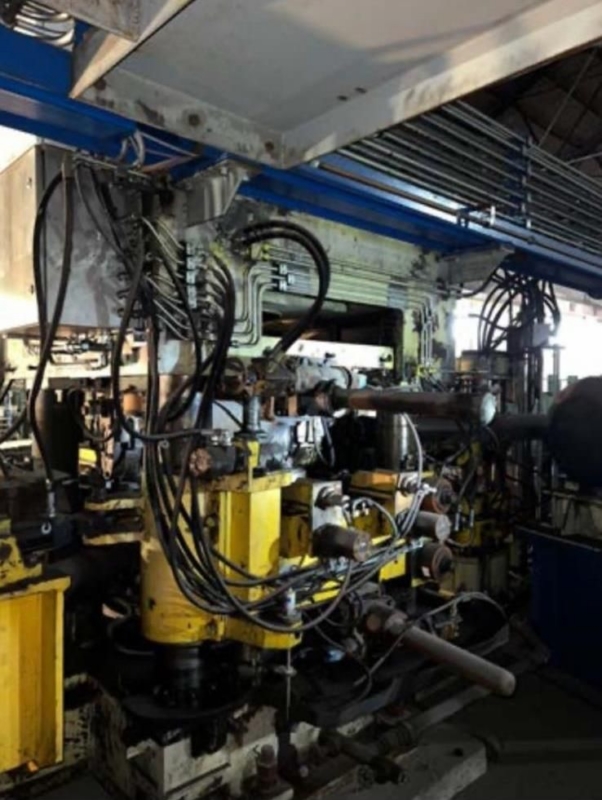

- Hydraulic units
- Spare set of rollers
- Machine with complete hydraulic adjustment
-- Upstroke of upper Roll: 210mm
-- Hydraulic cap Stroke: 13mm
-- Side Guides and Scrapers set at Exit: 20+35mm
35+65mm
65+100mm
-- Reduction Ratio of main reduction Unit 1:9.9
-- Reduction ratio of vert. transl. reduct. Unit 1:237
-- Reduction Ratio of angular adjus. reduc. Units 1:24
|
|
|
|
